2EH Series – ISO 16028 DP Multi-coupling plates (Steel)
This EH series is interchangeable with STUCCHI DP PLATE SERIES. The multicoupling series offers an efficient solution for simultaneous hydraulic line connections, featuring multiple configurable sets of 3/8″ or 1/2″ plugs and couplers operated via a steel handle for quick, secure engagement. Designed for demanding applications, all couplers are zinc-nickel plated for corrosion resistance and support connect-under-pressure functionality, ensuring reliable performance in high-pressure systems. The modular design allows individual coupler replacement after reaching their recommended service life.
2EH Series – ISO 16028 DP Multi-coupling plates (Steel)
This EH series is interchangeable with STUCCHI DP PLATE SERIES. The multicoupling series offers an efficient solution for simultaneous hydraulic line connections, featuring multiple configurable sets of 3/8″ or 1/2″ plugs and couplers operated via a steel handle for quick, secure engagement. Designed for demanding applications, all couplers are zinc-nickel plated for corrosion resistance and support connect-under-pressure functionality, ensuring reliable performance in high-pressure systems. The modular design allows individual coupler replacement after reaching their recommended service life.

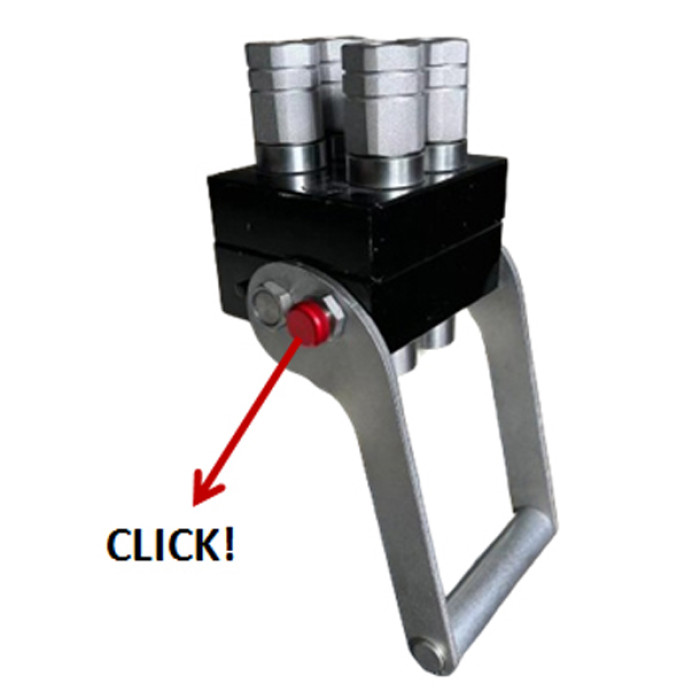

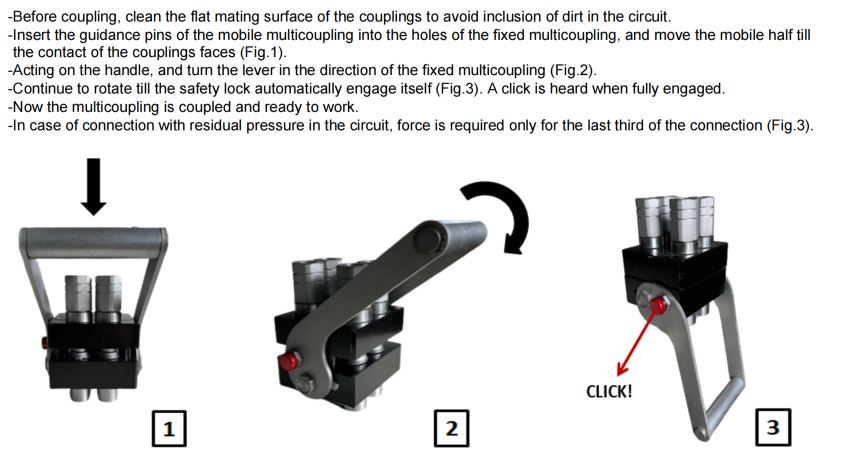

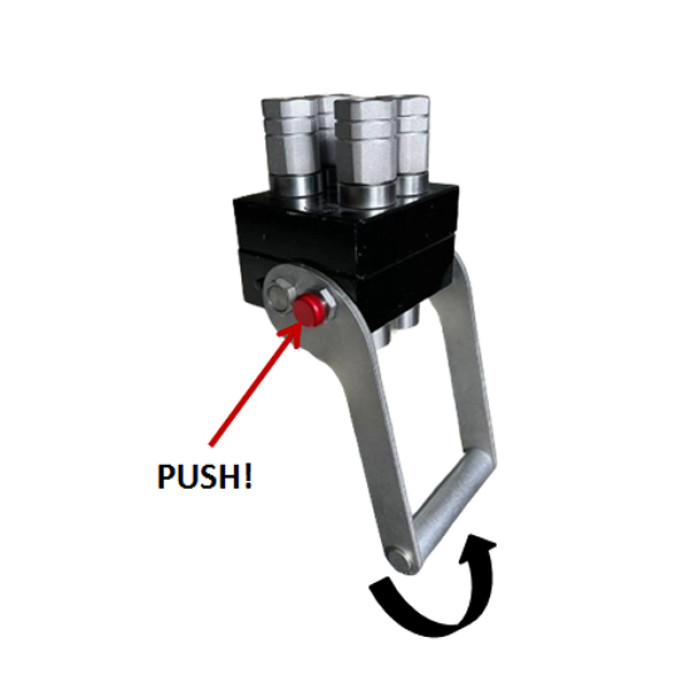

To Connect
To Connect

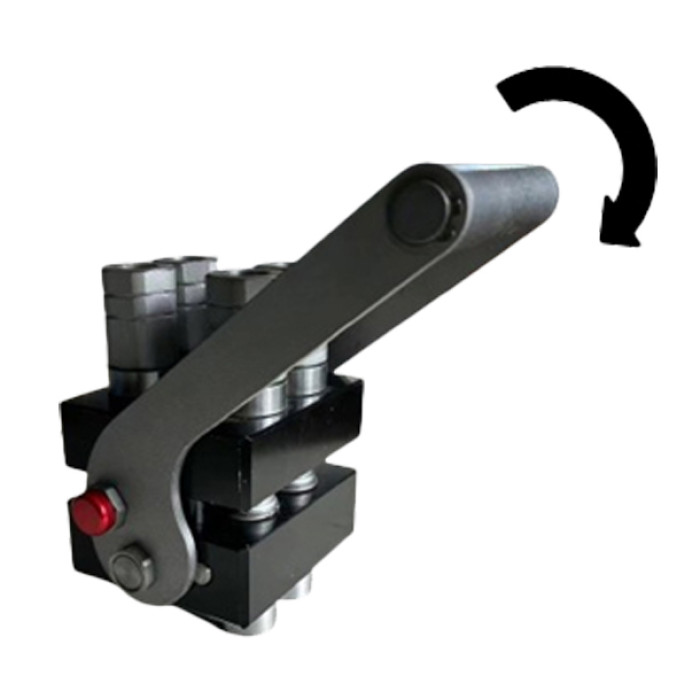

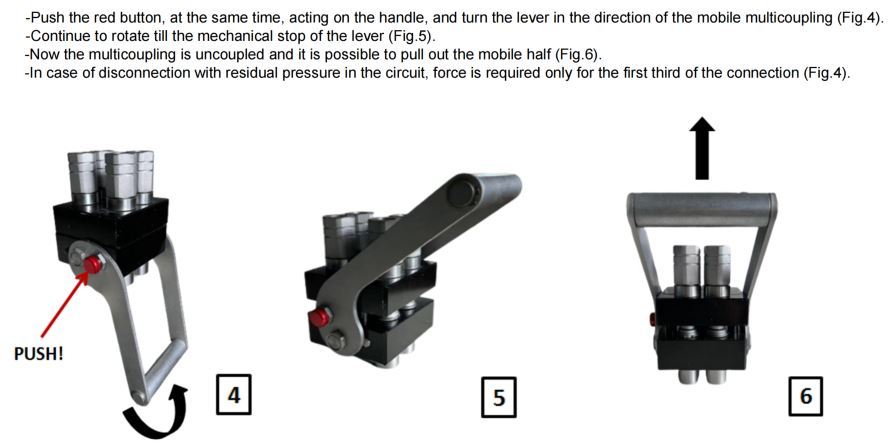

To Disconnect
To Disconnect
Fixed & Mobile Multicoupling
Fixed & Mobile Multicoupling

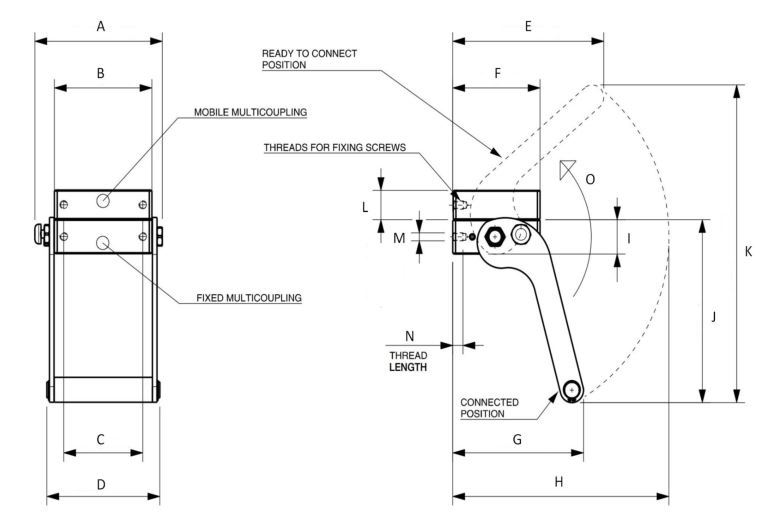

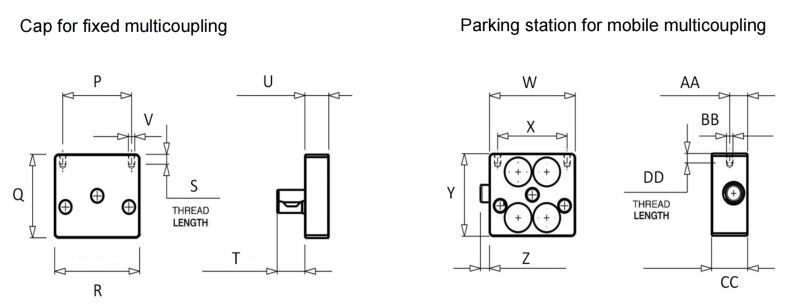

| Hydraulic Lines & Dimensions – Part 1 | ||||||||||
| Hydraulic Lines | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | I(mm) | J(mm) |
| 2×3/8” | 102.2 | 70 | 50 | 86.6 | 131.9 | 94 | 130.3 | 194 | 34.5 | 145 |
| 2×1/2” | 112.2 | 80 | 60 | 96.6 | 172.5 | 114 | 150.6 | 242.6 | 34.5 | 183.6 |
| 4×3/8” | 137.2 | 105 | 85 | 121.6 | 162.5 | 94 | 140.6 | 232.6 | 34.5 | 183.6 |
| 4×1/2” | 157.2 | 125 | 105 | 141.6 | 172.5 | 114 | 150.6 | 242.6 | 34.5 | 183.6 |
| 6×3/8” | 137.2 | 105 | 85 | 121.6 | 204.2 | 135.7 | 182.3 | 274.3 | 34.5 | 183.6 |
| 6×1/2” | 157.2 | 125 | 105 | 141.6 | 233.5 | 165 | 211.6 | 303.6 | 34.5 | 183.6 |
| Hydraulic Lines & Dimensions – Part 2 | ||||||||||
| Hydraulic Lines | K(mm) | L(mm) | M | N(mm) | O | P(mm) | Q(mm) | R(mm) | S(mm) | T(mm) |
| 2×3/8” | 254.4 | 29.3 | M8 | 11 | 115° | 50 | 93.5 | 70 | 11 | 34.5 |
| 2×1/2” | 318.8 | 33.1 | M8 | 17 | 115° | 60 | 113.5 | 80 | 17 | 34.5 |
| 4×3/8” | 318.8 | 29.3 | M8 | 11 | 115° | 85 | 93.5 | 105 | 11 | 34.5 |
| 4×1/2” | 318.8 | 33.1 | M8 | 17 | 115° | 105 | 113.5 | 125 | 17 | 34.5 |
| 6×3/8” | 318.8 | 29.3 | M8 | 11 | 115° | 85 | 134 | 105 | 11 | 34.5 |
| 6×1/2” | 318.8 | 33.1 | M8 | 17 | 115° | 105 | 164.8 | 125 | 17 | 34.5 |
| Hydraulic Lines & Dimensions – Part 3 | ||||||||||
| Hydraulic Lines | U(mm) | V | W(mm) | X(mm) | Y(mm) | Z(mm) | AA(mm) | BB | CC(mm) | DD(mm) |
| 2×3/8” | 29.3 | M8 | 70 | 50 | 94 | 10.9 | 22 | M8 | 44 | 11 |
| 2×1/2” | 33.1 | M8 | 80 | 60 | 114 | 10.9 | 22 | M8 | 44 | 17 |
| 4×3/8” | 29.3 | M8 | 105 | 85 | 94 | 10.9 | 22 | M8 | 44 | 11 |
| 4×1/2” | 33.1 | M8 | 125 | 105 | 114 | 10.9 | 22 | M8 | 44 | 17 |
| 6×3/8” | 29.3 | M8 | 105 | 85 | 134.5 | 10.9 | 22 | M8 | 44 | 11 |
| 6×1/2” | 33.1 | M8 | 125 | 105 | 164.8 | 10.9 | 22 | M8 | 44 | 17 |
| Part Numbers & Technical Data (2 Hydraulic Lines), Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | MultiCoupling Unit | Body Size(Inch) | Hydraulic Lines | Threads | Electric Lines |
| 2EH206-2-38G-MF | Mobile Half | 3/8” | 2×3/8” | 3/8” BSPP Female | / |
| 2EH206-2-38G-MF-P | Mobile Half + Park Station | 3/8” | 2×3/8” | 3/8” BSPPFemale | / |
| 2EH206-2-38G-FF | Fixed Half | 3/8” | 2×3/8” | 3/8” BSPPFemale | / |
| 2EH206-2-38G-FF-C | Fixed Half + Cap | 3/8” | 2×3/8” | 3/8” BSPPFemale | / |
| 2EH206-2-38G-F | Complete Set | 3/8” | 2×3/8” | 3/8” BSPPFemale | / |
| 2EH206-2-12G-MF | Mobile Half | 3/8” | 2×3/8” | 1/2” BSPPFemale | / |
| 2EH206-2-12G-MF-P | Mobile Half +Park Station | 3/8” | 2×3/8” | 1/2” BSPPFemale | / |
| 2EH206-2-12G-FF | Fixed Half | 3/8” | 2×3/8” | 1/2” BSPPFemale | / |
| 2EH206-2-12G-FF-C | Fixed Half + Cap | 3/8” | 2×3/8” | 1/2” BSPPFemale | / |
| 2EH206-2-12G-F | Complete Set | 3/8” | 2×3/8” | 1/2” BSPPFemale | / |
| 2EH208-2-12G-MF | Mobile Half | 1/2” | 2×1/2” | 1/2” BSPPFemale | / |
| 2EH208-2-12G-MF-P | Mobile Half +Park Station | 1/2” | 2×1/2” | 1/2” BSPPFemale | / |
| 2EH208-2-12G-FF | Fixed Half | 1/2” | 2×1/2” | 1/2” BSPPFemale | / |
| 2EH208-2-12G-FF-C | Fixed Half + Cap | 1/2” | 2×1/2” | 1/2” BSPPFemale | / |
| 2EH208-2-12G-F | Complete Set | 1/2” | 2×1/2” | 1/2” BSPPFemale | / |
| 2EH208-2-34G-MF | Mobile Half | 1/2” | 2×1/2” | 3/4” BSPPFemale | / |
| 2EH208-2-34G-MF-P | Mobile Half +Park Station | 1/2” | 2×1/2” | 3/4” BSPPFemale | / |
| 2EH208-2-34G-FF | Fixed Half | 1/2” | 2×1/2” | 3/4” BSPPFemale | / |
| 2EH208-2-34G-FF-C | Fixed Half + Cap | 1/2” | 2×1/2” | 3/4” BSPPFemale | / |
| 2EH208-2-34G-F | Complete Set | 1/2” | 2×1/2” | 3/4” BSPPFemale | / |
| Part Numbers & Technical Data (4 Hydraulic Lines), Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | MultiCoupling Unit | Body Size(Inch) | Hydraulic Lines | Threads | Electric Lines |
| 2EH206-4-38G-MF | Mobile Half | 3/8” | 4×3/8” | 3/8” BSPP Female | / |
| 2EH206-4-38G-MF-P | Mobile Half + Park Station | 3/8” | 4×3/8” | 3/8” BSPPFemale | / |
| 2EH206-4-38G-FF | Fixed Half | 3/8” | 4×3/8” | 3/8” BSPPFemale | / |
| 2EH206-4-38G-FF-C | Fixed Half + Cap | 3/8” | 4×3/8” | 3/8” BSPPFemale | / |
| 2EH206-4-38G-F | Complete Set | 3/8” | 4×3/8” | 3/8” BSPPFemale | / |
| 2EH206-4-12G-MF | Mobile Half | 3/8” | 4×3/8” | 1/2” BSPPFemale | / |
| 2EH206-4-12G-MF-P | Mobile Half +Park Station | 3/8” | 4×3/8” | 1/2” BSPPFemale | / |
| 2EH206-4-12G-FF | Fixed Half | 3/8” | 4×3/8” | 1/2” BSPPFemale | / |
| 2EH206-4-12G-FF-C | Fixed Half + Cap | 3/8” | 4×3/8” | 1/2” BSPPFemale | / |
| 2EH206-4-12G-F | Complete Set | 3/8” | 4×3/8” | 1/2” BSPPFemale | / |
| 2EH208-4-12G-MF | Mobile Half | 1/2” | 4×1/2” | 1/2” BSPPFemale | / |
| 2EH208-4-12G-MF-P | Mobile Half +Park Station | 1/2” | 4×1/2” | 1/2” BSPPFemale | / |
| 2EH208-4-12G-FF | Fixed Half | 1/2” | 4×1/2” | 1/2” BSPPFemale | / |
| 2EH208-4-12G-FF-C | Fixed Half + Cap | 1/2” | 4×1/2” | 1/2” BSPPFemale | / |
| 2EH208-4-12G-F | Complete Set | 1/2” | 4×1/2” | 1/2” BSPPFemale | / |
| 2EH208-4-34G-MF | Mobile Half | 1/2” | 4×1/2” | 3/4” BSPPFemale | / |
| 2EH208-4-34G-MF-P | Mobile Half +Park Station | 1/2” | 4×1/2” | 3/4” BSPPFemale | / |
| 2EH208-4-34G-FF | Fixed Half | 1/2” | 4×1/2” | 3/4” BSPPFemale | / |
| 2EH208-4-34G-FF-C | Fixed Half + Cap | 1/2” | 4×1/2” | 3/4” BSPPFemale | / |
| 2EH208-4-34G-F | Complete Set | 1/2” | 4×1/2” | 3/4” BSPPFemale | / |
| Part Numbers & Technical Data (6 Hydraulic Lines), Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | MultiCoupling Unit | Body Size(Inch) | Hydraulic Lines | Threads | Electric Lines |
| 2EH206-6-38G-MF | Mobile Half | 3/8” | 6×3/8” | 3/8” BSPP Female | / |
| 2EH206-6-38G-MF-P | Mobile Half + Park Station | 3/8” | 6×3/8” | 3/8” BSPPFemale | / |
| 2EH206-6-38G-FF | Fixed Half | 3/8” | 6×3/8” | 3/8” BSPPFemale | / |
| 2EH206-6-38G-FF-C | Fixed Half + Cap | 3/8” | 6×3/8” | 3/8” BSPPFemale | / |
| 2EH206-6-38G-F | Complete Set | 3/8” | 6×3/8” | 3/8” BSPPFemale | / |
| 2EH206-6-12G-MF | Mobile Half | 3/8” | 6×3/8” | 1/2” BSPPFemale | / |
| 2EH206-6-12G-MF-P | Mobile Half +Park Station | 3/8” | 6×3/8” | 1/2” BSPPFemale | / |
| 2EH206-6-12G-FF | Fixed Half | 3/8” | 6×3/8” | 1/2” BSPPFemale | / |
| 2EH206-6-12G-FF-C | Fixed Half + Cap | 3/8” | 6×3/8” | 1/2” BSPPFemale | / |
| 2EH206-6-12G-F | Complete Set | 3/8” | 6×3/8” | 1/2” BSPPFemale | / |
| 2EH208-6-12G-MF | Mobile Half | 1/2” | 6×1/2” | 1/2” BSPPFemale | / |
| 2EH208-6-12G-MF-P | Mobile Half +Park Station | 1/2” | 6×1/2” | 1/2” BSPPFemale | / |
| 2EH208-6-12G-FF | Fixed Half | 1/2” | 6×1/2” | 1/2” BSPPFemale | / |
| 2EH208-6-12G-FF-C | Fixed Half + Cap | 1/2” | 6×1/2” | 1/2” BSPPFemale | / |
| 2EH208-6-12G-F | Complete Set | 1/2” | 6×1/2” | 1/2” BSPPFemale | / |
| 2EH208-6-34G-MF | Mobile Half | 1/2” | 6×1/2” | 3/4” BSPPFemale | / |
| 2EH208-6-34G-MF-P | Mobile Half +Park Station | 1/2” | 6×1/2” | 3/4” BSPPFemale | / |
| 2EH208-6-34G-FF | Fixed Half | 1/2” | 6×1/2” | 3/4” BSPPFemale | / |
| 2EH208-6-34G-FF-C | Fixed Half + Cap | 1/2” | 6×1/2” | 3/4” BSPPFemale | / |
| 2EH208-6-34G-F | Complete Set | 1/2” | 6×1/2” | 3/4” BSPPFemale | / |

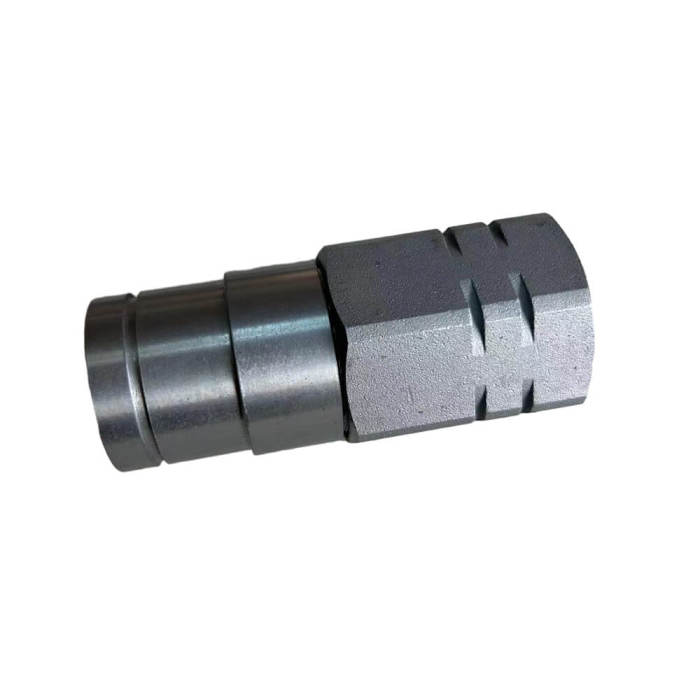

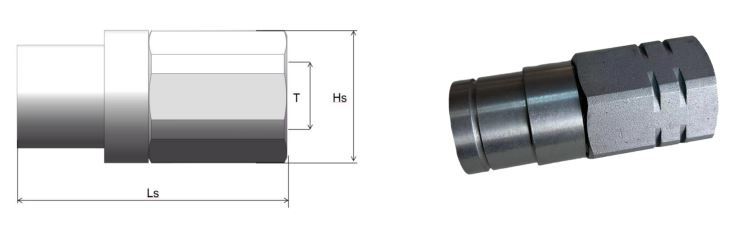

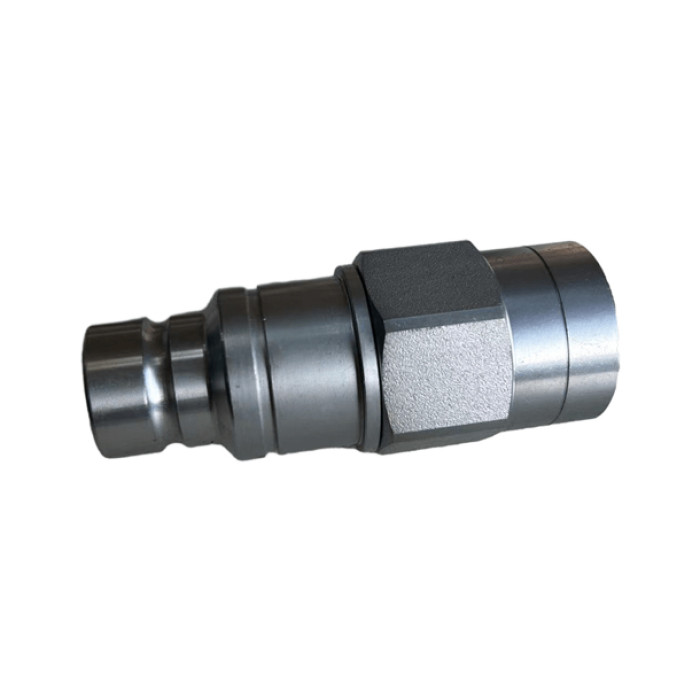

Replacement Female Coupler
Replacement Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (Inch) | Ls(mm) | Hs(mm) | T |
| 2EHC06-38G-F | 3/8” | 72.4 | S30 | 3/8″ BSPP Female |
| 2EHC06-12G-F | 3/8” | 72.4 | S30 | 1/2″ BSPP Female |
| 2EHC08-12G-F | 1/2” | 84.2 | S36 | 1/2″ BSPP Female |
| 2EHC08-34G-F | 1/2” | 84.2 | S36 | 3/4″ BSPP Female |

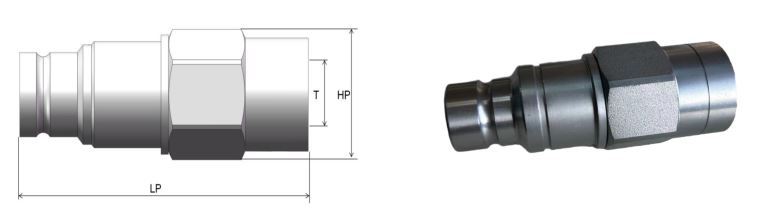

Replacement Male Plug
Replacement Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (Inch) | Lp(mm) | Hp(mm) | T |
| 2EHP06-38G-F | 3/8” | 80 | S27 | 3/8″ BSPP Female |
| 2EHP06-12G-F | 3/8” | 80 | S27 | 1/2″ BSPP Female |
| 2EHP08-12G-F | 1/2” | 91 | S36 | 1/2″ BSPP Female |
| 2EHP08-34G-F | 1/2” | 91 | S36 | 3/4″ BSPP Female |
Technical Specifications
Technical Specifications
| Coupler Dash Size | Coupler Body Size (Inch) | Max. Work PressureMobile Half(bar) | Min. BurstPressureMobile Half(bar) | Max. WorkPressureFixed Half(bar) | Min. BurstPressureFixed Half(bar) | Max. Work PressureReplacement Male Plug(bar) | Min. BurstPressureReplacement Male Plug(bar) | Max. WorkPressureReplacement Female Coupler(bar) | Min. BurstPressure Replacement FemaleCoupler(bar) |
| 06 | 3/8” | 350 | 1000 | 350 | 1200 | 350 | 1200 | 350 | 1000 |
| 08 | 1/2” | 330 | 1000 | 330 | 1200 | 330 | 1200 | 330 | 1000 |
| Material: | Steel, Aluminum | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 1000 (ZnNi) | |
| Specifications: | Market Interchange | STUCCHI DP PLATE SERIES |
| Valve Type: | Flat | |
| Connection: | Lever | |
| Disconnection: | Lever | |
| Connection Under Pressure: | Allowed Residual | |
