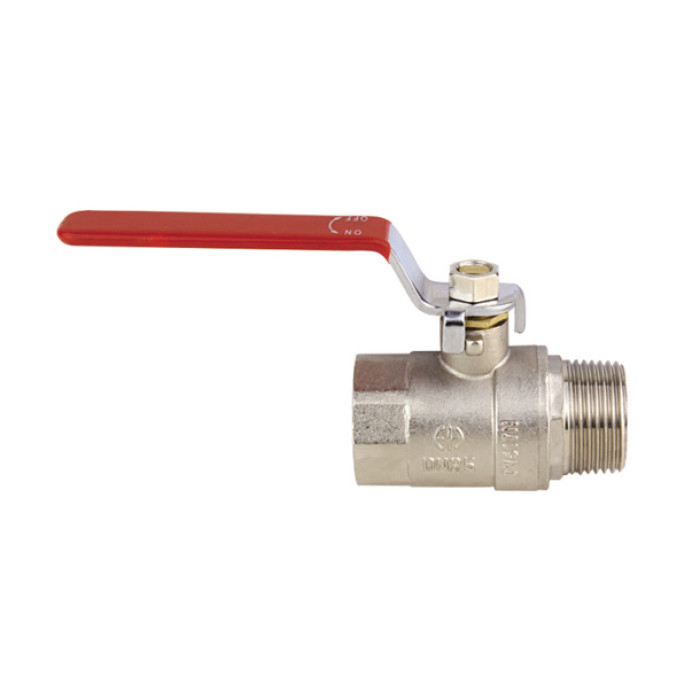

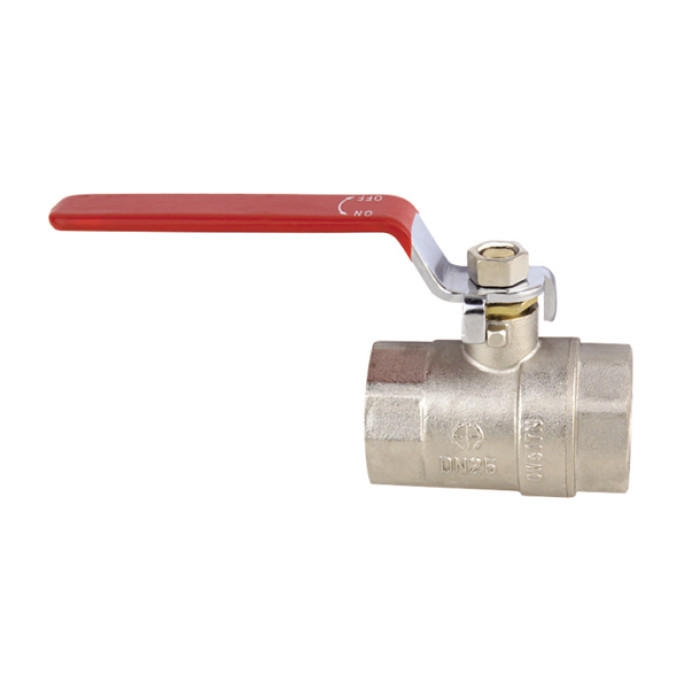

EH 1001,1002 Series | Low Pressure Brass Ball Valve (Brass)
Brass product. Suitable for industrial, pneumatic, domestic and hydraulic installations. Steam, gasoline, fuel, oils, diesel, kerosene, acids, compressed air, etc. Minimum and maximum operating temperatures: -15 °C to 120 °C. Available in diameters from 6.35 mm to 5.16 mm.
Call Tawk.to
contact@ehhydraulics.com
EH 1001,1002 Series | Low Pressure Brass Ball Valve (Brass)
Brass product. Suitable for industrial, pneumatic, domestic and hydraulic installations. Steam, gasoline, fuel, oils, diesel, kerosene, acids, compressed air, etc. Minimum and maximum operating temperatures: -15 °C to 120 °C. Available in diameters from 6.35 mm to 5.16 mm.
Call Tawk.to
contact@ehhydraulics.com
Dimensions
| Other threads/fitting ends are available upon request | |||||
| Body size (inches) | Un(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 1/4” | 41,8 | 8 | 21,5 | 65,5 | 41 |
| 3/8” | 45 | 10 | 25 | 65,5 | 42 |
| 1/2” | 53 | 14 | 29 | 91,5 | 47,2 |
| 3/4” | 60,7 | 19 | 35,5 | 101 | 56 |
| 1” | 69 | 23 | 42 | 118 | 61,5 |
| 1-1/4” | 84 | 31 | 55,5 | 114,5 | 68 |
| 1-1/2” | 98 | 39,5 | 68 | 176 | 81 |
| 2” | 118 | 48 | 83 | 176 | 87,5 |
| Other threads/fitting ends are available upon request | |||||
| Body size (inches) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 1/4” | 52 | 8 | 21,5 | 65,5 | 41 |
| 3/8” | 55 | 10 | 25 | 65,5 | 42 |
| 1/2” | 59 | 14 | 29 | 91,5 | 47,2 |
| 3/4” | 68,2 | 19 | 35,5 | 101 | 56 |
| 1” | 76,2 | 23 | 42 | 118 | 61,5 |
| 1-1/4” | 94,5 | 31 | 55,5 | 114,5 | 68 |
| 1-1/2” | 104,5 | 39,5 | 68 | 176 | 81 |
| 2” | 130 | 48 | 83 | 176 | 87,5 |
Technical specifications
| Dashboard size | Body Height(Inch) | Maximum working pressure (bar) |
| 04 | 1/4” | 25 |
| 06 | 3/8” | 25 |
| 08 | 1/2” | 25 |
| 12 | 3/4” | 25 |
| 16 | 1” | 25 |
| 20 | 1-1/4” | 25 |
| 24 | 1-1/2” | 25 |
| 32 | 2” | 25 |
| Material: | Brass | |
| Sealed: | NBR, seals can be customized to meet your specific working conditions/substrates | |
| Operating temperatures : | -25°C to 125°C, customizable | |
| Surface finishing: | / | |
| Features: | Series exchange: | / |
| Valve type : | Ball | |
| Login: | Handle | |
| Cut: | Handle | |
| Connection under pressure : | Not allowed | |
RELATED PRODUCTS

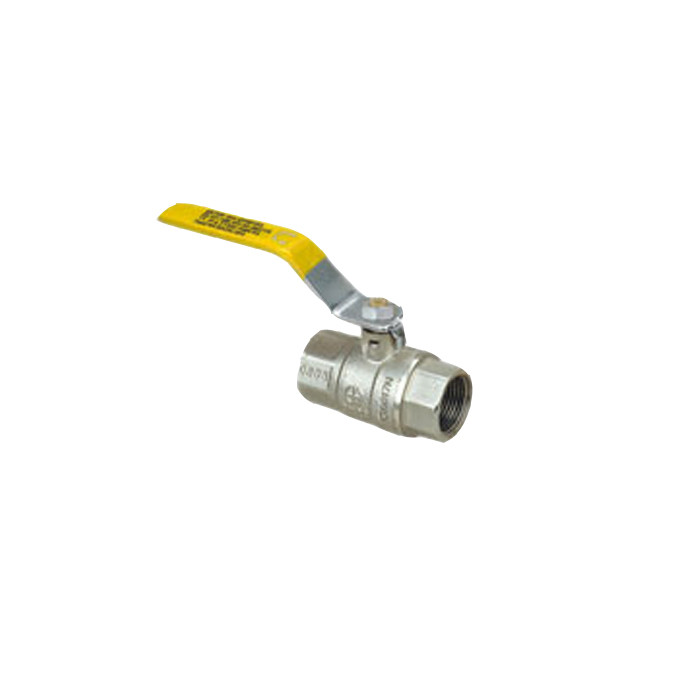

EH 1080-1083 UK Forged Brass Gas Ball Valve
