EH 155 Series – CEJN 115 Quick Couplings for Ultra High Pressure applications-100 MPa (Steel)
This EH series is interchangeable with CEJN 115 SERIES, VOSWINKEL HC SERIES, FASTER UHP 100 SERIES, and DNP PCJ5 SERIES. Representing EH’s most advanced hydraulic coupling technology, the 155 series is engineered for extreme-pressure applications exceeding 100 MPa. These couplings combine unparalleled reliability with robust construction, featuring redundant safety systems that incorporate both visual indicators and mechanical interlocks. Designed for mission-critical operations, the 155 series delivers exceptional performance where standard hydraulic connections would fail, making it the premier solution for ultra-high-pressure systems demanding absolute operational security and durability.
Interchange
- VOSWINKEL HC SERIES
- FASTER UHP 100 SERIES
- DNP PCJ5 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 155 Series – CEJN 115 Quick Couplings for Ultra High Pressure applications-100 MPa (Steel)
This EH series is interchangeable with CEJN 115 SERIES, VOSWINKEL HC SERIES, FASTER UHP 100 SERIES, and DNP PCJ5 SERIES. Representing EH’s most advanced hydraulic coupling technology, the 155 series is engineered for extreme-pressure applications exceeding 100 MPa. These couplings combine unparalleled reliability with robust construction, featuring redundant safety systems that incorporate both visual indicators and mechanical interlocks. Designed for mission-critical operations, the 155 series delivers exceptional performance where standard hydraulic connections would fail, making it the premier solution for ultra-high-pressure systems demanding absolute operational security and durability.
Interchange
- VOSWINKEL HC SERIES
- FASTER UHP 100 SERIES
- DNP PCJ5 SERIES
Call Tawk.to
contact@ehhydraulics.com

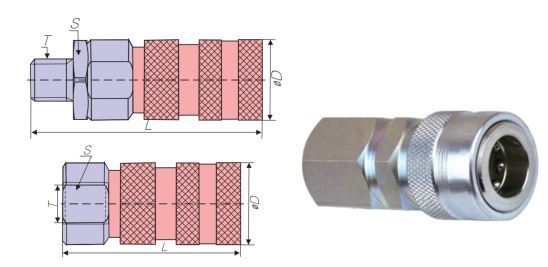

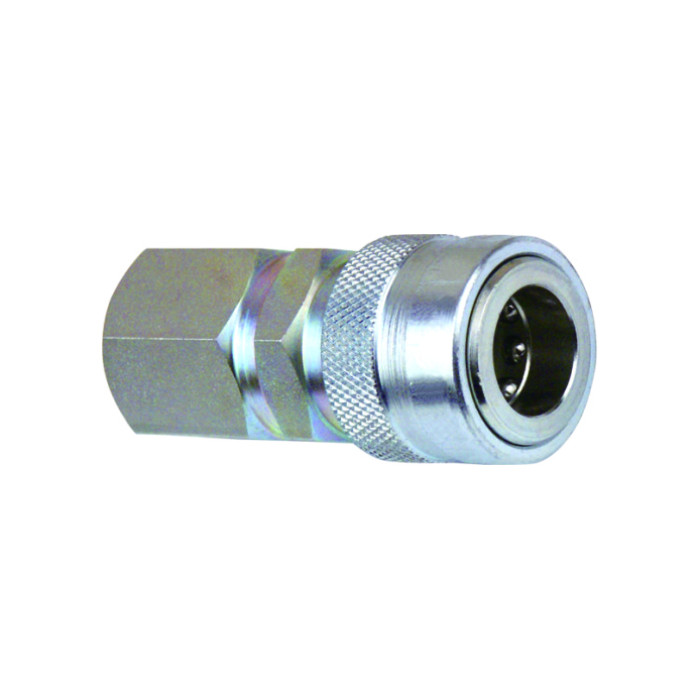

Female Coupler
Female Coupler
| Female Thread, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | D(mm) | S(mm) | L(mm) | T |
| HFSFC15514-Rc1/4″ | 1/4” | 27 | 24 | 62.5 | Rc 1/4″ |
| HFSFC15514-Rc3/8″ | 1/4” | 27 | 24 | 62.5 | Rc 3/8″ |
| HFSFC15514-G1/4″ | 1/4” | 27 | 24 | 62.5 | G1/4″ |
| HFSFC15514-G3/8″ | 1/4” | 27 | 24 | 62.5 | G3/8″ |
| HFSFC15514-1/4″NPT | 1/4” | 27 | 24 | 62.5 | 1/4″NPT |
| HFSFC15514-3/8″NPT | 1/4” | 27 | 24 | 62.5 | 3/8″NPT |
| Male Thread, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | D(mm) | S(mm) | L(mm) | T |
| HFSMC15514-R1/4″ | 1/4” | 27 | 24 | 80 | R 1/4″ |
| HFSMC15514-R3/8″ | 1/4” | 27 | 24 | 82 | R 3/8″ |
| HFSMC15514-1/4″NPT | 1/4” | 27 | 24 | 80 | 1/4″NPT |
| HFSMC15514-3/8″NPT | 1/4” | 27 | 24 | 82 | 3/8″NPT |

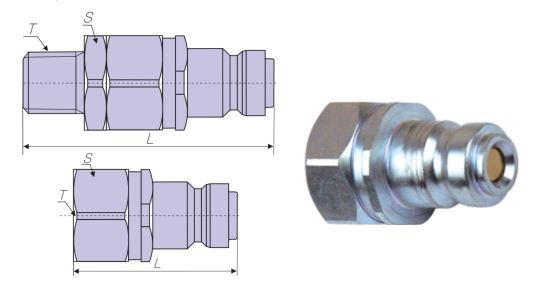

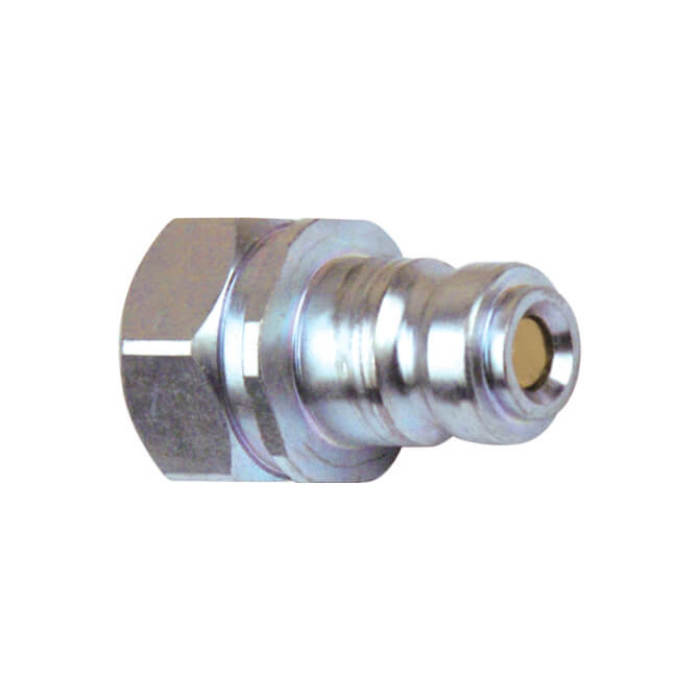

Male Plug
Male Plug
| Female Thread, Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | S(mm) | L(mm) | T |
| HFSFP15514-Rc1/4″ | 1/4” | 22 | 38 | Rc 1/4″ |
| HFSFP15514-Rc3/8″ | 1/4” | 22 | 38 | Rc 3/8″ |
| HFSFP15514-G1/4″ | 1/4” | 22 | 38 | G1/4″ |
| HFSFP15514-G3/8″ | 1/4” | 22 | 38 | G3/8″ |
| HFSFP15514-1/4″NPT | 1/4” | 22 | 38 | 1/4″NPT |
| HFSFP15514-3/8″NPT | 1/4” | 22 | 38 | 3/8″NPT |
| Male Thread, Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | S(mm) | L(mm) | T |
| HFSMP15614-R1/4″ | 1/4” | 22 | 60 | R 1/4″ |
| HFSMP15614-R3/8″ | 1/4” | 22 | 60 | R 3/8″ |
| HFSMP15614-1/4″NPT | 1/4” | 22 | 60 | 1/4″NPT |
| HFSMP15614-3/8″NPT | 1/4” | 22 | 60 | 3/8″NPT |

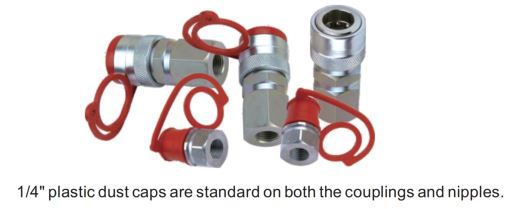

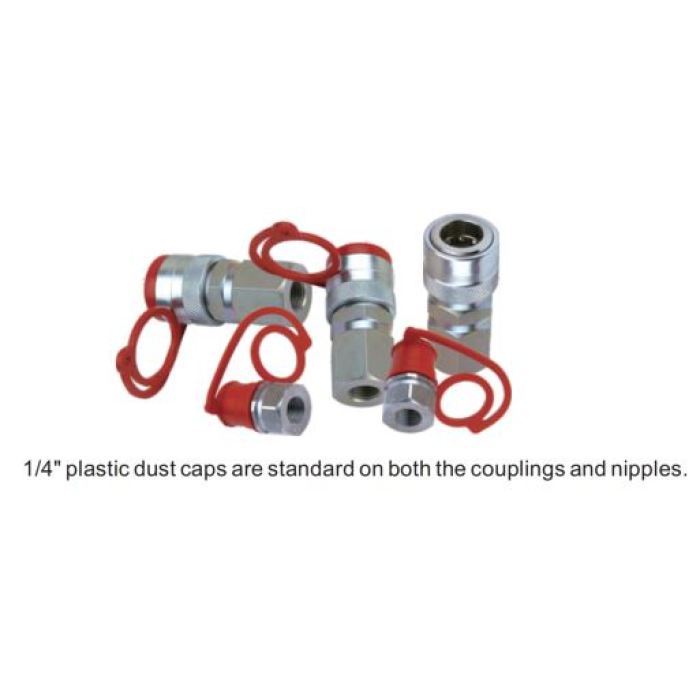

Accessories
Accessories
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4″ | 1000 | 1000 | 1000 | 2600 | 2600 | 2600 | 0.008 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | CEJN 115 SERIESVOSWINKEL HC SERIESFASTER UHP 100 SERIESDNP PCJ5 SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

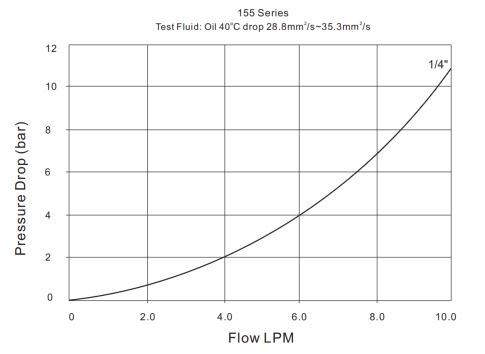

Pressure Drop
Pressure Drop
RELATED PRODUCTS

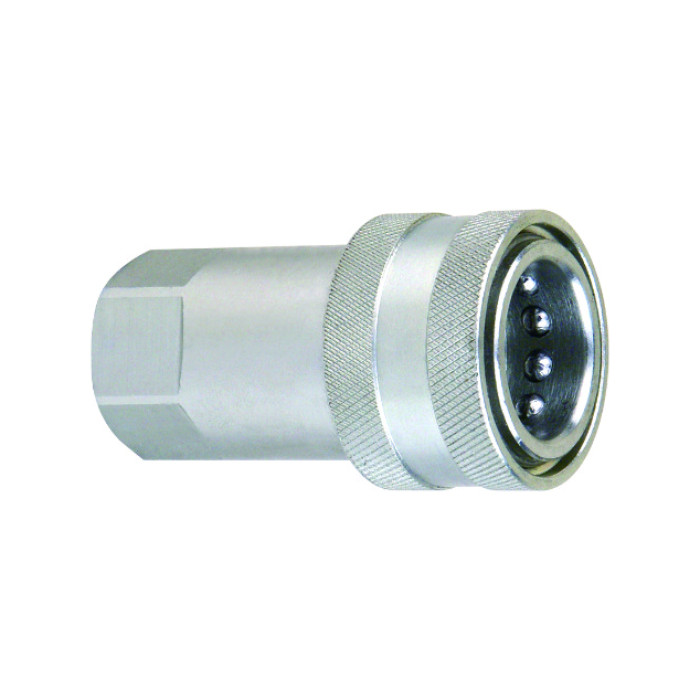

EH 156 CEJN 116 150MPa Quick Coupling Steel
