EH 156 Series – CEJN 116 Quick Couplings For Ultra High Pressure Applications-150 MPa (Steel)
This EH series is interchangeable with CEJN 116 SERIES, VOSWINKEL HD SERIES, FASTER UHP 150 SERIES, DNP PCJ6 SERIES, and PARKER HP SERIES. Representing EH’s most advanced hydraulic coupling technology, the 156 series is engineered for extreme-pressure applications exceeding 150 MPa. These couplings combine unparalleled reliability with robust construction, featuring redundant safety systems that incorporate both visual indicators and mechanical interlocks. Designed for mission-critical operations, the 156 series delivers exceptional performance where standard hydraulic connections would fail, making it the premier solution for ultra-high-pressure systems demanding absolute operational security and durability.
Interchange
- CEJN 116 SERIES
- DNP PCJ6 SERIES
- VOSWINKEL HD SERIES
- PARKER HP SERIES
- FASTER UHP 150 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 156 Series – CEJN 116 Quick Couplings For Ultra High Pressure Applications-150 MPa (Steel)
This EH series is interchangeable with CEJN 116 SERIES, VOSWINKEL HD SERIES, FASTER UHP 150 SERIES, DNP PCJ6 SERIES, and PARKER HP SERIES. Representing EH’s most advanced hydraulic coupling technology, the 156 series is engineered for extreme-pressure applications exceeding 150 MPa. These couplings combine unparalleled reliability with robust construction, featuring redundant safety systems that incorporate both visual indicators and mechanical interlocks. Designed for mission-critical operations, the 156 series delivers exceptional performance where standard hydraulic connections would fail, making it the premier solution for ultra-high-pressure systems demanding absolute operational security and durability.
Interchange
- CEJN 116 SERIES
- DNP PCJ6 SERIES
- VOSWINKEL HD SERIES
- PARKER HP SERIES
- FASTER UHP 150 SERIES
Call Tawk.to
contact@ehhydraulics.com

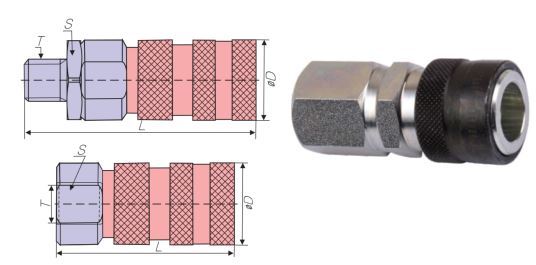

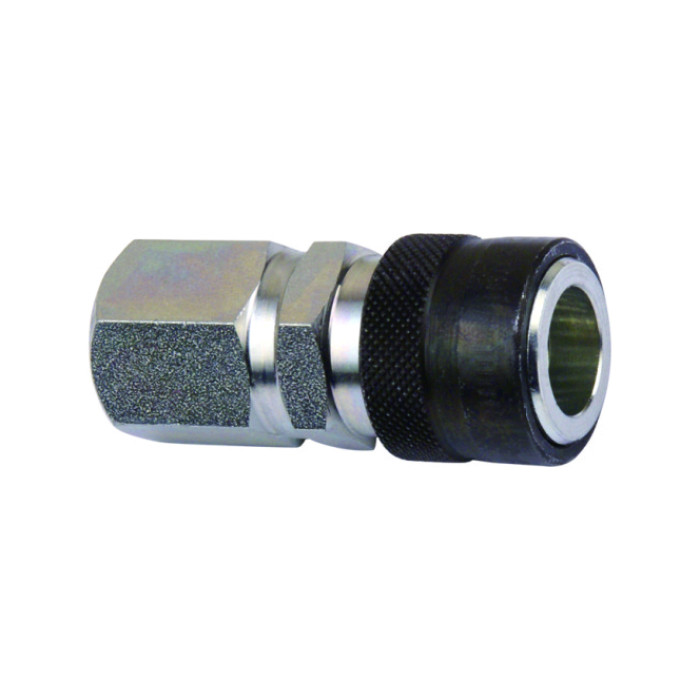

Female Coupler
Female Coupler
| Female Thread, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | D(mm) | S(mm) | L(mm) | T |
| HFSFC15614-Rc1/4″ | 1/4” | 27 | 24 | 62.5 | Rc 1/4″ |
| HFSFC15614-Rc3/8″ | 1/4” | 27 | 24 | 62.5 | Rc 3/8″ |
| HFSFC15614-G1/4″ | 1/4” | 27 | 24 | 62.5 | G1/4″ |
| HFSFC15614-G3/8″ | 1/4” | 27 | 24 | 62.5 | G3/8″ |
| HFSFC15614-1/4″NPT | 1/4” | 27 | 24 | 62.5 | 1/4″NPT |
| HFSFC15614-3/8″NPT | 1/4” | 27 | 24 | 62.5 | 3/8″NPT |
| Male Thread, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | D(mm) | S(mm) | L(mm) | T |
| HFSMC15614-R1/4″ | 1/4” | 27 | 24 | 80 | R 1/4″ |
| HFSMC15614-R3/8″ | 1/4” | 27 | 24 | 82 | R 3/8″ |
| HFSMC15614-1/4″NPT | 1/4” | 27 | 24 | 80 | 1/4″NPT |
| HFSMC15614-3/8″NPT | 1/4” | 27 | 24 | 82 | 3/8″NPT |

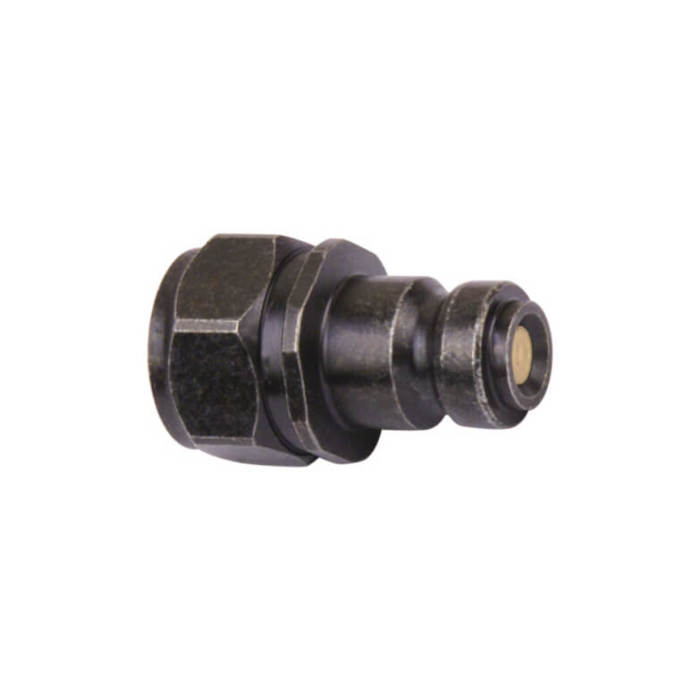

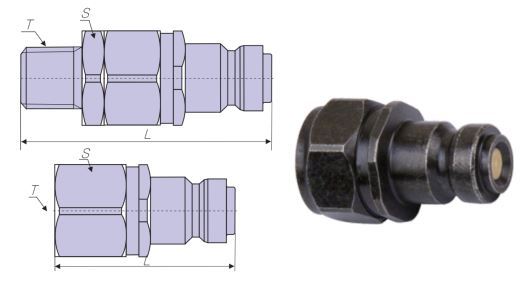

Male Plug
Male Plug
| Female Thread, Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | S(mm) | L(mm) | T |
| HFSFP15614-Rc1/4″ | 1/4” | 22 | 38 | Rc 1/4″ |
| HFSFP15614-Rc3/8″ | 1/4” | 22 | 38 | Rc 3/8″ |
| HFSFP15614-G1/4″ | 1/4” | 22 | 38 | G1/4″ |
| HFSFP15614-G3/8″ | 1/4” | 22 | 38 | G3/8″ |
| HFSFP15614-1/4″NPT | 1/4” | 22 | 38 | 1/4″NPT |
| HFSFP15614-3/8″NPT | 1/4” | 22 | 38 | 3/8″NPT |
| Male Thread, Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | S(mm) | L(mm) | T |
| HFSMP15614-R1/4″ | 1/4” | 22 | 60 | R 1/4″ |
| HFSMP15614-R3/8″ | 1/4” | 22 | 60 | R 3/8″ |
| HFSMP15614-1/4″NPT | 1/4” | 22 | 60 | 1/4″NPT |
| HFSMP15614-3/8″NPT | 1/4” | 22 | 60 | 3/8″NPT |

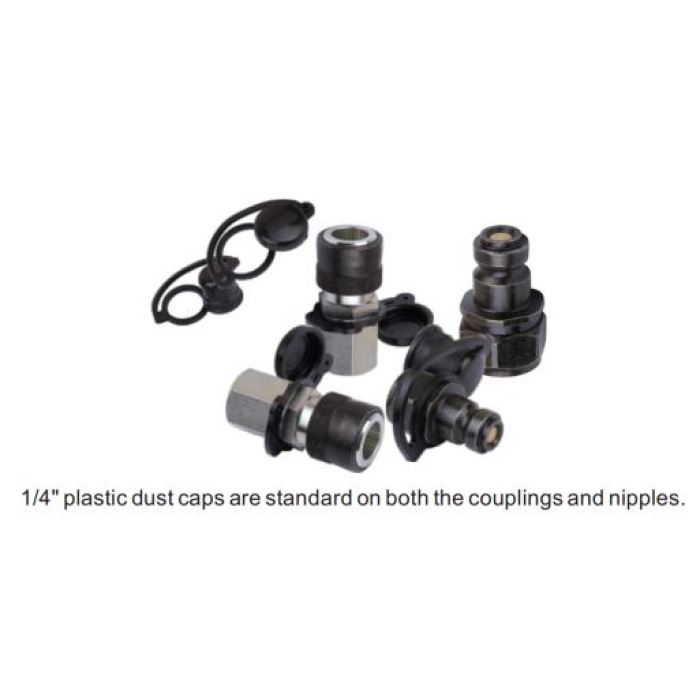

Accessories
Accessories
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4″ | 1500 | 1500 | 1500 | 3000 | 3000 | 3000 | 0.008 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | CEJN 116 SERIESVOSWINKEL HD SERIESFASTER UHP 150 SERIESDNP PCJ6 SERIESPARKER HP SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

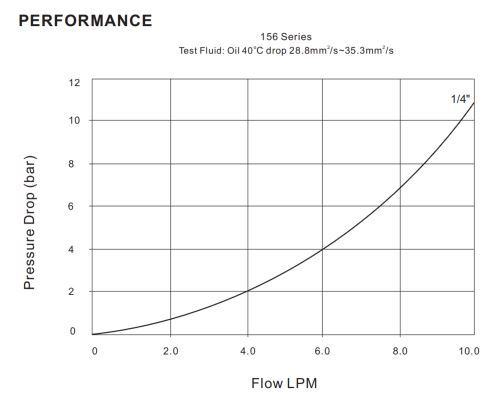

Pressure Drop
Pressure Drop
