EH EHCV Series | NDRV Flow Control Check Valve (Steel)
This EH series is interchangeable with MHA NDRV SERIES, HYDAC DRV SERIES, PARKER F SERIES, and GEMELS RF SERIES. One-way valve for flow control use. Suitable for any type of hydraulic system using liquid that is not highly viscous. The standard type is in zinc-plated carbon steel. It is mainly used in non-corrosive mineral-based oils and liquids.
Interchange
- MHA NDRV SERIES
- HYDAC DRV SERIES
- PARKER F SERIES
- GEMELS RF SERIES
Call Tawk.to
contact@ehhydraulics.com
EH EHCV Series | NDRV Flow Control Check Valve (Steel)
This EH series is interchangeable with MHA NDRV SERIES, HYDAC DRV SERIES, PARKER F SERIES, and GEMELS RF SERIES. One-way valve for flow control use. Suitable for any type of hydraulic system using liquid that is not highly viscous. The standard type is in zinc-plated carbon steel. It is mainly used in non-corrosive mineral-based oils and liquids.
Interchange
- MHA NDRV SERIES
- HYDAC DRV SERIES
- PARKER F SERIES
- GEMELS RF SERIES
- HYDAC KHB3K SERIES
Call Tawk.to
contact@ehhydraulics.com

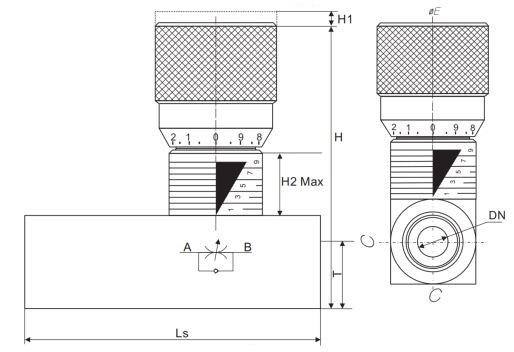

Dimensions
Dimensions
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||
| Art. No. | Body Size(Inch) | Ls(mm) | C(mm) | D(mm) | E(mm) | H(mm) | H1(mm) | H2(mm) | T |
| EHCV14 | 1/4” | 68.5 | 20 | M20X1 | 30 | 66 | 7 | 7 | 1/4″BSPP(NPT) |
| EHCV38 | 3/8” | 83 | 25 | M25X1 | 30 | 72 | 7 | 7 | 3/8″BSPP(NPT) |
| EHCV12 | 1/2” | 95 | 30 | M30X1.5 | 45 | 92.5 | 10 | 10 | 1/2″BSPP(NPT) |
| EHCV34 | 3/4” | 117 | 40 | M35X1.5 | 45 | 105 | 10 | 11 | 3/4″BSPP(NPT) |
| EHCV10 | 1” | 138 | 45 | M35X1.5 | 45 | 115 | 10 | 15 | 1″BSPP(NPT) |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work Pressure(bar) | Max. Flow Rate(L/min) |
| 04 | 1/4” | 350 | 12 |
| 06 | 3/8” | 350 | 30 |
| 08 | 1/2” | 350 | 50 |
| 12 | 3/4” | 350 | 85 |
| 16 | 1” | 350 | 150 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII), Black Passivation, MATE 1000 (ZnNi) | |
| Specifications: | Market Interchange | MHA NDRV SERIESHYDAC DRV SERIESPARKER F SERIESGEMELS RF SERIES |
| Handle Material: | Aluminum | |
| Connection: | Thread | |
| Disconnection: | Thread | |
| Connection Under Pressure: | Not Allowed | |

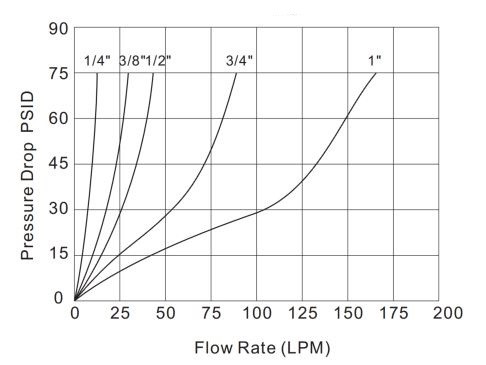

Pressure Drop
Pressure Drop
