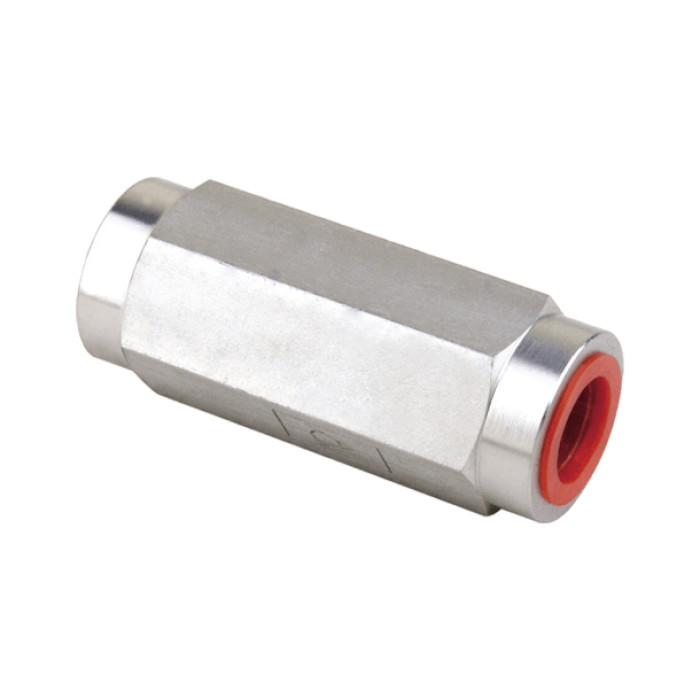

EH EHRV Series | VU In-Line Check Valve (Steel)
This EH series is interchangeable with MHA RV SERIES, FASTER VU SERIES, STUCCHI VUZ SERIES, GROMELLE R4000 SERIES, GEMELS VU SERIES, and HOLMBURY CV SERIES. Steel Product. One-way check valve for in-line use. Suitable for any type of hydraulic system using liquid that is not highly viscous. The standard type is in zinc-plated carbon steel, and it is suitable for non-corrosive mineral-based oils and liquids.
Interchange
- MHA RV SERIES
- FASTER VU SERIES
- STUCCHI VUZ SERIES
- GROMELLE R4000 SERIES
- GEMELS VU SERIES
- HOLMBURY CV SERIES
- HYDAC KHB3K SERIES
Call Tawk.to
contact@ehhydraulics.com

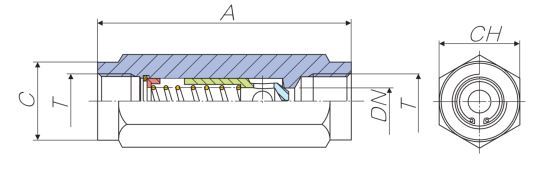

Dimensions
Dimensions
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size(Inch) | A(mm) | C(mm) | CH(mm) | T |
| EHRV14 | 1/4” | 60 | 18.5 | 19 | 1/4″BSPP(NPT) |
| EHRV38 | 3/8” | 70 | 23.5 | 24 | 3/8″BSPP(NPT) |
| EHRV12 | 1/2” | 77 | 29.5 | 30 | 1/2″BSPP(NPT) |
| EHRV34 | 3/4” | 90 | 35.5 | 36 | 3/4″BSPP(NPT) |
| EHRV10 | 1” | 106 | 44.5 | 45 | 1″BSPP(NPT) |
| EHRV114 | 1-1/4” | 125 | 54.5 | 55 | 1-1/4″BSPP(NPT) |
| EHRV112 | 1-1/2” | 140 | 64.5 | 65 | 1-1/2″BSPP(NPT) |
| EHRV20 | 2” | 160 | 74.5 | 75 | 2″BSPP(NPT) |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work Pressure(bar) | Standard Crack Pressure(bar) | Customized Crack Pressure(bar) |
| 04 | 1/4” | 700 | 0.35-0.5 | Up to 6.5 |
| 06 | 3/8” | 700 | 0.35-0.5 | Up to 6.5 |
| 08 | 1/2” | 500 | 0.35-0.5 | Up to 6.5 |
| 12 | 3/4” | 500 | 0.35-0.5 | Up to 6.5 |
| 16 | 1” | 500 | 0.35-0.5 | Up to 6.5 |
| 20 | 1-1/4” | 400 | 0.35-0.5 | Up to 6.5 |
| 24 | 1-1/2” | 320 | 0.35-0.5 | Up to 6.5 |
| 32 | 2” | 320 | 0.35-0.5 | Up to 6.5 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, , Customizable | |
| Surface Treatment: | MATE 500 (CRIII), Black Passivation, MATE 1000 (ZnNi) | |
| Specifications: | Market Interchange | MHA RV SERIESFASTER VU SERIESSTUCCHI VUZ SERIESGROMELLE R4000 SERIESGEMELS VU SERIES |
| Valve Type: | / | |
| Connection: | Thread | |
| Disconnection: | Thread | |
| Connection Under Pressure: | Not Allowed | |

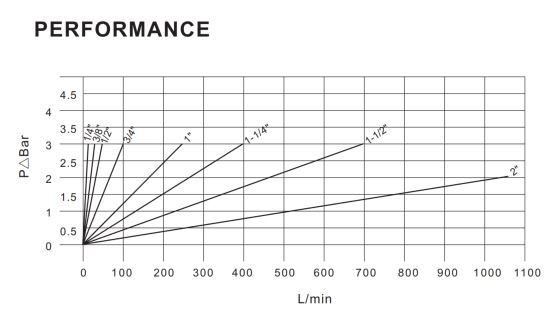

Pressure Drop
Pressure Drop
