EH 162 Series – CFPV Push-Pull Female Couplings for Agriculture (Steel)
This EH series is interchangeable with the FASTER CFPV SERIES. Steel Product. This ISO 7241-1-A compliant series is designed for direct threading into valve ports or rigid pipe systems. It incorporates a safety breakaway feature that prevents hose rupture during accidental snagging—such as from tractor movement—by cleanly separating at the male coupling, ensuring safe and environmentally responsible operation.
EH 162 Series – CFPV Push-Pull Female Couplings for Agriculture (Steel)
This EH series is interchangeable with the FASTER CFPV SERIES. Steel Product. This ISO 7241-1-A compliant series is designed for direct threading into valve ports or rigid pipe systems. It incorporates a safety breakaway feature that prevents hose rupture during accidental snagging—such as from tractor movement—by cleanly separating at the male coupling, ensuring safe and environmentally responsible operation.

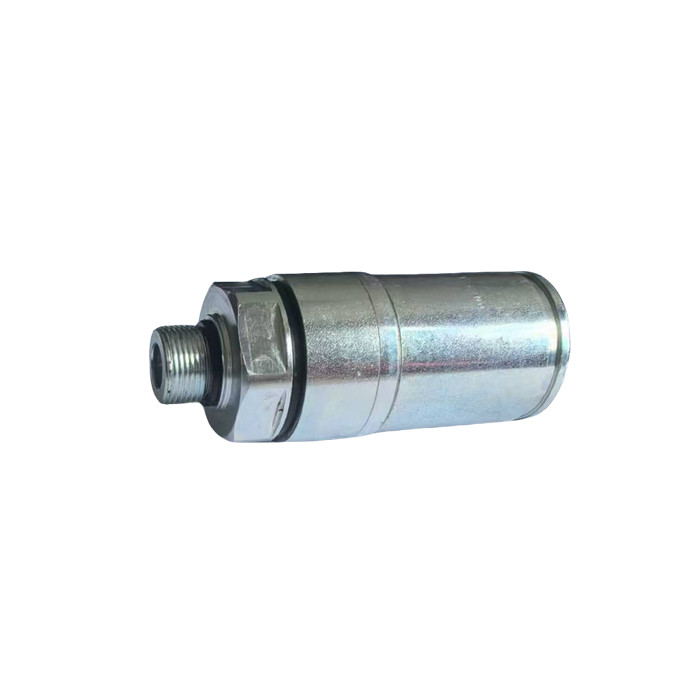

Female Coupler
Female Coupler

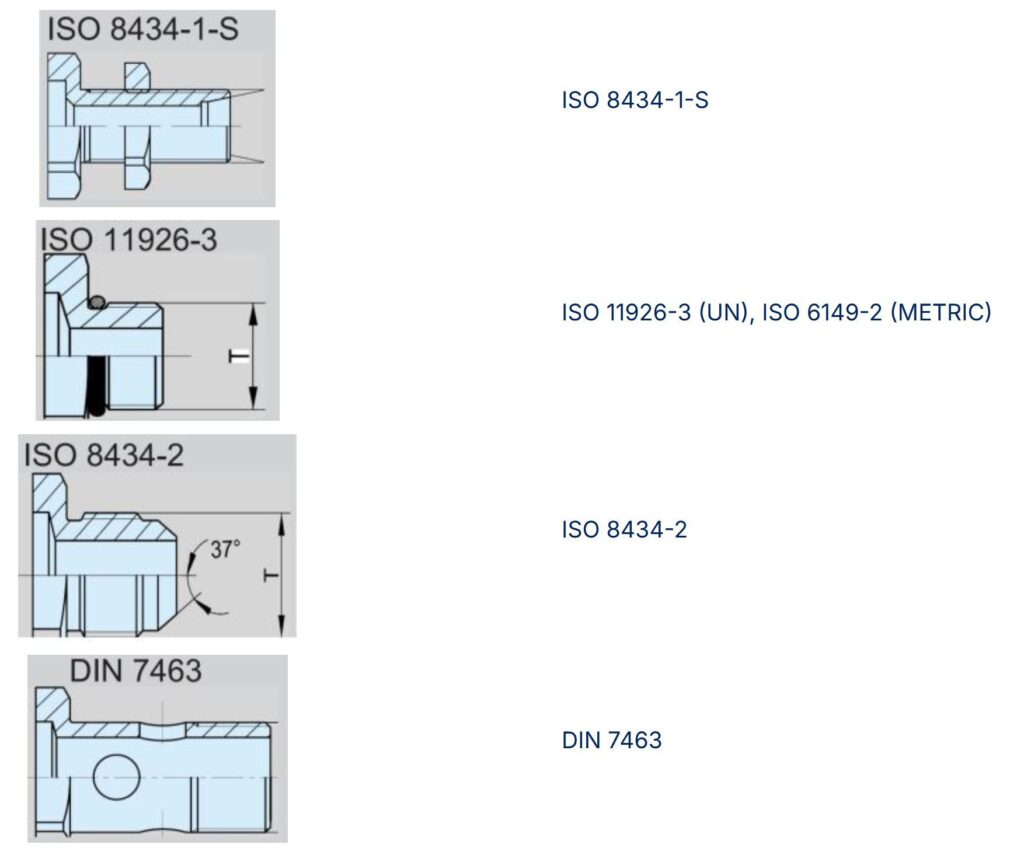

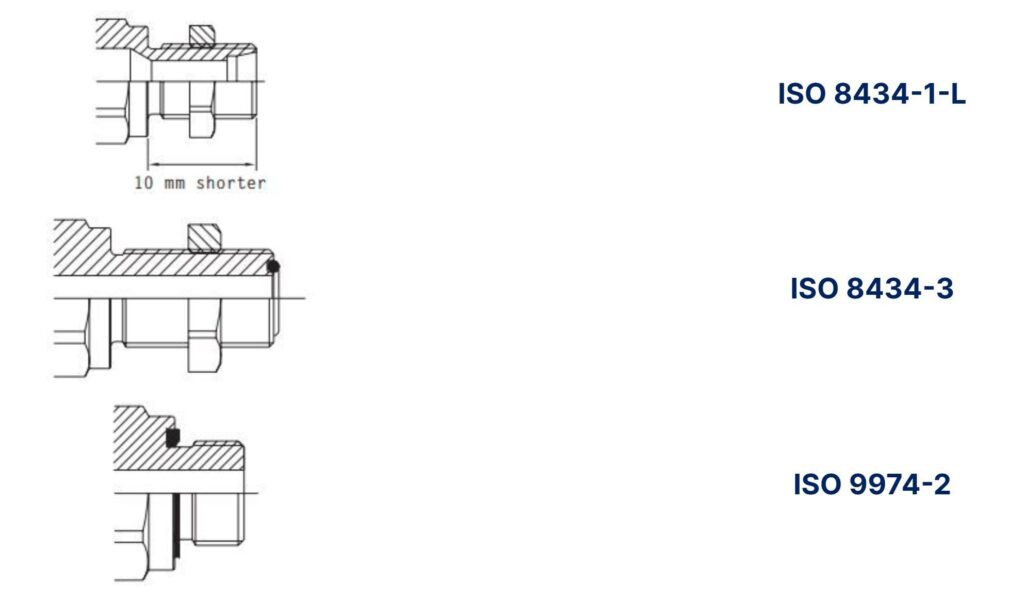

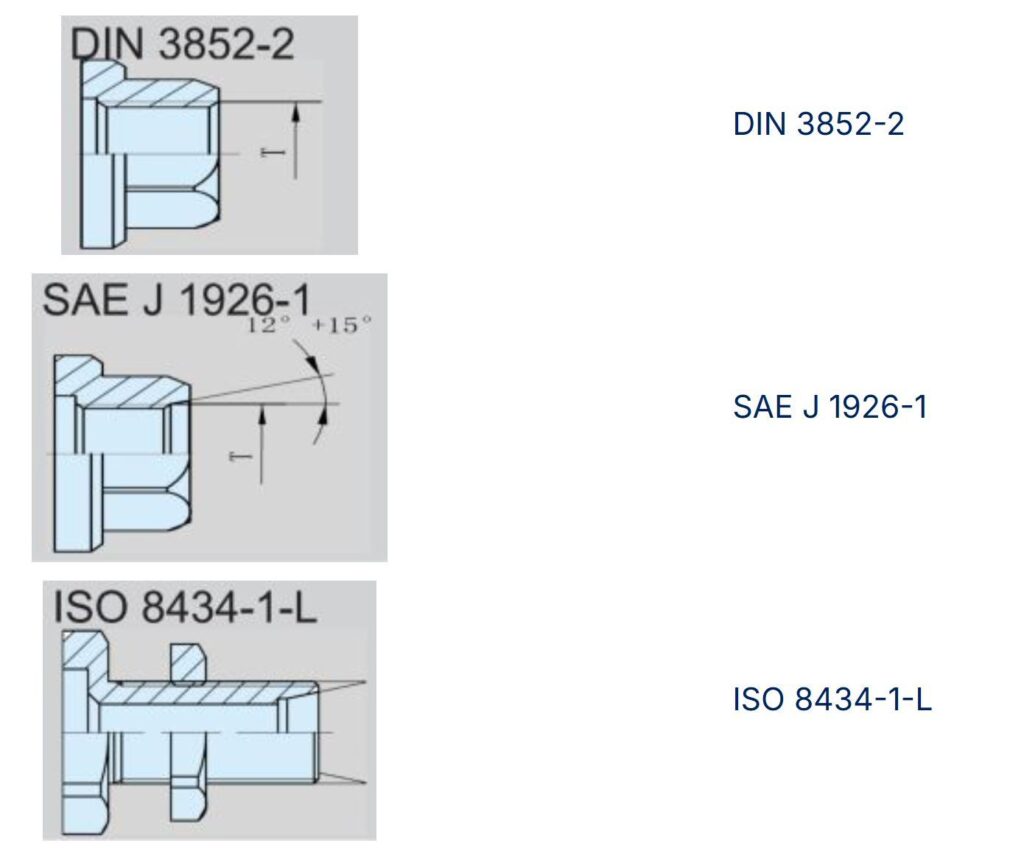

| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Standard Type | D(mm) | Hs(mm) | Ls(mm) | T |
| HFSFC16214-1/4G-A | 1/4” | DIN 3852-2 | 28 | S24 | 83.5 | BSPP 1/4″ FEMALE |
| HFSMC16214-M14X1.5-A | 1/4” | ISO 6149-2 | 28 | S24 | 88 | M14x1,5 MALE |
| HFSFC16238-1/4G-B | 3/8” | DIN 3852-2 | 31 | S27 | 85 | BSPP 1/4″ FEMALE |
| HFSMC16238-M12X1.5 | 3/8” | ISO 6149-2 | 31 | S27 | 89.8 | M12x1,5 MALE |
| HFSMC16238-M14X1.5-B | 3/8” | ISO 6149-2 | 31 | S27 | 89.8 | M14x1,5 MALE |
| HFSMC16238-M14X1.5-C | 3/8” | ISO 6149-2 | 31 | S27 | 89.8 | M14x1,5 MALE |
| HFSMC16238-M14X1.5-8L-BULKHEAD | 3/8” | ISO 8434-1-1L | 31 | S27 | 98.3 | M14x1,5 MALE BULKHEAD SHORT 8L |
| HFSMC16238-M14X1.5-D | 3/8” | ISO 6149-2 | 31 | S28 | 126.5 | M14x1,5 MALE |
| HFSMC16238-M14X1.5-E | 3/8” | ISO 6149-2 | 31 | S28 | 126.5 | M14x1,5 MALE |
| HFSFC16212-M22X1.5-ORB | 1/2” | SAE J 1926-1 | 42 | S34 | 110.2 | M22x1,5 FEMALE ORB |
| HFSMC16212-M22X1.5 | 1/2” | ISO 6149-2 | 42 | S32 | 110.7 | M22x1,5 MALE |
| HFSFC16234-3/4G | 3/4” | DIN 3852-2 | 48 | S42 | 116.5 | BSPP 3/4″ FEMALE |
| HFSFC16234-M27X2-ORB | 3/4” | SAE J 1926-1 | 48 | S42 | 117.5 | M27x2 FEMALE ORB |
| HFSMC16234-M22X1.5 | 3/4” | ISO 6149-2 | 48 | S42 | 118 | M22x1,5 MALE |
| HFSMC16234-M27X2 | 3/4” | ISO 6149-2 | 48 | S42 | 121.5 | M27x2 MALE |
| HFSMC16234-M30X2 | 3/4” | ISO 6149-2 | 48 | S42 | 121.5 | M30x2 MALE |
| HFSMC16234-M33X2 | 3/4” | ISO 6149-2 | 48 | S42 | 122 | M33x2 MALE |
| HFSMC16234-1-1/16”-12UN | 3/4” | ISO 11926-3 | 48 | S42 | 115.6 | 1-1/16″-12 UN MALE |
| HFSMC16234-1-7/16”-12UN-BULKHEAD-ORFS | 3/4” | ISO 8434-3 | 48 | S42 | 142.5 | 1 7/16″ – 12 UN MALE BULKHEAD ORFS |
| HFSMC16234-1-3/16”-12UN-BULKHEAD-ORFS | 3/4” | ISO 8434-3 | 48 | S42 | 140.5 | 1 3/16″ – 12 UN MALE BULKHEAD ORFS |
| HFSMC16234-1”-14UNS-BULKHEAD-ORFS | 3/4” | ISO 8434-3 | 48 | S42 | 141 | 1″-14 UNS MALE BULKHEAD ORFS |
| HFSMC16234-M26X1.5-18L-BULKHEAD-A | 3/4” | ISO 8434-1-1L | 48 | S42 | 153.5 | M26x1,5 MALE BULKHEAD 18L |
| HFSMC16234-M26X1.5-18L-BULKHEAD-B | 3/4” | ISO 8434-1-1L | 48 | S42 | 153.5 | M26x1,5 MALE BULKHEAD 18L |
| HFSMC16234-M26X1.5-18L-BULKHEAD-C | 3/4” | ISO 8434-1-1L | 48 | S42 | 153.5 | M26x1,5 MALE BULKHEAD 18L |
| HFSMC16234-M30X2-22L-BULKHEAD | 3/4” | ISO 8434-1-1L | 48 | S42 | 134.5 | M30x2 MALE BULKHEAD 22L |
| HFSMC16234-M36X2-28L-BULKHEAD | 3/4” | ISO 8434-1-1L | 48 | S42 | 143.6 | M36x2 MALE BULKHEAD 28L |
| HFSMC16234-M26X1.5-18L-BULKHEAD | 3/4” | ISO 8434-1-1L | 48 | S42 | 153.5 | M26x1,5 MALE BULKHEAD 18L |
| HFSMC16234-M30X2-20S-BULKHEAD | 3/4” | ISO 8434-1-S | 48 | S42 | 144.5 | M30x2 MALE BULKHEAD 20S |
| HFSMC16234-M36X2-25S-BULKHEAD | 3/4” | ISO 8434-1-S | 48 | S42 | 138.5 | M36x2 MALE BULKHEAD 25S |
| HFSMC16234-M42X2-30S-BULKHEAD | 3/4” | ISO 8434-1-S | 54 | S50 | 151.5 | M42x2 MALE BULKHEAD 30S |
| HFSMC16234-M36X2-28L-BULKHEAD | 3/4” | ISO 8434-1-1L | 48 | S42 | 133.5 | M36x2 MALE BULKHEAD SHORT 28L |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 250 | 250 | 250 | 100 | 100 | 100 | 0.6 |
| 06 | 3/8” | 300 | 300 | 300 | 1200 | 1200 | 1400 | 1.3 |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 2.0 |
| 12 | 3/4” | 250 | 250 | 250 | 1000 | 1000 | 1100 | 5.0 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | FASTER CFPV SERIES |
| Valve Type: | Poppet | |
| Connection: | Push to Connect | |
| Disconnection: | Pull to Disconnect | |
| Connection Under Pressure: | Not Allowed | |

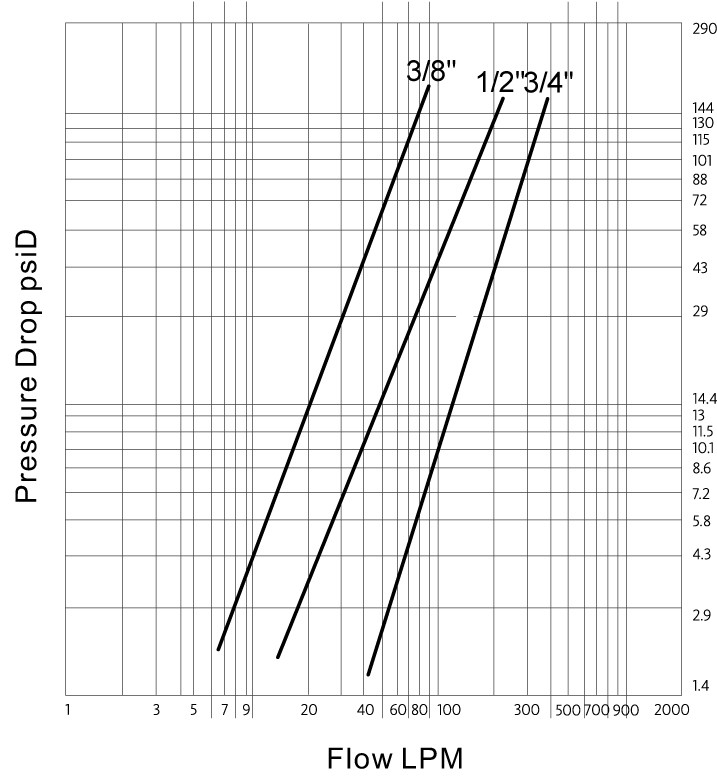

Pressure Drop
Pressure Drop
Applications
Garbage Trucks
Tractor Rear Lines
