EH 276 Series – 4PV 4CPV Push-Pull ISO 7241-A Quick Couplings For Agriculture With Pressure Relief Microvalve (Steel)
This EH series is interchangeable with SAFEWAY S70 SERIES, DNP PKK3 SERIES, FASTER 4CPV SERIES, FASTER 4PV SERIES, and FASTER 4NV SERIES. ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Pressure eliminator equipped. Max residual pressure up to 250 bar.
Interchange
- SAFEWAY S70 SERIES
- FASTER 4PV SERIES
- DNP PKK3 SERIES
- FASTER 4NV SERIES
- FASTER 4CPV SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 276 Series – 4PV 4CPV Push-Pull ISO 7241-A Quick Couplings For Agriculture With Pressure Relief Microvalve (Steel)
This EH series is interchangeable with SAFEWAY S70 SERIES, DNP PKK3 SERIES, FASTER 4CPV SERIES, FASTER 4PV SERIES, and FASTER 4NV SERIES. ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Pressure eliminator equipped. Max residual pressure up to 250 bar.
Interchange
- SAFEWAY S70 SERIES
- FASTER 4PV SERIES
- DNP PKK3 SERIES
- FASTER 4NV SERIES
- FASTER 4CPV SERIES
Call Tawk.to
contact@ehhydraulics.com

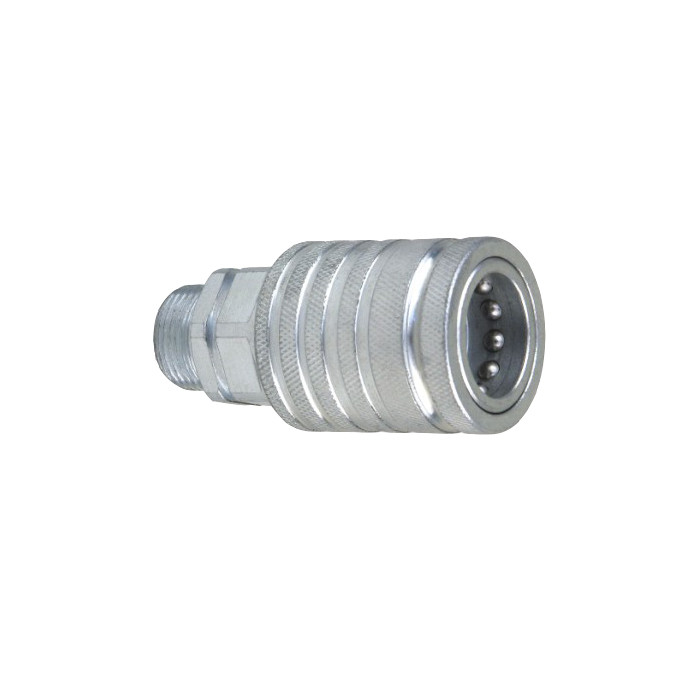

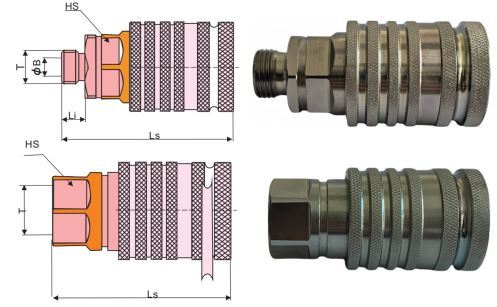

Female Coupler
Female Coupler
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | Hs(mm) | T |
| HFSMC27612-M18X1.5-12L | 1/2” | 73 | 11 | 12 | S27 | M18X1.5 |
| HFSMC27612-M22X1.5-15L | 1/2” | 74 | 12 | 15 | S27 | M22X1.5 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | Hs(mm) | T |
| HFSMC27612-M18X1.5-12S | 1/2” | 74 | 12 | 10 | S27 | M18X1.5 |
| HFSMC27612-M20X1.5-15S | 1/2” | 74 | 12 | 12 | S27 | M20X1.5 |
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | Hs(mm) | T |
| HFSFC27612-1/2″ | 1/2” | 70 | 12 | 10 | S27 | 1/2”BSPP (NPT) |
| HFSFC27612-3/4″UNF | 1/2” | 70 | 12 | 10 | S27 | 3/4”-16UNF |

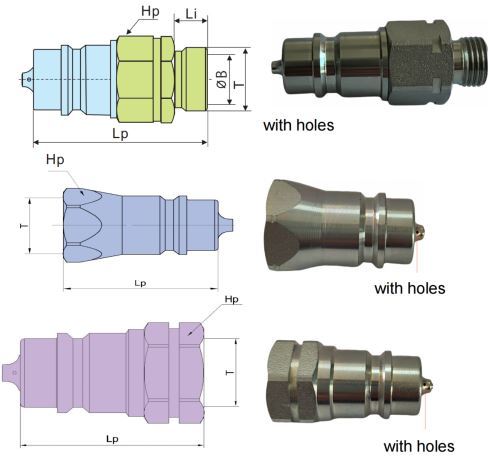

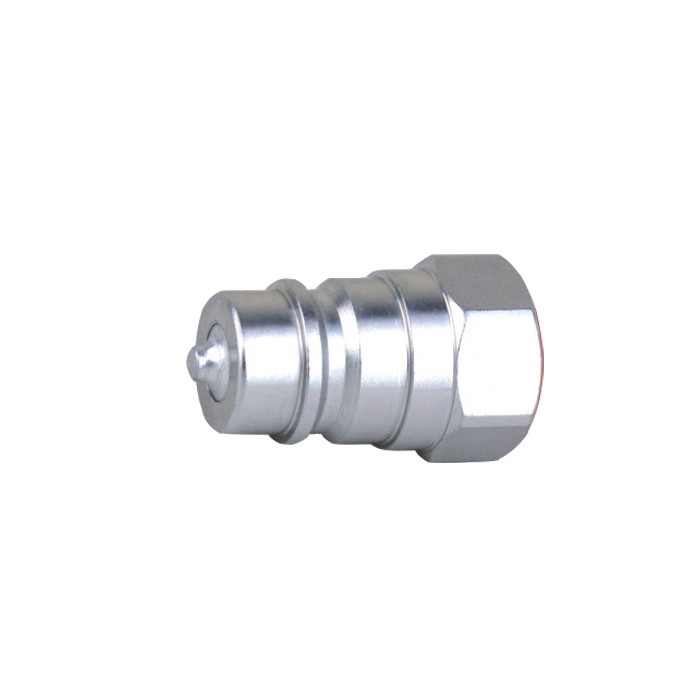

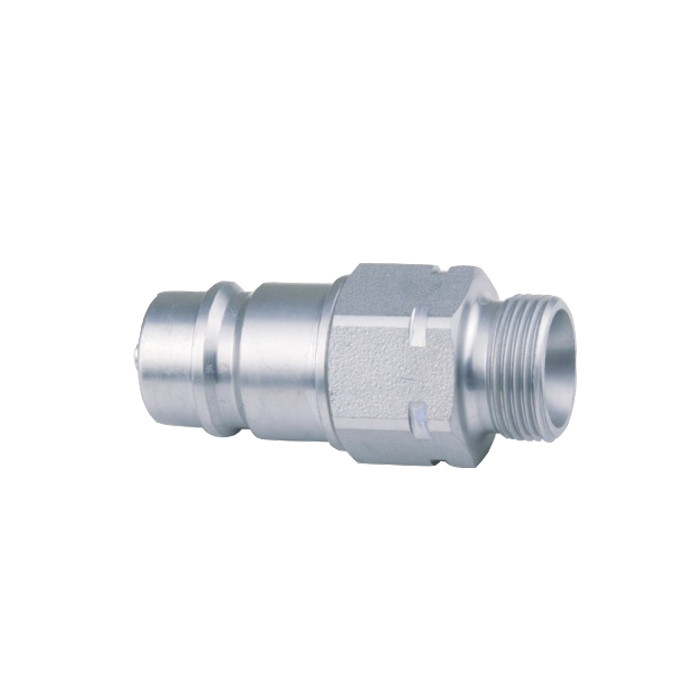

Male Plug
Male Plug
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | Hp(mm) | T |
| HFSMP27612-M18X1.5-12L | 1/2” | 58 | 11 | 12 | S27 | M18X1.5 |
| HFSMP27612-M22X1.5-15L | 1/2” | 59 | 12 | 15 | S27 | M22X1.5 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request |
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | Hp(mm) | T |
| HFSMP27612-M18X1.5-10S | 1/2” | 74 | 12 | 10 | S27 | M18X1.5 |
| HFSMP27612-M20X1.5-12S | 1/2” | 74 | 12 | 12 | S27 | M20X1.5 |
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | Hp(mm) | T |
| HFSFP27612-1/2″ | 1/2” | 46 | 12 | 10 | S27 | 1/2”BSPP (NPT) |
| HFSFP27612-3/4″ UNF | 1/2” | 46 | 12 | 10 | S27 | 3/4”-16UNF |
| HFSFP26612-1/2″ | 1/2” | 44 | / | / | S27 | 1/2”BSPP (NPT) |
| HFSFP26612-3/4″ UNF | 1/2” | 44 | / | / | S27 | 3/4”-16UNF-2B |
| HFSFP26612-7/8″UNF | 1/2” | 44 | / | / | S27 | 7/8”-14UNF-2B |
| HFSFP27512-1/2″ | 1/2” | 44 | / | / | S27 | 1/2”BSPP (NPT) |
| HFSFP27512-3/4″UNF | 1/2” | 44 | / | / | S27 | 3/4”-16UNF-2B |
| HFSFP27512-7/8″UNF | 1/2” | 44 | / | / | S27 | 7/8”-14UNF-2B |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 1.8 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | DNP PKK3 SERIESSAFEWAY S70 SERIESFASTER 4CPV SERIESFASTER 4PV SERIESFASTER 4NV SERIES |
| Valve Type: | Poppet | |
| Connection: | Push to Connect | |
| Disconnection: | Pull to Disconnect | |
| Connection Under Pressure: | Not Allowed | |
Pressure Drop
Pressure Drop
