EH 179 Series – 3NV 3CNV Female Couplings For Agriculture With Sleeve-Retraction Facilitator (Steel)
This EH series is interchangeable with the FASTER 3NV SERIES and FASTER 3CNV SERIES. Steel Product. Female couplings connectable with the male part under residual pressure. A sleeve retraction mechanism facilitates easier engagement and disconnection. They are interchangeable according to the ISO 7241-1A standard.
Interchange
- FASTER 3NV SERIES
- FASTER 3CNV SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 179 Series – 3NV 3CNV Female Couplings For Agriculture With Sleeve-Retraction Facilitator (Steel)
This EH series is interchangeable with the FASTER 3NV SERIES and FASTER 3CNV SERIES. Steel Product. Female couplings connectable with the male part under residual pressure. A sleeve retraction mechanism facilitates easier engagement and disconnection. They are interchangeable according to the ISO 7241-1A standard.
Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | LS(mm) | D(mm) | HS(mm) | T |
| HFSFC17912-3/4”-16UNF-ORB | 1/2” | 100 | 48 | S27 | 3/4″-16 UNF FEMALE ORB |
| HFSMC17912-7/8”-14UNF | 1/2” | 102.6 | 48 | S32 | 7/8″-14 UNF MALE |
| HFSFC17912-M22X1.5 | 1/2” | 89 | 48 | S27 | M22x1,5 MALE |
| HFSFC17912-13/16”-16UN-BULKHEAD-ORFS | 1/2” | 109 | 48 | S27 | 13/16″-16 UN MALE BULKHEAD ORFS |
| HFSFC17912-M22X1.5-BULKHEAD-15L | 1/2” | 100 | 48 | S27 | M22x1.5 MALE BULKHEAD SHORT 15L |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 1.8 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | FASTER 3NV SERIESFASTER 3CNV SERIES |
| Valve Type: | Poppet | |
| Connection: | Push to Connect | |
| Disconnection: | Pull to Disconnect | |
| Connection Under Pressure: | Allowed Male Half Up To Work Pressure | |

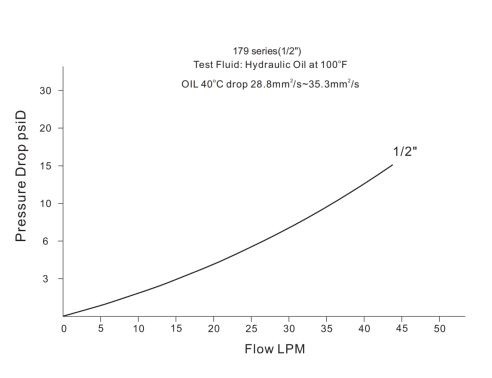

Pressure Drop
Pressure Drop
