EH 126 Series – CNV CPV PV ZINC-NICKEL Push-Pull ISO 7241-A Quick Couplings For Agriculture (Steel)
This EH series is interchangeable with FASTER CNV ZINC-NICKEL SERIES, FASTER CPV ZINC-NICKEL SERIES, and FASTER PV ZINC-NICKEL SERIES. Steel Product. 1/2” Body ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.
Interchange
- FASTER CNV ZINC-NICKEL SERIES
- FASTER CPV ZINC-NICKEL SERIES
- FASTER PV ZINC-NICKEL SERIES
Call Tawk.to
contact@ehhydraulics.com

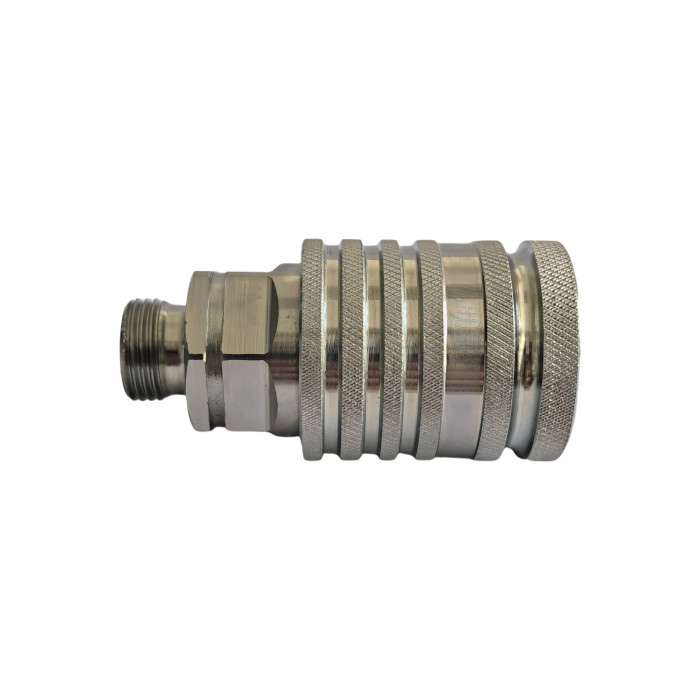

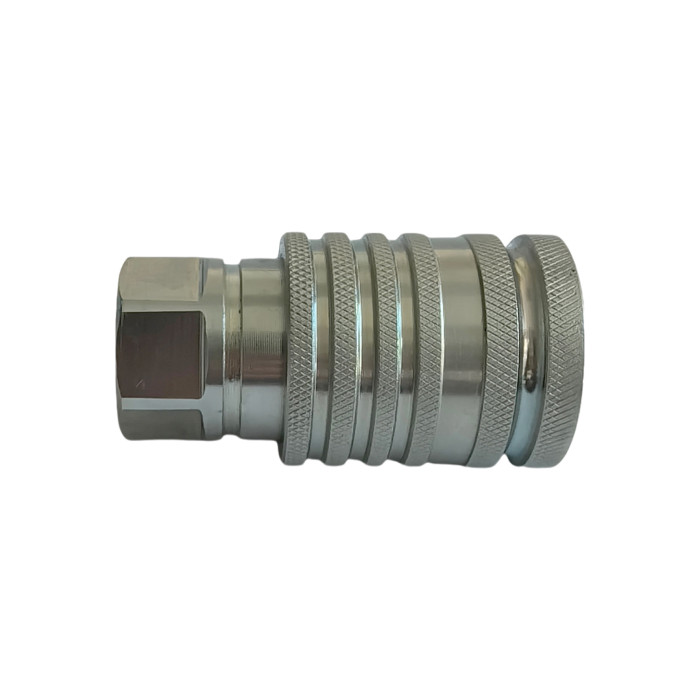

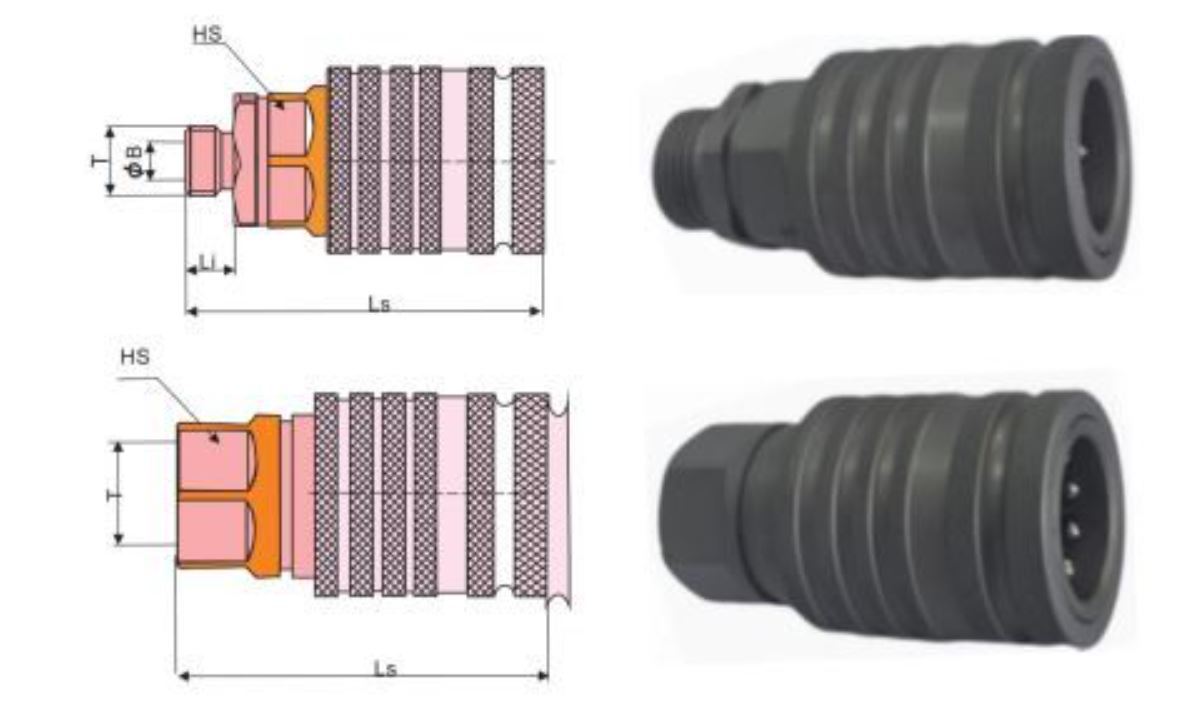

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | T |
| HFSFC12612-M18X1.5-12L | 1/2” | 62.3 | S27 | M18x1,5 MALE 12L |
| HFSFC12612-M22X1.5-15L | 1/2” | 63.3 | S27 | M22x1,5 MALE 15L |
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | T |
| HFSFC12612-1/2G | 1/2” | 66 | S27 | BSPP 1/2″ FEMALE |

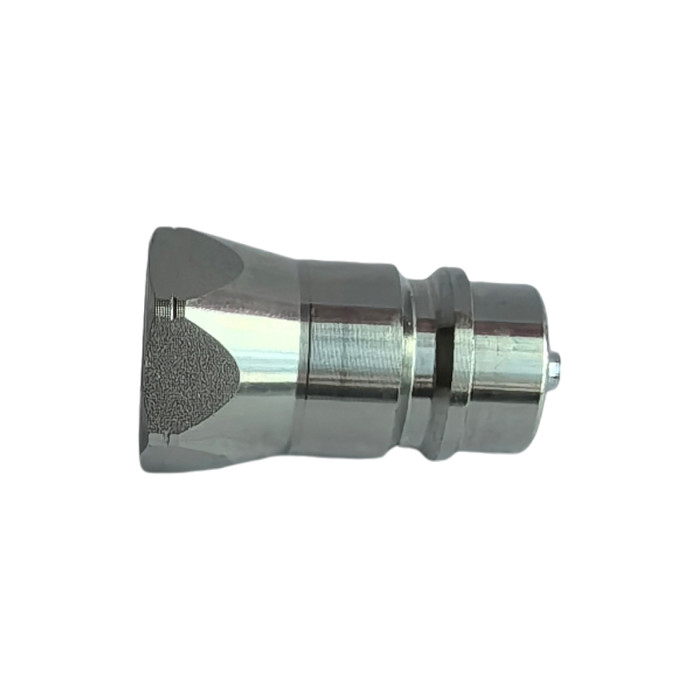

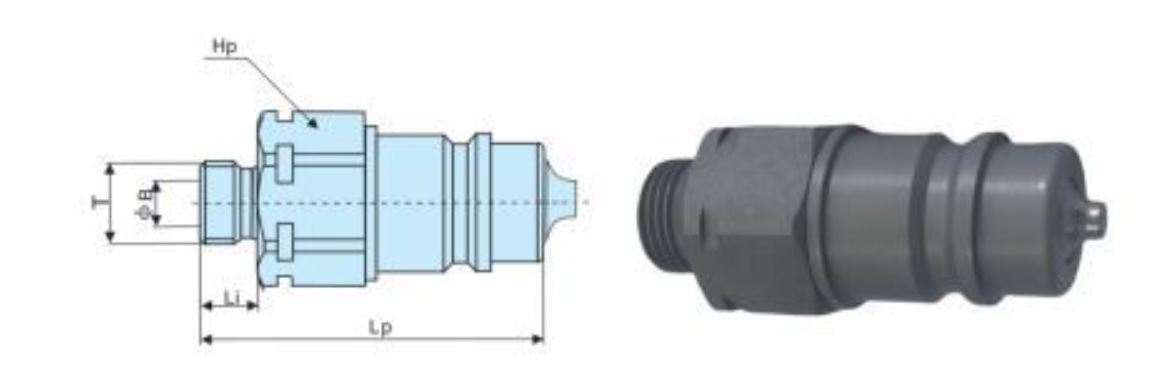

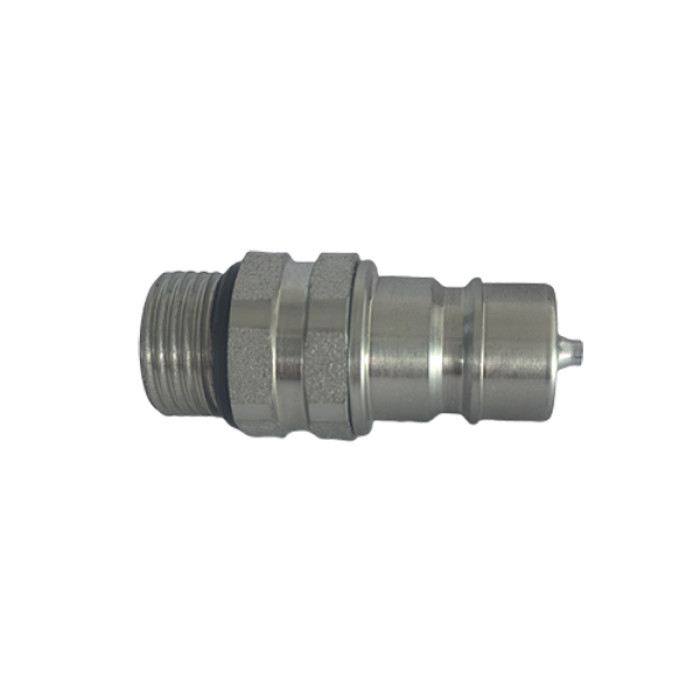

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP12612-M18X1.5-12L | 1/2” | 57 | S27 | M18x1,5 MALE 12L |
| HFSFP12612-M22X1.5-15L | 1/2” | 57 | S27 | M22x1,5 MALE 15L |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1200 | 1000 | 1.8 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 1000 (ZnNi) | |
| Specifications: | Market Interchange | FASTER CNV ZINC-NICKEL SERIESFASTER CPV ZINC-NICKEL SERIESFASTER PV ZINC-NICKEL SERIES |
| Valve Type: | Poppet | |
| Connection: | Push to Connect | |
| Disconnection: | Pull to Disconnect | |
| Connection Under Pressure: | Not Allowed | |
Pressure Drop
Pressure Drop
