EH 136 Series – SNAP-TITE 71 Flat Face High Pressure Quick Coupler (Steel)
This EH series is interchangeable with SNAP-TITE 71 SERIES, DIXON ST SERIES, FASTER OGF SERIES, DNP PLS1 SERIES, and PARKER 71 SERIES. EH 136 couplings provide versatile performance across diverse hydraulic applications, combining advanced sealing technology with user-friendly operation. The flat-face design ensures zero fluid spillage while effectively preventing external contamination, making them ideal for clean and efficient systems. Featuring intuitive push-to-connect technology, these couplings simplify installation while the integrated locking ball mechanism secures connections and prevents accidental disengagement. EH 136 couplings are fully interchangeable with Snap-tite 71 series, ensuring broad compatibility and easy integration into existing systems.
Interchange
- SNAP-TITE 71 SERIES
- DIXON ST SERIES
- FASTER OGF SERIES
- DNP PLS1 SERIES
- PARKER 71 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 136 Series – SNAP-TITE 71 Flat Face High Pressure Quick Coupler (Steel)
This EH series is interchangeable with SNAP-TITE 71 SERIES, DIXON ST SERIES, FASTER OGF SERIES, DNP PLS1 SERIES, and PARKER 71 SERIES. EH 136 couplings provide versatile performance across diverse hydraulic applications, combining advanced sealing technology with user-friendly operation. The flat-face design ensures zero fluid spillage while effectively preventing external contamination, making them ideal for clean and efficient systems. Featuring intuitive push-to-connect technology, these couplings simplify installation while the integrated locking ball mechanism secures connections and prevents accidental disengagement. EH 136 couplings are fully interchangeable with Snap-tite 71 series, ensuring broad compatibility and easy integration into existing systems.
Interchange
- SNAP-TITE 71 SERIES
- DIXON ST SERIES
- FASTER OGF SERIES
- DNP PLS1 SERIES
- PARKER 71 SERIES

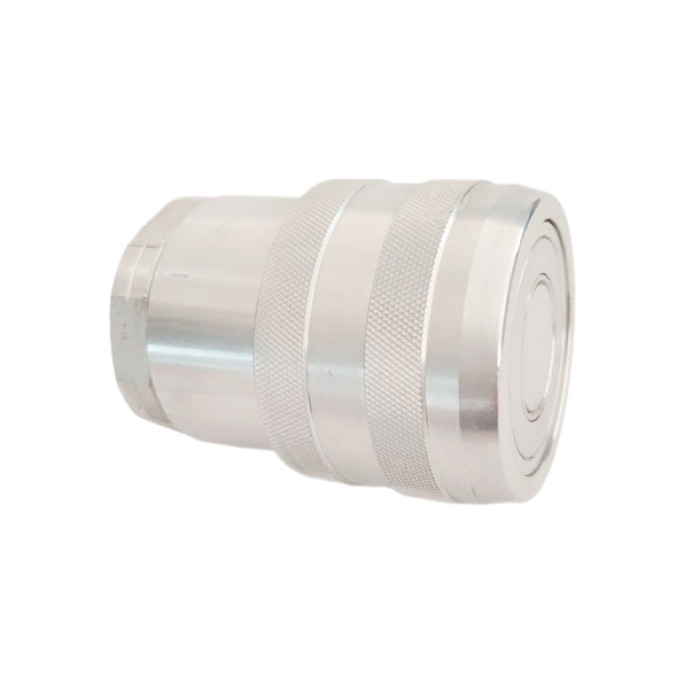

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC13614-1/4″NPT | 1/4” | 51.7 | 30 | S24 | 1/4″ NPT |
| HFSFC13638-3/8″NPT | 3/8” | 61.7 | 40 | S30 | 3/8″NPT |
| HFSFC13638-1/2″NPT | 3/8” | 70 | 32 | S30 | 1/2″ NPT |
| HFSFC13638-9/16″UNF | 3/8” | 70 | 32 | S30 | 9/16″UNF-18 |
| HFSFC13612-1/2″NPT | 1/2” | 71 | 48 | S38 | 1/2″ NPT |
| HFSFC13612-3/4″UNF | 1/2” | 71 | 48 | S38 | 3/4-16UNF |
| HFSFC13634-3/4″NPT | 3/4” | 79 | 58 | S46 | 3/4″ NPT |
| HFSFC13634-1-1/16″UN | 3/4” | 79 | 58 | S46 | 1-1/16″UN-12 |
| HFSFC13610-1″NPT | 1” | 87.8 | 68 | S50 | 1″ NPT |
| HFSFC13610-1-1/4″NPT | 1” | 87.8 | 68 | S55 | 1-1/4″ NPT |
| HFSFC13610-1-5/16″UN | 1” | 87.8 | 68 | S55 | 1-5/16″ UN -12 |
| HFSFC13610-1-5/8″UN | 1” | 87.8 | 68 | S55 | 1-5/8″ UN -12 |
| HFSFC13620-1-1/2”NPT | 2” | 157.5 | 112 | S86 | 1-1/2NPT |
| HFSFC13620-1-2”NPT | 2” | 157.5 | 112 | S86 | 2NPT |

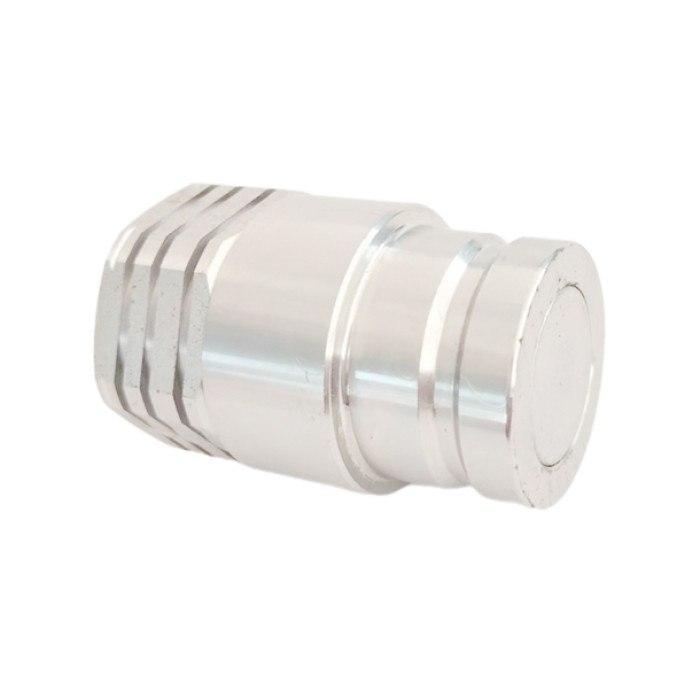

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP13614-1/4″NPT | 1/4” | 54 | S22 | 1/4″ NPT |
| HFSFP13638-3/8″NPT | 3/8” | 64 | S30 | 3/8″NPT |
| HFSFP13638-1/2″NPT | 3/8” | 64 | S30 | 1/2″ NPT |
| HFSFP13638-9/16″UNF | 3/8” | 61 | S30 | 9/16″UNF-18 |
| HFSFP13612-1/2″NPT | 1/2” | 74 | S36 | 1/2″ NPT |
| HFSFP13612-3/4″UNF | 1/2” | 70 | S36 | 3/4-16UNF |
| HFSFP13634-3/4″NPT | 3/4” | 87 | S41 | 3/4″ NPT |
| HFSFP13634-1-1/16″UN | 3/4” | 87 | S41 | 1-1/16″UN-12 |
| HFSFP13610-1″NPT | 1” | 91.5 | S50 | 1″ NPT |
| HFSFP13610-1-1/4″NPT | 1” | 93.5 | S55 | 1-1/4″ NPT |
| HFSFP13610-1-5/16″UN | 1” | 91.5 | S50 | 1-5/16″ UN -12 |
| HFSFP13610-1-5/8″UN | 1” | 93.5 | S55 | 1-5/8″ UN -12 |
| HFSFP13620-1-1/2”NPT | 2” | 123.5 | S75 | 1-1/2NPT |
| HFSFP13620-2”NPT | 2” | 123.5 | S75 | 2NPT |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 700 | 700 | 700 | 1700 | 1500 | 1700 | 0.01 |
| 06 | 3/8” | 700 | 700 | 700 | 1600 | 1450 | 1600 | 0.02 |
| 08 | 1/2” | 700 | 700 | 700 | 1400 | 1400 | 1400 | 0.03 |
| 12 | 3/4” | 500 | 500 | 500 | 1040 | 1040 | 1040 | 0.06 |
| 16 | 1” | 500 | 500 | 500 | 1040 | 1040 | 1040 | 0.1 |
| 32 | 2” | 350 | 300 | 350 | 700 | 650 | 700 | 0.2 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | PARKER 71 SERIESSNAP-TITE 71 SERIESDIXON ST SERIESFASTER OGF SERIESDNP PLS1 SERIES |
| Valve Type: | Flat | |
| Connection: | Push To Connect | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

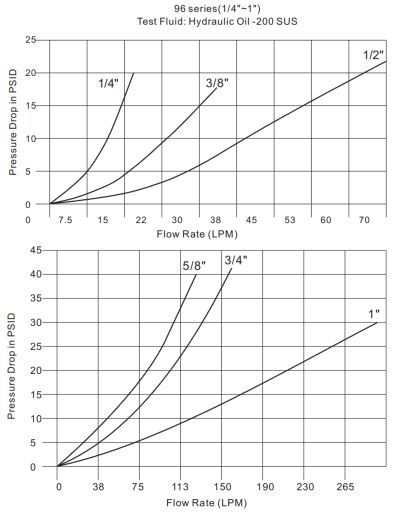

Pressure Drop
Pressure Drop
Applications
Snubbing Units For Wells Control
Oil Platforms Maintenance Equipment
Coiled Tubing Units
