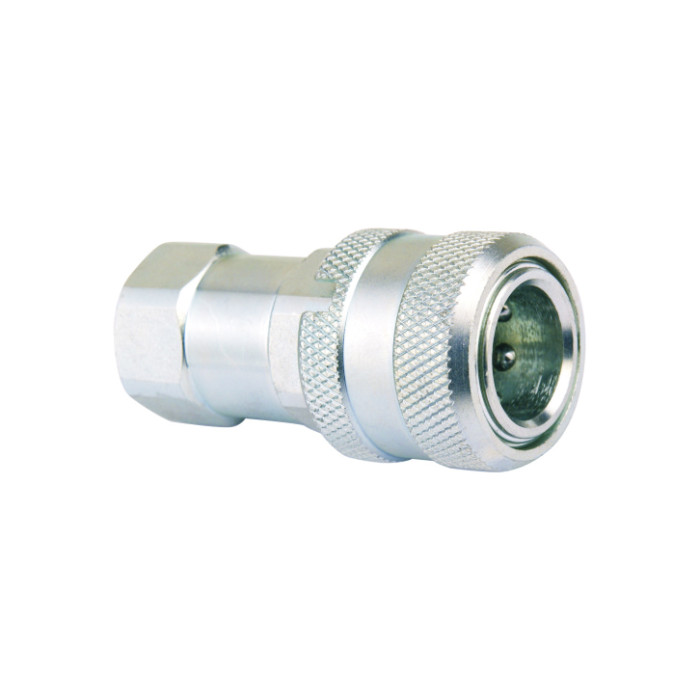

EH 151 Series – Parker TC Quick Coupling (Steel)
This EH series is interchangeable with PARKER TC SERIES. 151 Series is used in high pressure applications with hydraulic and mechanical shock. Available in 3/8” size only. Widely used in hydraulic jacking and house moving equipment, construction equipment and railway maintenance.
EH 151 Series – Parker TC Quick Coupling (Steel)
This EH series is interchangeable with PARKER TC SERIES. 151 Series is used in high pressure applications with hydraulic and mechanical shock. Available in 3/8” size only. Widely used in hydraulic jacking and house moving equipment, construction equipment and railway maintenance.

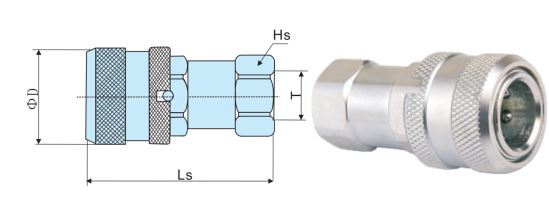

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC15138-3/8″ | 3/8” | 63 | 32 | S24 | 3/8”NPT |

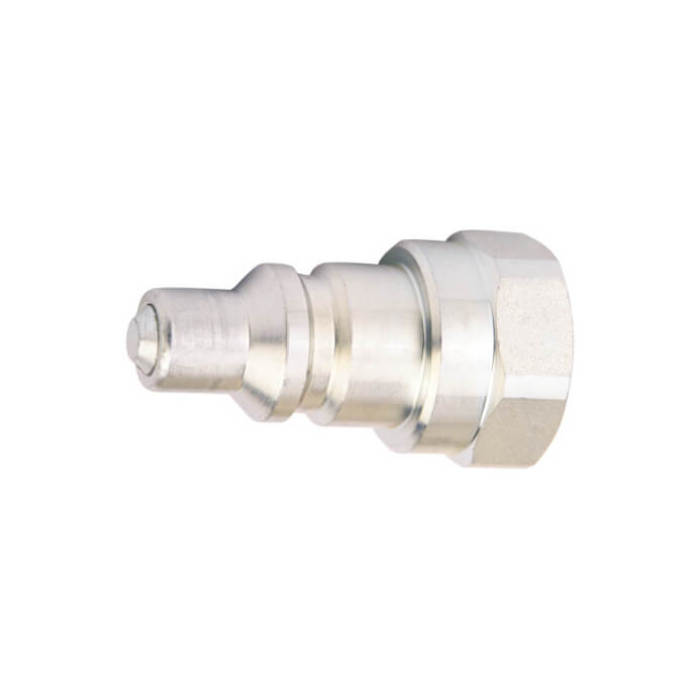

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP15138-3/8″ | 3/8” | 46 | 24 | 3/8”NPT |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 06 | 3/8″ | 700 | 700 | 700 | 2800 | 2800 | 2800 | / |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | PARKER TC SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |
