EH 166 Series – 2NV Agricultural ISO 5675 Quick Couplings, Poppet Valve (Steel)
This EH series is interchangeable with the FASTER 2NV SERIES. Steel Product. This standard agricultural coupling features a poppet valve with a shielded valve guide. This design is engineered to prevent accidental disconnections caused by sudden pressure surges or backflow. It is fully interchangeable with other couplings meeting the ISO 7241-1A standard.
EH 166 Series – 2NV Agricultural ISO 5675 Quick Couplings, Poppet Valve (Steel)
This EH series is interchangeable with the FASTER 2NV SERIES. Steel Product. This standard agricultural coupling features a poppet valve with a shielded valve guide. This design is engineered to prevent accidental disconnections caused by sudden pressure surges or backflow. It is fully interchangeable with other couplings meeting the ISO 7241-1A standard.

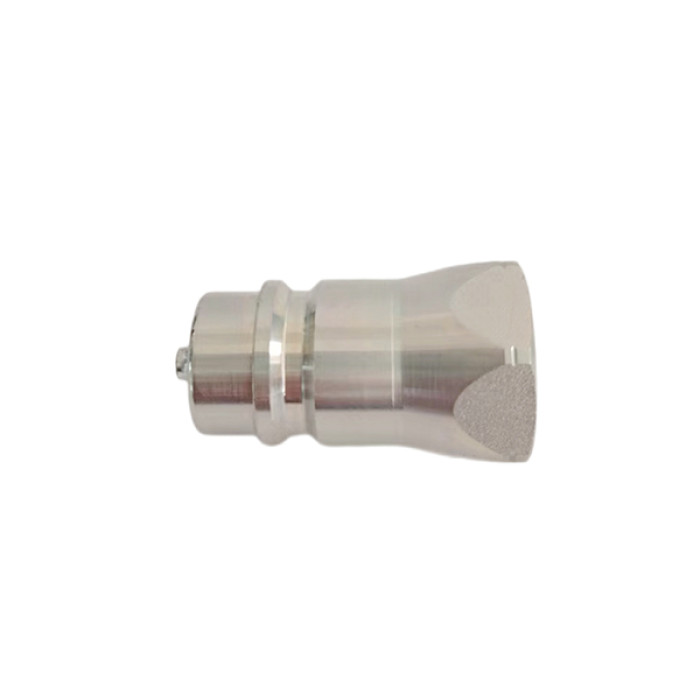

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP16612-G1/2 | 1/2” | 47 | S27 | BSPP 1/2″ FEMALE |
| HFSFP16612-1/2NPTF | 1/2” | 47 | S27 | NPTF 1/2″ FEMALE |
| HFSFP16612-3/4-16UNF-ORB | 1/2” | 47 | S27 | 3/4″-16 UNF FEMALE ORB |
| HFSFP16612-7/8-14UNF-ORB | 1/2” | 52.5 | S27 | 7/8″-14 UNF FEMALE ORB |
| HFSFP16612-G1/2-ORB | 1/2” | 47 | S27 | BSPP 1/2” FEMALE ORB |
Accessories
Color Can Be Customized
Accessories
Color Can Be Customized
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 08 | 12.5 | ISO-5675-1/2-P-P | ISO-5675-1/2-C-P | PVC |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1300 | 1.8 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | FASTER 2NV SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

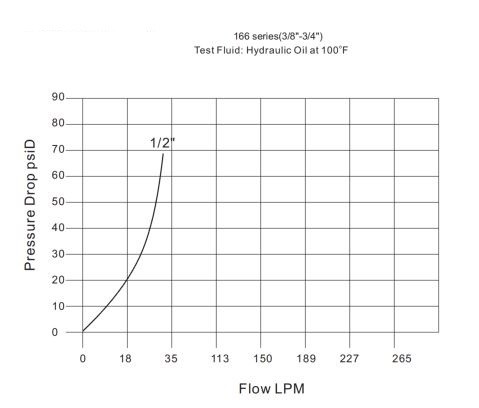

Pressure Drop
Pressure Drop
