EH 61 Series – NL Agricultural ISO 5675 Quick Couplings Free Flow (Steel)
This EH series is interchangeable with the FASTER NL SERIES. Steel Product. 61 couplings feature an open-passage design with no internal valves, ensuring higher flow efficiency and reduced pressure loss.
EH 61 Series – NL Agricultural ISO 5675 Quick Couplings Free Flow (Steel)
This EH series is interchangeable with the FASTER NL SERIES. Steel Product. 61 couplings feature an open-passage design with no internal valves, ensuring higher flow efficiency and reduced pressure loss.

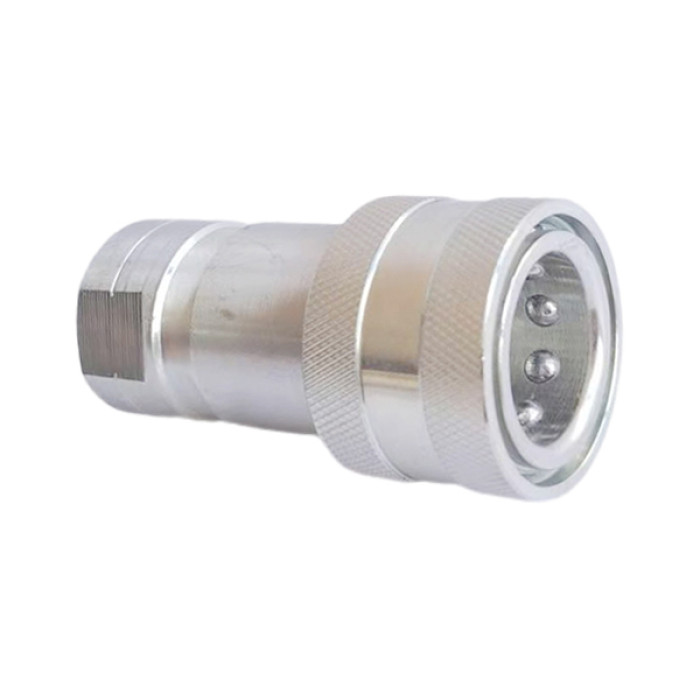

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC6134-G3/4″ | 3/4” | 84 | 48 | S34 | 3/4″BSPP FEMALE |

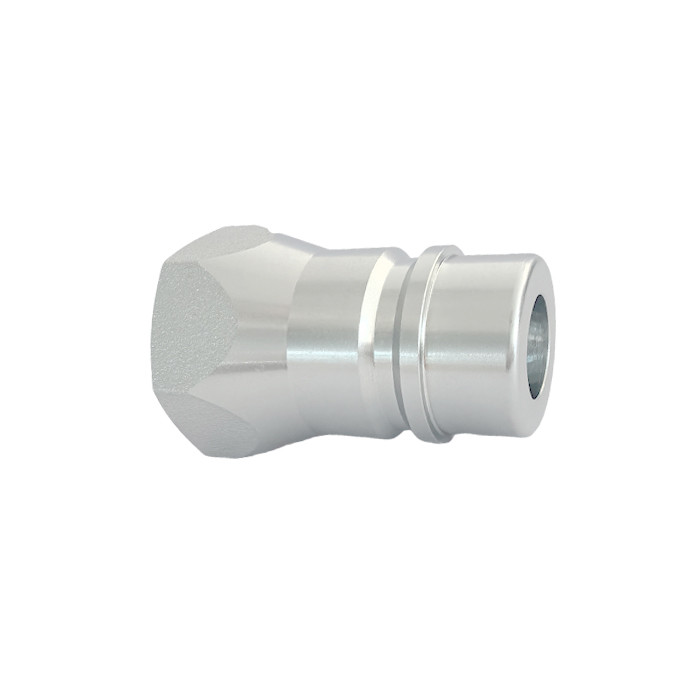

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | LP(mm) | HP(mm) | T |
| HFSFP6134-G3/4″ | 3/4” | 55 | S34 | 3/4″BSPP FEMALE |
Accessories
Color Can Be Customized
Accessories
Color Can Be Customized
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 12 | 20 | ISO-A-3/4-P-P | ISO-A-3/4-C-P | PVC |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 12 | 3/4” | 300 | 300 | 300 | 1300 | 1300 | 1300 | 0 |
| Material: | Steel | |
| Seals: | FKM, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -20 °C to 200 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | FASTER NL SERIES |
| Valve Type: | None | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

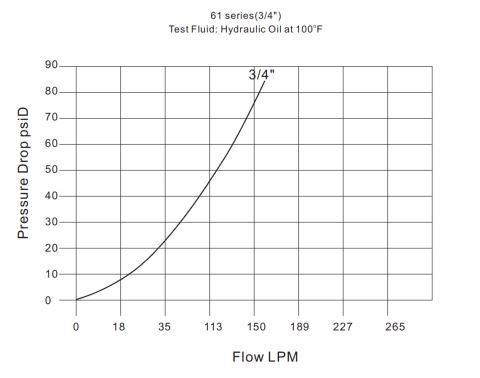

Pressure Drop
Pressure Drop
