EH 66 Series – NV Agricultural ISO 5675 Quick Couplings, with Poppet Valve (Steel)
This EH series is interchangeable with Parker 4000 series, Faster NV series, Dixon AG series, Eaton Aeroquip FD42 series, DNP PDV1 series, Stucchi IRV series, Safeway S20 series, and Voswinkel ID series quick disconnect couplers. Stainless 316 steel products. ISO 5675 compliant.
Interchange
- PARKER 4000 SERIES
- FASTER NV SERIES
- SAFEWAY S20 SERIES
- DIXON AG SERIES
- DNP PDV1 SERIES
- VOSWINKEL ID SERIES
- EATON AEROQUIP FD42 SERIES
- STUCCHI IRV SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 66 Series – NV Agricultural ISO 5675 Quick Couplings, with Poppet Valve (Steel)
This EH series is interchangeable with Parker 4000 series, Faster NV series, Dixon AG series, Eaton Aeroquip FD42 series, DNP PDV1 series, Stucchi IRV series, Safeway S20 series, and Voswinkel ID series quick disconnect couplers. Stainless 316 steel products. ISO 5675 compliant.
Interchange
- PARKER 4000 SERIES
- FASTER NV SERIES
- SAFEWAY S20 SERIES
- DIXON AG SERIES
- DNP PDV1 SERIES
- VOSWINKEL ID SERIES
- EATON AEROQUIP FD42 SERIES
- STUCCHI IRV SERIES
Call Tawk.to
contact@ehhydraulics.com

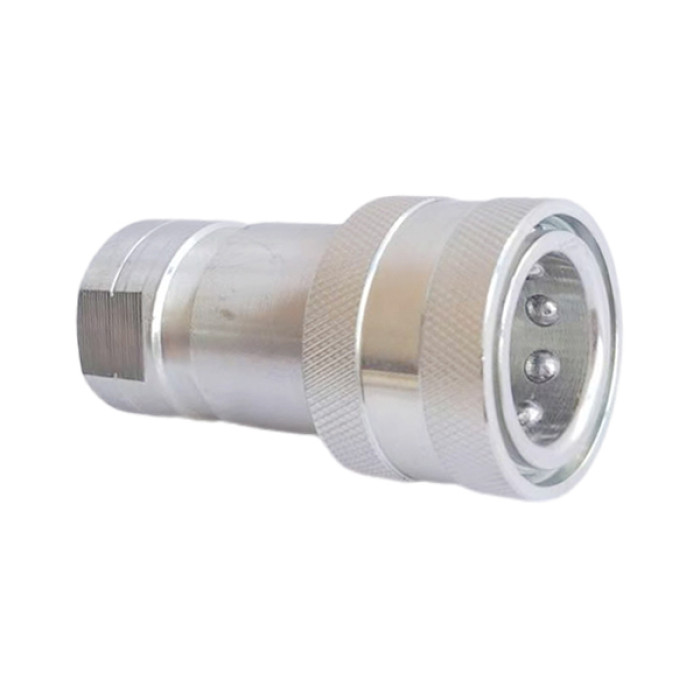

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC6614-1/4″ | 1/4” | 52.5 | 28 | S19 | 1/4″BSPP(NPT) |
| HFSFC6638-3/8″ | 3/8” | 59.5 | 35 | S22 | 3/8″BSPP(NPT) |
| HFSFC6612-1/2″ | 1/2” | 66 | 38 | S27 | 1/2″BSPP(NPT) |
| HFSFC6612-34″UNF | 1/2” | 66 | 38 | S27 | 3/4″-16UNF |
| HFSFC6634-3/4″ | 3/4” | 80 | 48 | S33 | 3/4″BSPP(NPT) |
| HFSFC6610-1″ | 1” | 88.5 | 52.5 | S39 | 1″BSPP(NPT) |

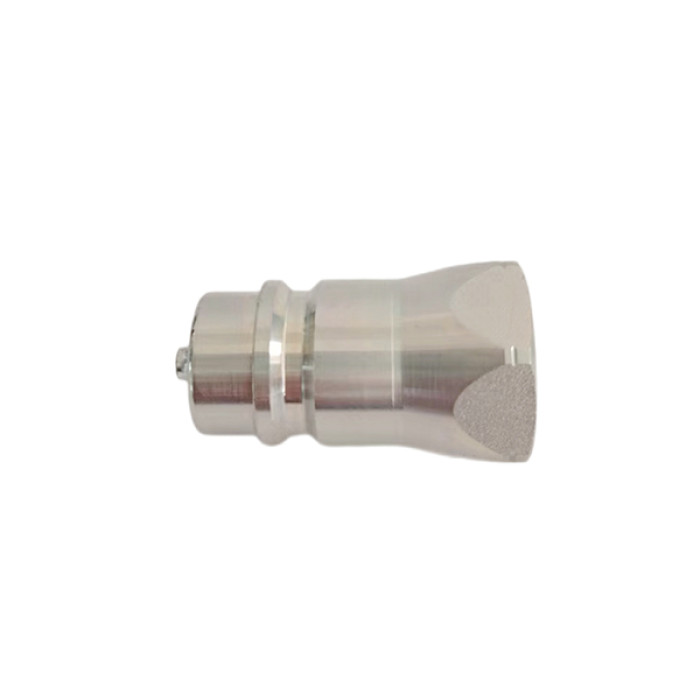

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP6614-1/4″ | 1/4” | 35 | S19 | 1/4″BSPP(NPT) |
| HFSFP6638-3/8″ | 3/8” | 40.5 | S24 | 3/8″BSPP(NPT) |
| HFSFP6612-1/2″ | 1/2” | 46 | S27 | 1/2″BSPP(NPT) |
| HFSFP6612-3/4″UNF | 1/2” | 46 | S27 | 3/4″-16UNF |
| HFSFP6634-3/4″ | 3/4” | 56.5 | S35 | 3/4″BSPP(NPT) |
| HFSFP6610-1″ | 1” | 67 | S41 | 1″BSPP(NPT) |

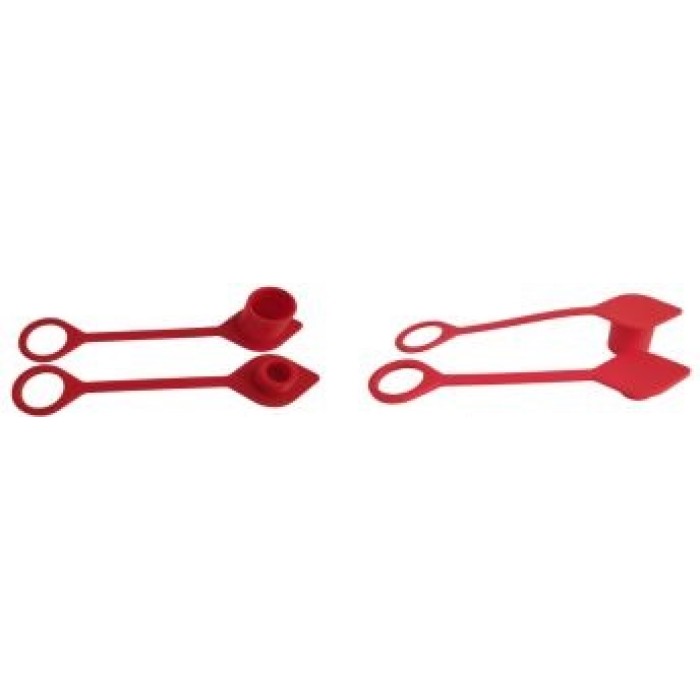

Accessories
Color Can Be Customized
Accessories
Color Can Be Customized
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-5675-1/4-P-P | ISO-5675-1/4-C-P | PVC |
| 06 | 10 | ISO-5675-3/8-P-P | ISO-5675-3/8-C-P | PVC |
| 08 | 12.5 | ISO-5675-1/2-P-P | ISO-5675-1/2-C-P | PVC |
| 12 | 20 | ISO-5675-3/4-P-P | ISO-5675-3/4-C-P | PVC |
| 16 | 25 | ISO-5675-1-P-P | ISO-5675-1-C-P | PVC |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 0.8 |
| 06 | 3/8” | 300 | 300 | 300 | 1200 | 1200 | 1200 | 1.3 |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 1.8 |
| 12 | 3/4” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 8 |
| 16 | 1” | 230 | 230 | 230 | 920 | 920 | 920 | 13 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | PARKER 4000 SERIESEATON AEROQUIP FD42 SERIESFASTER NV SERIESDNP PDV1 SERIESSTUCCHI IRV SERIESSAFEWAY S20 SERIESVOSWINKEL ID SERIESDIXON AG SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

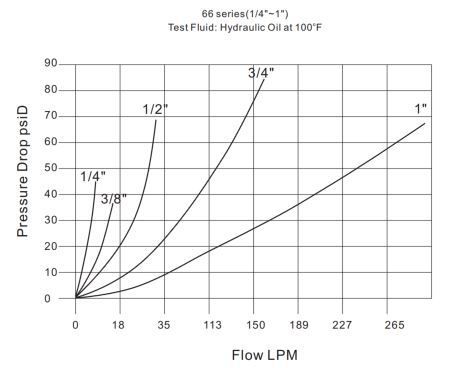

Pressure Drop
Pressure Drop
RELATED PRODUCTS
EH 168 2NS Agri ISO 5675 Ball Quick Coupler
EH 168 Series – 2NS Agricultural ISO 5675 Quick Couplings, Ball Valve (Steel) This EH series is interchangeable with the FASTER 2NS SERIES. Steel Product. General-purpose ball valve couplings with quick-disconnect functionality. This series …
EH 166 2NV Agri ISO 5675 Poppet Quick Coupler
EH 166 Series – 2NV Agricultural ISO 5675 Quick Couplings, Poppet Valve (Steel) This EH series is interchangeable with the FASTER 2NV SERIES. Steel Product. This standard agricultural coupling features a poppet valve with a shielded valve gu…
EH 61 NL Agri ISO 5675 Free Flow Coupler
EH 61 Series – NL Agricultural ISO 5675 Quick Couplings Free Flow (Steel) This EH series is interchangeable with the FASTER NL SERIES. Steel Product. 61 couplings feature an open-passage design with no internal valves, ensuring higher flow e…
EH 68 NS Agri ISO 5675 Ball Coupler Steel
EH 68 Series – NS Agricultural ISO 5675 Quick Couplings, with Ball Valve (Steel) This EH series is interchangeable with PARKER 4000 SERIES, DIXON AG SERIES, EATON AEROQUIP FD42 SERIES, FASTER NS SERIES, DNP PDS1 SERIES, STUCCHI IR SERIES, SA…
loading…
已经是到最后一篇内容了！
EHHYDRAULICHYDRAULIC 68 Series – NL
RELATED PRODUCTS

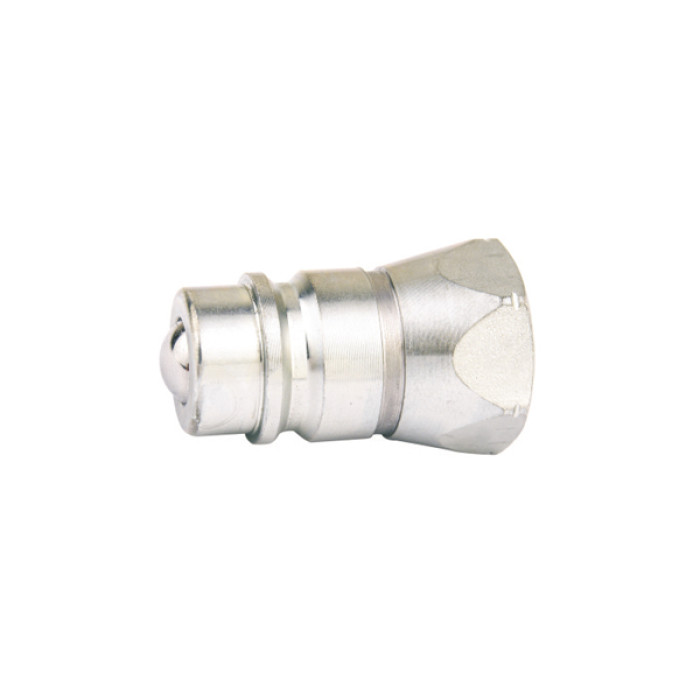

EH 168 2NS Agri ISO 5675 Ball Quick Coupler
