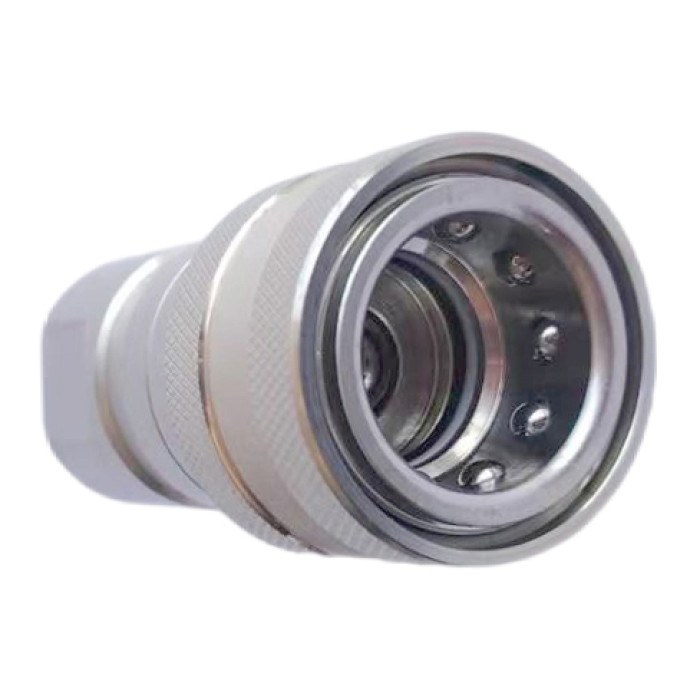

EH 68 Series – NS Agricultural ISO 5675 Quick Couplings, with Ball Valve (Steel)
This EH series is interchangeable with PARKER 4000 SERIES, DIXON AG SERIES, EATON AEROQUIP FD42 SERIES, FASTER NS SERIES, DNP PDS1 SERIES, STUCCHI IR SERIES, SAFEWAY S20 SERIES, and SNAP-TITE 60 SERIES. Steel Product. ISO-5675 compliant. General-purpose ball valve couplings with quick-disconnect functionality. ISO-7241-A compliant (1/2” Body Size Only). The rest body sizes are interchangeable with the PARKER 4000 series and Faster NS series. Note that the FASTER NS SERIES 3/4” size is different from the PARKER 4000 Series 3/4” size.
Interchange
- PARKER 4000 SERIES
- STUCCHI IR SERIES
- SNAP-TITE 60 SERIES
- EATON AEROQUIP FD42 SERIES
- DIXON AG SERIES
- DNP PDS1 SERIES
- SAFEWAY S20 SERIES
- FASTER NS SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 68 Series – NS Agricultural ISO 5675 Quick Couplings, with Ball Valve (Steel)
This EH series is interchangeable with PARKER 4000 SERIES, DIXON AG SERIES, EATON AEROQUIP FD42 SERIES, FASTER NS SERIES, DNP PDS1 SERIES, STUCCHI IR SERIES, SAFEWAY S20 SERIES, and SNAP-TITE 60 SERIES. Steel Product. ISO-5675 compliant. General-purpose ball valve couplings with quick-disconnect functionality. ISO-7241-A compliant (1/2” Body Size Only). The rest body sizes are interchangeable with the PARKER 4000 series and Faster NS series. Note that the FASTER NS SERIES 3/4” size is different from the PARKER 4000 Series 3/4” size.
Interchange
- PARKER 4000 SERIES
- STUCCHI IR SERIES
- SNAP-TITE 60 SERIES
- EATON AEROQUIP FD42 SERIES
- DIXON AG SERIES
- DNP PDS1 SERIES
- SAFEWAY S20 SERIES
- FASTER NS SERIES
Call Tawk.to
contact@ehhydraulics.com

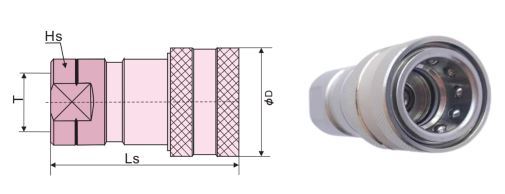

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC6814-1/4″ | 1/4” | 52.5 | 28 | S19 | 1/4″BSPP(NPT) |
| HFSFC6838-3/8″ | 3/8” | 59.5 | 35 | S22 | 3/8″BSPP(NPT) |
| HFSFC6812-1/2″ | 1/2” | 66 | 38 | S27 | 1/2″BSPP(NPT) |
| HFSFC6812-3/4″UNF | 1/2” | 66 | 38 | S27 | 3/4″-16UNF |
| HFSFC6834-3/4″ | 3/4” | 80 | 48 | S33 | 3/4″BSPP(NPT) |
| HFSFC6810-1″ | 1” | 88.5 | 52.5 | S39 | 1″BSPP(NPT) |

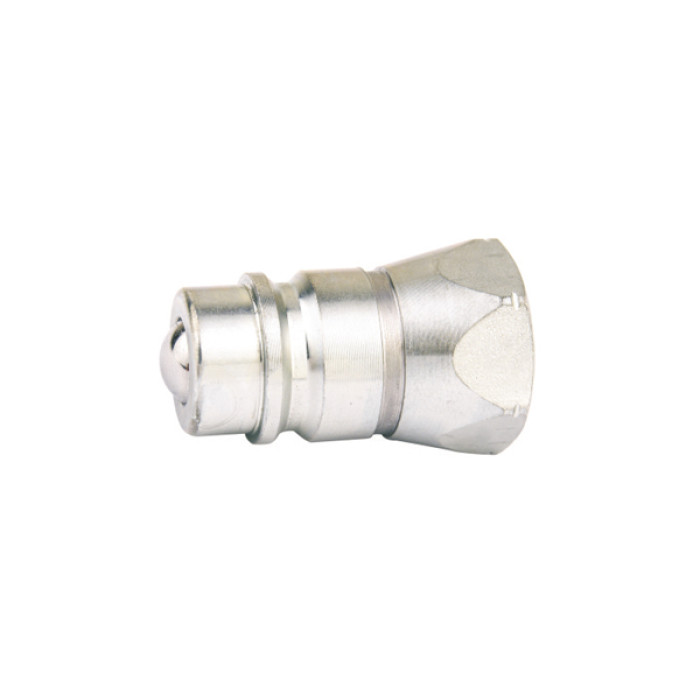

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP6814-1/4″ | 1/4” | 35 | S19 | 1/4″BSPP(NPT) |
| HFSFP6838-3/8″ | 3/8” | 40.5 | S24 | 3/8″BSPP(NPT) |
| HFSFP6812-1/2″ | 1/2” | 46 | S27 | 1/2″BSPP(NPT) |
| HFSFP6812-3/4″UNF | 1/2” | 46 | S27 | 3/4″-16UNF |
| HFSFP6834-3/4″ | 3/4” | 56.5 | S35 | 3/4″BSPP(NPT) |
| HFSFP6810-1″ | 1” | 67 | S41 | 1″BSPP(NPT) |
Accessories
Color Can Be Customized
Accessories
Color Can Be Customized
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-5675-1/4-P-P | ISO-5675-1/4-C-P | PVC |
| 06 | 10 | ISO-5675-3/8-P-P | ISO-5675-3/8-C-P | PVC |
| 08 | 12.5 | ISO-5675-1/2-P-P | ISO-5675-1/2-C-P | PVC |
| 12 | 20 | ISO-5675-3/4-P-P | ISO-5675-3/4-C-P | PVC |
| 16 | 25 | ISO-5675-1-P-P | ISO-5675-1-C-P | PVC |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 207 | 207 | 207 | 828 | 828 | 828 | 0.7 |
| 06 | 3/8” | 207 | 207 | 207 | 828 | 828 | 828 | 1 |
| 08 | 1/2” | 207 | 207 | 207 | 828 | 828 | 828 | 1.5 |
| 12 | 3/4” | 170 | 170 | 170 | 680 | 680 | 680 | 7 |
| 16 | 1” | 150 | 150 | 150 | 600 | 600 | 600 | 11 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | PARKER 4000 SERIESEATON AEROQUIP FD42 SERIESFASTER NS SERIESDNP PDS1 SERIESSTUCCHI IR SERIESSAFEWAY S20 SERIESVOSWINKEL ID SERIESDIXON AG SERIESSNAP-TITE 60 SERIES |
| Valve Type: | Ball | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

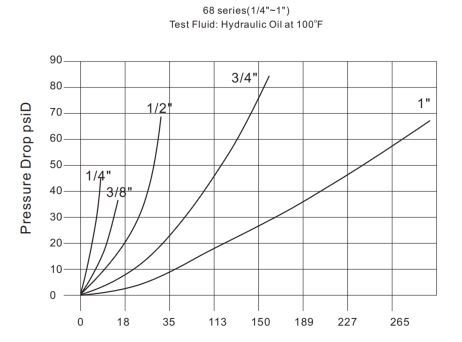

Pressure Drop
Pressure Drop
