EH 175 Series – AGRI NV ZINC-NICKEL ISO 7241-A Quick Couplings With Poppet Valve (Steel)
This EH series is interchangeable with FASTER AGRI ZINC-NICKEL SERIES, FASTER NV ZINC-NICKEL SERIES, and FASTER ANV ZINC-NICKEL SERIES. Steel Product. The 175 series is compatible with ISO 7241-1 -A standards. Constructed from steel with zinc-nickel plating. It is widely used in hydraulic systems, particularly in agricultural and industrial applications.
Interchange
- FASTER AGRI ZINC-NICKEL SERIES
- FASTER NV ZINC-NICKEL SERIES
- FASTER ANV ZINC-NICKEL SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 175 Series – AGRI NV ZINC-NICKEL ISO 7241-A Quick Couplings With Poppet Valve (Steel)
This EH series is interchangeable with FASTER AGRI ZINC-NICKEL SERIES, FASTER NV ZINC-NICKEL SERIES, and FASTER ANV ZINC-NICKEL SERIES. Steel Product. The 175 series is compatible with ISO 7241-1 -A standards. Constructed from steel with zinc-nickel plating. It is widely used in hydraulic systems, particularly in agricultural and industrial applications.
Interchange
- FASTER AGRI ZINC-NICKEL SERIES
- FASTER NV ZINC-NICKEL SERIES
- FASTER ANV ZINC-NICKEL SERIES
Call Tawk.to
contact@ehhydraulics.com

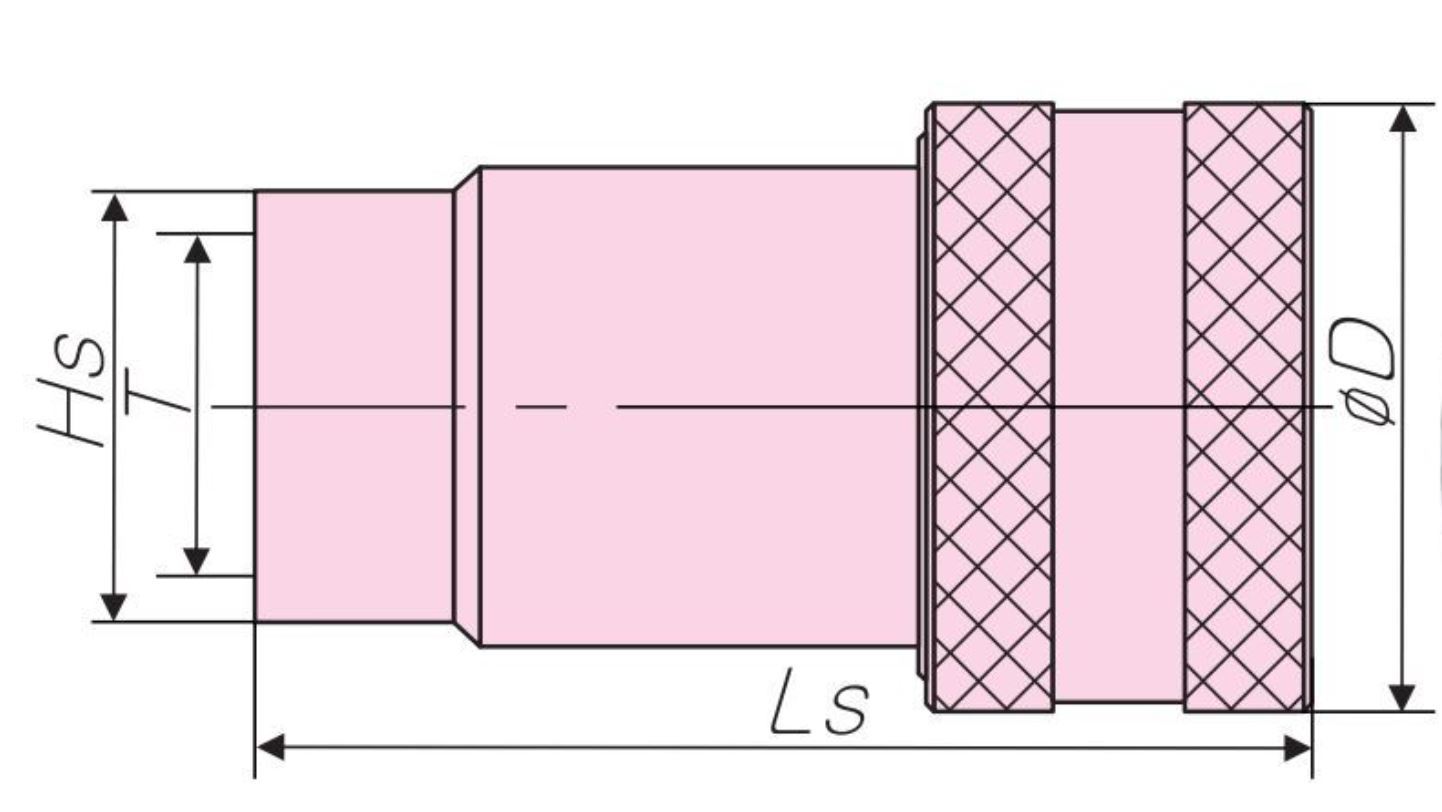

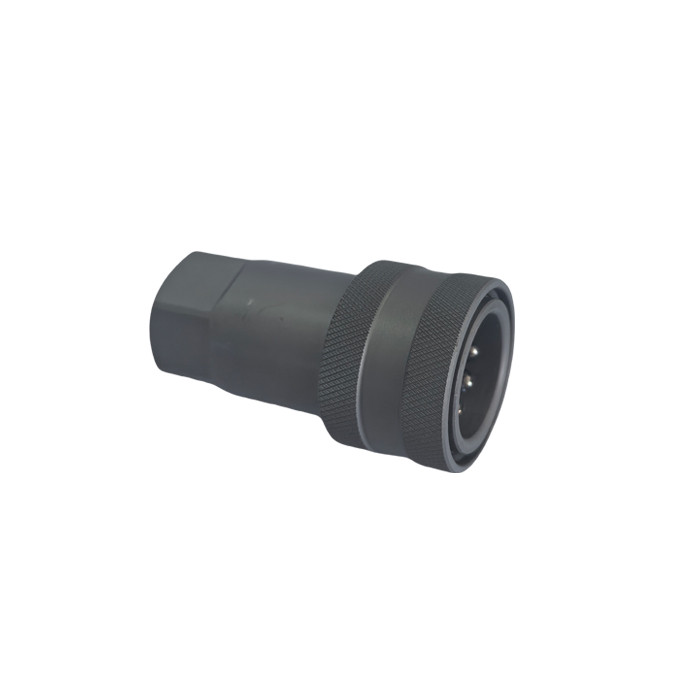

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | D(mm) | Ls(mm) | Hs(mm) | T |
| HFSFC17514-G1/4 | 1/4” | 25 | 47 | S19 | BSPP 1/4″ FEMALE |
| HFSFC17538-G3/8 | 3/8” | 31 | 57 | S22 | BSPP 3/8″ FEMALE |
| HFSFC17512-G1/2 | 1/2” | 38 | 66 | S27 | BSPP 1/2″ FEMALE |
| HFSFC17534-G3/4 | 3/4” | 48 | 82.5 | S34 | BSPP 3/4″ FEMALE |
| HFSFC17510-G1 | 1” | 54 | 97 | S41 | BSPP 1″ FEMALE |
| HFSFC175114-G1-1/4 | 1-1/4” | 70 | 117 | S50 | BSPP 1-1/4″ FEMALE |
| HFSFC175112-G1-1/2 | 1-1/2” | 84 | 133.5 | S60 | BSPP 1-1/2″ FEMALE |
| HFSFC17520-G2 | 2” | 100 | 160 | S75 | BSPP 2″ FEMALE |

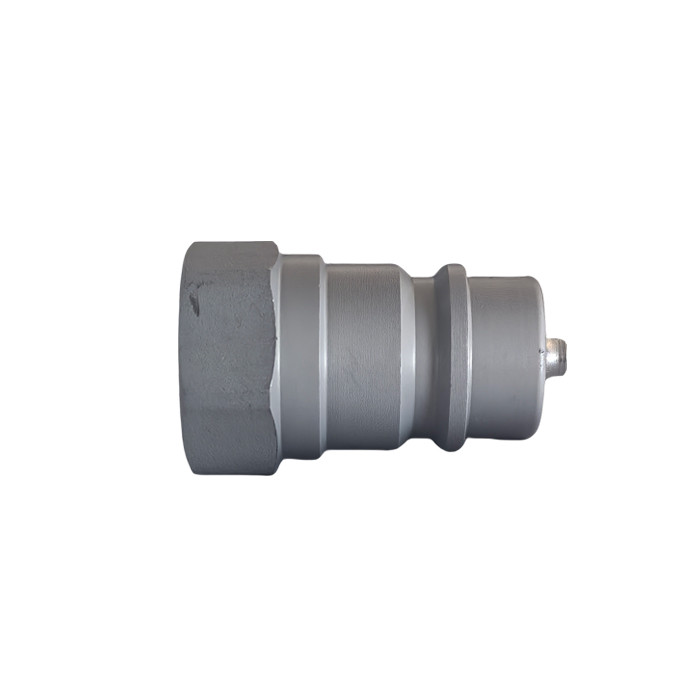

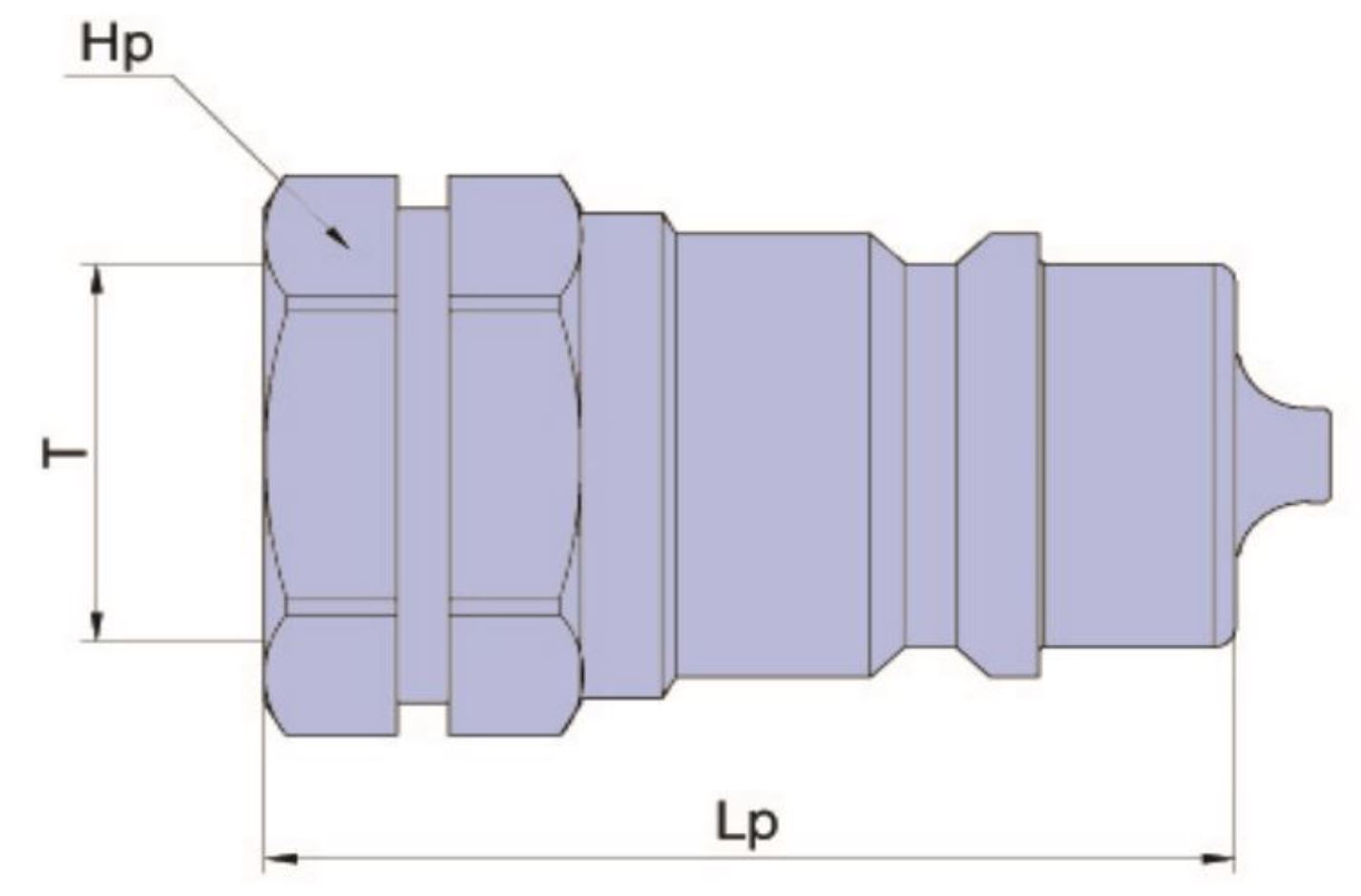

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP17514-G1/4 | 1/4” | 35 | S19 | BSPP 1/4″ FEMALE |
| HFSFP17538-G3/8 | 3/8” | 39 | S22 | BSPP 3/8″ FEMALE |
| HFSFP17512-G1/2 | 1/2” | 46 | S27 | BSPP 1/2″ FEMALE |
| HFSFP17534-G3/4 | 3/4” | 55 | S34 | BSPP 3/4″ FEMALE |
| HFSFP17510-G1 | 1” | 63 | S41 | BSPP 1″ FEMALE |
| HFSFP175114-G1-1/4 | 1-1/4” | 75 | S50 | BSPP 1-1/4″ FEMALE |
| HFSFP175112-G1-1/2 | 1-1/2” | 83 | S60 | BSPP 1-1/2″ FEMALE |
| HFSFP17520-G2 | 2” | 100 | S75 | BSPP 2″ FEMALE |
Accessories
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-A-1/4-P-P | ISO-A-1/4-C-P | PVC |
| 06 | 10 | ISO-A-3/8-P-P | ISO-A-3/8-C-P | PVC |
| 08 | 12.5 | ISO-A-1/2-P-P | ISO-A-1/2-C-P | PVC |
| 12 | 20 | ISO-A-3/4-P-P | ISO-A-3/4-C-P | PVC |
| 16 | 25 | ISO-A-1-P-P | ISO-A-1-C-P | PVC |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 0.5 |
| 06 | 3/8” | 315 | 315 | 315 | 1260 | 1260 | 1260 | 1.1 |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 1.8 |
| 12 | 3/4” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 8 |
| 16 | 1” | 230 | 230 | 230 | 920 | 920 | 920 | / |
| 20 | 1-1/4” | 230 | 230 | 230 | 920 | 920 | 920 | / |
| 24 | 1-1/2” | 180 | 180 | 180 | 720 | 720 | 720 | / |
| 32 | 2” | 130 | 130 | 130 | 520 | 520 | 520 | / |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 1000 (ZnNi) | |
| Specifications: | Market Interchange | FASTER AGRI ZINC-NICKEL SERIESFASTER NV ZINC-NICKEL SERIESFASTER ANV ZINC-NICKEL SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

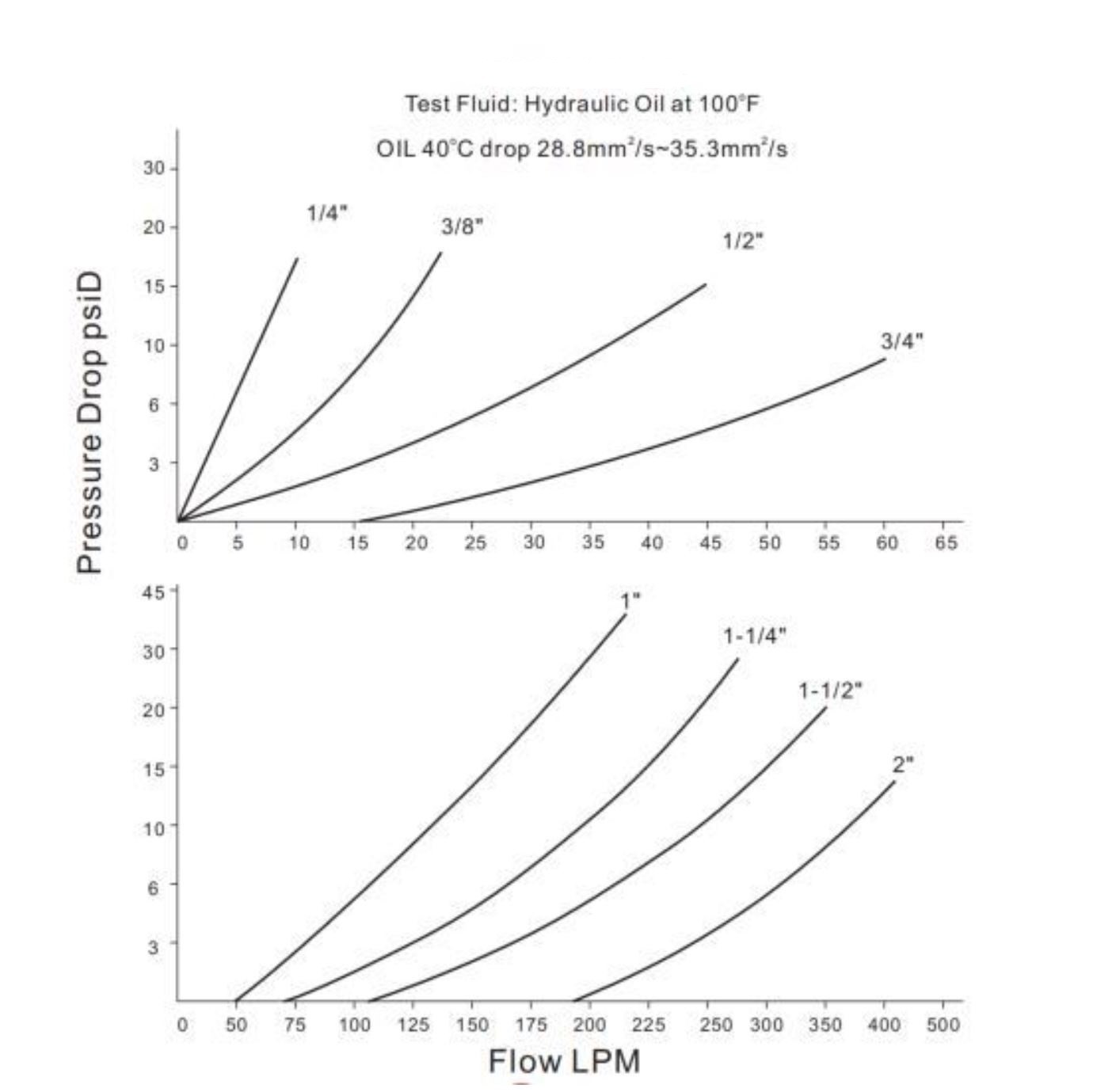

Pressure Drop
Pressure Drop
