EH 241 Series – PARKER 1141 Connect Under Pressure Stainless Quick Couplings (AISI 316 Stainless Steel)
This EH series is interchangeable with SNAP-TITE H SERIES and PARKER 1141 SERIES. This series is mainly used in offshore equipment and hydraulic lines in a corrosive environment. Rated pressure up to 10,000 PSI. Small diameter mating seal keeps separate forces to a minimum, allowing easier threaded connection and disconnection at pressures up to 5000 PSI. Self-locking threads guard against accidental disconnection. Visual connection indicator- when fully coupled, the sleeve edge is flush with the end of the male thread.

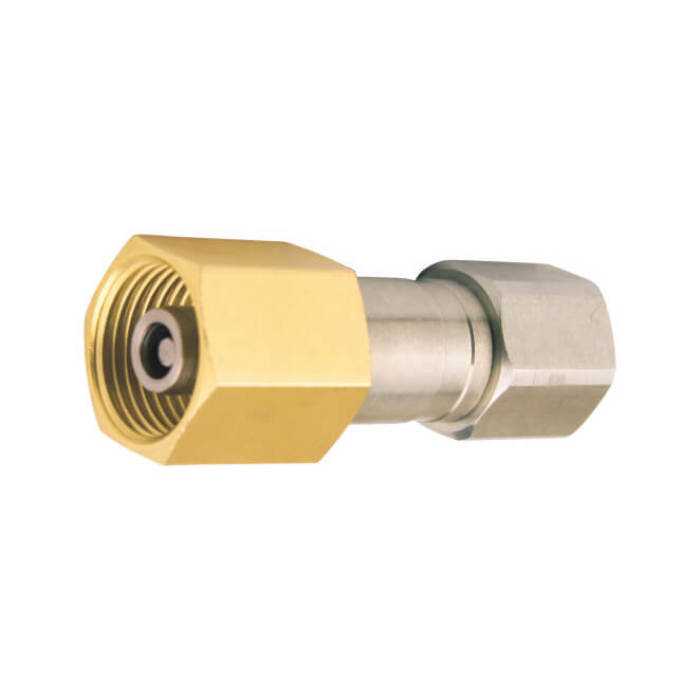

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSSFC24114-1/4″ | 1/4” | 51 | S22 | 1/4″NPTF |

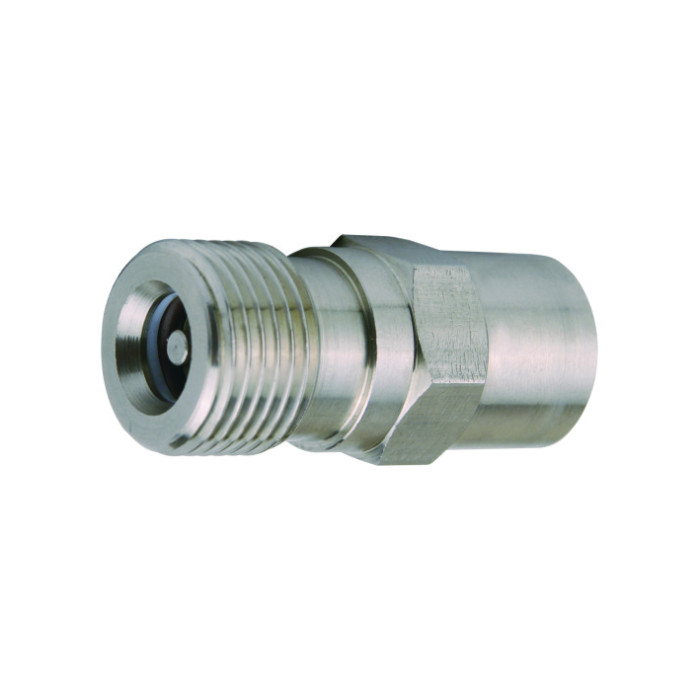

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | CH(mm) | T |
| HFSSFP24114-1/4″ | 1/4” | 70 | S22 | 25 | 1/4″NPTF |

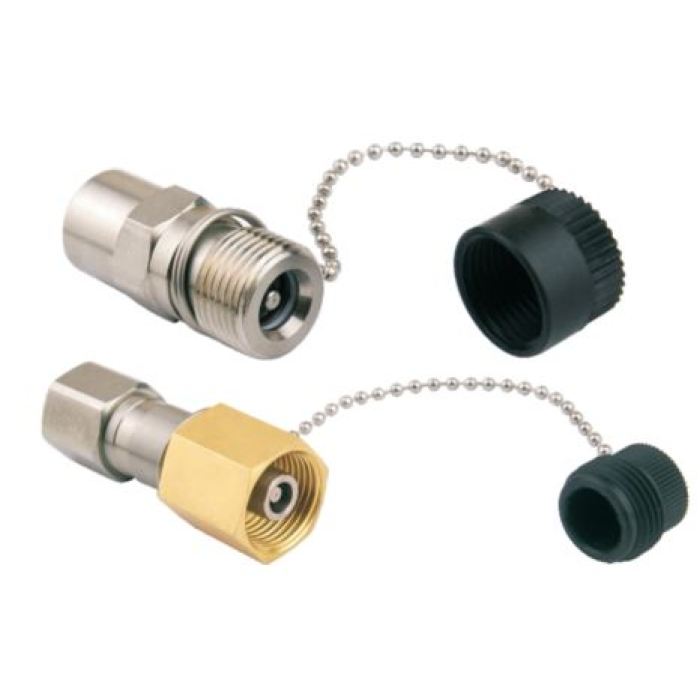

Accessories
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 700 | 700 | 700 | 1170 | 1170 | 1170 | 0.02 |
| Material: | AISI 316 Stainless Steel | |
| Seals: | Viton, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -20 °C to 200 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | PARKER 1141 SERIES |
| Valve Type: | Poppet | |
| Connection: | Screw To Connect | |
| Disconnection: | Unscrew To Disconnect | |
| Connection Under Pressure: | Allowed Up to 5000 PSI | |
