EH 278 Series – 3CFPV Push-Pull Female Couplers for Agriculture Connectable with Male Half Under Residual Pressure (Steel)
This EH series is interchangeable with FASTER 3CFPV SERIES, PARKER RSD SERIES, DNP PPK3 SERIES, STAUFF UX SERIES, and VOSWINKEL UX SERIES. Steel Product. Designed for direct installation into valve ports or rigid piping systems, this coupling series meets stringent ISO 7241-1 Series A standards while incorporating critical safety features. The innovative breakaway function provides essential protection against equipment damage by automatically disconnecting the male coupling component when subjected to accidental tractor pull forces, effectively preventing hose rupture. This safety mechanism ensures operational reliability in demanding agricultural and industrial applications where unexpected tension may occur. Max Flow rate is 200 L/min.
Interchange
- FASTER 3CFPV SERIES
- STAUFF UX SERIES
- PARKER RSD SERIES
- VOSWINKEL UX SERIES
- DNP PPK3 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 278 Series – 3CFPV Push-Pull Female Couplers for Agriculture Connectable with Male Half Under Residual Pressure (Steel)
This EH series is interchangeable with FASTER 3CFPV SERIES, PARKER RSD SERIES, DNP PPK3 SERIES, STAUFF UX SERIES, and VOSWINKEL UX SERIES. Steel Product. Designed for direct installation into valve ports or rigid piping systems, this coupling series meets stringent ISO 7241-1 Series A standards while incorporating critical safety features. The innovative breakaway function provides essential protection against equipment damage by automatically disconnecting the male coupling component when subjected to accidental tractor pull forces, effectively preventing hose rupture. This safety mechanism ensures operational reliability in demanding agricultural and industrial applications where unexpected tension may occur. Max Flow rate is 200 L/min.
Interchange
- FASTER 3CFPV SERIES
- STAUFF UX SERIES
- PARKER RSD SERIES
- VOSWINKEL UX SERIES
- DNP PPK3 SERIES
Call Tawk.to
contact@ehhydraulics.com

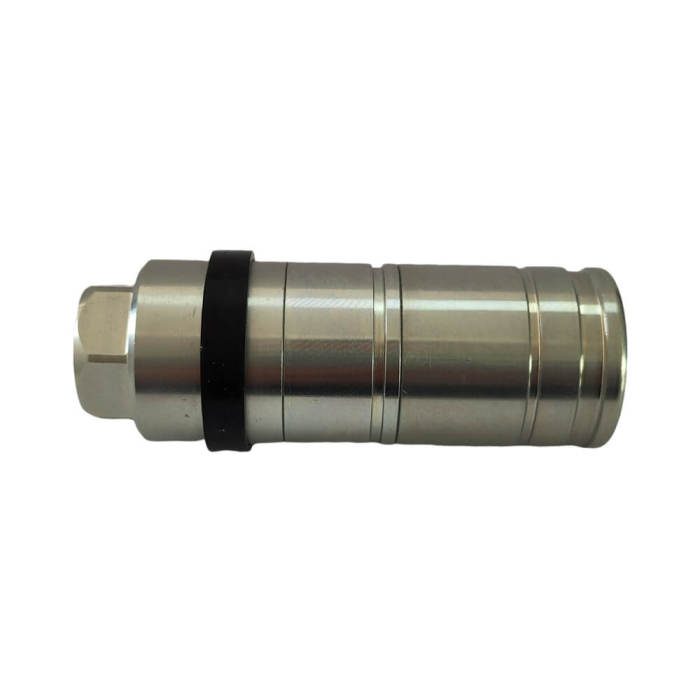

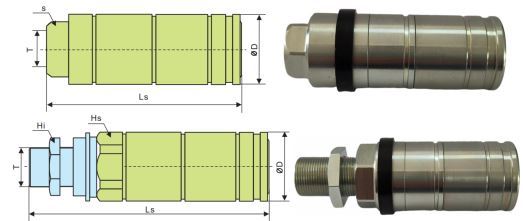

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Standard Type | D(mm) | Hs(mm) | Ls(mm) | T |
| HFSFC27812-1/2G | 1/2” | DIN 3852-2 | 38 | 27 | 107.2 | 1/2″ BSPP |
| HFSFC27812-1/2NPT | 1/2” | DIN 3852-2 | 38 | 27 | 107.2 | 1/2″ NPT |
| HFSFC27812-3/4UNF | 1/2” | SAE J 1926-1 | 38 | 32 | 107.2 | 3/4″-16UNF-2B |
| HFSFC27812-7/8UNF | 1/2” | SAE J 1926-1 | 38 | 32 | 107.2 | 7/8″-14UNF-2B |
| HFSMC27812-M18X1.5 | 1/2” | ISO 8434-1-L | 38 | 32 | 113.2 | M18X1.5-12L |
| HFSMC27812-M22X1.5 | 1/2” | ISO 8434-1-L | 38 | 32 | 113.2 | M22X1.5-15L |
| HFSMC27812-M20X1.5 | 1/2” | ISO 8434-1-S | 38 | 32 | 113.2 | M20X1.5-12S |
| HFSMC27812-M24X1.5 | 1/2” | ISO 8434-1-S | 38 | 32 | 113.2 | M24X1.5-16S |
| HFSMC27812-3/4UNF | 1/2” | ISO 11926-3 | 38 | 32 | 131.5 | 3/4″-16UNF-2A |
| HFSMC27812-7/8UNF | 1/2” | ISO 11926-3 | 38 | 32 | 133.5 | 7/8″-14UNF-2A |
| HFSMC27812-3/4UNF | 1/2” | ISO 8434-2 | 38 | 32 | 131.5 | 3/4″-16UNF-2A |
| HFSMC27812-7/8UNF | 1/2” | ISO 8434-2 | 38 | 32 | 133.5 | 7/8″-14UNF-2A |
| HFSMC27812-M22X1.5 | 1/2” | DIN 7463 | 38 | 32 | 133.5 | M22X1.5 |
DIN 3852-2
SAE J 1926-1
ISO 8434-1-L
ISO 8434-1-S
ISO 11926-3 (UN),
ISO 6149-2 (METRIC)
ISO 8434-2
DIN 7463
DIN 3852-2
SAE J 1926-1
ISO 8434-1-L
ISO 8434-1-S
ISO 11926-3 (UN),
ISO 6149-2 (METRIC)
ISO 8434-2
DIN 7463

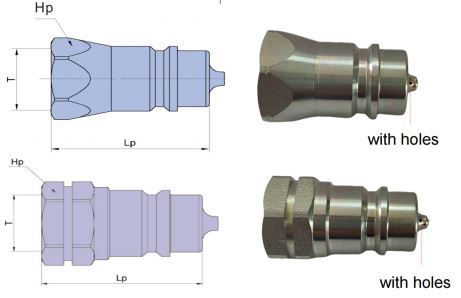

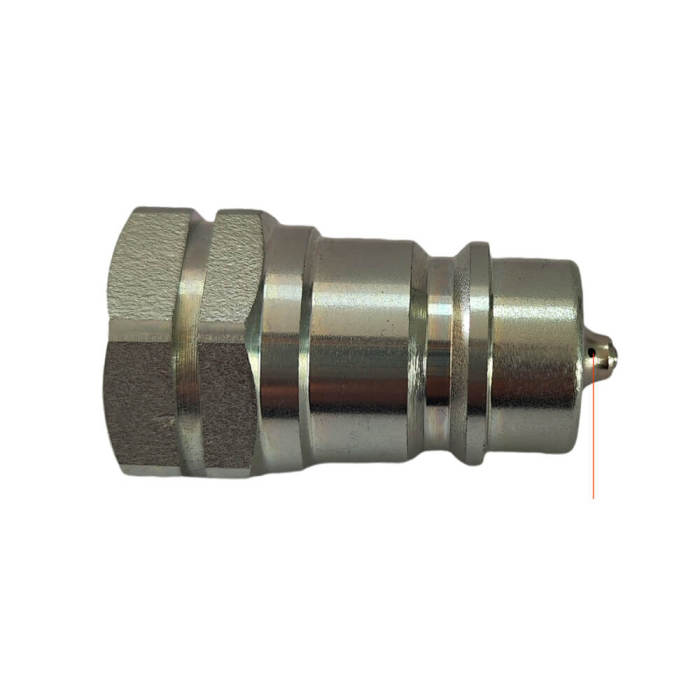

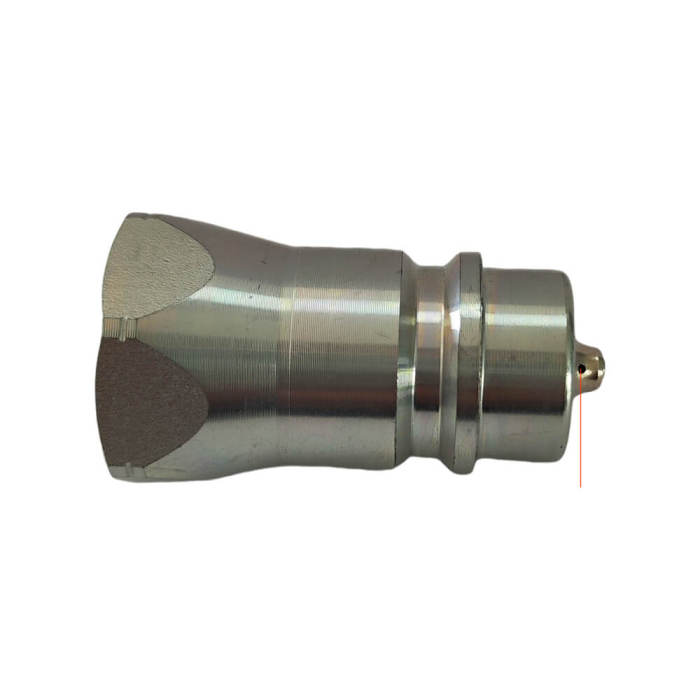

Male Plug
Male Plug
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP26612-1/2″ | 1/2” | 44 | S27 | 1/2”BSPP (NPT) |
| HFSFP26612-3/4UNF | 1/2” | 44 | S27 | 3/4″-16UNF-2B |
| HFSFP26612-7/8UNF | 1/2” | 44 | S27 | 7/8″-14UNF-2B |
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP27512-1/2″ | 1/2” | 44 | S27 | 1/2”BSPP (NPT) |
| HFSFP27512-3/4UNF | 1/2” | 44 | S27 | 3/4″-16UNF-2B |
| HFSFP27512-7/8UNF | 1/2” | 44 | S27 | 7/8″-14UNF-2B |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 1.8 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Max Flow Rate: | 200 L/min | |
| Specifications: | Market Interchange | FASTER 3CFHF SERIESPARKER RSD SERIESDNP PPK3 SERIESSTAUFF UX SERIESVOSWINKEL UX SERIES |
| Valve Type: | Poppet | |
| Connection: | Push to Connect | |
| Disconnection: | Pull to Disconnect | |
| Connection Under Pressure: | Allowed On Male Side | |

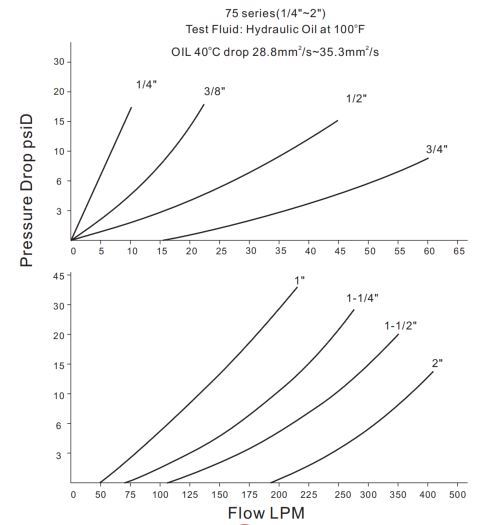

Pressure Drop
Pressure Drop
