EH 72 Series – ISO 7241-A Quick Couplings Free Flow (Steel)
This EH series is interchangeable with the DNP PAO1 SERIES. Steel Product. As the free-flow version of the 75 series, 72 couplings feature an open-passage design with no internal valves, ensuring higher flow efficiency and reduced pressure loss.
EH 72 Series – ISO 7241-A Quick Couplings Free Flow (Steel)
This EH series is interchangeable with the DNP PAO1 SERIES. Steel Product. As the free-flow version of the 75 series, 72 couplings feature an open-passage design with no internal valves, ensuring higher flow efficiency and reduced pressure loss.

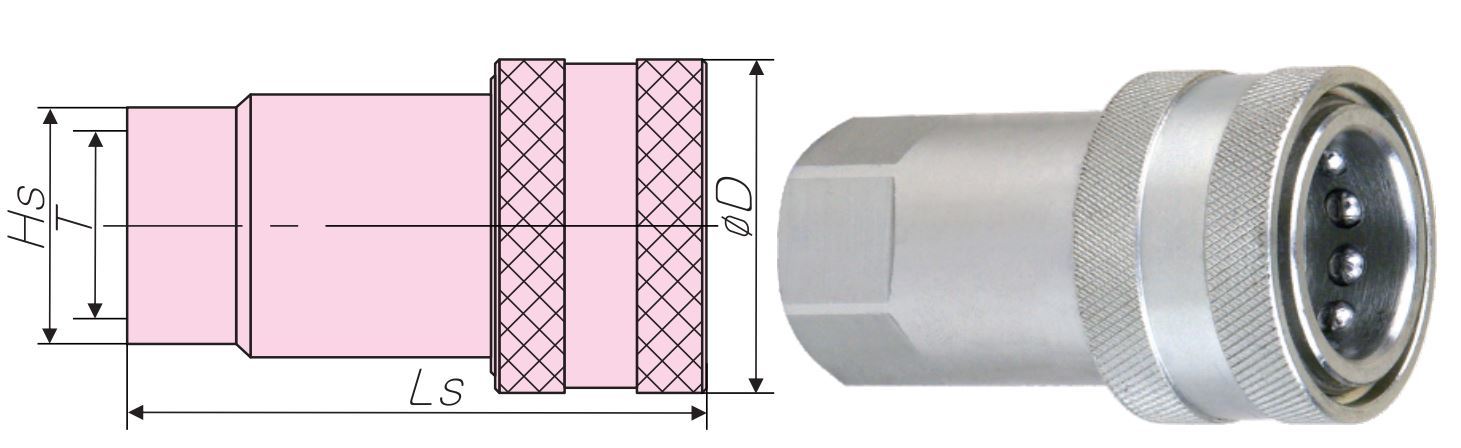

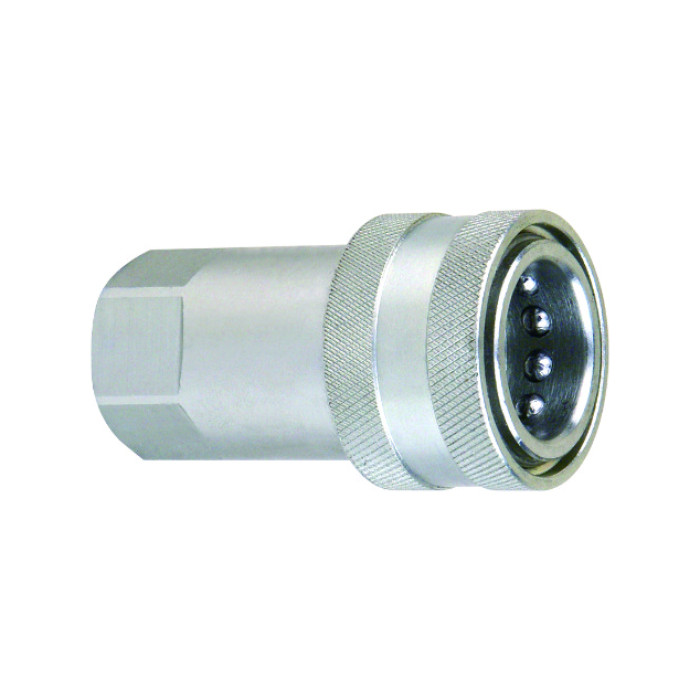

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC7214-1/4″ | 1/4” | 47 | 25 | S19 | 1/4″BSPP(NPT) |
| HFSFC7238-3/8″ | 3/8” | 57 | 31 | S22 | 3/8″BSPP(NPT) |
| HFSFC7212-1/2″ | 1/2” | 66 | 38 | S27 | 1/2″BSPP(NPT) |
| HFSFC7234-3/4″ | 3/4” | 82.5 | 48 | S34 | 3/4″BSPP(NPT) |
| HFSFC7210-1″ | 1” | 97 | 54 | S41 | 1″BSPP(NPT) |
| HFSFC72114-1-1/4″ | 1-1/4” | 117 | 70 | S50 | 1-1/4″BSPP(NPT) |

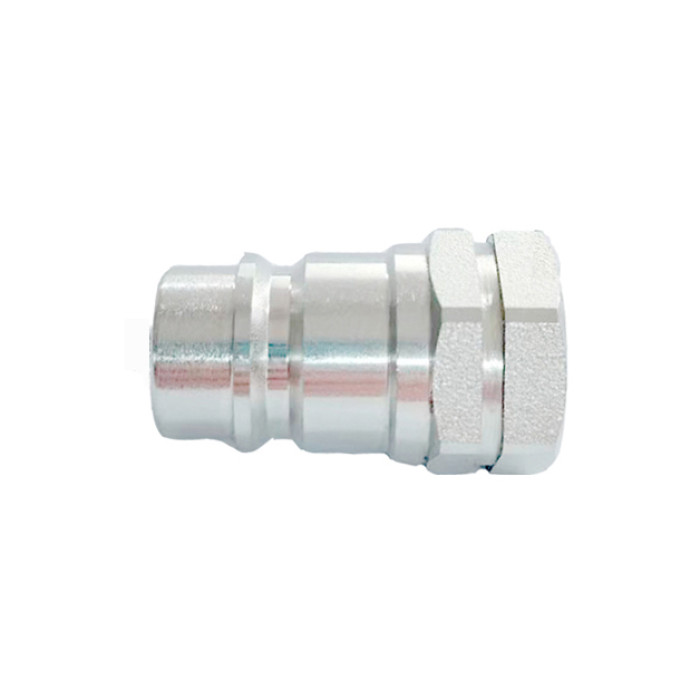

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP7214-1/4″ | 1/4” | 35 | S19 | 1/4″BSPP(NPT) |
| HFSFP7238-3/8″ | 3/8” | 39 | S22 | 3/8″BSPP(NPT) |
| HFSFP7212-1/2″ | 1/2” | 46 | S27 | 1/2″BSPP(NPT) |
| HFSFP7234-3/4″ | 3/4” | 55 | S34 | 3/4″BSPP(NPT) |
| HFSFP7210-1″ | 1” | 63 | S41 | 1″BSPP(NPT) |
| HFSFP72114-1-1/4″ | 1-1/4” | 75 | S50 | 1-1/4″BSPP(NPT) |
Accessories
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-A-1/4-P-P | ISO-A-1/4-C-P | PVC |
| 06 | 10 | ISO-A-3/8-P-P | ISO-A-3/8-C-P | PVC |
| 08 | 12.5 | ISO-A-1/2-P-P | ISO-A-1/2-C-P | PVC |
| 12 | 20 | ISO-A-3/4-P-P | ISO-A-3/4-C-P | PVC |
| 16 | 25 | ISO-A-1-P-P | ISO-A-1-C-P | PVC |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 0 |
| 06 | 3/8” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 0 |
| 08 | 1/2” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 0 |
| 12 | 3/4” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 0 |
| 16 | 1” | 230 | 230 | 230 | 920 | 920 | 920 | 0 |
| 20 | 1-1/4” | 230 | 230 | 230 | 920 | 920 | 920 | 0 |
| Material: | Steel | |
| Seals: | NBR, FKM, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, -20 °C to 200 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | FASTER NL SERIESDNP PAO1 SERIES |
| Valve Type: | None | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

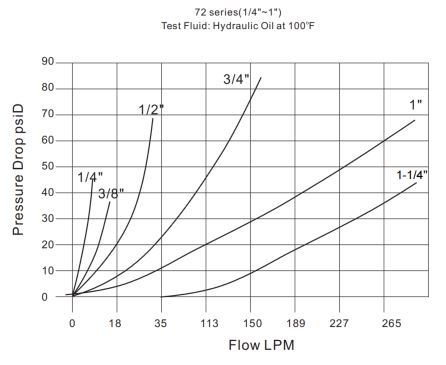

Pressure Drop
Pressure Drop
