EH 73 Series – NV STAINLESS STEEL ISO 7241-A Quick Couplings with Poppet Valve (Stainless Steel)
This EH series is interchangeable with PARKER 6600 SERIES, HANSEN HA15000 SERIES, VOSWINKEL IA-VA SERIES, FASTER NV STAINLESS STEEL SERIES, and DNP PAVX SERIES. The 73 series is a poppet-type quick coupler compatible with ISO 7241-1-A standards. Constructed from stainless steel, it ensures global interchangeability and is available in sizes from ¼” to 2”. Due to its versatility, the 73 series is widely used in hydraulic systems, particularly in agricultural and industrial applications.
Interchange
- PARKER 6600 SERIES
- FASTER NV STAINLESS STEEL SERIES
- HANSEN HA15000 SERIES
- DNP PAVX SERIES
- VOSWINKEL IA-VA SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 73 Series – NV STAINLESS STEEL ISO 7241-A Quick Couplings with Poppet Valve (Stainless Steel)
This EH series is interchangeable with PARKER 6600 SERIES, HANSEN HA15000 SERIES, VOSWINKEL IA-VA SERIES, FASTER NV STAINLESS STEEL SERIES, and DNP PAVX SERIES. The 73 series is a poppet-type quick coupler compatible with ISO 7241-1-A standards. Constructed from stainless steel, it ensures global interchangeability and is available in sizes from ¼” to 2”. Due to its versatility, the 73 series is widely used in hydraulic systems, particularly in agricultural and industrial applications.
Interchange
- PARKER 6600 SERIES
- FASTER NV STAINLESS STEEL SERIES
- HANSEN HA15000 SERIES
- DNP PAVX SERIES
- VOSWINKEL IA-VA SERIES
Call Tawk.to
contact@ehhydraulics.com

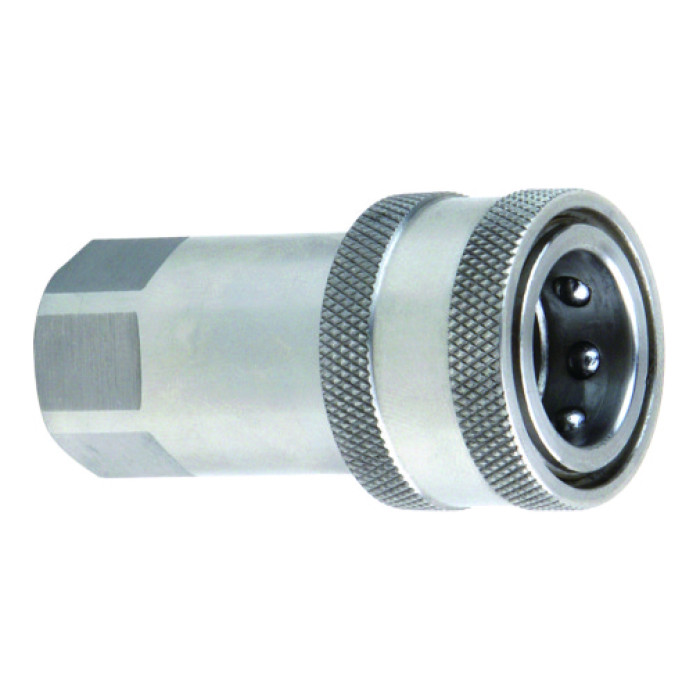

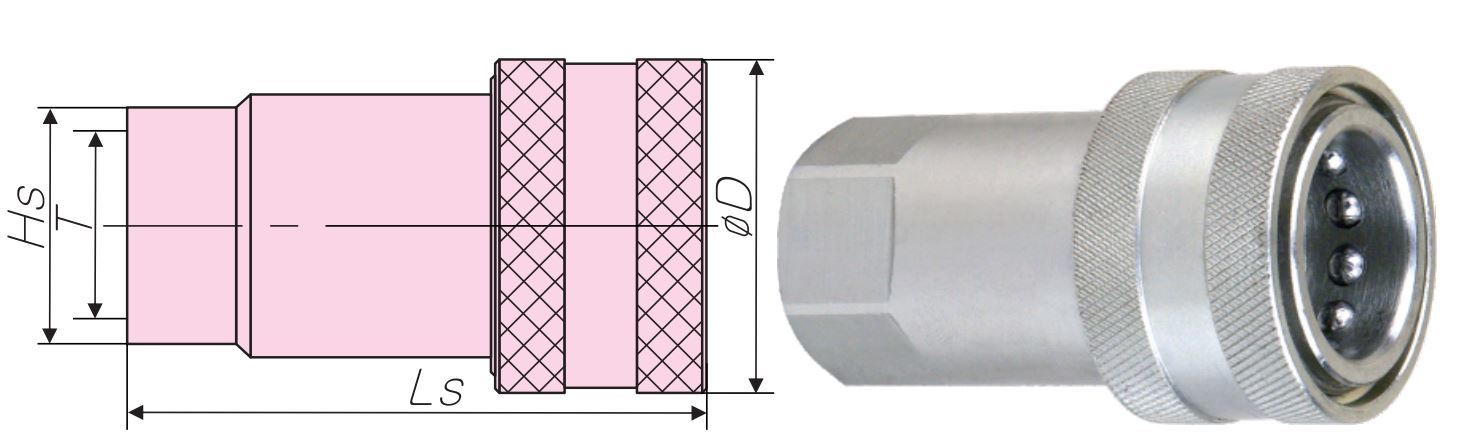

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC7314-1/4″ | 1/4” | 47 | 25 | S19 | 1/4″BSPP(NPT) |
| HFSFC7338-3/8″ | 3/8” | 57 | 31 | S22 | 3/8″BSPP(NPT) |
| HFSFC7312-1/2″ | 1/2” | 66 | 38 | S27 | 1/2″BSPP(NPT) |
| HFSFC7334-3/4″ | 3/4” | 82.5 | 48 | S34 | 3/4″BSPP(NPT) |
| HFSFC7310-1″ | 1” | 97 | 54 | S41 | 1″BSPP(NPT) |
| HFSFC73114-1-1/4″ | 1-1/4” | 117 | 70 | S50 | 1-1/4″BSPP(NPT) |
| HFSFC73112-1-1/2″ | 1-1/2” | 133.5 | 84 | S60 | 1-1/2″BSPP(NPT) |
| HFSFC7320-2″ | 2” | 160 | 100 | S75 | 2″BSPP(NPT) |

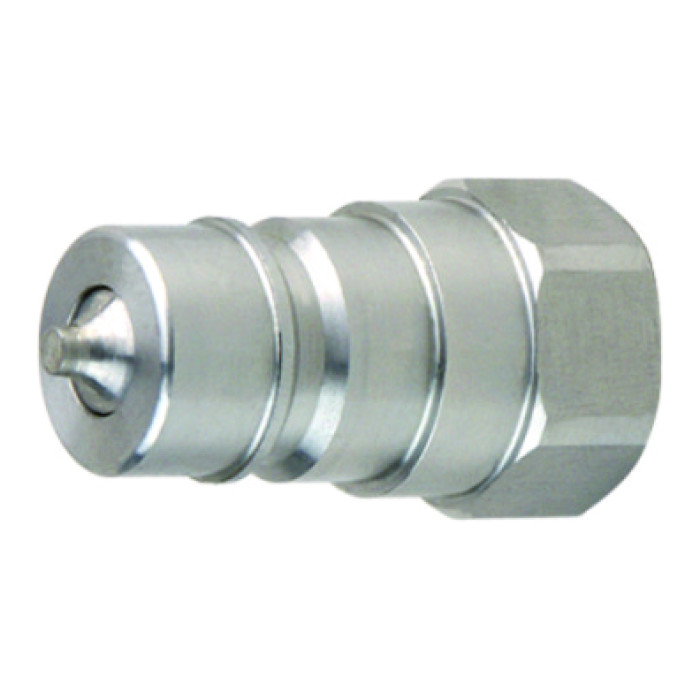

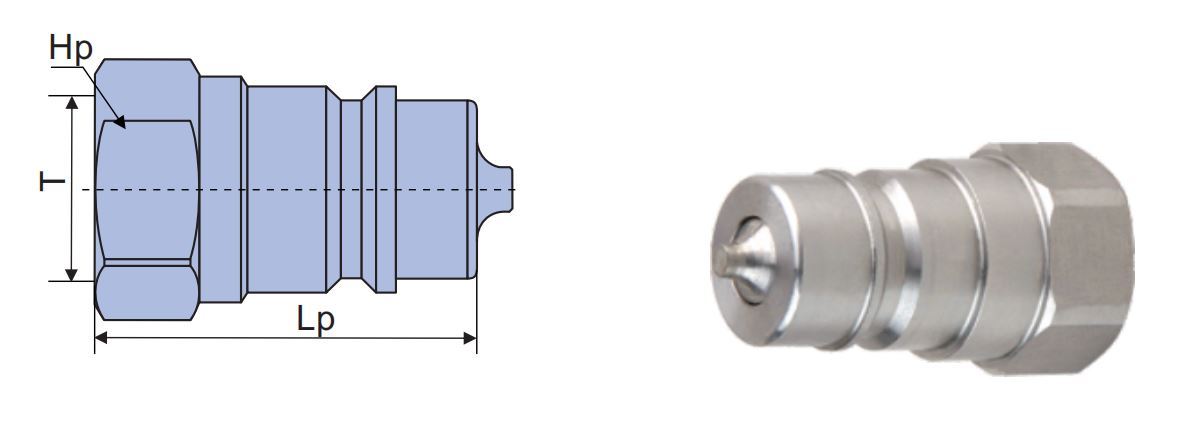

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP7314-1/4″ | 1/4” | 35 | S19 | 1/4″BSPP(NPT) |
| HFSFP7338-3/8″ | 3/8” | 39 | S22 | 3/8″BSPP(NPT) |
| HFSFP7312-1/2″ | 1/2” | 46 | S27 | 1/2″BSPP(NPT) |
| HFSFP7334-3/4″ | 3/4” | 55 | S34 | 3/4″BSPP(NPT) |
| HFSFP7310-1″ | 1” | 63 | S41 | 1″BSPP(NPT) |
| HFSFP73114-1-1/4″ | 1-1/4” | 75 | S50 | 1-1/4″BSPP(NPT) |
| HFSFP73112-1-1/2″ | 1-1/2” | 83 | S60 | 1-1/2″BSPP(NPT) |
| HFSFP7320-2″ | 2” | 100 | S75 | 2″BSPP(NPT) |
Accessories
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-A-1/4-P-P | ISO-A-1/4-C-P | PVC |
| 06 | 10 | ISO-A-3/8-P-P | ISO-A-3/8-C-P | PVC |
| 08 | 12.5 | ISO-A-1/2-P-P | ISO-A-1/2-C-P | PVC |
| 12 | 20 | ISO-A-3/4-P-P | ISO-A-3/4-C-P | PVC |
| 16 | 25 | ISO-A-1-P-P | ISO-A-1-C-P | PVC |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 0.5 |
| 06 | 3/8” | 200 | 200 | 200 | 800 | 800 | 800 | 1.1 |
| 08 | 1/2” | 200 | 200 | 200 | 800 | 800 | 800 | 1.8 |
| 12 | 3/4” | 160 | 160 | 160 | 640 | 640 | 640 | 8 |
| 16 | 1” | 125 | 125 | 125 | 500 | 500 | 500 | 10 |
| 20 | 1-1/4” | 80 | 80 | 80 | 320 | 320 | 320 | 20 |
| 24 | 1-1/2” | 80 | 80 | 80 | 320 | 320 | 320 | 32 |
| 32 | 2” | 60 | 60 | 60 | 240 | 240 | 240 | 85 |
| Material: | Stainless Steel | |
| Seals: | NBR, FKM, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, -20 °C to 200 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | HANSEN HA15000 SERIESPARKER 6600 SERIESFASTER NV STAINLESS STEEL SERIESDNP PAVX SERIESVOSWINKEL IA-VA SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

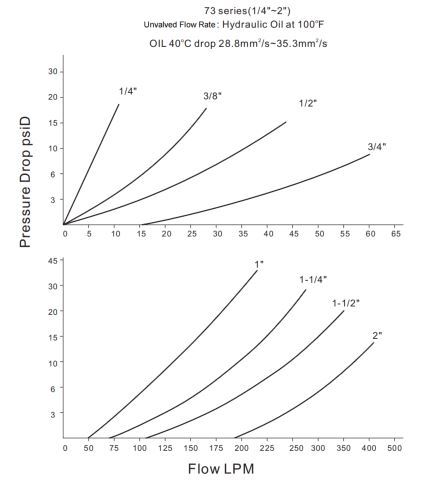

Pressure Drop
Pressure Drop
