EH 75 Series – ANV ISO 7241-A Quick Couplings With Poppet Valve (Steel)
This EH series is interchangeable with HANSEN HA15000 SERIES, PARKER 6600 SERIES, EATON AEROQUIP 5600 SERIES, FASTER ANV SERIES, DNP PAV1 SERIES, STUCCHI BIR SERIES, STUCCHI IRV SERIES, DIXON K SERIES, VOSWINKEL IA SERIES, and SAFEWAY S56 SERIES. The 75 series is a poppet-type quick coupler compatible with ISO 7241-1 “A” standards. Constructed from carbon steel with zinc plating, it ensures global interchangeability and is available in sizes from ¼” to 2”. Due to its versatility, the 75 series is widely used in hydraulic systems, particularly in agricultural and industrial applications.
Interchange
- HANSEN HA15000 SERIES
- DNP PAV1 SERIES
- DIXON K SERIES
- FASTER ANV SERIES
- PARKER 6600 SERIES
- STUCCHI BIR SERIES
- VOSWINKEL IA SERIES
- FASTER AGRI SERIES
- EATON AEROQUIP 5600 SERIES
- STUCCHI IRV SERIES
- SAFEWAY S56 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 75 Series – ANV ISO 7241-A Quick Couplings With Poppet Valve (Steel)
This EH series is interchangeable with HANSEN HA15000 SERIES, PARKER 6600 SERIES, EATON AEROQUIP 5600 SERIES, FASTER ANV SERIES, DNP PAV1 SERIES, STUCCHI BIR SERIES, STUCCHI IRV SERIES, DIXON K SERIES, VOSWINKEL IA SERIES, and SAFEWAY S56 SERIES. The 75 series is a poppet-type quick coupler compatible with ISO 7241-1 “A” standards. Constructed from carbon steel with zinc plating, it ensures global interchangeability and is available in sizes from ¼” to 2”. Due to its versatility, the 75 series is widely used in hydraulic systems, particularly in agricultural and industrial applications.
Interchange
- HANSEN HA15000 SERIES
- DNP PAV1 SERIES
- DIXON K SERIES
- FASTER ANV SERIES
- PARKER 6600 SERIES
- STUCCHI BIR SERIES
- VOSWINKEL IA SERIES
- FASTER AGRI SERIES
- EATON AEROQUIP 5600 SERIES
- STUCCHI IRV SERIES
- SAFEWAY S56 SERIES
Call Tawk.to
contact@ehhydraulics.com

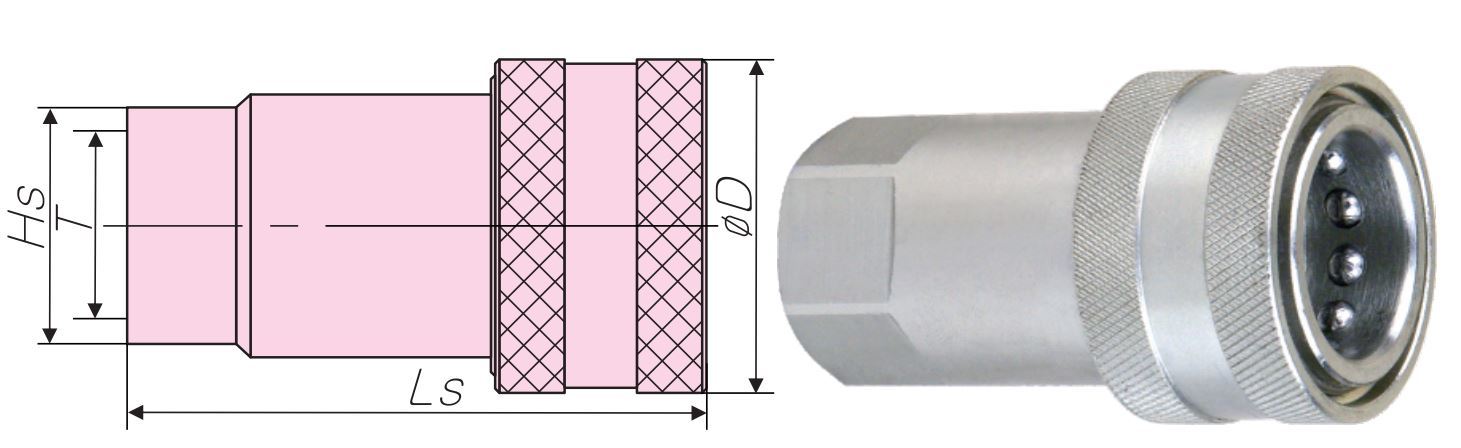

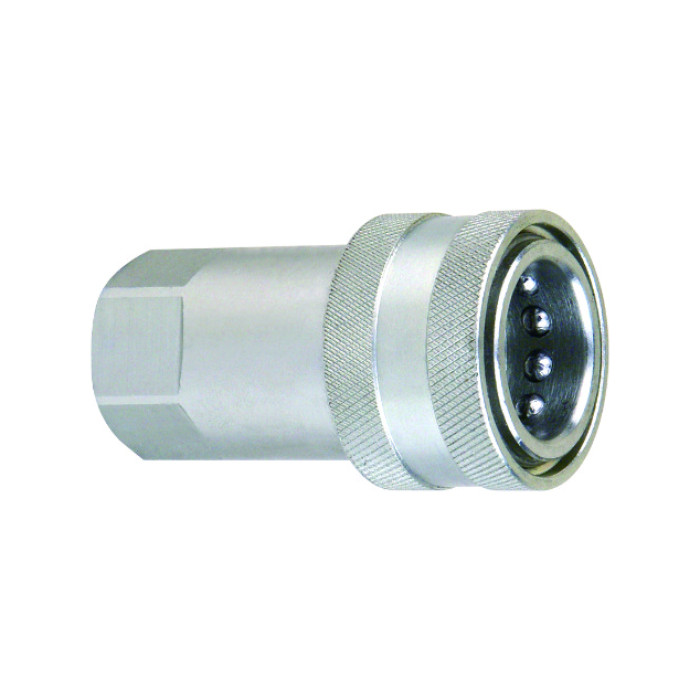

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC7514-1/4″ | 1/4” | 47 | 25 | S19 | 1/4″BSPP(NPT) |
| HFSFC7538-3/8″ | 3/8” | 57 | 31 | S22 | 3/8″BSPP(NPT) |
| HFSFC7512-1/2″ | 1/2” | 66 | 38 | S27 | 1/2″BSPP(NPT) |
| HFSFC7534-3/4″ | 3/4” | 82.5 | 48 | S34 | 3/4″BSPP(NPT) |
| HFSFC7510-1″ | 1” | 97 | 54 | S41 | 1″BSPP(NPT) |
| HFSFC75114-1-1/4″ | 1-1/4” | 117 | 70 | S50 | 1-1/4″BSPP(NPT) |
| HFSFC75112-1-1/2″ | 1-1/2” | 133.5 | 84 | S60 | 1-1/2″BSPP(NPT) |
| HFSFC7520-2″ | 2” | 160 | 100 | S75 | 2″BSPP(NPT) |

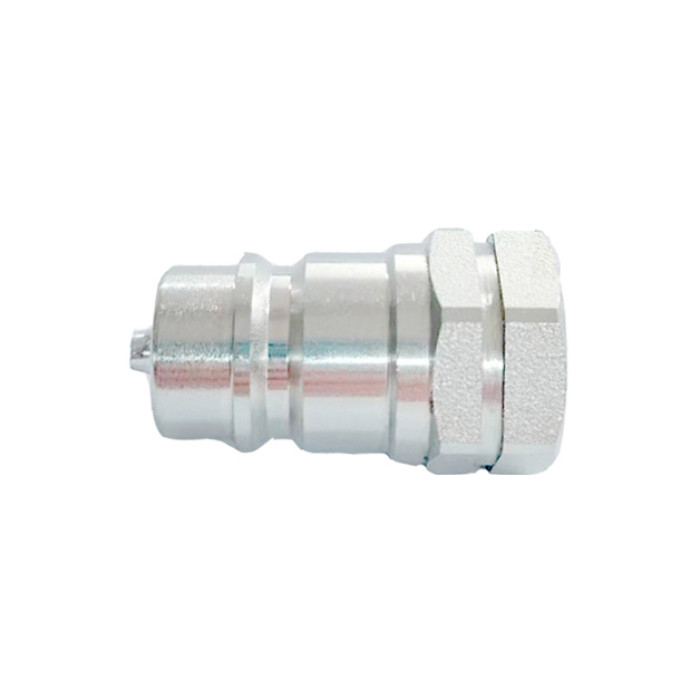

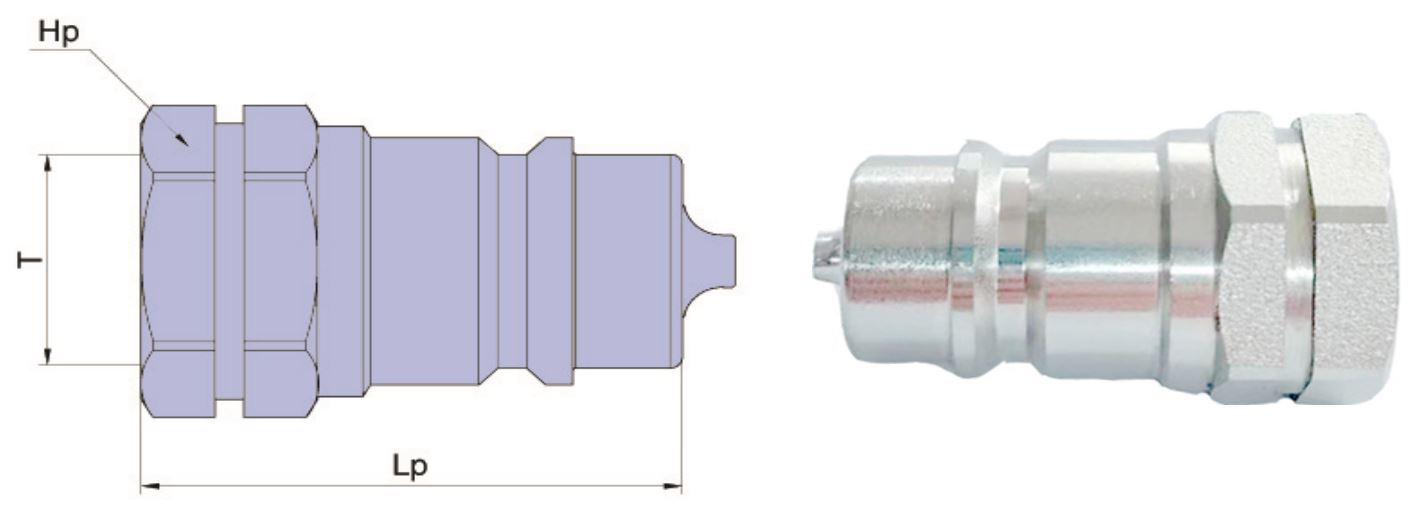

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP7514-1/4″ | 1/4” | 35 | S19 | 1/4″BSPP(NPT) |
| HFSFP7538-3/8″ | 3/8” | 39 | S22 | 3/8″BSPP(NPT) |
| HFSFP7512-1/2″ | 1/2” | 46 | S27 | 1/2″BSPP(NPT) |
| HFSFP7534-3/4″ | 3/4” | 55 | S34 | 3/4″BSPP(NPT) |
| HFSFP7510-1″ | 1” | 63 | S41 | 1″BSPP(NPT) |
| HFSFP75114-1-1/4″ | 1-1/4” | 75 | S50 | 1-1/4″BSPP(NPT) |
| HFSFP75112-1-1/2″ | 1-1/2” | 83 | S60 | 1-1/2″BSPP(NPT) |
| HFSFP7520-2″ | 2” | 100 | S75 | 2″BSPP(NPT) |

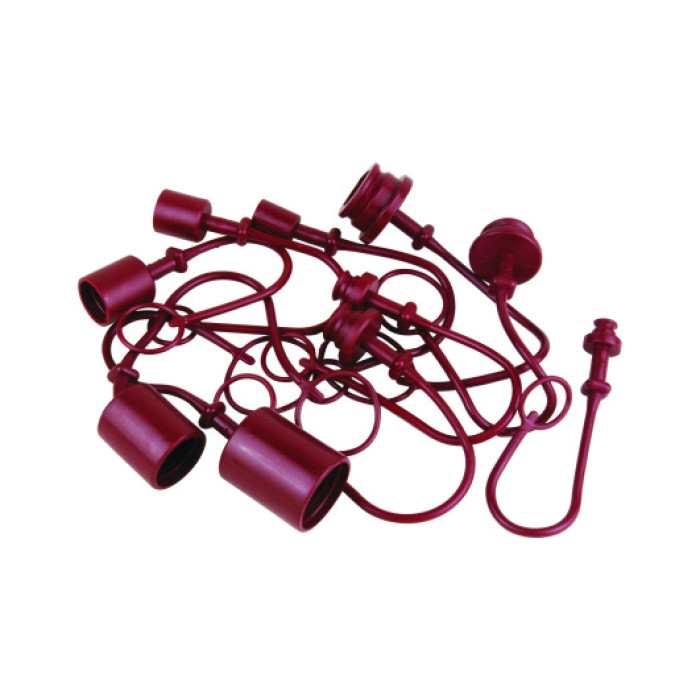

Accessories
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-A-1/4-P-P | ISO-A-1/4-C-P | PVC |
| 06 | 10 | ISO-A-3/8-P-P | ISO-A-3/8-C-P | PVC |
| 08 | 12.5 | ISO-A-1/2-P-P | ISO-A-1/2-C-P | PVC |
| 12 | 20 | ISO-A-3/4-P-P | ISO-A-3/4-C-P | PVC |
| 16 | 25 | ISO-A-1-P-P | ISO-A-1-C-P | PVC |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 0.5 |
| 06 | 3/8” | 315 | 315 | 315 | 1260 | 1260 | 1260 | 1.1 |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 1.8 |
| 12 | 3/4” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 8 |
| 16 | 1” | 230 | 230 | 230 | 920 | 920 | 920 | 10 |
| 20 | 1-1/4” | 230 | 230 | 230 | 920 | 920 | 920 | 20 |
| 24 | 1-1/2” | 180 | 180 | 180 | 720 | 720 | 720 | 32 |
| 32 | 2” | 130 | 130 | 130 | 520 | 520 | 520 | 85 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | HANSEN HA15000 SERIESPARKER 6600 SERIESEATON AEROQUIP 5600 SERIESFASTER ANV SERIESFASTER AGRI SERIESDNP PAV1 SERIESSTUCCHI BIR SERIESSTUCCHI IRV SERIESSAFEWAY S56 SERIESVOSWINKEL IA SERIESDIXON K SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |
Pressure Drop
Pressure Drop
