EH 76 Series – CPV CNV PV Push-Pull ISO 7241-A Quick Couplings For Agriculture (Steel)
This EH series is interchangeable with STUCCHI I-IP SERIES, FASTER CPV SERIES, FASTER CNV SERIES, PARKER 4200 SERIES, PIONEER 2000 SERIES, DNP PPV1 SERIES, DIXON AG SERIES, VOSWINKEL HP SERIES, SAFEWAY S40 SERIES, FASTER PV SERIES, and FASTER NV SERIES. ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.
Interchange
- STUCCHI I-IP SERIES
- PARKER 4200 SERIES
- DIXON AG SERIES
- FASTER PV SERIES
- FASTER CPV SERIES
- PIONEER 2000 SERIES
- VOSWINKEL HP SERIES
- FASTER NV SERIES
- FASTER CNV SERIES
- DNP PPV1 SERIES
- SAFEWAY S40 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 76 Series – CPV CNV PV Push-Pull ISO 7241-A Quick Couplings For Agriculture (Steel)
This EH series is interchangeable with STUCCHI I-IP SERIES, FASTER CPV SERIES, FASTER CNV SERIES, PARKER 4200 SERIES, PIONEER 2000 SERIES, DNP PPV1 SERIES, DIXON AG SERIES, VOSWINKEL HP SERIES, SAFEWAY S40 SERIES, FASTER PV SERIES, and FASTER NV SERIES. ISO 7241-1 Series A compliant panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.
Interchange
- STUCCHI I-IP SERIES
- PARKER 4200 SERIES
- DIXON AG SERIES
- FASTER PV SERIES
- FASTER CPV SERIES
- PIONEER 2000 SERIES
- VOSWINKEL HP SERIES
- FASTER NV SERIES
- FASTER CNV SERIES
- DNP PPV1 SERIES
- SAFEWAY S40 SERIES
Call Tawk.to
contact@ehhydraulics.com

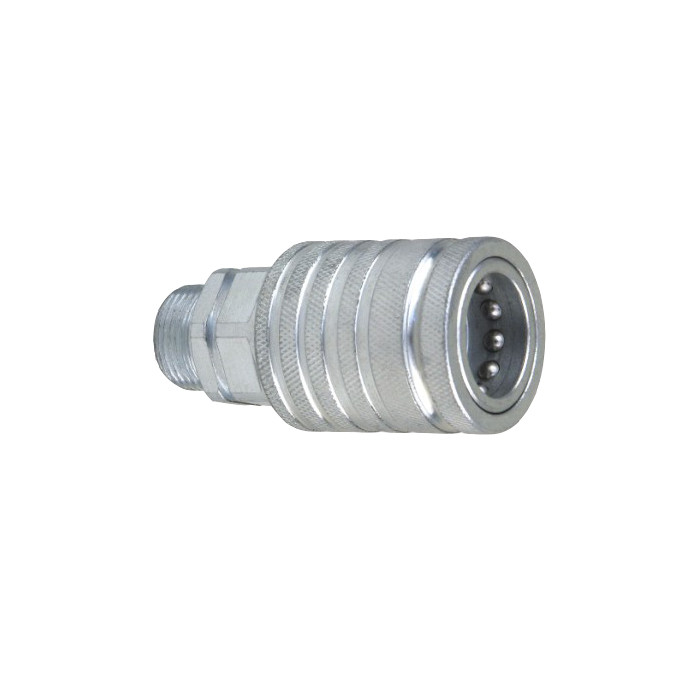

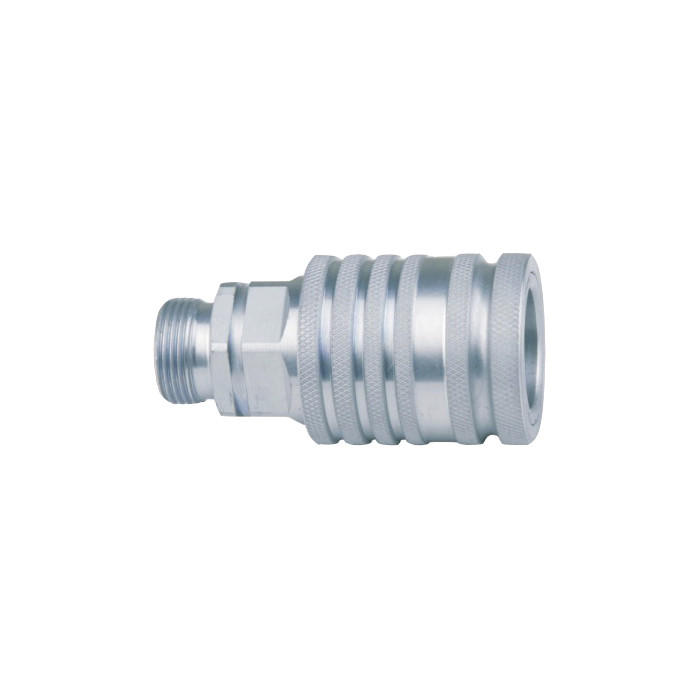

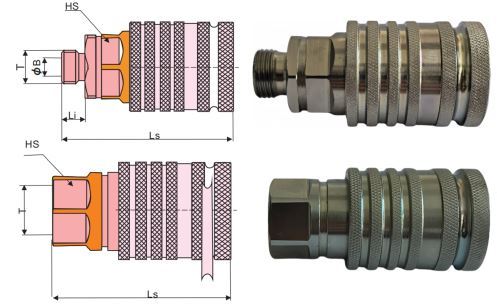

Female Coupler
Female Coupler
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | Hs(mm) | T |
| HFSMC7612-M14X1.5-08L | 1/2” | 72 | 10 | 8 | S27 | M14X1.5 |
| HFSMC7612-M16X1.5-10L | 1/2” | 73 | 11 | 10 | S27 | M16X1.5 |
| HFSMC7612-M18X1.5-12L | 1/2” | 73 | 11 | 12 | S27 | M18X1.5 |
| HFSMC7612-M22X1.5-15L | 1/2” | 74 | 12 | 15 | S27 | M22X1.5 |
| HFSMC7612-M26X1.5-18L | 1/2” | 74 | 12 | 18 | S27 | M26X1.5 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | Hs(mm) | T |
| HFSMC7612-M14X1.5-06S | 1/2” | 74 | 12 | 6 | S27 | M14X1.5 |
| HFSMC7612-M16X1.5-08S | 1/2” | 74 | 12 | 8 | S27 | M16X1.5 |
| HFSMC7612-M18X1.5-10S | 1/2” | 74 | 12 | 10 | S27 | M18X1.5 |
| HFSMC7612-M20X1.5-12S | 1/2” | 74 | 12 | 12 | S27 | M20X1.5 |
| HFSMC7612-M24X1.5-16S | 1/2” | 76 | 14 | 16 | S27 | M24X1.5 |
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | Hs(mm) | T |
| HFSFC7612-1/2″ | 1/2” | 70 | 12 | 10 | S27 | 1/2”BSPP (NPT) |
| HFSFC7612-3/4″UNF | 1/2” | 70 | 12 | 10 | S27 | 3/4”UNF |
| HFSFC7612-3/8″UNF | 1/2” | 70 | 12 | 10 | S27 | 3/8”UNF |

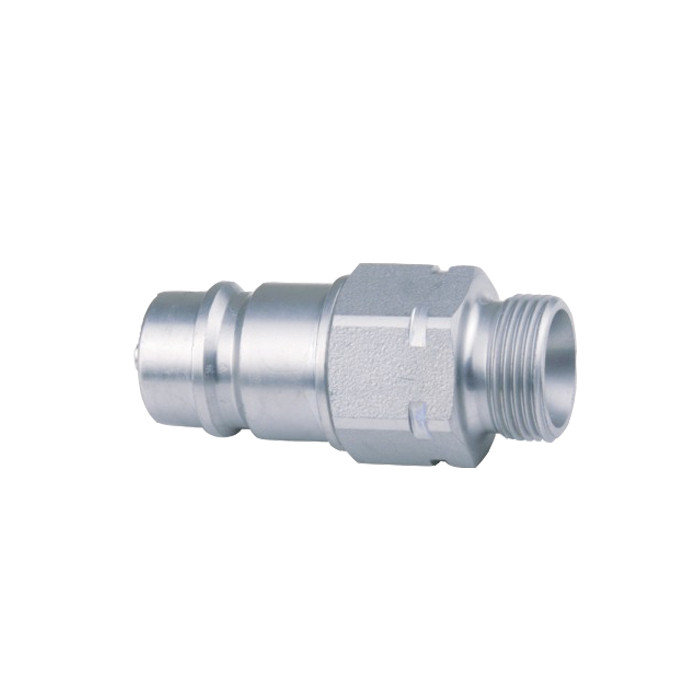

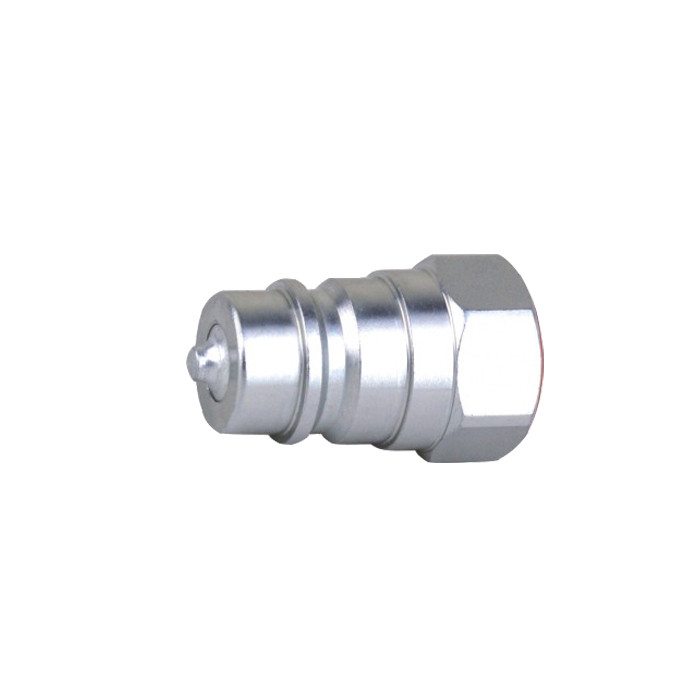

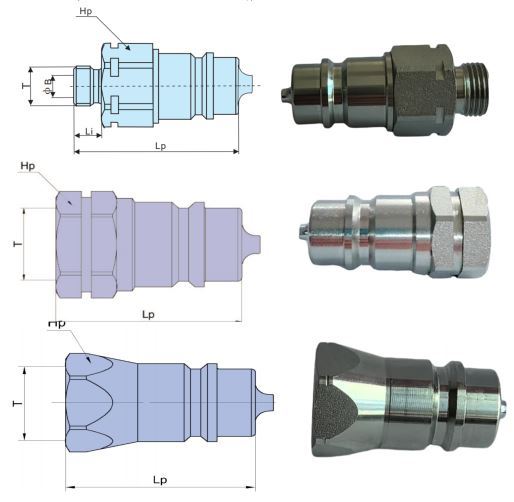

Male Plug
Male Plug
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | Hp(mm) | T |
| HFSMP7612-M14X1.5-08L | 1/2” | 57 | 10 | 8 | S27 | M14X1.5 |
| HFSMP7612-M16X1.5-10L | 1/2” | 58 | 11 | 10 | S27 | M16X1.5 |
| HFSMP7612-M18X1.5-12L | 1/2” | 58 | 11 | 12 | S27 | M18X1.5 |
| HFSMP7612-M22X1.5-15L | 1/2” | 59 | 12 | 15 | S27 | M22X1.5 |
| HFSMP7612-M26X1.5-18L | 1/2” | 59 | 12 | 18 | S27 | M26X1.5 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request |
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | Hp(mm) | T |
| HFSMP7612-M14X1.5-06S | 1/2” | 74 | 12 | 6 | S27 | M14X1.5 |
| HFSMP7612-M16X1.5-08S | 1/2” | 74 | 12 | 8 | S27 | M16X1.5 |
| HFSMP7612-M18X1.5-10S | 1/2” | 74 | 12 | 10 | S27 | M18X1.5 |
| HFSMP7612-M20X1.5-12S | 1/2” | 74 | 12 | 12 | S27 | M20X1.5 |
| HFSMP7612-M24X1.5-16S | 1/2” | 76 | 14 | 16 | S27 | M24X1.5 |
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | Hp(mm) | T |
| HFSFP7512-1/2″ | 1/2” | 44 | 12 | 10 | S27 | 1/2”BSPP (NPT) |
| HFSFP7512-3/4″ UNF | 1/2” | 44 | 12 | 10 | S27 | 3/4”UNF |
| HFSFP7512-3/8″UNF | 1/2” | 44 | 12 | 10 | S27 | 3/8”UNF |
| HFSFP6612-1/2″ | 1/2” | 44 | 12 | 10 | S27 | 1/2”BSPP (NPT) |
| HFSFP6612-3/4″ UNF | 1/2” | 44 | 12 | 10 | S27 | 3/4”UNF |
| HFSFP6612-3/8″UNF | 1/2” | 44 | 12 | 10 | S27 | 3/8”UNF |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 1.8 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | PARKER 4200 SERIESPIONEER 2000 SERIESSAFEWAY S40 SERIESFASTER CPV SERIESFASTER CNV SERIESSTUCCHI I-IP SERIESDNP PPV1 SERIESVOSWINKEL HP SERIESDIXON AG SERIES, FASTER PV SERIESFASTER NV SERIES |
| Valve Type: | Poppet | |
| Connection: | Push to Connect | |
| Disconnection: | Pull to Disconnect | |
| Connection Under Pressure: | Not Allowed | |
Pressure Drop
Pressure Drop
