EH 78 Series – CPV Push-Pull ISO 7241-A Quick Couplings For Agriculture (Steel)
This EH series is interchangeable with STUCCHI I-IP SERIES, FASTER CPV SERIES, FASTER CNV SERIES, PIONEER 2000 SERIES, PARKER 4200 SERIES, DIXON AG SERIES, HANSEN HA15000 SERIES, SAFEWAY S40 SERIES, DNP PPV1 SERIES and VOSWINKEL HP SERIES. ISO 7241-1 Series A compliant bulkhead couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.
Interchange
- STUCCHI I-IP SERIES
- PIONEER 2000 SERIES
- HANSEN HA15000 SERIES
- VOSWINKEL HP SERIES
- FASTER CPV SERIES
- PARKER 4200 SERIES
- SAFEWAY S40 SERIES
- FASTER CNV SERIES
- DIXON AG SERIES
- DNP PPV1 SERIES
Call Tawk.to
contact@ehhydraulics.com

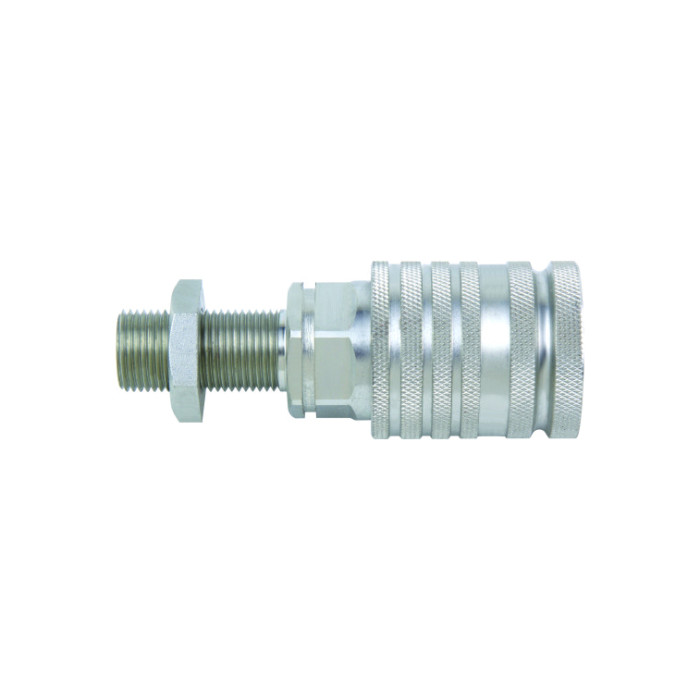

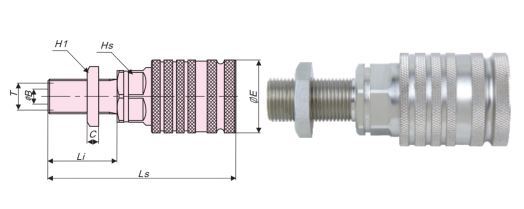

Female Coupler
Female Coupler
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | E(mm) | C(mm) | Hs(mm) | H1(mm) | T |
| HFSMC7812-M14X1.5-08L | 1/2” | 96 | 34 | 8 | 38 | 6 | S27 | S19 | M14X1.5 |
| HFSMC7812-M16X1.5-10L | 1/2” | 97 | 35 | 10 | 38 | 6 | S27 | S22 | M16X1.5 |
| HFSMC7812-M18X1.5-12L | 1/2” | 98 | 36 | 12 | 38 | 6 | S27 | S24 | M18X1.5 |
| HFSMC7812-M22X1.5-15L | 1/2” | 100 | 38 | 15 | 38 | 7 | S27 | S30 | M22X1.5 |
| HFSMC7812-M26X1.5-18L | 1/2” | 102 | 40 | 18 | 38 | 8 | S27 | S36 | M26X1.5 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | E(mm) | C(mm) | Hs(mm) | H1(mm) | T |
| HFSMC7812-M14X1.5-06S | 1/2” | 98 | 36 | 6 | 38 | 6 | S27 | S19 | M14X1.5 |
| HFSMC7812-M16X1.5-08S | 1/2” | 98 | 36 | 8 | 38 | 6 | S27 | S22 | M16X1.5 |
| HFSMC7812-M18X1.5-10S | 1/2” | 99 | 37 | 10 | 38 | 6 | S27 | S24 | M18X1.5 |
| HFSMC7812-M20X1.5-12S | 1/2” | 100 | 38 | 12 | 38 | 6 | S27 | S27 | M20X1.5 |
| HFSMC7812-M24X1.5-16S | 1/2” | 102 | 40 | 16 | 38 | 7 | S27 | S32 | M24X1.5 |

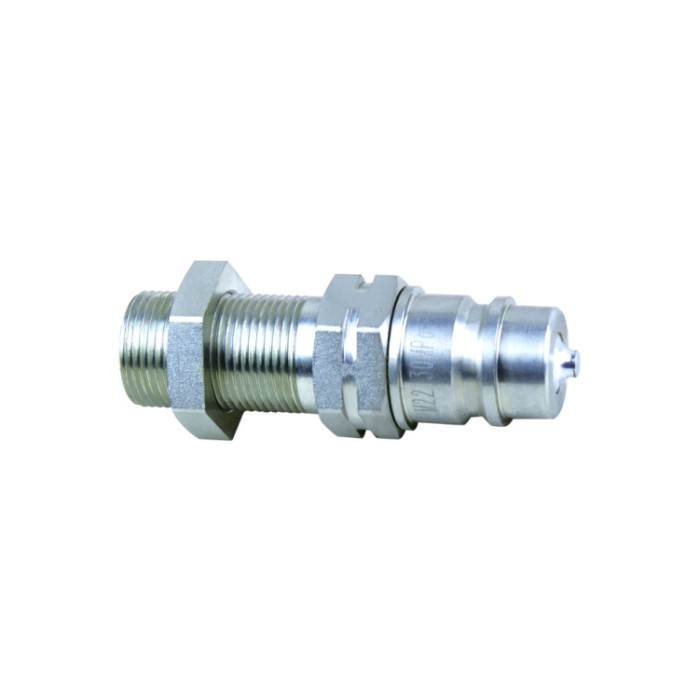

Male Plug
Male Plug
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | C(mm) | Hp(mm) | H1(mm) | T |
| HFSMP7812-M14X1.5-08L | 1/2” | 80 | 34 | 8 | 6 | S27 | S19 | M14X1.5 |
| HFSMP7812-M16X1.5-10L | 1/2” | 81 | 35 | 10 | 6 | S27 | S22 | M16X1.5 |
| HFSMP7812-M18X1.5-12L | 1/2” | 82 | 36 | 12 | 6 | S27 | S24 | M18X1.5 |
| HFSMP7812-M22X1.5-15L | 1/2” | 84 | 38 | 15 | 7 | S27 | S30 | M22X1.5 |
| HFSMP7812-M26X1.5-18L | 1/2” | 86 | 40 | 18 | 8 | S27 | S36 | M26X1.5 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request |
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | C(mm) | Hp(mm) | H1(mm) | T |
| HFSMP7812-M14X1.5-06S | 1/2” | 82 | 36 | 6 | 6 | S27 | S19 | M14X1.5 |
| HFSMP7812-M16X1.5-08S | 1/2” | 82 | 36 | 8 | 6 | S27 | S22 | M16X1.5 |
| HFSMP7812-M18X1.5-10S | 1/2” | 83 | 37 | 10 | 6 | S27 | S24 | M18X1.5 |
| HFSMP7812-M20X1.5-12S | 1/2” | 84 | 38 | 12 | 6 | S27 | S27 | M20X1.5 |
| HFSMP7812-M24X1.5-16S | 1/2” | 86 | 40 | 16 | 7 | S27 | S32 | M24X1.5 |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 1.8 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | PARKER 4200 SERIESPIONEER 2000 SERIESSAFEWAY S40 SERIESFASTER CPV SERIESFASTER CNV SERIESSTUCCHI I-IP SERIESDNP PPV1 SERIESVOSWINKEL HP SERIESDIXON AG SERIES |
| Valve Type: | Poppet | |
| Connection: | Push to Connect | |
| Disconnection: | Pull to Disconnect | |
| Connection Under Pressure: | Not Allowed | |
Pressure Drop
Pressure Drop
