EH 86 Series – VVS Screw To Connect Quick Couplings For High Pressure Applications (Steel)
This EH series is interchangeable with DNP VVV1 SERIES, FASTER VVS SERIES, PARKER QHPA SERIES, and VOSWINKEL HH SERIES. High-pressure screw-on couplings are engineered for extreme working conditions with frequent pressure spikes. The heavy-duty internal construction ensures optimal safety and reliability. Market Interchange.
Interchange
- DNP VVV1 SERIES
- FASTER VVS SERIES
- PARKER QHPA SERIES
- VOSWINKEL HH SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 86 Series – VVS Screw To Connect Quick Couplings For High Pressure Applications (Steel)
This EH series is interchangeable with DNP VVV1 SERIES, FASTER VVS SERIES, PARKER QHPA SERIES, and VOSWINKEL HH SERIES. High-pressure screw-on couplings are engineered for extreme working conditions with frequent pressure spikes. The heavy-duty internal construction ensures optimal safety and reliability. Market Interchange.
Interchange
- DNP VVV1 SERIES
- FASTER VVS SERIES
- PARKER QHPA SERIES
- VOSWINKEL HH SERIES

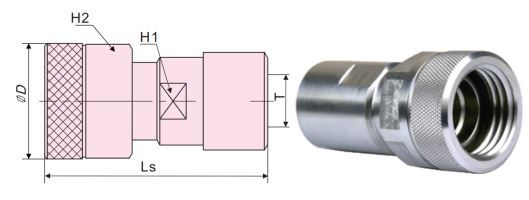

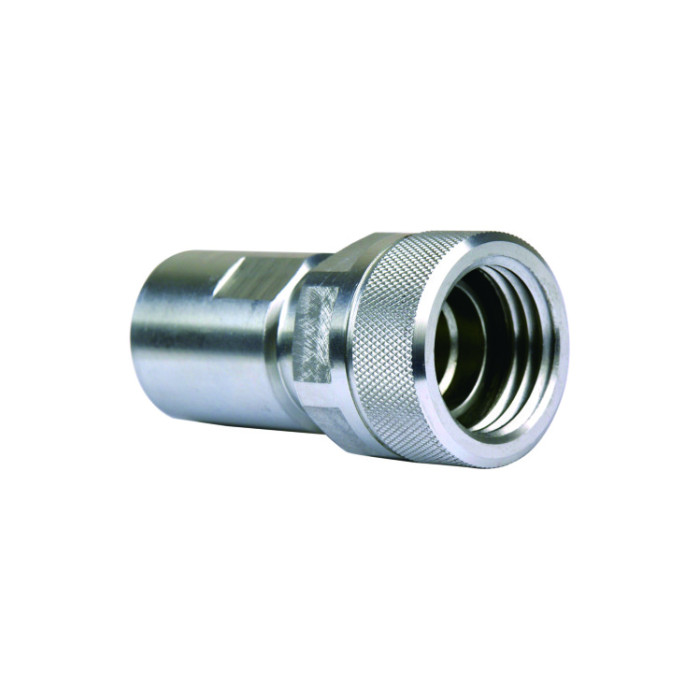

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | H1(mm) | H2(mm) | T |
| HFSFC8614-1/4″ | 1/4” | 58 | 30 | 22 | 27 | 1/4″BSPP/NPT |
| HFSFC8638-3/8″ | 3/8” | 62 | 40 | 30 | 36 | 3/8″BSPP/NPT |
| HFSFC8612-1/2″ | 1/2” | 71 | 45 | 34 | 41 | 1/2″BSPP/NPT |
| HFSFC8634-3/4″ | 3/4” | 87 | 55 | 41 | 50 | 3/4″BSPP/NPT |
| HFSFC8610-1″ | 1” | 100 | 60 | 50 | 55 | 1″ BSPP/ NPT |
| HFSFC86114-1-1/4″ | 1-1/4” | 123 | 80 | 65 | 75 | 1-1/4″BSPP/NPT |
| HFSFC86112-1-1/2″ | 1-1/2” | 137 | 98 | 75 | 90 | 1-1/2″BSPP/NPT |
| HFSFC8620-2″ | 2” | 160 | 129 | 100 | 125 | 2″ BSPP/ NPT |

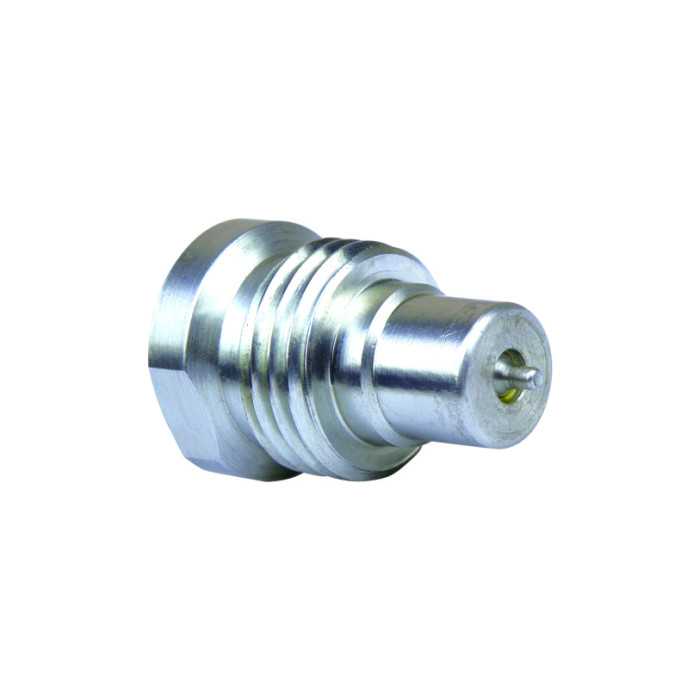

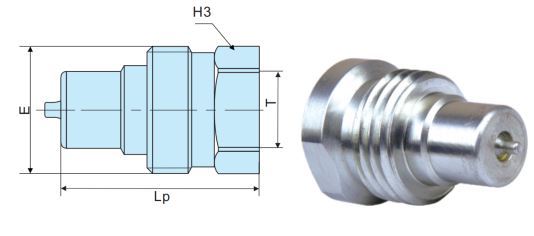

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | E(mm) | H3(mm) | T |
| HFSFP8614-1/4″ | 1/4” | 58 | 1”-12UNF | S25 | 1/4″ BSPP/ NPT |
| HFSFP8638-3/8″ | 3/8” | 62 | 1-1/14”-8UN | S32 | 3/8″BSPP/ NPT |
| HFSFP8612-1/2″ | 1/2” | 71 | 1-3/8″-UN | S34 | 1/2″ BSPP/ NPT |
| HFSFP8634-3/4″ | 3/4” | 87 | 1-3/4″-6UN | S46 | 3/4″ BSPP/ NPT |
| HFSFP8610-1″ | 1” | 100 | M52X4 | S50 | 1″ BSPP/ NPT |
| HFSFP86114-1-1/4″ | 1-1/4” | 123 | M68X4 | S65 | 1-1/4″BSPP/NPT |
| HFSFP86112-1-1/2″ | 1-1/2” | 137 | M78X6 | S80 | 1-1/2″BSPP/NPT |
| HFSFP8620-2″ | 2” | 160 | M115X8 | S110 | 2″ BSPP/ NPT |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 800 | 800 | 800 | 2400 | 2400 | 2500 | 0.4 |
| 06 | 3/8” | 760 | 760 | 760 | 3400 | 3500 | 2400 | 0.8 |
| 08 | 1/2″ | 730 | 730 | 730 | 2100 | 2100 | 2100 | 1.3 |
| 12 | 3/4″ | 730 | 730 | 730 | 2400 | 2100 | 2300 | 1.8 |
| 16 | 1″ | 530 | 530 | 530 | 1900 | 2400 | 1900 | 8 |
| 20 | 1-1/4″ | 600 | 600 | 600 | 1800 | 1800 | 2000 | 15 |
| 24 | 1-1/2″ | 400 | 400 | 400 | 1200 | 1500 | 1500 | 38 |
| 32 | 2″ | 350 | 350 | 350 | 1300 | 1300 | 1500 | 46 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | FASTER VVS SERIESPARKER QHPA SERIESDNP VVV1 SERIESVOSWINKEL HH SERIES |
| Valve Type: | Poppet | |
| Connection: | Screw to Connect | |
| Disconnection: | Unscrew to Disconnect | |
| Connection Under Pressure: | Not Allowed | |

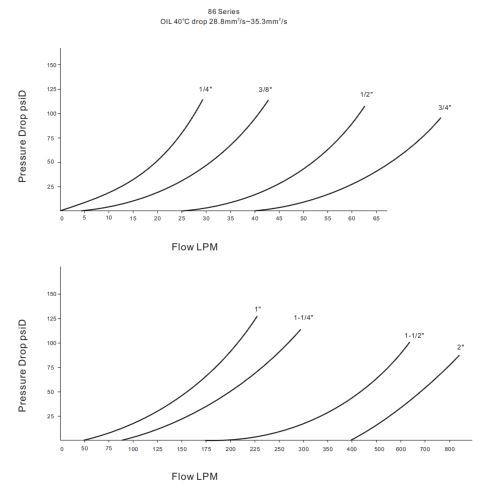

Pressure Drop
Pressure Drop
Applications

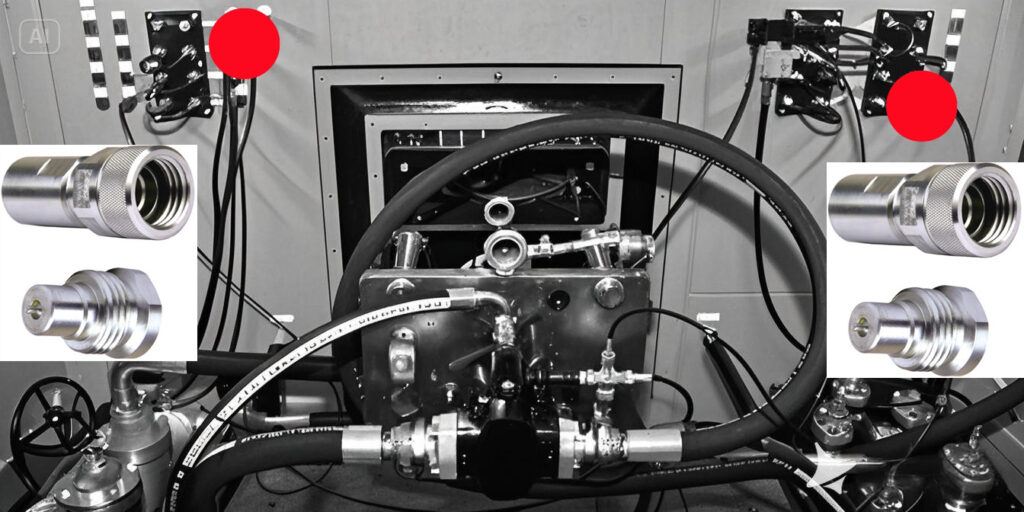

Test Benches

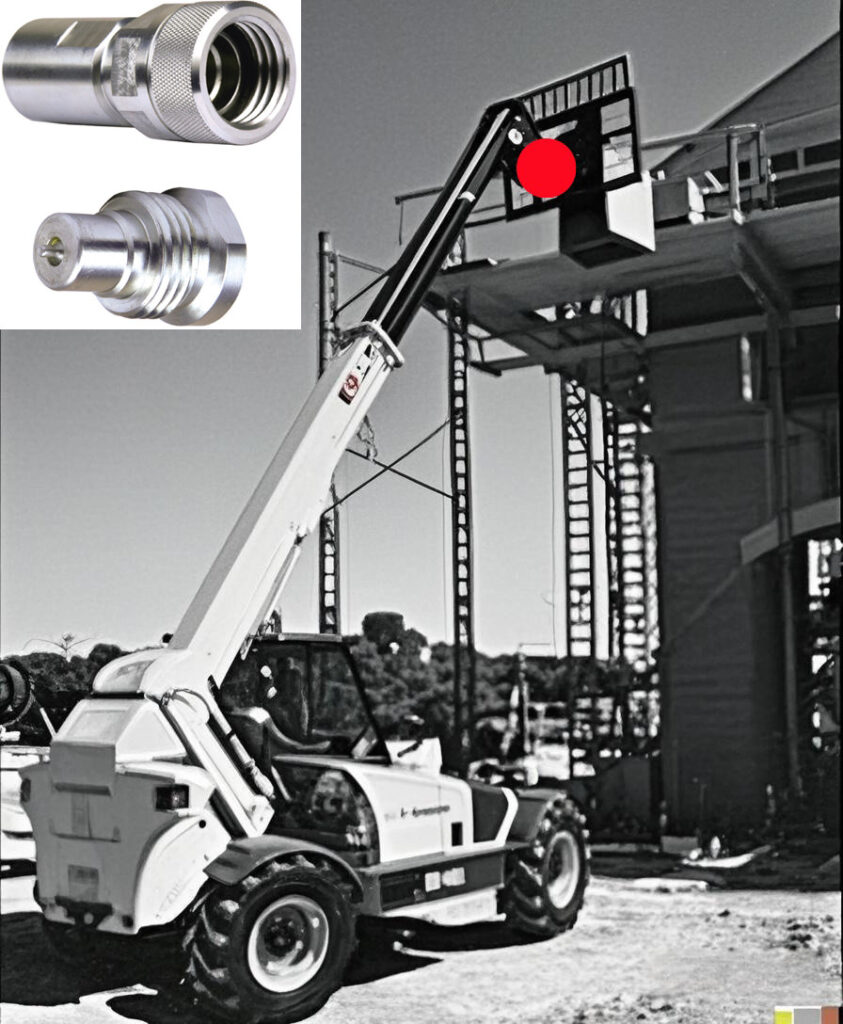

Telehandlers

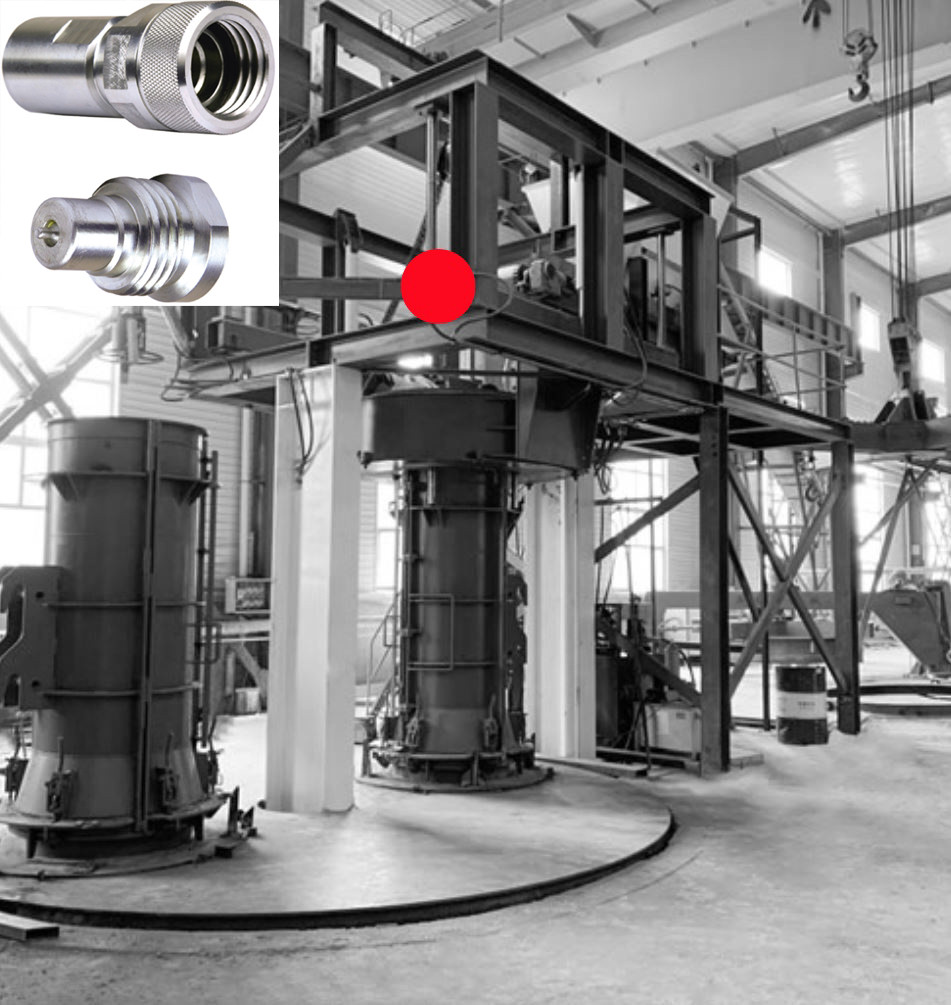

Manufacturing Precast Components Into Vibrating Molds

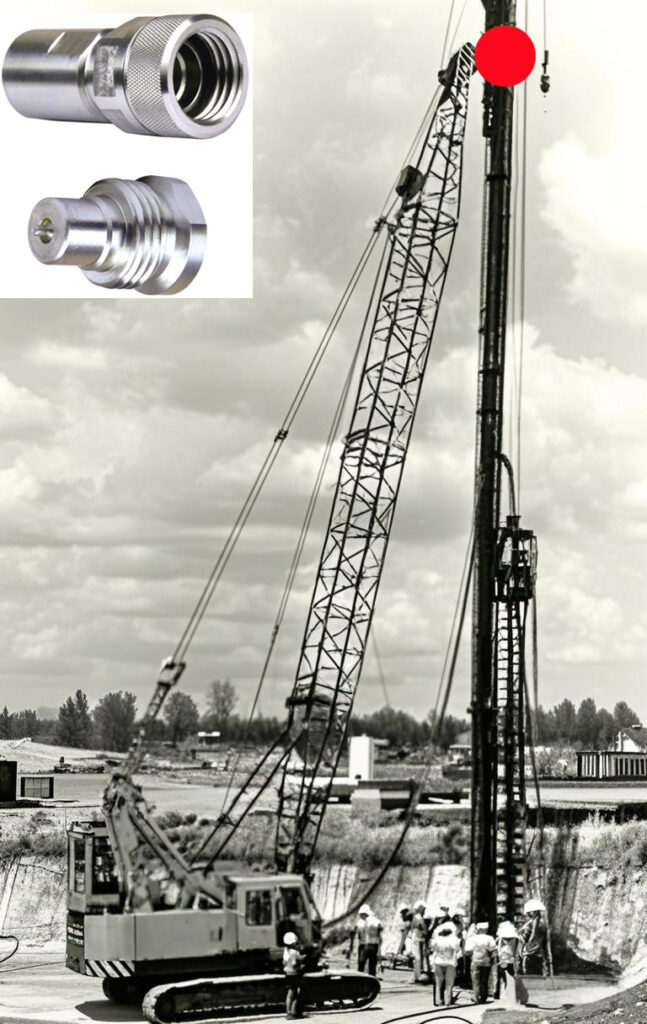

Hydromill Trench Cutters
Hydraulic Undercarriage

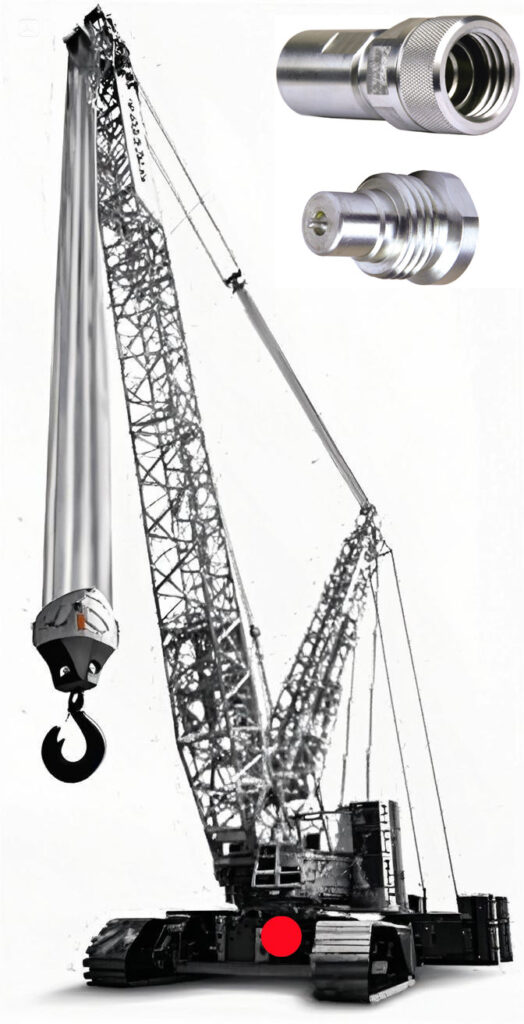

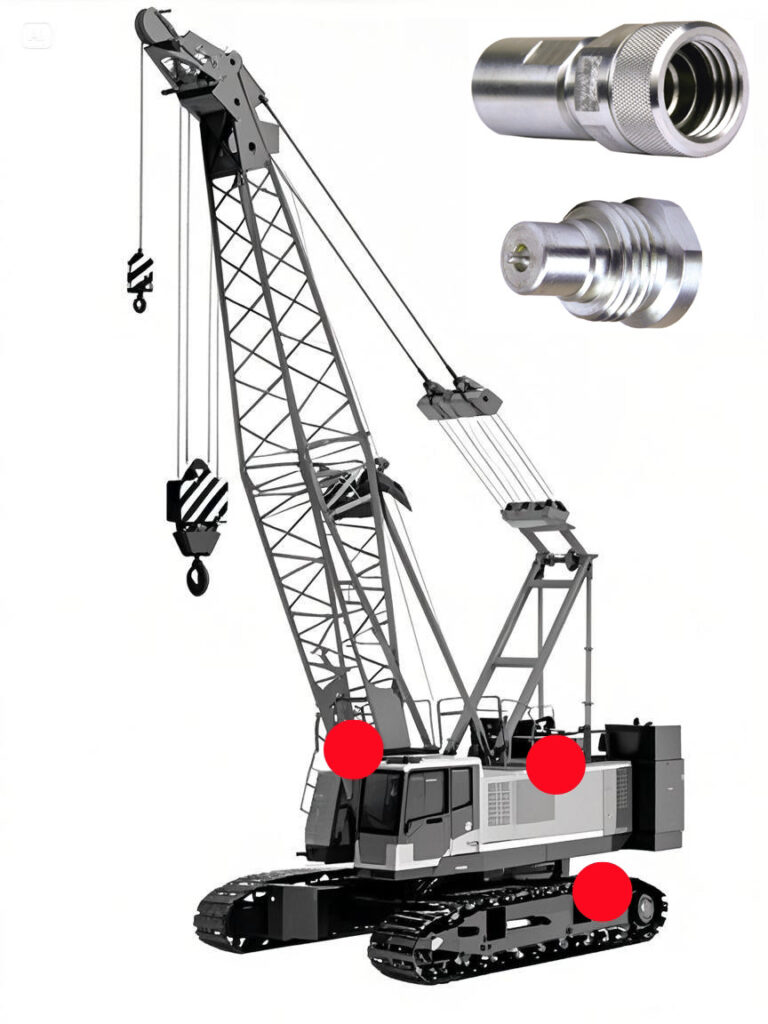

Crawler Cranes
