EH 88 Series – PARKER 3000 Enerpac Screw To Connect Quick Couplers 10000PSI (Steel)
This EH series is interchangeable with PARKER 3000 SERIES, STUCCHI IV-HP SERIES, FASTER PVSM SERIES, CEJN 232 SERIES, DIXON T SERIES, DNP PVS SERIES, HANSEN WA56000 SERIES, and SAFEWAY S30 SERIES. These screw-to-connect couplings are engineered for ultra-high-pressure applications. Featuring a durable metal-to-metal sealing ball valve, these ISO 14540-compliant couplings deliver exceptional performance in demanding hydraulic systems.
Interchange
- PARKER 3000 SERIES
- FASTER PVSM SERIES
- STUCCHI IV-HP SERIES
- CEJN 232 SERIES
- DIXON T SERIES
- DNP PVS SERIES
- HANSEN WA56000 SERIES
- SAFEWAY S30 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 88 Series – PARKER 3000 Enerpac Screw To Connect Quick Couplers 10000PSI (Steel)
This EH series is interchangeable with PARKER 3000 SERIES, STUCCHI IV-HP SERIES, FASTER PVSM SERIES, CEJN 232 SERIES, DIXON T SERIES, DNP PVS SERIES, HANSEN WA56000 SERIES, and SAFEWAY S30 SERIES. These screw-to-connect couplings are engineered for ultra-high-pressure applications. Featuring a durable metal-to-metal sealing ball valve, these ISO 14540-compliant couplings deliver exceptional performance in demanding hydraulic systems.
Interchange
- PARKER 3000 SERIES
- FASTER PVSM SERIES
- STUCCHI IV-HP SERIES
- CEJN 232 SERIES
- DIXON T SERIES
- DNP PVS SERIES
- HANSEN WA56000 SERIES
- SAFEWAY S30 SERIES

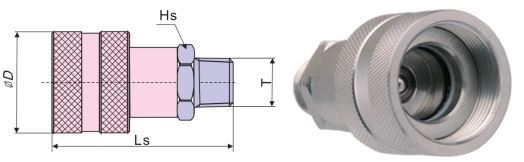

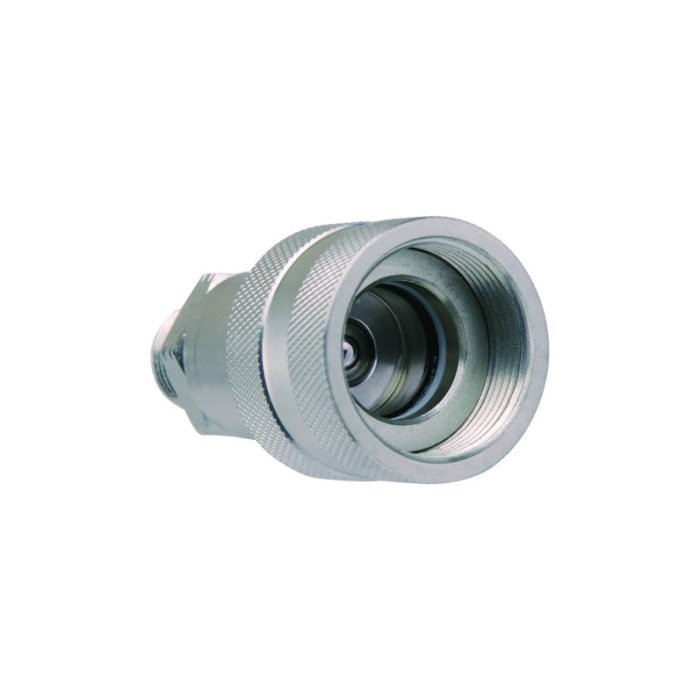

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSMC8814-1/4″ | 1/4” | 62.5 | 30 | S22 | 1/4”NPTF |
| HFSMC8838-3/8″ | 3/8” | 71.5 | 35 | S24 | 3/8”NPTF |

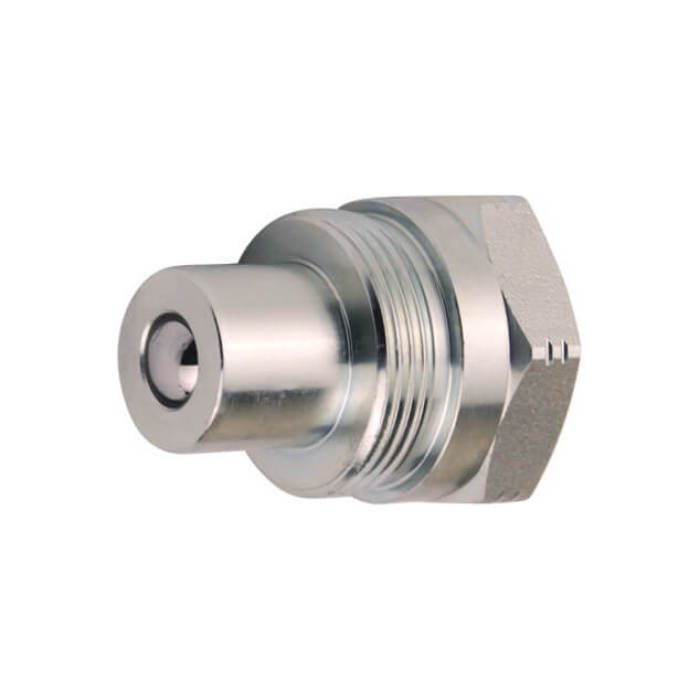

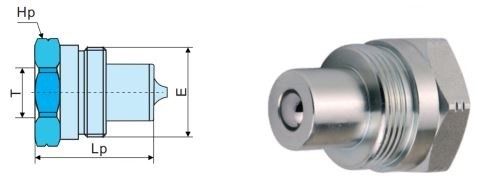

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | E(mm) | Hp(mm) | T |
| HFSFP8814-1/4″ | 1/4” | 45 | 1-18UNS | S19 | 1/4”NPTF |
| HFSFP8838-3/8″ | 3/8” | 40 | 1-3/16-16UN | S32 | 3/8”NPTF |

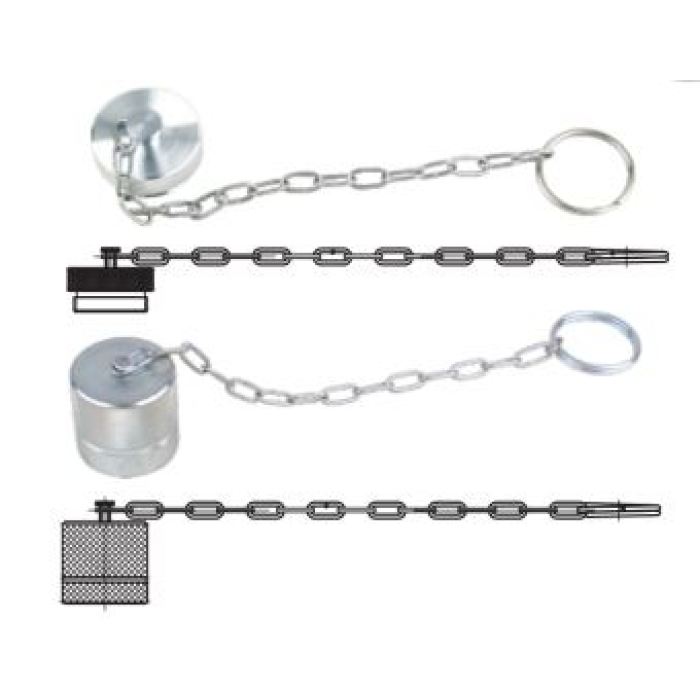

Accessories
Accessories
| Dash Size | ISO Size | Art. No.Dust Plug For Coupler | Art. No.Dust Cap For Plug | Material |
| 04 | 6.3 | HFSFC8814-TAO-00 | HFSFP8814-TAO-00 | Aluminum |
| 06 | 10 | HFSFC8838-TAO-00 | HFSFP8838-TAO-00 | Aluminum |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 720 | 720 | 720 | 2880 | 2880 | 2880 | 0.5 |
| 06 | 3/8” | 720 | 720 | 720 | 2880 | 2880 | 2880 | 1 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | PARKER 3000 SERIESHANSEN WA56000 SERIESSAFEWAY S30 SERIESFASTER PVSM SERIESSTUCCHI IV-HP SERIESDNP PVS SERIESCEJN 232 SERIESDIXON T SERIES |
| Valve Type: | Ball | |
| Connection: | Screw to Connect | |
| Disconnection: | Unscrew to Disconnect | |
| Connection Under Pressure: | Allowed Residual | |

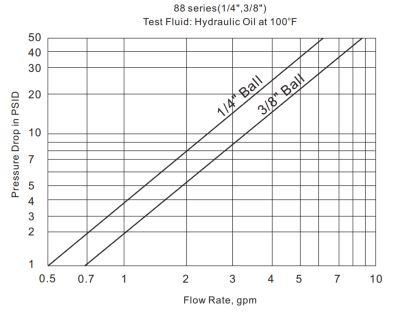

Pressure Drop
Pressure Drop
Applications
Hydraulic Torque Wrenches
Hydraulic Lift Systems For Bridges and Infrastructures
