EH 89 Series – W6000 Screw To Connect Quick Couplings For High Pressure (Steel)
This EH series is interchangeable with DNP PVG1 SERIES, GROMELLE W6000 SERIES, INTEVA TGW SERIES, VOSWINKEL HB SERIES, EATON W6000 SERIES, and STAUFF HB SERIES. High-pressure screw-on couplings engineered for extreme working conditions with frequent pressure spikes. The heavy-duty internal construction ensures optimal safety and reliability. Market Interchange.
Interchange
- DNP PVG1 SERIES
- GROMELLE W6000 SERIES
- INTEVA TGW SERIES
- VOSWINKEL HB SERIES
- EATON W6000 SERIES
- STAUFF HB SERIES

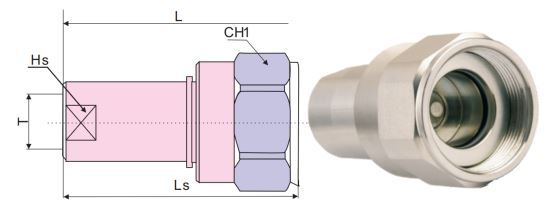

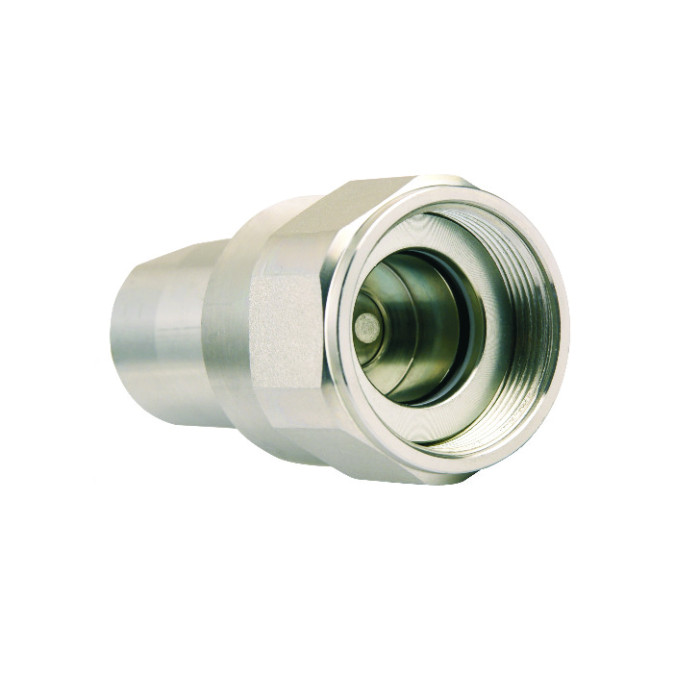

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | CH1(mm) | Hs(mm) | Ls(mm) | L(mm) | T |
| HFSFC8914-1/4″ | 1/4” | 32 | 19 | 59 | 72 | 1/4″BSPP/NPT |
| HFSFC8938-3/8″ | 3/8” | 36 | 22 | 66.5 | 81.5 | 3/8″BSPP/NPT |
| HFSFC8912-1/2″ | 1/2” | 41 | 27 | 76.5 | 98 | 1/2″BSPP/NPT |
| HFSFC8934-3/4″ | 3/4” | 50 | 35 | 89.5 | 112 | 3/4″BSPP/NPT |
| HFSFC8910-1″ | 1” | 65 | 41 | 105.5 | 132.5 | 1″BSPP/NPT |

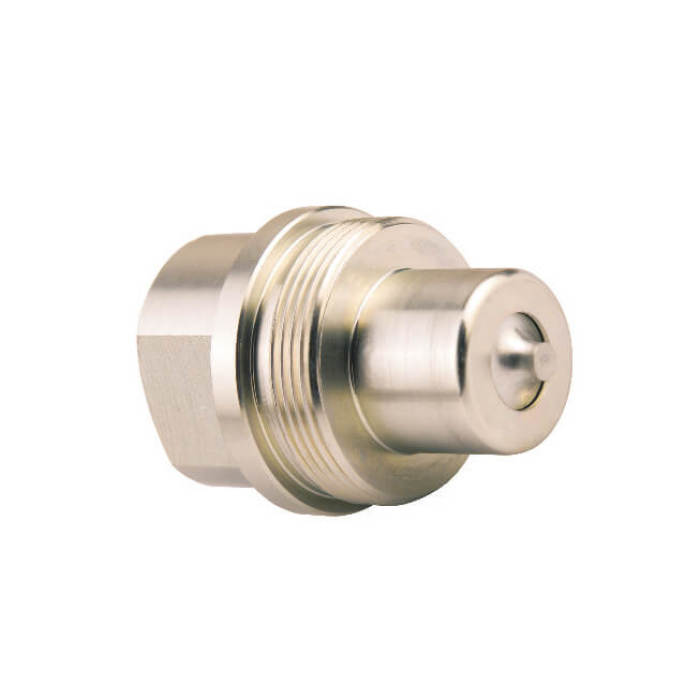

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | A(mm) | Hp(mm) | Lp(mm) | L(mm) | T |
| HFSFP8914-1/4″ | 1/4” | 15 | 19 | 36 | 72 | 1/4″BSPP/NPT |
| HFSFP8938-3/8″ | 3/8” | 19 | 22 | 40.5 | 81.5 | 3/8″BSPP/NPT |
| HFSFP8912-1/2″ | 1/2” | 22 | 27 | 49.5 | 98 | 1/2″BSPP/NPT |
| HFSFP8934-3/4″ | 3/4” | 29 | 35 | 56 | 112 | 3/4″BSPP/NPT |
| HFSFP8910-1″ | 1” | 36 | 41 | 66 | 132.5 | 1″BSPP/NPT |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 950 | 950 | 950 | 3650 | 3500 | 3800 | 1.1 |
| 06 | 3/8” | 750 | 750 | 750 | 3000 | 2900 | 3000 | 1.9 |
| 08 | 1/2″ | 750 | 750 | 750 | 2950 | 3000 | 3000 | 2.8 |
| 12 | 3/4″ | 650 | 650 | 650 | 2520 | 2500 | 2600 | 5.8 |
| 16 | 1″ | 450 | 450 | 450 | 1800 | 1650 | 1800 | 10.9 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | EATON W6000 SERIESGROMELLE W6000 SERIESDNP PVG1 SERIESINTEVA TGW SERIESSTAUFF HB SERIESVOSWINKEL HB SERIES |
| Valve Type: | Poppet | |
| Connection: | Screw to Connect | |
| Disconnection: | Unscrew to Disconnect | |
| Connection Under Pressure: | Allowed Residual | |

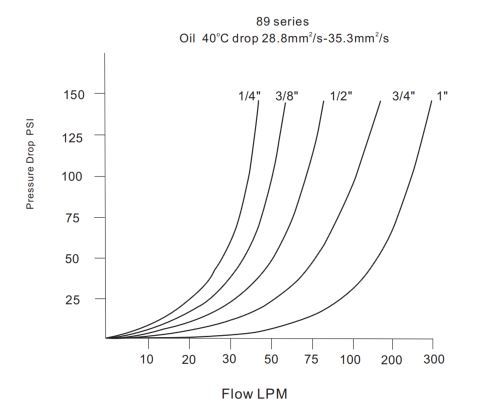

Pressure Drop
Pressure Drop
