EH 91 Series – VVS Screw To Connect Quick Couplings For High Pressure Applications (Stainless Steel)
This EH series is interchangeable with DNP VVVX SERIES, FASTER VVS STAINLESS STEEL SERIES, VOSWINKEL HH-VA SERIES, and STAUFF HH-VA SERIES. High-performance AISI 316 stainless steel screw couplings engineered for extreme-pressure applications. Features corrosion-resistant construction, heavy-duty internal components.
Interchange
- DNP VVVX SERIES
- FASTER VVS STAINLESS STEEL SERIES
- VOSWINKEL HH-VA SERIES
- STAUFF HH-VA SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 91 Series – VVS Screw To Connect Quick Couplings For High Pressure Applications (Stainless Steel)
This EH series is interchangeable with DNP VVVX SERIES, FASTER VVS STAINLESS STEEL SERIES, VOSWINKEL HH-VA SERIES, and STAUFF HH-VA SERIES. High-performance AISI 316 stainless steel screw couplings engineered for extreme-pressure applications. Features corrosion-resistant construction, heavy-duty internal components.
Interchange
- DNP VVVX SERIES
- FASTER VVS STAINLESS STEEL SERIES
- VOSWINKEL HH-VA SERIES
- STAUFF HH-VA SERIES

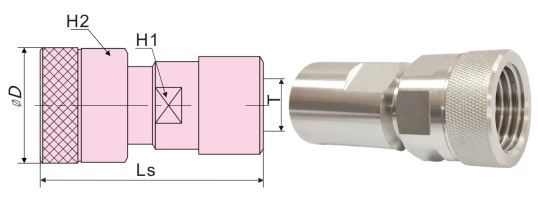

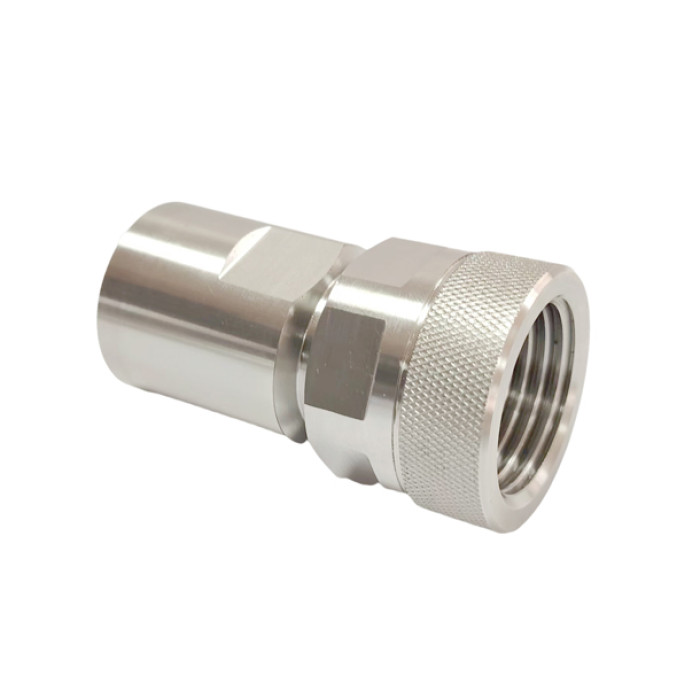

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | H1(mm) | H2(mm) | T |
| HFSSFC9114-1/4″ | 1/4” | 58 | 30 | 22 | 27 | 1/4″BSPP/NPT |
| HFSSFC9138-3/8″ | 3/8” | 62 | 40 | 30 | 36 | 3/8″BSPP/NPT |
| HFSSFC9112-1/2″ | 1/2” | 71 | 45 | 34 | 41 | 1/2″BSPP/NPT |
| HFSSFC9134-3/4″ | 3/4” | 87 | 55 | 41 | 50 | 3/4″BSPP/NPT |
| HFSSFC9110-1″ | 1” | 100 | 60 | 50 | 55 | 1″ BSPP/ NPT |
| HFSSFC91114-1-1/4″ | 1-1/4” | 123 | 80 | 65 | 75 | 1-1/4″BSPP/NPT |
| HFSSFC91112-1-1/2″ | 1-1/2” | 137 | 98 | 75 | 90 | 1-1/2″BSPP/NPT |
| HFSSFC9120-2″ | 2” | 160 | 129 | 100 | 125 | 2″ BSPP/ NPT |

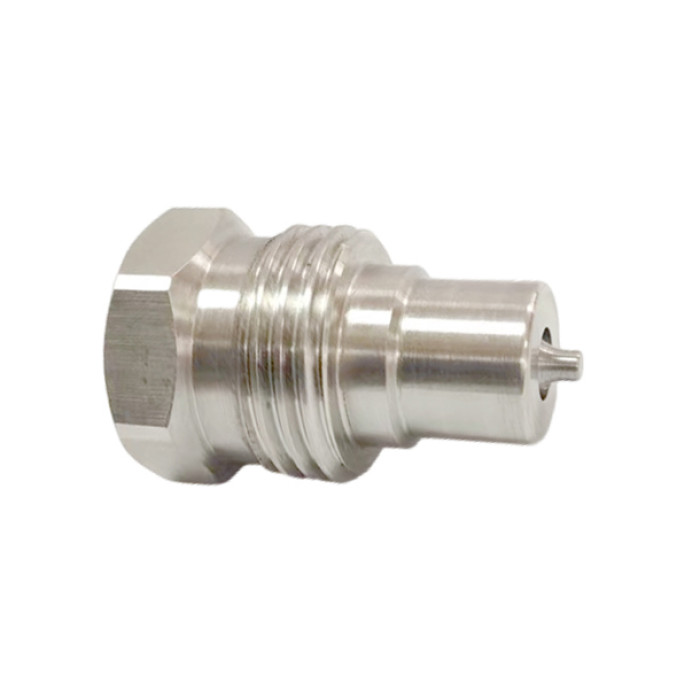

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | E(mm) | H3(mm) | T |
| HFSSFP9114-1/4″ | 1/4” | 58 | 1”-12UNF | S25 | 1/4″ BSPP/ NPT |
| HFSSFP9138-3/8″ | 3/8” | 62 | 1-1/14”-8UN | S32 | 3/8″BSPP/ NPT |
| HFSSFP9112-1/2″ | 1/2” | 71 | 1-3/8″-UN | S34 | 1/2″ BSPP/ NPT |
| HFSSFP9134-3/4″ | 3/4” | 87 | 1-3/4″-6UN | S46 | 3/4″ BSPP/ NPT |
| HFSSFP9110-1″ | 1” | 100 | M52X4 | S50 | 1″ BSPP/ NPT |
| HFSSFP91114-1-1/4″ | 1-1/4” | 123 | M68X4 | S65 | 1-1/4″BSPP/NPT |
| HFSSFP91112-1-1/2″ | 1-1/2” | 137 | M78X6 | S80 | 1-1/2″BSPP/NPT |
| HFSSFP9120-2″ | 2” | 160 | M115X8 | S110 | 2″ BSPP/ NPT |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 700 | 700 | 700 | 1800 | 2800 | 2800 | 0.4 |
| 06 | 3/8” | 650 | 650 | 650 | 1950 | 2000 | 2500 | 0.8 |
| 08 | 1/2″ | 600 | 600 | 600 | 1800 | 1950 | 2450 | 1.3 |
| 12 | 3/4″ | 500 | 500 | 500 | 1500 | 1600 | 1900 | 1.8 |
| 16 | 1″ | 460 | 460 | 460 | 1500 | 1400 | 1600 | 8 |
| 20 | 1-1/4″ | 380 | 380 | 380 | 1150 | 1200 | 1500 | 15 |
| 24 | 1-1/2″ | 365 | 365 | 365 | 1100 | 1400 | 1550 | 38 |
| 32 | 2″ | 300 | 300 | 300 | 650 | 750 | 850 | 46 |
| Material: | Stainless Steel | |
| Seals: | FKM, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -20 °C to 200 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | FASTER VVS STAINLESS SERIESDNP VVVX SERIESSTAUFF/VOSWINKEL HH-VA SERIES |
| Valve Type: | Poppet | |
| Connection: | Screw to Connect | |
| Disconnection: | Unscrew to Disconnect | |
| Connection Under Pressure: | Allowed Residual | |

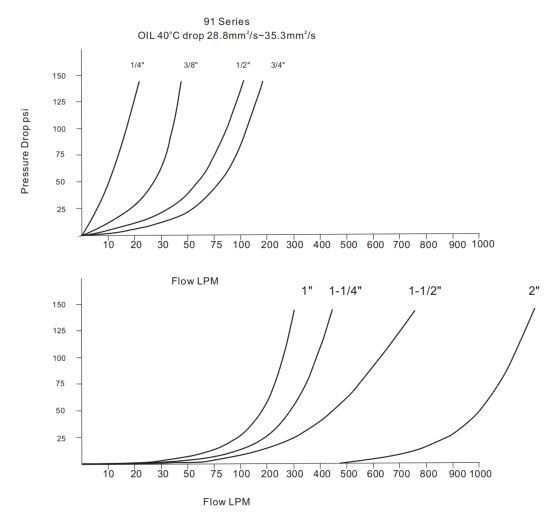

Pressure Drop
Pressure Drop
