EH 101/107 Series – SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (Brass)
This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL BRASS SERIES and STUCCHI SH SERIES. 101 series couplings are commonly used in the US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 107 parts (free flow) same series. Brass.
Interchange
- PARKER H SERIES
- SNAP-TITE IH SERIES
- FASTER TNL BRASS SERIES
- PARKER IH SERIES
- DIXON V SERIES
- STUCCHI SH SERIES
- SNAP-TITE H SERIES
- FASTER TNV SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 101/107 Series – SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (Brass)
This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL BRASS SERIES and STUCCHI SH SERIES. 101 series couplings are commonly used in the US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 107 parts (free flow) same series. Brass.
Interchange
- PARKER H SERIES
- SNAP-TITE IH SERIES
- FASTER TNL BRASS SERIES
- PARKER IH SERIES
- DIXON V SERIES
- STUCCHI SH SERIES
- SNAP-TITE H SERIES
- FASTER TNV SERIES
Call Tawk.to
contact@ehhydraulics.com

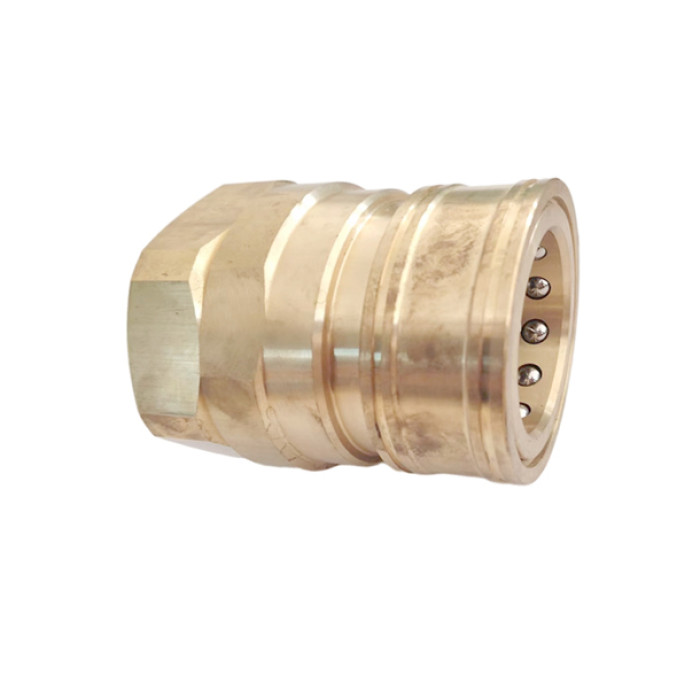

Female Coupler
Female Coupler
| 101 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFBFC10114-1/4″ | 1/4” | 50 | 24 | S22 | 84 | 1/4″ NPT |
| HFBFC10138-3/8″ | 3/8” | 57 | 27 | S24 | 95 | 3/8 “NPT |
| HFBFC10112-1/2″ | 1/2” | 65 | 34 | S30 | 110 | 1/2″ NPT |
| HFBFC10134-3/4″ | 3/4” | 64 | 42 | S36 | 106 | 3/4″ NPT |
| HFBFC10110-1″ | 1” | 71 | 51 | S46 | 116 | 1″ NPT |
| 107 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFBFC10714-1/4″ | 1/4” | 50 | 24 | S22 | 84 | 1/4″ NPT |
| HFBFC10738-3/8″ | 3/8” | 57 | 27 | S24 | 95 | 3/8 “NPT |
| HFBFC10712-1/2″ | 1/2” | 65 | 34 | S30 | 110 | 1/2″ NPT |
| HFBFC10734-3/4″ | 3/4” | 64 | 42 | S36 | 106 | 3/4″ NPT |
| HFBFC10710-1″ | 1” | 71 | 51 | S46 | 116 | 1″ NPT |

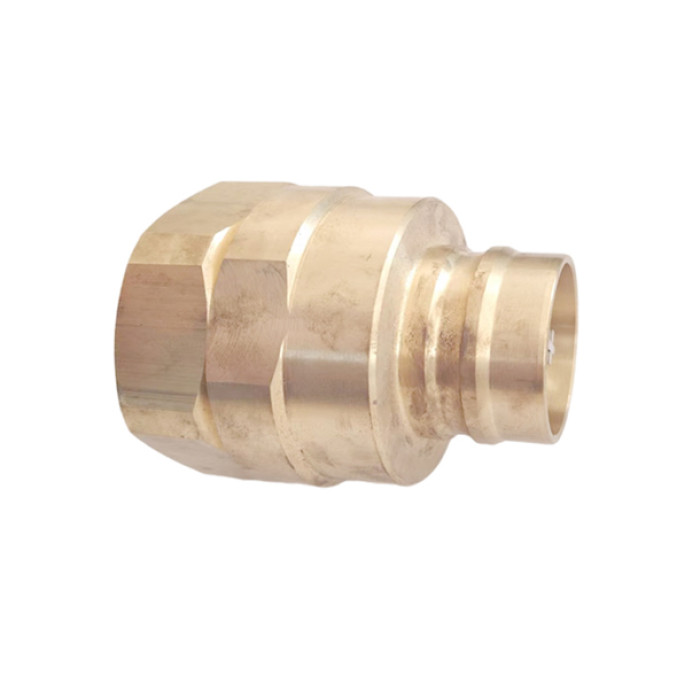

Male Plug

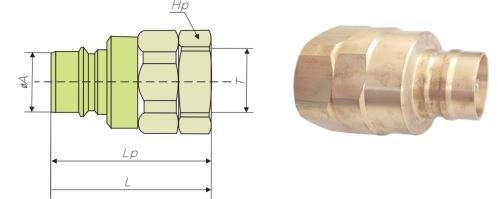

Male Plug
| 101 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | A(mm) | Hp(mm) | L(mm) | T |
| HFBFP10114-1/4″ | 1/4” | 49 | 10.8 | S22 | 84 | 1/4″ NPT |
| HFBFP10138-3/8″ | 3/8” | 57 | 12.9 | S24 | 95 | 3/8 “NPT |
| HFBFP10112-1/2″ | 1/2” | 63 | 16 | S30 | 110 | 1/2″ NPT |
| HFBFP10134-3/4″ | 3/4” | 64 | 23.3 | S36 | 106 | 3/4″ NPT |
| HFBFP10110-1″ | 1” | 68 | 29.7 | S46 | 116 | 1″ NPT |
| 107 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | A(mm) | Hp(mm) | L(mm) | T |
| HFBFP10714-1/4″ | 1/4” | 49 | 10.8 | S22 | 84 | 1/4″ NPT |
| HFBFP10738-3/8″ | 3/8” | 57 | 12.9 | S24 | 95 | 3/8 “NPT |
| HFBFP10712-1/2″ | 1/2” | 63 | 16 | S30 | 110 | 1/2″ NPT |
| HFBFP10734-3/4″ | 3/4” | 64 | 23.3 | S36 | 106 | 3/4″ NPT |
| HFBFP10710-1″ | 1” | 68 | 29.7 | S46 | 116 | 1″ NPT |
Technical Specifications
Technical Specifications
| 101 Series |
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 150 | 150 | 150 | 345 | 345 | 345 | 2 |
| 06 | 3/8” | 150 | 150 | 150 | 350 | 350 | 350 | 3 |
| 08 | 1/2” | 130 | 130 | 130 | 390 | 390 | 390 | 4 |
| 12 | 3/4” | 130 | 130 | 130 | 350 | 350 | 350 | 14 |
| 16 | 1” | 120 | 120 | 120 | 345 | 345 | 345 | 20 |
| 107 Series (Unvalved) |
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 275 | 275 | 275 | 980 | 980 | 980 | 0 |
| 06 | 3/8” | 275 | 275 | 275 | 1000 | 1000 | 1000 | 0 |
| 08 | 1/2” | 275 | 275 | 275 | 1000 | 1000 | 1000 | 0 |
| 12 | 3/4” | 250 | 250 | 250 | 750 | 750 | 750 | 0 |
| 16 | 1” | 200 | 200 | 200 | 560 | 560 | 560 | 0 |
| Material: | Brass | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | PARKER H SERIESPARKER IH SERIESSNAP-TITE H SERIESSNAP-TITE IH SERIESDIXON V SERIESFASTER TNV SERIESFASTER TNL BRASS SERIESSTUCCHI SH SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

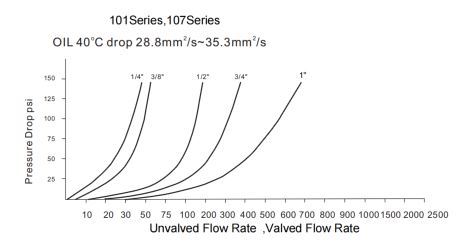

Pressure Drop
Pressure Drop
