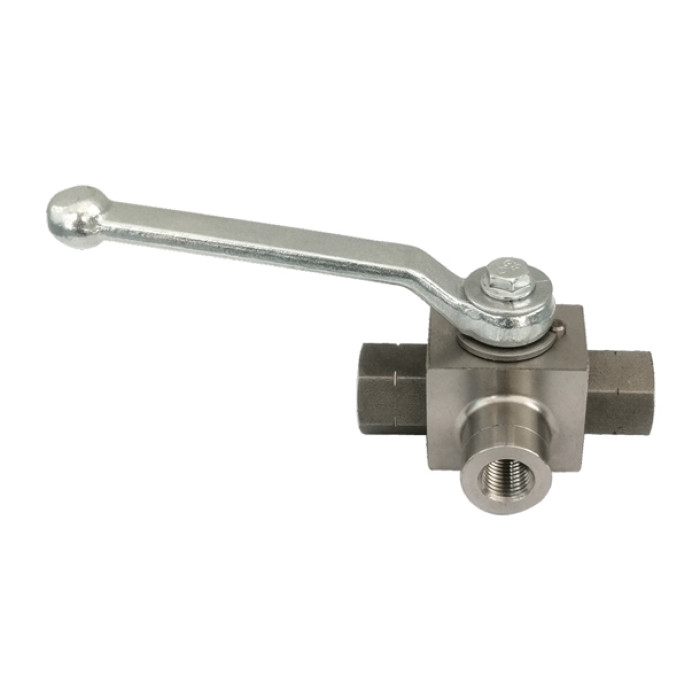

EH EHVLSS Series | BK3 Three-Way High-Pressure Ball Valve – L Type (Stainless Steel)
This EH series is interchangeable with PISTER BK3 SERIES, MHA BK3 SERIES, HYDAC KHB3K SERIES, GEMELS GE3 SERIES, and CIOCCA CRHI3 SERIES. Stainless Steel Product. Three-way high-pressure ball valve (Stainless Steel 316)-L Type, used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Interchange
- PISTER BK3 SERIES
- GEMELS GE3 SERIES
- MHA BK3 SERIES
- CIOCCA CRHI3 SERIES
- HYDAC KHB3K SERIES
Call Tawk.to
contact@ehhydraulics.com

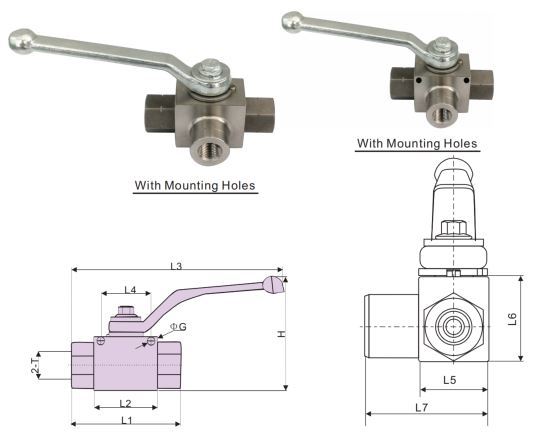

Body Size
Body Size
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||||
| Art. No. | Body Size (Inch) | LW(mm) | L1(mm) | L2(mm) | L3(mm) | H(mm) | L4xG(mm) | L5(mm) | L6(mm) | L7(mm) | T |
| EHVLSS14 | 1/4” | 6 | 69 | 40 | 145 | 71 | 26X4.5 | 29 | 33 | 47.5 | 1/4”BSPP(NPT) |
| EHVLSS38 | 3/8” | 10 | 71 | 42 | 145 | 76.5 | 32X6.5 | 35 | 38 | 52 | 3/8”BSPP(NPT) |
| EHVLSS12 | 1/2” | 13 | 82 | 48 | 160.9 | 81 | 37.5X6.5 | 38 | 40 | 59 | 1/2”BSPP(NPT) |
| EHVLSS34 | 3/4” | 20 | 96 | 62 | 218 | 112 | 45X6.5 | 52 | 57 | 72 | 3/4”BSPP(NPT) |
| EHVLSS10 | 1” | 25 | 113 | 66 | 226.5 | 120 | 55X6.5 | 61 | 65 | 85 | 1”BSPP(NPT) |
Thread Size
Thread Size
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVTSS14-G1/4 | G1/4 | / | 69 | 13.5 | 22 |
| EHVTSS38-G3/8 | G3/8 | / | 71 | 14 | 27 |
| EHVTSS12-G1/2 | G1/2 | / | 82 | 16.5 | 30 |
| EHVTSS34-G3/4 | G3/4 | / | 95 | 18 | 41 |
| EHVTSS10-G1 | G1 | / | 113 | 20 | 50 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVLSS14-1/4NPT | 1/4NPT | / | 69 | 15 | 22 |
| EHVLSS38-3/8NPT | 3/8NPT | / | 71 | 15.5 | 27 |
| EHVLSS12-1/2NPT | 1/2NPT | / | 82 | 17 | 30 |
| EHVLSS34-3/4NPT | 3/4NPT | / | 96 | 20.5 | 41 |
| EHVLSS10-1NPT | 1NPT | / | 113 | 25 | 50 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVLSS-10S | M18X1.5 | 10 | 73 | 12 | 22 |
| EHVLSS-12S | M20X1.5 | 12 | 77 | 12 | 27 |
| EHVLSS-16S | M24X1.5 | 16 | 87 | 14 | 30 |
| EHVLSS-20S | M30X2 | 20 | 91 | 16 | 32 |
| EHVLSS-25S | M36X2 | 25 | 111 | 18 | 41 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVLSS-8L | M14X1.5 | 8 | 69 | 10 | 22 |
| EHVLSS-10L | M16X1.5 | 10 | 77 | 11 | 27 |
| EHVLSS-12L | M18X1.5 | 12 | 77 | 11 | 27 |
| EHVLSS-15L | M22X1.5 | 15 | 83 | 12 | 30 |
| EHVLSS-22L | M30X2 | 22 | 103 | 14 | 41 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVLSS-SAE4 | 7/16-20UNF | / | 69 | 14 | 22 |
| EHVLSS-SAE6 | 9/16-18UNF | / | 71 | 15.5 | 27 |
| EHVLSS-SAE8 | 3/4-16UNF | / | 82 | 18 | 30 |
| EHVLSS-SAE12 | 1-1/16-12UN | / | 101 | 23.5 | 41 |
| EHVLSS-SAE16 | 1-5/16-12UN | / | 113 | 23 | 50 |

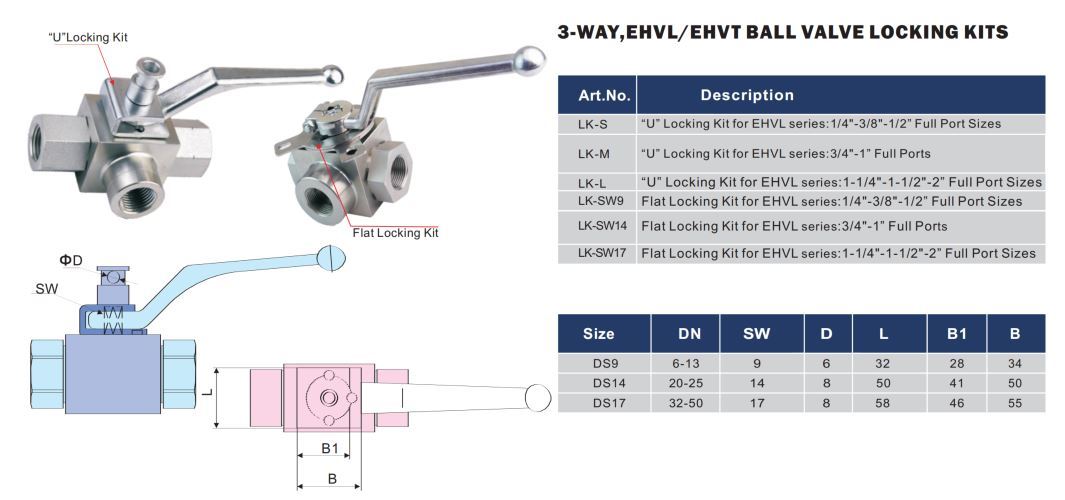

Accessories
Accessories
Technical Specifications
Technical Specifications
| Body Dash Size | Body Size (Inch) | Max. Work Pressure (bar) |
| 04 | 1/4” | 500 |
| 06 | 3/8” | 500 |
| 08 | 1/2” | 500 |
| 12 | 3/4” | 315 |
| 16 | 1” | 315 |
| Material: | Stainless Steel | |
| Seals: | Viton, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -20 °C to 200 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | PISTER BK3 SERIESMHA BK3 SERIESHYDAC KHB3K SERIES CIOCCA CRHI3 SERIESGEMELS GE3 SERIES |
| Ball Seals: | POM | |
| Connection: | Handle | |
| Disconnection: | Handle | |
| Connection Under Pressure: | No Allowed | |
