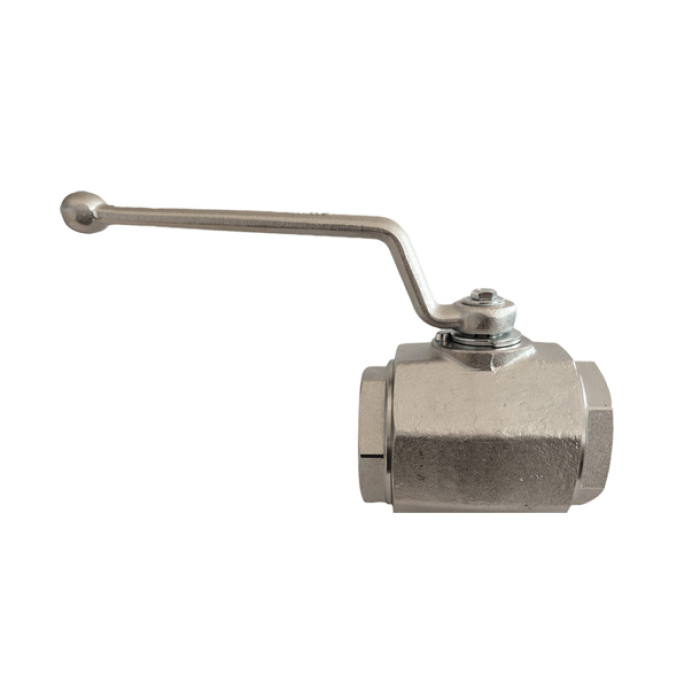

EH EHVDH Series | SKH Two-Way High Pressure Forged Ball Valve (Steel)
This EH series is interchangeable with PISTER SKH SERIES, MHA MKHP SERIES, HYDAC KHM SERIES, CIOCCA CRHI2 SERIES, and GEMELS GB2 SERIES. Two-way high-pressure forged ball valve (steel), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Interchange
- PISTER SKH SERIES
- GEMELS GB2 SERIES
- MHA MKHP SERIES
- CIOCCA CRHI2 SERIES
- HYDAC KHM SERIES
Call Tawk.to
contact@ehhydraulics.com
EH EHVDH Series | SKH Two-Way High Pressure Forged Ball Valve (Steel)
This EH series is interchangeable with PISTER SKH SERIES, MHA MKHP SERIES, HYDAC KHM SERIES, CIOCCA CRHI2 SERIES, and GEMELS GB2 SERIES. Two-way high-pressure forged ball valve (steel), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Interchange
- PISTER SKH SERIES
- GEMELS GB2 SERIES
- MHA MKHP SERIES
- CIOCCA CRHI2 SERIES
- HYDAC KHM SERIES
Call Tawk.to
contact@ehhydraulics.com

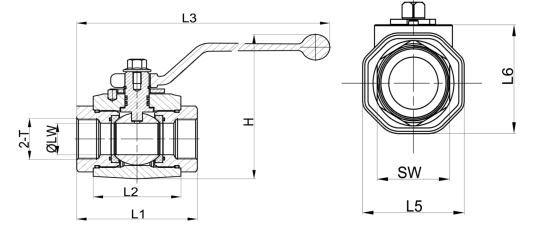

Body Size
Body Size
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||||
| Art. No. | Body Size (Inch) | LW(mm) | L1(mm) | L2(mm) | L3(mm) | H(mm) | G(mm) | L4(mm) | L5(mm) | L6(mm) | T |
| EHVDH114 | 1-1/4” | 32 | 150 | 120 | 172 | 168 | / | / | 82 | 87.5 | 1-1/4”BSPP(NPT) |
| EHVDH112 | 1-1/2” | 38 | 165 | 130 | 177 | 179.5 | / | / | 93 | 99 | 1-1/2”BSPP(NPT) |
| EHVDH20 | 2” | 48 | 180 | 140 | 199 | 195.5 | / | / | 110 | 115 | 2”BSPP(NPT) |
Thread Size
Thread Size
| Art. No. | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVDH-G1-1/4 | 32 | G1-1/4 | / | 110 | 20 | 60 |
| EHVDH-G1-1/2 | 38 | G1-1/2 | / | 120 | 22 | 70 |
| EHVDH-G2 | 48 | G2 | / | 140 | 24 | 85 |
| Art. No. | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVDH-1-1/4NPT | 32 | 1-1/4NPT | / | 110 | 19.5 | 60 |
| EHVDH-1-1/2NPT | 38 | 1-1/2NPT | / | 120 | 19.5 | 70 |
| EHVDH-2NPT | 48 | 2NPT | / | 140 | 20 | 85 |
| Art. No. | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVDH-38S | 32 | M52X2 | 38 | 148 | 22 | 81 |
| Art. No. | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVDH-35L | 32 | M45X2 | 35 | 136 | 16 | 81 |
| EHVDH-42L | 38 | M52X2 | 42 | 147 | 16 | 100 |
| Art. No. | LW(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVDH-SAE20 | 32 | 1-5/8-12UN | / | 120 | 20 | 60 |
| EHVDH-SAE24 | 38 | 1-7/8-12UN | / | 130 | 20 | 70 |
| EHVDH-SAE32 | 48 | 2-1/2-12UN | / | 140 | 20 | 80 |

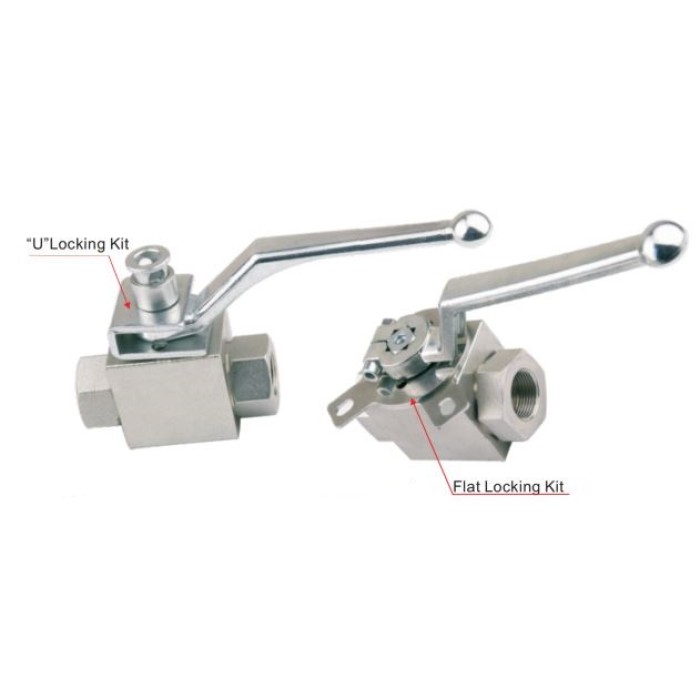

Accessories
Accessories
Technical Specifications
Technical Specifications
| Body Dash Size | Body Size (Inch) | Max. Work Pressure (bar) |
| 20 | 1-1/4” | 315 |
| 24 | 1-1/2” | 315 |
| 32 | 2” | 315 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | PISTER SKH SERIESMHA MKHP SERIESHYDAC KHM SERIESCIOCCA CRHI2 SERIESGEMELS GB2 SERIES |
| Ball Seals: | POM | |
| Connection: | Handle | |
| Disconnection: | Handle | |
| Connection Under Pressure: | No Allowed | |
