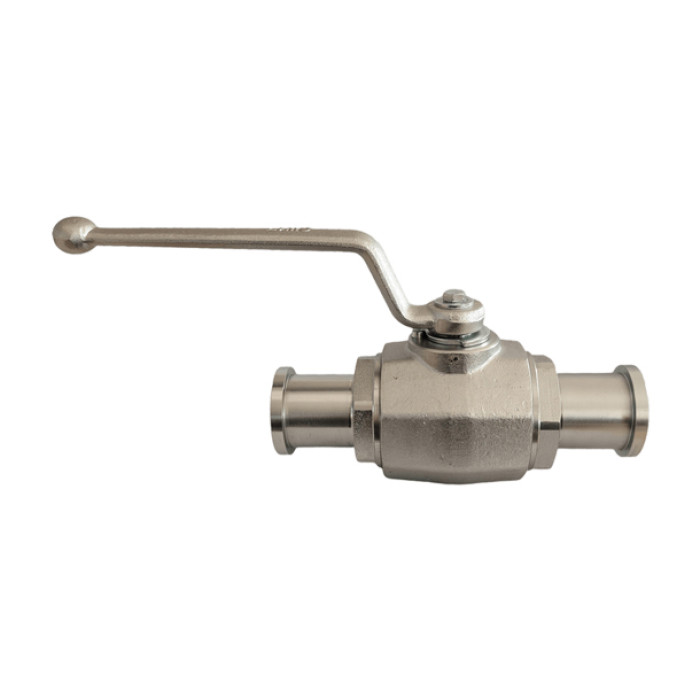

EH EHVDHFS Series | KHM Two-Way High Pressure Forged Ball Valve With Flange, SAE J518C, ISO-6162 (Steel)
This EH series is interchangeable with MHA MKHP-SAEFS SERIES, HYDAC KHM-F3/6 SERIES, GEMELS GBS3 SERIES, and GEMELS GBS6 SERIES. Two-way high-pressure forged ball valve with flange (carbon steel) SAE J518C (ISO-6162), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Interchange
- MHA MKHP-SAEFS SERIES
- GEMELS GBS6 SERIES
- HYDAC KHM-F3/6 SERIES
- GEMELS GBS3 SERIES
Call Tawk.to
contact@ehhydraulics.com
Body Size
Body Size
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||

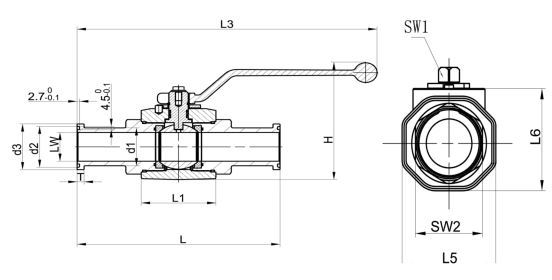

| Art. No. | Body Size (Inch) | DN | LW(mm) | L(mm) | L1(mm) | L5(mm) | L6(mm) | H(mm) |
| EHVDHFS-DN32-210 | 1-1/4” | 32 | 30 | 231 | 120 | 82 | 87.5 | 168 |
| EHVDHFS-DN32-420 | 1-1/4” | 32 | 30 | 263 | 120 | 82 | 87.5 | 168 |
| EHVDHFS-DN40-210 | 1-1/2” | 40 | 38 | 276 | 130 | 93 | 99 | 179.5 |
| EHVDHFS-DN40-420 | 1-1/2” | 40 | 38 | 326 | 130 | 93 | 99 | 179.5 |
| EHVDHFS-DN50-210 | 2” | 50 | 48 | 272 | 140 | 110 | 115 | 195.5 |
| EHVDHFS-DN50-420 | 2” | 50 | 48 | 356 | 140 | 110 | 115 | 195.5 |
| Other Threads/Fitting Ends Are Available Upon Request | |||||||
| Art. No. | L3(mm) | SW1(mm) | SW2(mm) | T(mm) | d1(mm) | d2(mm) | d3(mm) |
| EHVDHFS-DN32-210 | 379 | 17 | 60 | 8 | 43 | 44 | 50.8 |
| EHVDHFS-DN32-420 | 408 | 17 | 60 | 10.4 | 43 | 44.6 | 54 |
| EHVDHFS-DN40-210 | 400 | 17 | 65 | 8 | 50 | 53.7 | 60.3 |
| EHVDHFS-DN40-420 | 450 | 17 | 65 | 12.7 | 50 | 54.1 | 63.5 |
| EHVDHFS-DN50-210 | 397 | 17 | 85 | 9.6 | 62 | 62.5 | 71.4 |
| EHVDHFS-DN50-420 | 481 | 17 | 85 | 12.7 | 62 | 63.6 | 79.4 |
Accessories
Accessories
Technical Specifications
Technical Specifications
| Body Size (Inch) | Max. Work Pressure (bar) |
| 1-1/4” | 210/420 |
| 1-1/2” | 210/420 |
| 2” | 210/420 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | MHA MKHP-SAEFS SERIESHYDAC KHM-F3/6 SERIESGEMELS GBS3 SERIESGEMELS GBS6 SERIES |
| Ball Seals: | POM | |
| Connection: | Handle | |
| Disconnection: | Handle | |
| Connection Under Pressure: | No Allowed | |
