EH EHVFS Series | BKH Two-Way High Pressure Ball Valve With Flange, SAE J518C, ISO-6162 (Steel)
This EH series is interchangeable with MHA NDRV SERIES, HYDAC DRV SERIES, PARKER F SERIES, and GEMELS RF SERIES. Two-way high-pressure ball valve with flange (carbon steel) SAE J518C (ISO-6162), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Interchange
- MHA BKH SERIES
- HYDAC KHB-F3/6 SERIES
- GEMELS GES SERIES
Call Tawk.to
contact@ehhydraulics.com
EH EHVFS Series | BKH Two-Way High Pressure Ball Valve With Flange, SAE J518C, ISO-6162 (Steel)
This EH series is interchangeable with MHA NDRV SERIES, HYDAC DRV SERIES, PARKER F SERIES, and GEMELS RF SERIES. Two-way high-pressure ball valve with flange (carbon steel) SAE J518C (ISO-6162), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Interchange
- MHA BKH SERIES
- HYDAC KHB-F3/6 SERIES
- GEMELS GES SERIES
Call Tawk.to
contact@ehhydraulics.com

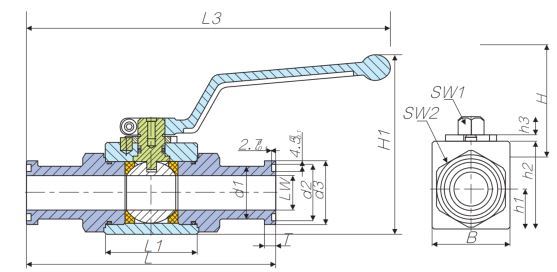

Body Size
Body Size
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||
| Art. No. | DN | LW(mm) | L(mm) | L1(mm) | B(mm) | H(mm) | H3(mm) | H1(mm) | h1(mm) |
| EHVFS-DN13-210 | 13 | 13 | 151 | 48 | 36 | 54 | 193 | 85 | 19 |
| EHVFS-DN13-420 | 13 | 13 | 151 | 48 | 36 | 54 | 193 | 85 | 19 |
| EHVFS-DN20-210 | 20 | 20 | 162 | 62 | 49 | 74.5 | 252 | 119 | 24.5 |
| EHVFS-DN20-420 | 20 | 20 | 174 | 62 | 49 | 74.5 | 260 | 119 | 24.5 |
| EHVFS-DN25-210 | 25 | 25 | 178 | 66 | 58 | 83 | 260 | 128 | 29.5 |
| EHVFS-DN25-420 | 25 | 25 | 198 | 66 | 58 | 83 | 280 | 128 | 29.5 |
| EHVFS-DN32-210 | 32 | 32 | 191 | 80 | 82 | 107.5 | 336 | 170 | 41 |
| EHVFS-DN32-420 | 32 | 32 | 223 | 80 | 82 | 107.5 | 368 | 170 | 41 |
| EHVFS-DN40-210 | 40 | 38 | 231 | 85 | 93 | 113 | 355 | 174.5 | 42 |
| EHVFS-DN40-420 | 40 | 38 | 281 | 85 | 93 | 113 | 405 | 174.5 | 42 |
| EHVFS-DN50-210 | 50 | 48 | 232 | 100 | 110 | 136 | 357 | 197 | 57 |
| EHVFS-DN50-420 | 50 | 48 | 316 | 100 | 110 | 136 | 441 | 197 | 57 |
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||
| Art. No. | h2(mm) | h3(mm) | SW1(mm) | SW2(mm) | T(mm) | d1(mm) | d2(mm) | d3(mm) | O-Ring |
| EHVFS-DN13-210 | 40 | 9 | 9 | 30 | 6.8 | 24 | 25.5 | 30.2 | 18.64X3.53 |
| EHVFS-DN13-420 | 40 | 9 | 9 | 30 | 7.9 | 24 | 25.5 | 30.2 | 18.64X3.53 |
| EHVFS-DN20-210 | 57 | 12 | 14 | 41 | 6.8 | 31.7 | 31.9 | 38.1 | 24.99X3.53 |
| EHVFS-DN20-420 | 57 | 12 | 14 | 41 | 8.9 | 32 | 31.9 | 41.3 | 24.99X3.53 |
| EHVFS-DN25-210 | 65 | 12 | 14 | 50 | 8.1 | 38 | 39.8 | 44.4 | 32.92X3.53 |
| EHVFS-DN25-420 | 65 | 12 | 14 | 50 | 9.6 | 38 | 39.8 | 47.6 | 32.92X3.53 |
| EHVFS-DN32-210 | 87 | 14 | 17 | 60 | 8 | 43 | 44.5 | 50.8 | 37.69X3.53 |
| EHVFS-DN32-420 | 87 | 14 | 17 | 60 | 10.4 | 43 | 44.5 | 50.8 | 37.69X3.53 |
| EHVFS-DN40-210 | 99 | 14 | 17 | 65 | 8 | 50 | 53.8 | 60.3 | 47.22X3.53 |
| EHVFS-DN40-420 | 99 | 14 | 17 | 65 | 12.7 | 50 | 53.8 | 60.3 | 47.22X3.53 |
| EHVFS-DN50-210 | 115 | 14 | 17 | 85 | 9.6 | 62 | 63.4 | 71.4 | 56.74X3.53 |
| EHVFS-DN50-420 | 115 | 14 | 17 | 85 | 12.7 | 62 | 63.4 | 71.4 | 56.74X3.53 |
Accessories
Accessories
Technical Specifications
Technical Specifications
| DN | Max. Work Pressure (bar) |
| 13 | 210/420 |
| 20 | 210/420 |
| 25 | 210/420 |
| 32 | 210/420 |
| 40 | 210/420 |
| 50 | 210/420 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | MHA BKH SERIES HYDAC KHB-F3/6 SERIES GEMELS GES SERIES |
| Ball Seals: | POM | |
| Connection: | Handle | |
| Disconnection: | Handle | |
| Connection Under Pressure: | No Allowed | |
