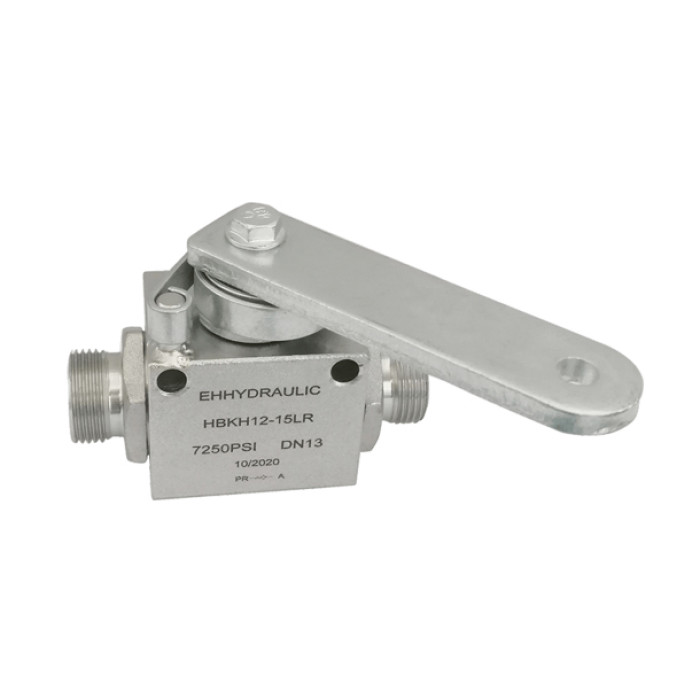

EH HBKH Series | PISTER HBKH Two-Way Stroke Limiter Ball Valve (Steel)
This EH series is interchangeable with PISTER HBKH SERIES. This series has a stroke limitation function on single-action cylinders, e.g., tilt cylinders or lifting platforms for hydraulically powered machines.
EH HBKH Series | PISTER HBKH Two-Way Stroke Limiter Ball Valve (Steel)
This EH series is interchangeable with PISTER HBKH SERIES. This series has a stroke limitation function on single-action cylinders, e.g., tilt cylinders or lifting platforms for hydraulically powered machines.

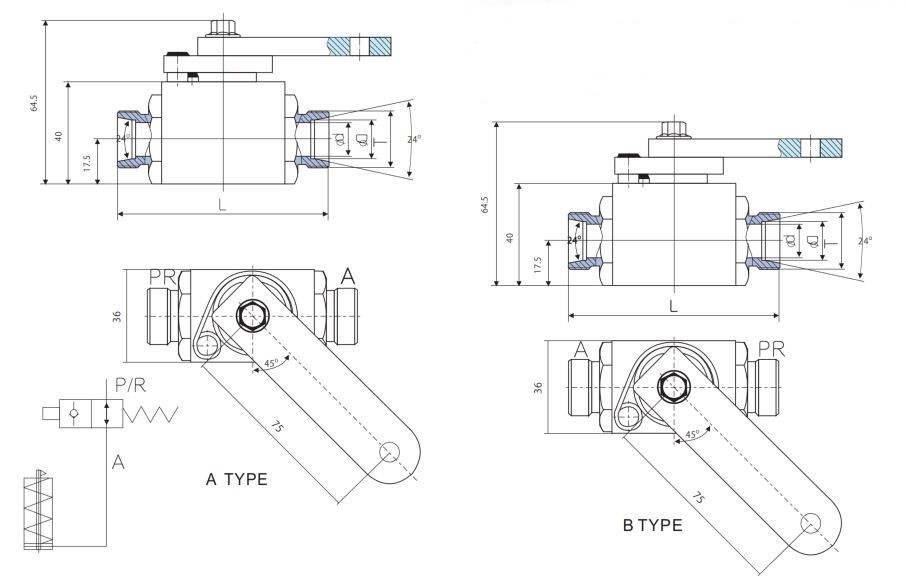

Body Size
Body Size
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | DN | d(mm) | D(mm) | T |
| HBKH12-12LR | 13 | 10 | 12 | M18X1.5 |
| HBKH12-15LR | 13 | 13 | 15 | M22X1.5 |
Technical Specifications
Technical Specifications
| Body Size (Inch) | Max. Work Pressure (bar) |
| 1/2” | 350 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | PISTER HBKH SERIES |
| Ball Seals: | POM | |
| Connection: | Handle | |
| Disconnection: | Handle | |
| Connection Under Pressure: | No Allowed | |
