EH 295 Series – 3FFH ISO 16028 Flat Face Quick Couplings – Connection Under Pressure (Steel)
This EH series is interchangeable with STUCCHI A-HD SERIES, PARKER FEM SERIES, FASTER 3FFH SERIES, VOSWINKEL FH SERIES, VOSWINKEL FF SERIES, and VOSWINKEL FU SERIES. These ISO 16028-compliant flat face couplings are engineered for demanding hydraulic applications, featuring a robust 35 MPa (5076 psi) working pressure rating and durable zinc-nickel plating for superior corrosion resistance. The innovative design allows safe connection under residual pressure conditions with multiple configuration options.
Interchange
- STUCCHI A-HD SERIES
- VOSWINKEL FH SERIES
- PARKER FEM SERIES
- VOSWINKEL FF SERIES
- FASTER 3FFH SERIES
- VOSWINKEL FU SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 295 Series – 3FFH ISO 16028 Flat Face Quick Couplings – Connection Under Pressure (Steel)
This EH series is interchangeable with STUCCHI A-HD SERIES, PARKER FEM SERIES, FASTER 3FFH SERIES, VOSWINKEL FH SERIES, VOSWINKEL FF SERIES, and VOSWINKEL FU SERIES. These ISO 16028-compliant flat face couplings are engineered for demanding hydraulic applications, featuring a robust 35 MPa (5076 psi) working pressure rating and durable zinc-nickel plating for superior corrosion resistance. The innovative design allows safe connection under residual pressure conditions with multiple configuration options.
Interchange
- STUCCHI A-HD SERIES
- VOSWINKEL FH SERIES
- PARKER FEM SERIES
- VOSWINKEL FF SERIES
- FASTER 3FFH SERIES
- VOSWINKEL FU SERIES
Call Tawk.to
contact@ehhydraulics.com

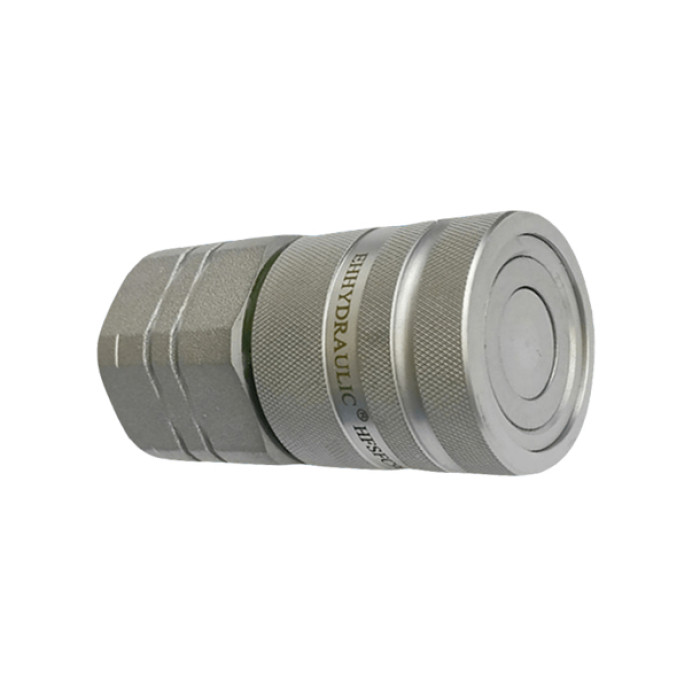

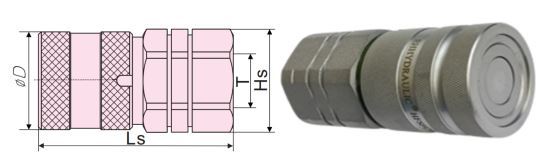

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC29538-3/8″NPT | 3/8” | 69 | 32 | S30 | 3/8″NPT |
| HFSFC29538-1/2″NPT | 3/8” | 70 | 32 | S30 | 1/2″NPT |
| HFSFC29538-3/8″G | 3/8” | 69 | 32 | S30 | 3/8″BSPP |
| HFSFC29538-1/2″G | 3/8” | 70 | 32 | S30 | 1/2″BSPP |
| HFSFC29538-3/4″UNF | 3/8” | 70 | 32 | S30 | 3/4″UNF-16 |
| HFSFC29512-1/2″NPT | 1/2” | 77.5 | 38 | S36 | 1/2″NPT |
| HFSFC29512-3/4″NPT | 1/2” | 84 | 38 | S36 | 3/4″NPT |
| HFSFC29512-1/2″G | 1/2” | 77.5 | 38 | S36 | 1/2″BSPP |
| HFSFC29512-3/4″G | 1/2” | 84 | 38 | S36 | 3/4″BSPP |
| HFSFC29512-7/8″UNF | 1/2” | 77.5 | 38 | S36 | 7/8″UNF-14 |
| HFSFC29512-1-1/16″UN | 1/2” | 84 | 38 | S36 | 1-1/16″UN-12 |
| HFSFC29558-3/4″NPT | 5/8” | 87 | 42 | S41 | 3/4″NPT |
| HFSFC29558-1-1/16″UN | 5/8” | 87 | 42 | S41 | 1-1/16″UN-12 |
| HFSFC29534-3/4″NPT | 3/4” | 95.8 | 48 | S46 | 3/4″NPT |
| HFSFC29534-3/4″G | 3/4” | 95.8 | 48 | S46 | 3/4″BSPP |
| HFSFC29534-1″NPT | 3/4” | 98.8 | 48 | S46 | 1″NPT |
| HFSFC29534-1″G | 3/4” | 98.8 | 48 | S46 | 1″BSPP |
| HFSFC29534-1-1/16″UN | 3/4” | 98.8 | 48 | S46 | 1-1/16″UN-12 |
| HFSFC29534-1-5/16″UN | 3/4” | 98.8 | 48 | S46 | 1-5/16″UN-12 |
| HFSFC29510-1″NPT | 1” | 104.5 | 55 | S55 | 1″NPT |
| HFSFC29510-1″G | 1” | 104.5 | 55 | S55 | 1″BSPP |
| HFSFC29510-1-1/4″NPT | 1” | 105.5 | 55 | S55 | 1-1/4″NPT |
| HFSFC29510-1-1/4″G | 1” | 105.5 | 55 | S55 | 1-1/4″BSPP |
| HFSFC29510-1-5/16″UN | 1” | 105.5 | 55 | S55 | 1-5/16″UN-12 |
| HFSFC29510-1-5/8″UN | 1” | 105.5 | 55 | S55 | 1-5/8″UN-16 |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) | Max. ResidualPressure(bar) |
| 06 | 3/8” | / | 350 | 350 | / | 1000 | 1000 | 0.008 | 300 |
| 08 | 1/2” | / | 330 | 330 | / | 1000 | 1000 | 0.01 | 300 |
| 10 | 5/8” | / | 330 | 330 | / | 1000 | 1000 | 0.02 | 250 |
| 12 | 3/4” | / | 300 | 300 | / | 800 | 800 | 0.02 | 250 |
| 16 | 1” | / | 300 | 300 | / | 800 | 800 | 0.03 | 200 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 1000 (ZnNi) | |
| Specifications: | Market Interchange | STUCCHI VEP-P SERIES PARKER FET SERIESFASTER FHV SERIESDNP PST4 SERIESVOSWINKEL FT SERIESDIXON VEP SERIESHOLMBURY HFT SERIES |
| Valve Type: | Flat | |
| Connection: | Screw to Connect | |
| Disconnection: | Unscrew to Disconnect | |
| Connection Under Pressure: | Allowed Up To 25MPa | |

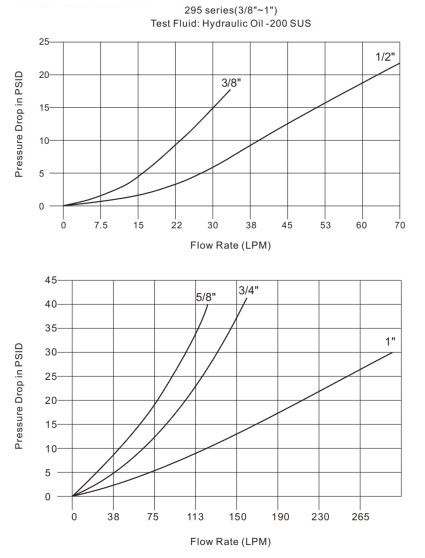

Pressure Drop
Pressure Drop
