EH 97 Series – A-HP ISO 16028 Flat Face High Pressure Quick Coupler (Steel)
This EH series is interchangeable with PARKER FH SERIES, STUCCHI A-HP SERIES, CEJN 265 SERIES, FASTER FFHP SERIES, and DNP PLT7 SERIES. Engineered for extreme hydraulic systems, these 72 MPa-rated couplings deliver uncompromising performance in critical high-pressure applications. To ensure operational safety, this series is intentionally incompatible with standard ISO 16028 or low/medium-pressure flat-face couplings, preventing risky cross-connections. Instead, it pairs exclusively with dedicated high-pressure counterparts available on the market. An innovative rotating sleeve on the female half automatically engages post-connection, providing a fail-safe lock against accidental disengagement under pressure.
Interchange
- PARKER FH SERIES
- FASTER FFHP SERIES
- STUCCHI A-HP SERIES
- DNP PLT7 SERIES
- CEJN 265 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 97 Series – A-HP ISO 16028 Flat Face High Pressure Quick Coupler (Steel)
This EH series is interchangeable with PARKER FH SERIES, STUCCHI A-HP SERIES, CEJN 265 SERIES, FASTER FFHP SERIES, and DNP PLT7 SERIES. Engineered for extreme hydraulic systems, these 72 MPa-rated couplings deliver uncompromising performance in critical high-pressure applications. To ensure operational safety, this series is intentionally incompatible with standard ISO 16028 or low/medium-pressure flat-face couplings, preventing risky cross-connections. Instead, it pairs exclusively with dedicated high-pressure counterparts available on the market. An innovative rotating sleeve on the female half automatically engages post-connection, providing a fail-safe lock against accidental disengagement under pressure.
Interchange
- STUCCHI VEP-P SERIES
- DNP PST4 SERIES
- HOLMBURY HFT SERIES
- PARKER FET SERIES
- VOSWINKEL FT SERIES
- PARKER FH SERIES
- FASTER FFHP SERIES
Call Tawk.to
contact@ehhydraulics.com

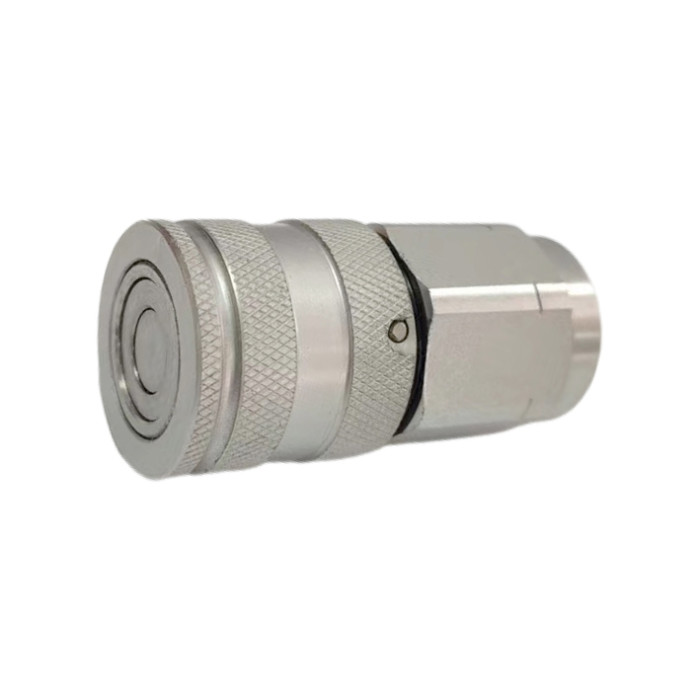

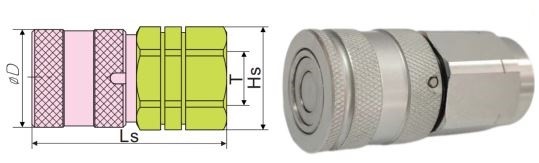

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC9714-1/4″ NPT | 1/4” | 48 | 28 | S22 | 1/4″ NPT |
| HFSFC9714-1/4″ BSPP | 1/4” | 48 | 28 | S22 | 1/4″ BSPP |
| HFSFC9714-9/16″ UNF | 1/4” | 48 | 28 | S22 | 9/16″ UNF-18 |
| HFSFC9714-3/8″ NPT | 1/4” | 48 | 28 | S22 | 3/8″ NPT |
| HFSFC9714-3/8″ BSPP | 1/4” | 48 | 28 | S22 | 3/8″ BSPP |
| HFSFC9738-3/8″ BSPP | 3/8” | 64.5 | 32 | S27 | 3/8″ BSPP |
| HFSFC9738-3/8″ NPT | 3/8” | 64.5 | 32 | S27 | 3/8″ NPT |
| HFSFC9738-3/4″ UNF | 3/8” | 69.5 | 32 | S27 | 3/4″ UNF-16 |

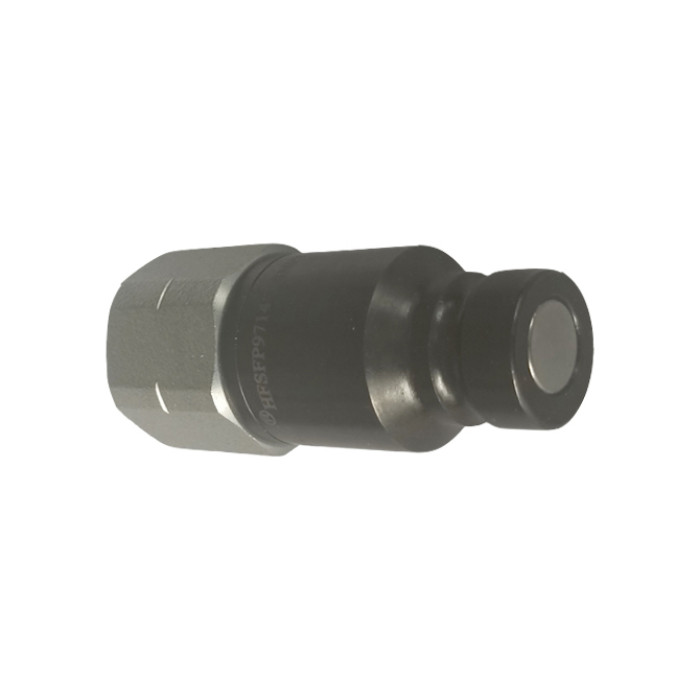

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP9714-1/4″ NPT | 1/4” | 50 | S22 | 1/4″ NPT |
| HFSFP9714-1/4″ BSPP | 1/4” | 50 | S22 | 1/4″ BSPP |
| HFSFP9714-9/16″ UNF | 1/4” | 50 | S22 | 9/16″ UNF-18 |
| HFSFP9714-3/8″ NPT | 1/4” | 52 | S22 | 3/8″ NPT |
| HFSFP9714-3/8″ BSPP | 1/4” | 52 | S22 | 3/8″ BSPP |
| HFSFP9738-3/8″ BSPP | 3/8” | 60 | S27 | 3/8″ BSPP |
| HFSFP9738-3/8″ NPT | 3/8” | 60 | S27 | 3/8″ NPT |
| HFSFP9738-3/4″ UNF | 3/8” | 63 | S27 | 3/4″ UNF-16 |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 720 | 720 | 720 | 2000 | 1500 | 2000 | 0.01 |
| 06 | 3/8” | 720 | 720 | 720 | 2000 | 1250 | 1800 | 0.02 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 1000 (ZnNi) | |
| Specifications: | Market Interchange | STUCCHI A-HP SERIESCEJN 265 SERIESFASTER FFHP SERIESDNP PLT7 SERIESPARKER-FH SERIES |
| Valve Type: | Flat | |
| Connection: | Push To Connect | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

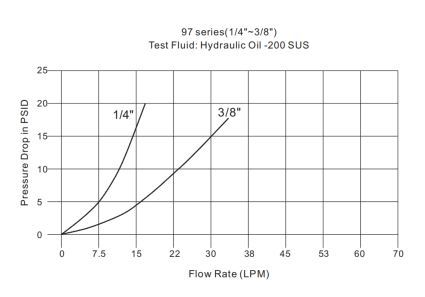

Pressure Drop
Pressure Drop
