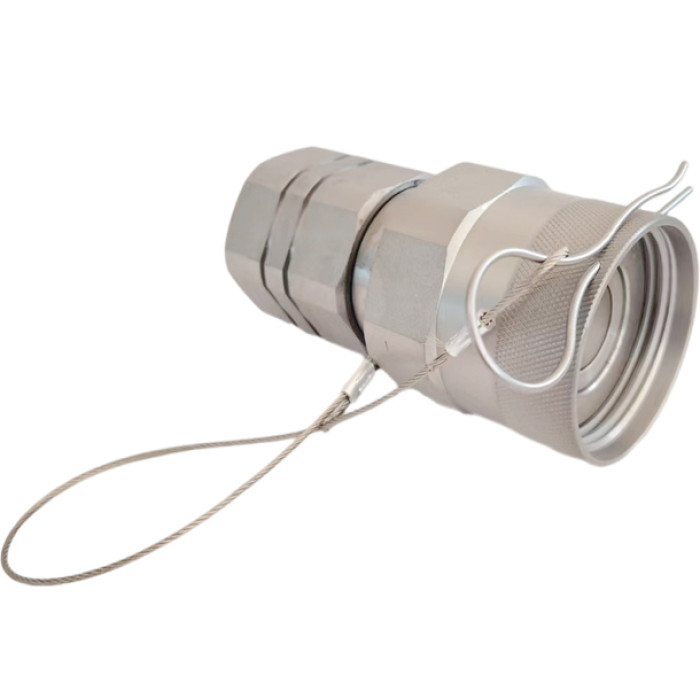

EH 299 Series – VEP-P ISO 16028 Threaded Flat Face Quick Coupling (Steel)

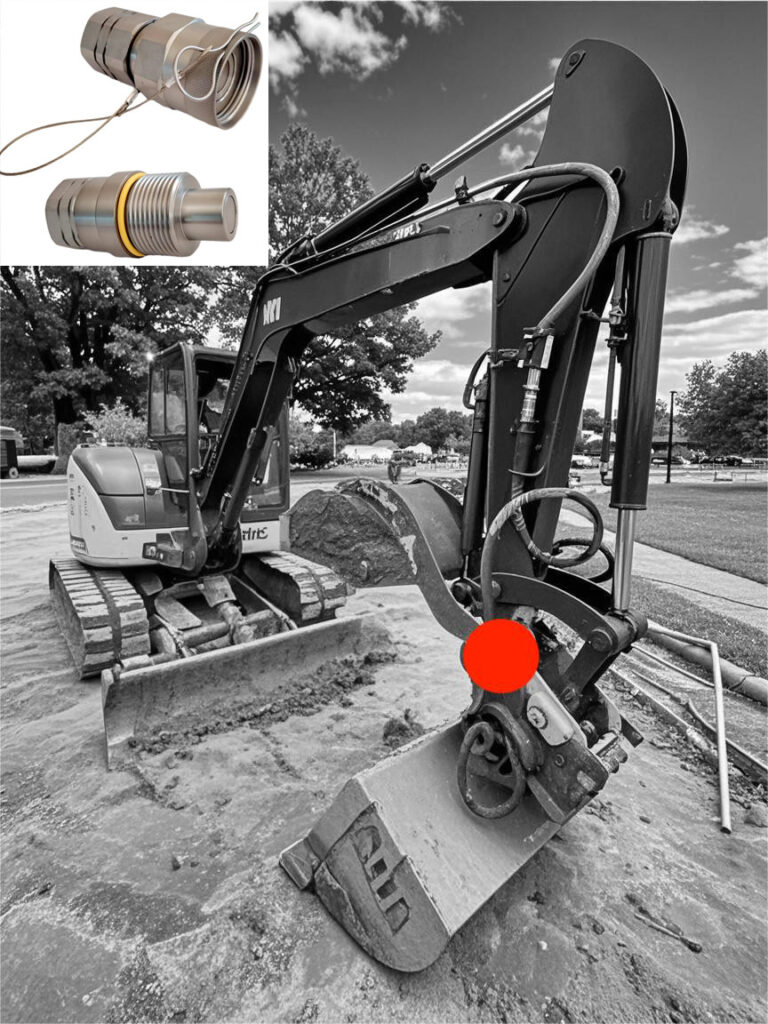

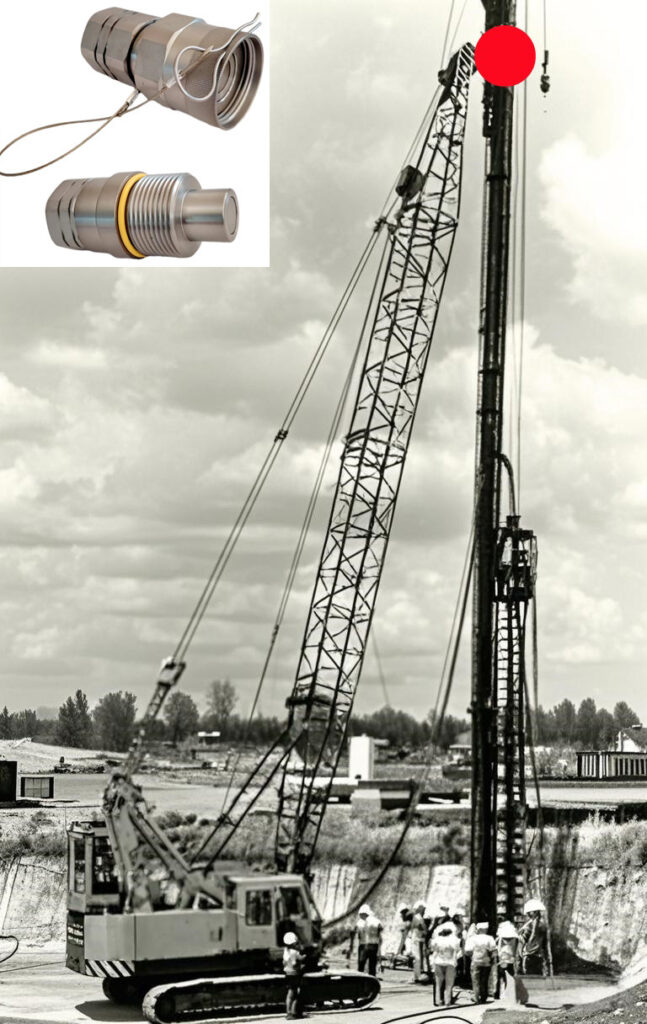

This EH series is interchangeable with STUCCHI VEP-P SERIES, PARKER FET SERIES, FASTER FHV SERIES, VOSWINKEL FT SERIES, DIXON VEP SERIES, and DNP PST4 SERIES. Engineered for demanding hydraulic systems, the 299 Series provides reliable performance in applications subject to extreme pressure impulses and residual line pressures. The innovative thread-to-connect design significantly reduces wear and prevents brinelling, while the internal valve technology enables safe connection and disconnection even under high residual pressure conditions. This series is used in a high-wind application environment, and the safety pin lock will ensure the couplers are physically stable enough to perform properly.
Interchange
- STUCCHI VEP-P SERIES
- VOSWINKEL FT SERIES
- PARKER FET SERIES
- DIXON VEP SERIES
- FASTER FHV SERIES
- DNP PST4 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 299 Series – VEP-P ISO 16028 Threaded Flat Face Quick Coupling (Steel)
This EH series is interchangeable with STUCCHI VEP-P SERIES, PARKER FET SERIES, FASTER FHV SERIES, VOSWINKEL FT SERIES, DIXON VEP SERIES, and DNP PST4 SERIES. Engineered for demanding hydraulic systems, the 299 Series provides reliable performance in applications subject to extreme pressure impulses and residual line pressures. The innovative thread-to-connect design significantly reduces wear and prevents brinelling, while the internal valve technology enables safe connection and disconnection even under high residual pressure conditions. This series is used in a high-wind application environment, and the safety pin lock will ensure the couplers are physically stable enough to perform properly.
Interchange
- STUCCHI VEP-P SERIES
- VOSWINKEL FT SERIES
- PARKER FET SERIES
- DIXON VEP SERIES
- FASTER FHV SERIES
- DNP PST4 SERIES
Call Tawk.to
contact@ehhydraulics.com

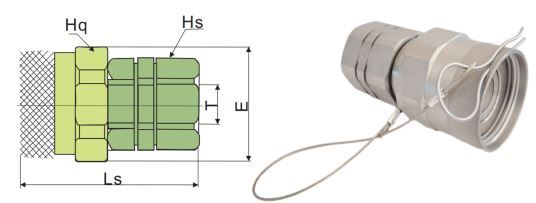

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | E(mm) | Hs(mm) | Hq(mm) | Ls(mm) | T |
| HFSFC29938-3/8″NPT | 3/8” | 41.8 | S30 | S38 | 70 | 3/8″NPT |
| HFSFC29938-3/8″G | 3/8” | 41.8 | S30 | S38 | 70 | 3/8″BSPP |
| HFSFC29938-1/2″NPT | 3/8” | 41.8 | S30 | S38 | 71.5 | 1/2″NPT |
| HFSFC29938-1/2″G | 3/8” | 41.8 | S30 | S38 | 71.5 | 1/2″BSPP |
| HFSFC29912-1/2″NPT | 1/2” | 49.8 | S36 | S46 | 78 | 1/2″NPT |
| HFSFC29912-1/2″G | 1/2” | 49.8 | S36 | S46 | 78 | 1/2″BSPP |
| HFSFC29912-1-1/16″UN | 1/2” | 49.8 | S36 | S46 | 85 | 1-1/16″UN-12 |
| HFSFC29958-3/4″NPT | 5/8” | 53.8 | S41 | S50 | 85 | 5/8″NPT |
| HFSFC29958-1-1/16″UN | 5/8” | 53.8 | S41 | S50 | 85 | 1-1/16″UN-12 |
| HFSFC29934-1″NPT | 3/4” | 58.8 | S46 | S55 | 99 | 1″NPT |
| HFSFC29934-1″G | 3/4” | 58.8 | S46 | S55 | 99 | 1″BSPP |
| HFSFC29934-1-1/16″UN | 3/4” | 58.8 | S46 | S55 | 99 | 1-1/16″UN-12 |
| HFSFC29934-1-5/16″UN | 3/4” | 58.8 | S46 | S55 | 99 | 1-5/16″UN-12 |
| HFSFC29910-1-1/4″NPT | 1” | 70 | S55 | S65 | 106 | 1-1/4″NPT |
| HFSFC29910-1-1/4″G | 1” | 70 | S55 | S65 | 106 | 1-1/4″BSPP |
| HFSFC29910-1-5/16″UN | 1” | 70 | S55 | S65 | 105 | 1-5/16″UN-12 |
| HFSFC29910-1-5/8″UN | 1” | 70 | S55 | S65 | 106 | 1-5/8″UN-12 |
| HFSFC299112-1-1/2″ NPT | 1-1/2” | 92 | S65 | S85 | 133.5 | 1-1/2″NPT |
| HFSFC299112-1-1/2″G | 1-1/2” | 92 | S65 | S85 | 133.5 | 1-1/2″BSPP |
| HFSFC299112-1-5/8″UN | 1-1/2” | 92 | S65 | S85 | 133.5 | 1-5/8″UN-12 |
| HFSFC299112-1-7/8″UN | 1-1/2” | 92 | S65 | S85 | 133.5 | 1-7/8″UN -12 |
Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | N | M(mm) | Hp(mm) | Lp(mm) | T |
| HFSFP29938-3/8″NPT | 3/8” | M33x2 | 37.8 | 27 | 82.5 | 3/8″NPT |
| HFSFP29938-3/8″G | 3/8” | M33x2 | 37.8 | 27 | 82.5 | 3/8″BSPP |
| HFSFP29938-1/2″NPT | 3/8” | M33x2 | 37.8 | 27 | 86 | 1/2″NPT |
| HFSFP29938-1/2″G | 3/8” | M33x2 | 37.8 | 27 | 86 | 1/2″BSPP |
| HFSFP29912-1/2″NPT | 1/2” | M40x3 | 45.8 | 36 | 97 | 1/2″NPT |
| HFSFP29912-1/2″G | 1/2” | M40x3 | 45.8 | 36 | 97 | 1/2″BSPP |
| HFSFP29912-1-1/16″UN | 1/2” | M40x3 | 45.8 | 36 | 99 | 1-1/16″UN-12 |
| HFSFP29958-3/4″NPT | 5/8” | M45x3 | 49.8 | 36 | 99 | 5/8″NPT |
| HFSFP29958-1-1/16″UN | 5/8” | M45x3 | 49.8 | 36 | 99 | 1-1/16″UN-12 |
| HFSFP29934-1″NPT | 3/4” | M50x3 | 54.8 | 46 | 114 | 1″NPT |
| HFSFP29934-1″G | 3/4” | M50x3 | 54.8 | 46 | 114 | 1″BSPP |
| HFSFP29934-1-1/16″UN | 3/4” | M50x3 | 54.8 | 46 | 114 | 1-1/16″UN-12 |
| HFSFP29934-1-5/16″UN | 3/4” | M50x3 | 54.8 | 46 | 114 | 1-5/16″UN-12 |
| HFSFP29910-1-1/4″NPT | 1” | M58x3 | 64.5 | 55 | 123.5 | 1-1/4″NPT |
| HFSFP29910-1-1/4″G | 1” | M58x3 | 64.5 | 55 | 123.5 | 1-1/4″BSPP |
| HFSFP29910-1-5/16″UN | 1” | M58x3 | 64.5 | 55 | 123.5 | 1-5/16″UN-12 |
| HFSFP29910-1-5/8″UN | 1” | M58x3 | 64.5 | 55 | 123.5 | 1-5/8″UN-12 |
| HFSFP299112-1-1/2″ NPT | 1-1/2” | M80x4 | 89.8 | 65 | 150 | 1-1/2″NPT |
| HFSFP299112-1-1/2″G | 1-1/2” | M80x4 | 89.8 | 65 | 150 | 1-1/2″BSPP |
| HFSFP299112-1-5/8″UN | 1-1/2” | M80x4 | 89.8 | 65 | 150 | 1-5/8″UN-12 |
| HFSFP299112-1-7/8″UN | 1-1/2” | M80x4 | 89.8 | 65 | 150 | 1-7/8″UN-12 |
Accessories
Accessories
| Dash Size | ISO Size | Art. No. Dust Cap For Coupler | Art. No.Dust Cap For Plug | Material |
| 06 | 10 | 297-3/8-P-AL | 297-3/8-C-AL | Aluminum |
| 08 | 12.5 | 297-1/2-P-AL | 297-1/2-C-AL | Aluminum |
| 10 | 16 | 297-5/8-P-AL | 297-5/8-C-AL | Aluminum |
| 12 | 19 | 297-3/4-P-AL | 297-3/4-C-AL | Aluminum |
| 16 | 25 | 297-1-P-AL | 297-1-C-AL | Aluminum |
| 24 | 38 | 297-1-1/2-P-AL | 297-1-1/2-C-AL | Aluminum |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 06 | 3/8” | 550 | 330 | 550 | 1400 | 1000 | 1400 | 0.01 |
| 08 | 1/2” | 550 | 330 | 550 | 1400 | 1000 | 1400 | 0.01 |
| 10 | 5/8” | 550 | 330 | 550 | 1400 | 1000 | 1400 | 0.02 |
| 12 | 3/4” | 500 | 330 | 500 | 1250 | 1000 | 1250 | 0.03 |
| 16 | 1” | 470 | 300 | 470 | 1200 | 800 | 1200 | 0.03 |
| 24 | 1-1/2” | 400 | 300 | 400 | 1100 | 800 | 1100 | 0.03 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 1000 (ZnNi) | |
| Specifications: | Market Interchange | STUCCHI VEP-P SERIESPARKER FET SERIESFASTER FHV SERIESDNP PST4 SERIESVOSWINKEL FT SERIESDIXON VEP SERIES |
| Valve Type: | Flat | |
| Connection: | Screw to Connect | |
| Disconnection: | Unscrew to Disconnect | |
| Connection Under Pressure: | Allowed Up To 25MPa | |

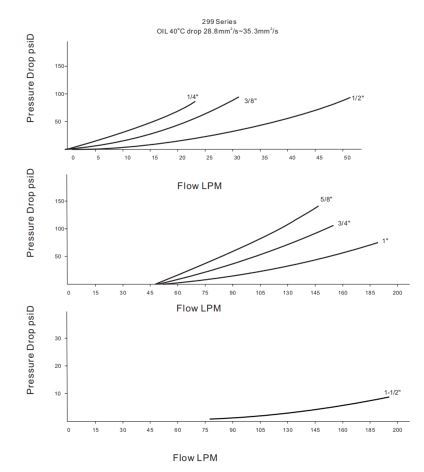

Pressure Drop
Pressure Drop
