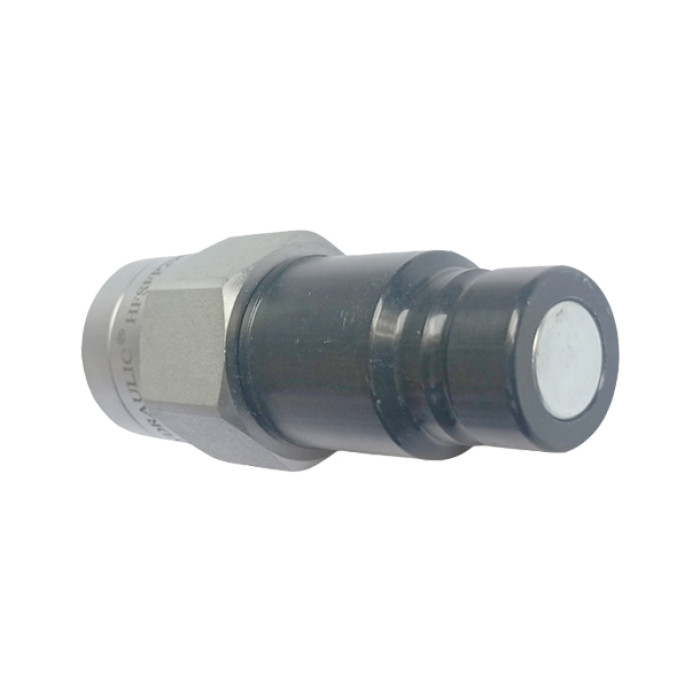

EH 296 Series – APM ISO 16028 Flat Face Quick Couplings – Connection Under Pressure (Steel)

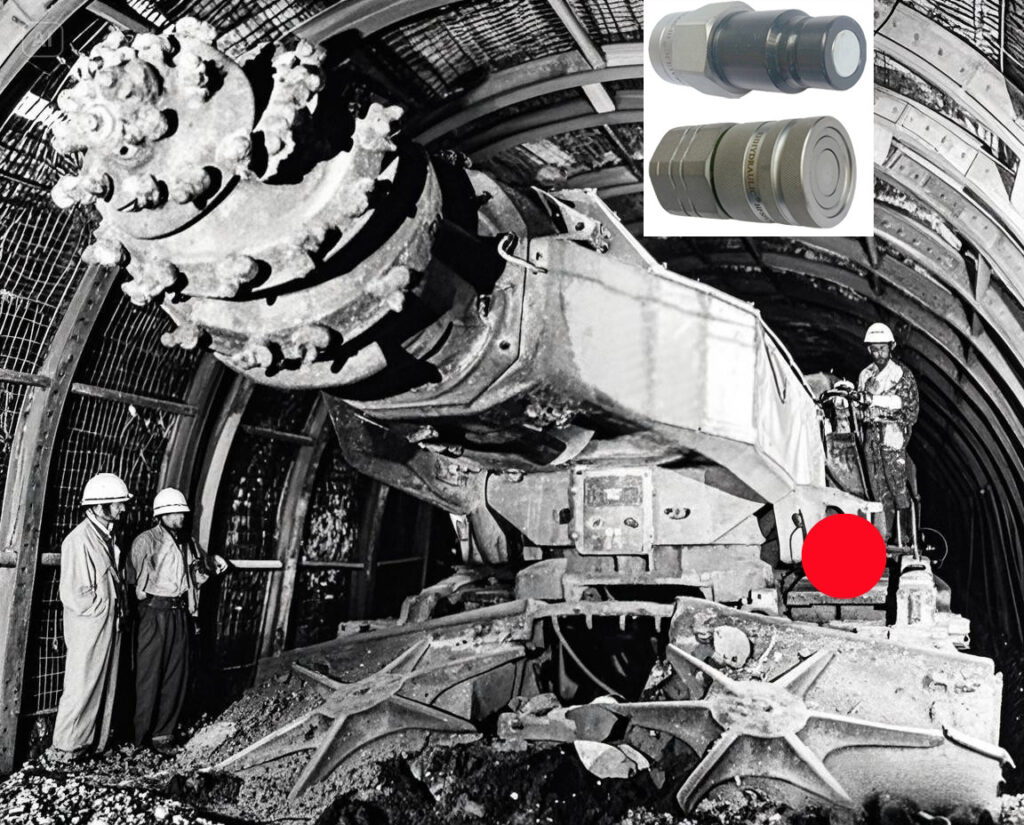

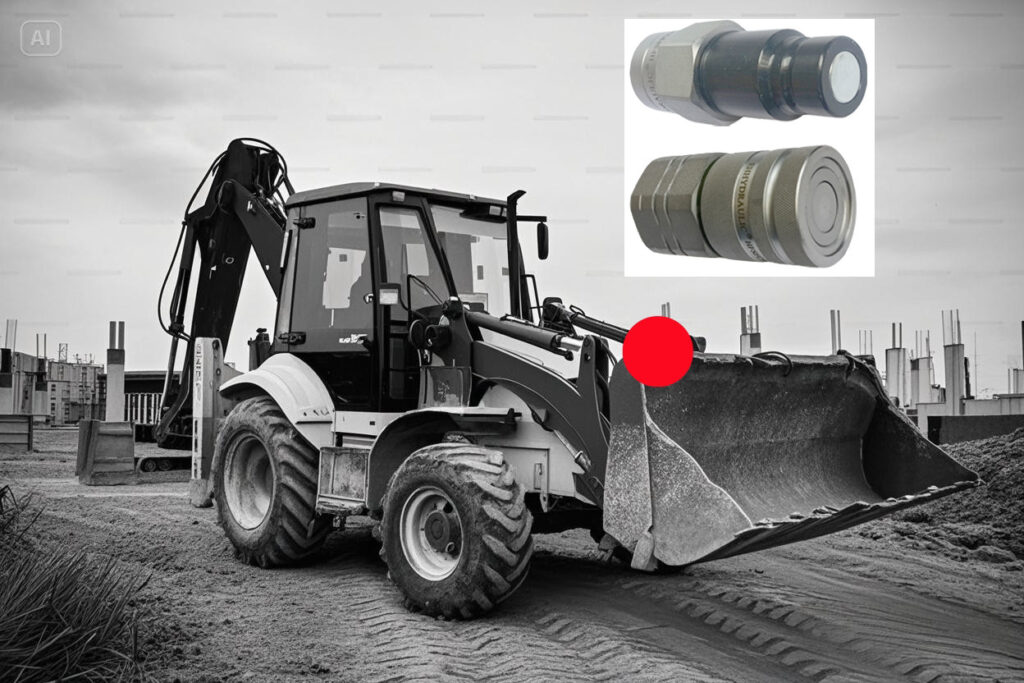

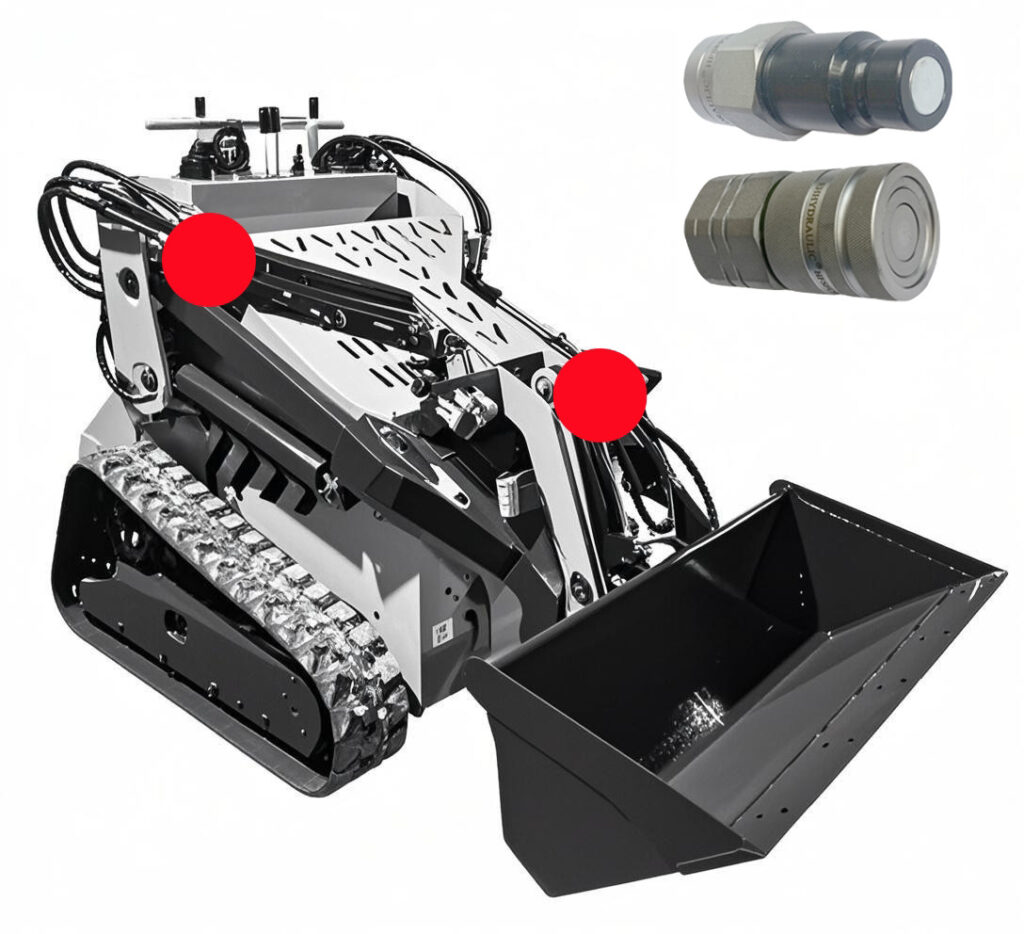

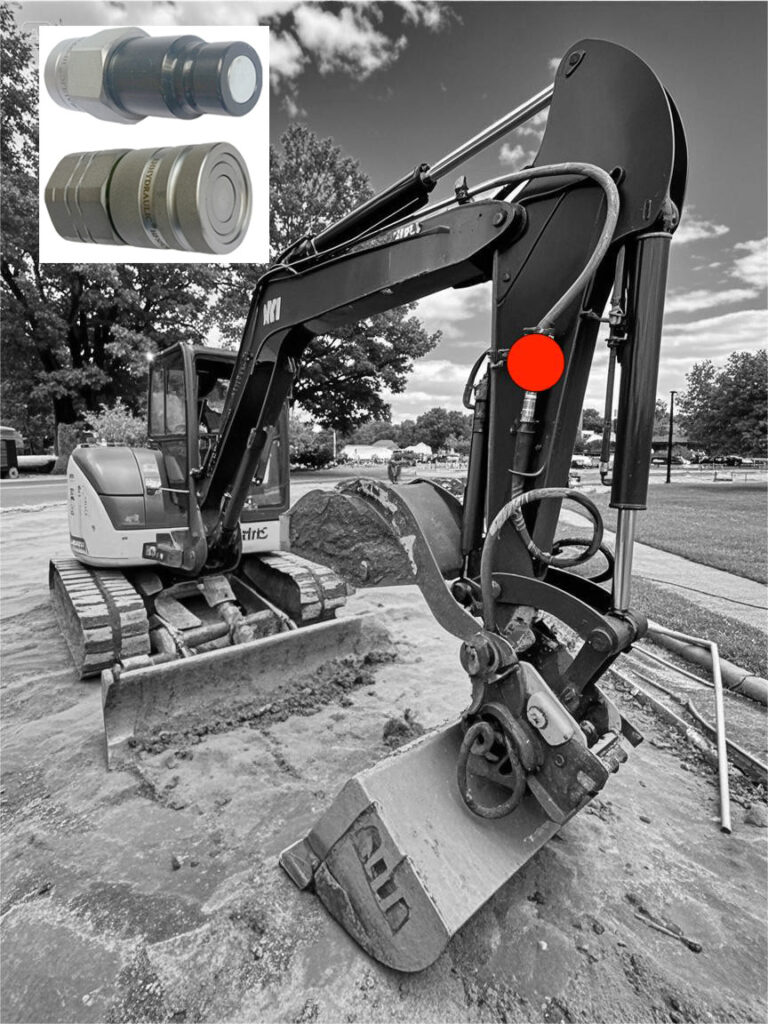

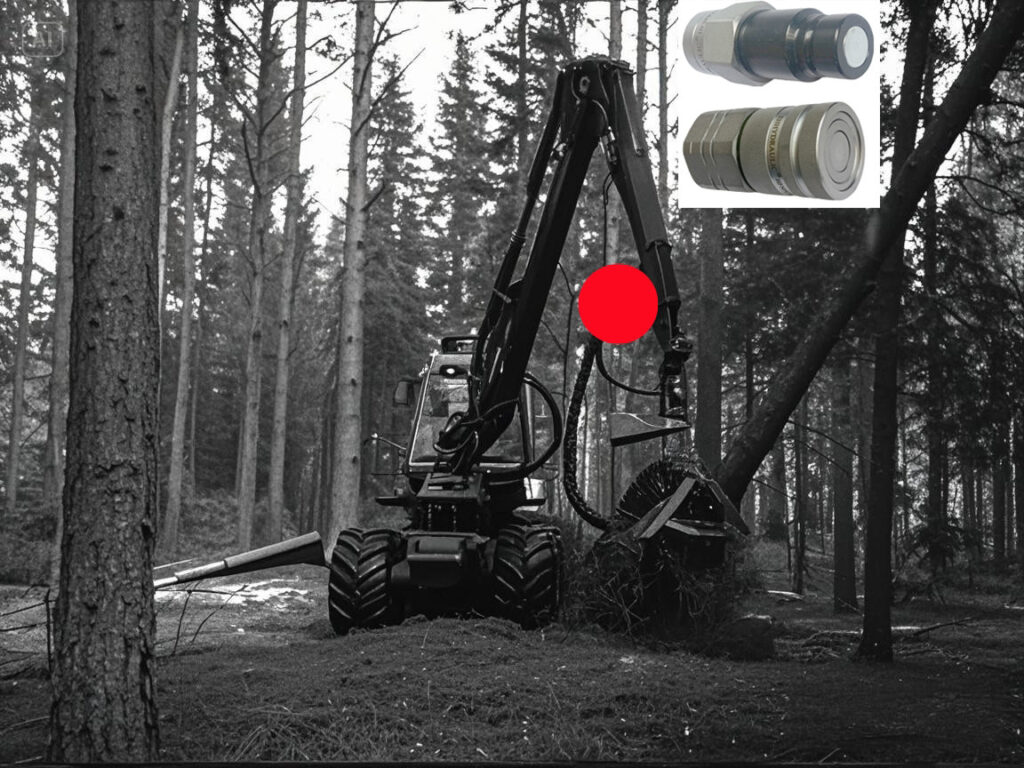

This EH series is interchangeable with STUCCHI APM SERIES, PARKER FEC SERIES, FASTER 3FFH SERIES, FASTER 3FFI SERIES, DIXON HTE SERIES, CEJN X64 SERIES, DNP PLK4 SERIES, SAFEWAY FFEC49 SERIES, and VOSWINKEL FU SERIES. These ISO 16028-compliant flat face couplings are engineered for demanding hydraulic applications, featuring a robust 35 MPa (5076 psi) working pressure rating and durable zinc-nickel plating for superior corrosion resistance. The innovative design allows safe connection under residual pressure conditions with multiple configuration options.
Interchange
- STUCCHI APM SERIES
- DIXON HTE SERIES
- SAFEWAY FFEC49 SERIES
- PARKER FEC SERIES
- CEJN X64 SERIES
- VOSWINKEL FU SERIES
- FASTER 3FFH SERIES
- DNP PLK4 SERIES
- FASTER 3FFI SERIES
Call Tawk.to
contact@ehhydraulics.com
Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP29638-3/8″NPT | 3/8” | 80 | S27 | 3/8″NPT |
| HFSFP29638-1/2″NPT | 3/8” | 82.5 | S27 | 1/2″NPT |
| HFSFP29638-3/8″G | 3/8” | 80 | S27 | 3/8″BSPP |
| HFSFP29638-1/2″G | 3/8” | 82.5 | S27 | 1/2″BSPP |
| HFSFP29638-3/4″UNF | 3/8” | 80 | S27 | 3/4″UNF-16 |
| HFSFP29612-1/2″NPT | 1/2” | 91 | S36 | 1/2″NPT |
| HFSFP29612-3/4″NPT | 1/2” | 93.5 | S36 | 3/4″NPT |
| HFSFP29612-1/2″G | 1/2” | 91 | S36 | 1/2″BSPP |
| HFSFP29612-3/4″G | 1/2” | 93.5 | S36 | 3/4″BSPP |
| HFSFP29612-7/8″UNF | 1/2” | 91 | S36 | 7/8″UNF-14 |
| HFSFP29612-1-1/16″UN | 1/2” | 93.5 | S36 | 1-1/16″UN-12 |
| HFSFP29658-3/4″NPT | 5/8” | 95 | S36 | 3/4″NPT |
| HFSFP29658-1-1/16″UN | 5/8” | 95 | S36 | 1-1/16″UN-12 |
| HFSFP29634-3/4″NPT | 3/4” | 109 | S46 | 3/4″NPT |
| HFSFP29634-3/4″G | 3/4” | 109 | S46 | 3/4″BSPP |
| HFSFP29634-1″NPT | 3/4” | 109 | S46 | 1″NPT |
| HFSFP29634-1″G | 3/4” | 109 | S46 | 1″BSPP |
| HFSFP29634-1-1/16″UN | 3/4” | 109 | S46 | 1-1/16″UN-12 |
| HFSFP29634-1-5/16″UN | 3/4” | 109 | S46 | 1-5/16″UN-12 |
| HFSFP29610-1″NPT | 1” | 122.5 | S55 | 1″NPT |
| HFSFP29610-1″G | 1” | 122.5 | S55 | 1″BSPP |
| HFSFP29610-1-1/4″NPT | 1” | 122.5 | S55 | 1-1/4″NPT |
| HFSFP29610-1-1/4″G | 1” | 122.5 | S55 | 1-1/4″BSPP |
| HFSFP29610-1-5/16″UN | 1” | 122.5 | S55 | 1-5/16″UN-12 |
| HFSFP29610-1-5/8″UN | 1” | 122.5 | S55 | 1-5/8″UN-16 |
Technical Specifications
Technical Specifications
| h Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) | Max. ResidualPressure(bar) |
| 06 | 3/8” | 350 | / | 350 | 1200 | / | 1000 | 0.008 | 300 |
| 08 | 1/2” | 330 | / | 330 | 1200 | / | 1000 | 0.01 | 300 |
| 10 | 5/8” | 330 | / | 330 | 1200 | / | 1000 | 0.02 | 250 |
| 12 | 3/4” | 300 | / | 300 | 1000 | / | 800 | 0.02 | 250 |
| 16 | 1” | 300 | / | 300 | 1000 | / | 800 | 0.03 | 200 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 1000 (ZnNi) | |
| Specifications: | Market Interchange | STUCCHI APM SERIESPARKER FEC SERIESCEJN X64 SERIESFASTER 3FFH SERIES FASTER 3FFI SERIESDNP PLK4 SERIESSAFEWAY FFEC49 SERIESDIXON HTE SERIESVOSWINKEL FU SERIES |
| Valve Type: | Flat | |
| Connection: | Push to Connect | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Allowed Up To Work Pressure | |
Pressure Drop
Pressure Drop
RELATED PRODUCTS

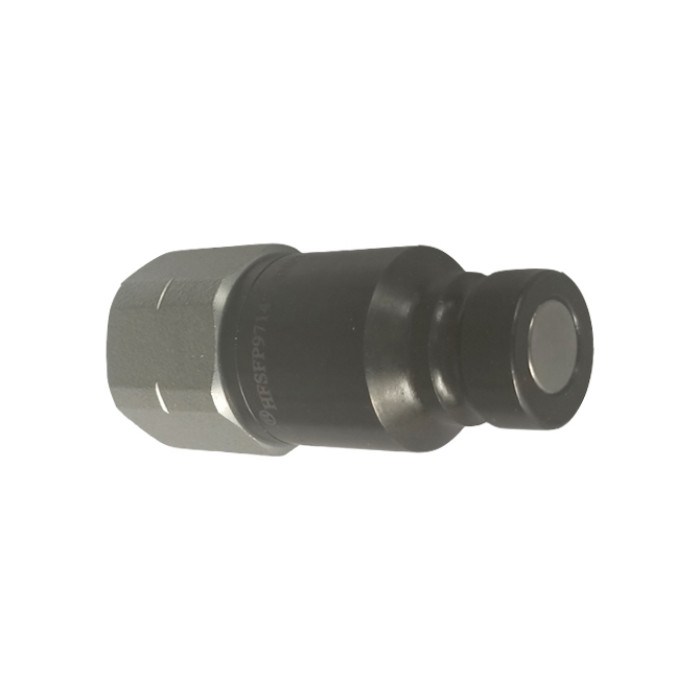

EH 97 A-HP ISO 16028 Flat High Pressure Coupler
