EH 90 Series – Spare Part Kit / Accessories For Faster 4BD4FH Auxiliary Lines Block (Steel)
This EH series is interchangeable with the Faster 4BD4FH Spare Part Kit and Faster 4BD4FH Accessories. Steel Product. This pioneering cast iron block was the first of its kind to enable the rapid connection and disconnection of attachments for skid steer loaders and similar construction machinery. It utilizes cartridges that incorporate the full benefits of flat face coupler series technology, including a decompression feature for safe coupling even with residual pressure on both sides of the circuit. The block accepts 3/8” (MALE PLUG ONLY), 1/2″, and 3/4″ cartridges, with the larger size providing a higher flow capacity while maintaining the same compact footprint.
Interchange
- Faster 4BD4FH Spare Part Kit
- Faster 4BD4FH Accessories
Call Tawk.to
contact@ehhydraulics.com
EH 90 Series – Spare Part Kit / Accessories For Faster 4BD4FH Auxiliary Lines Block (Steel)
This EH series is interchangeable with the Faster 4BD4FH Spare Part Kit and Faster 4BD4FH Accessories. Steel Product. This pioneering cast iron block was the first of its kind to enable the rapid connection and disconnection of attachments for skid steer loaders and similar construction machinery. It utilizes cartridges that incorporate the full benefits of flat face coupler series technology, including a decompression feature for safe coupling even with residual pressure on both sides of the circuit. The block accepts 3/8” (MALE PLUG ONLY), 1/2″, and 3/4″ cartridges, with the larger size providing a higher flow capacity while maintaining the same compact footprint.
Interchange
- Faster 4BD4FH Spare Part Kit
- Faster 4BD4FH Accessories
Call Tawk.to
contact@ehhydraulics.com

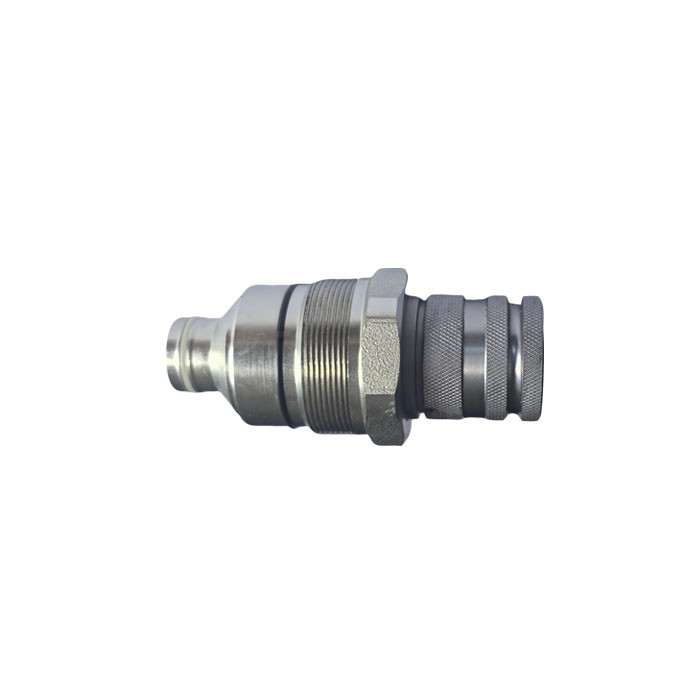

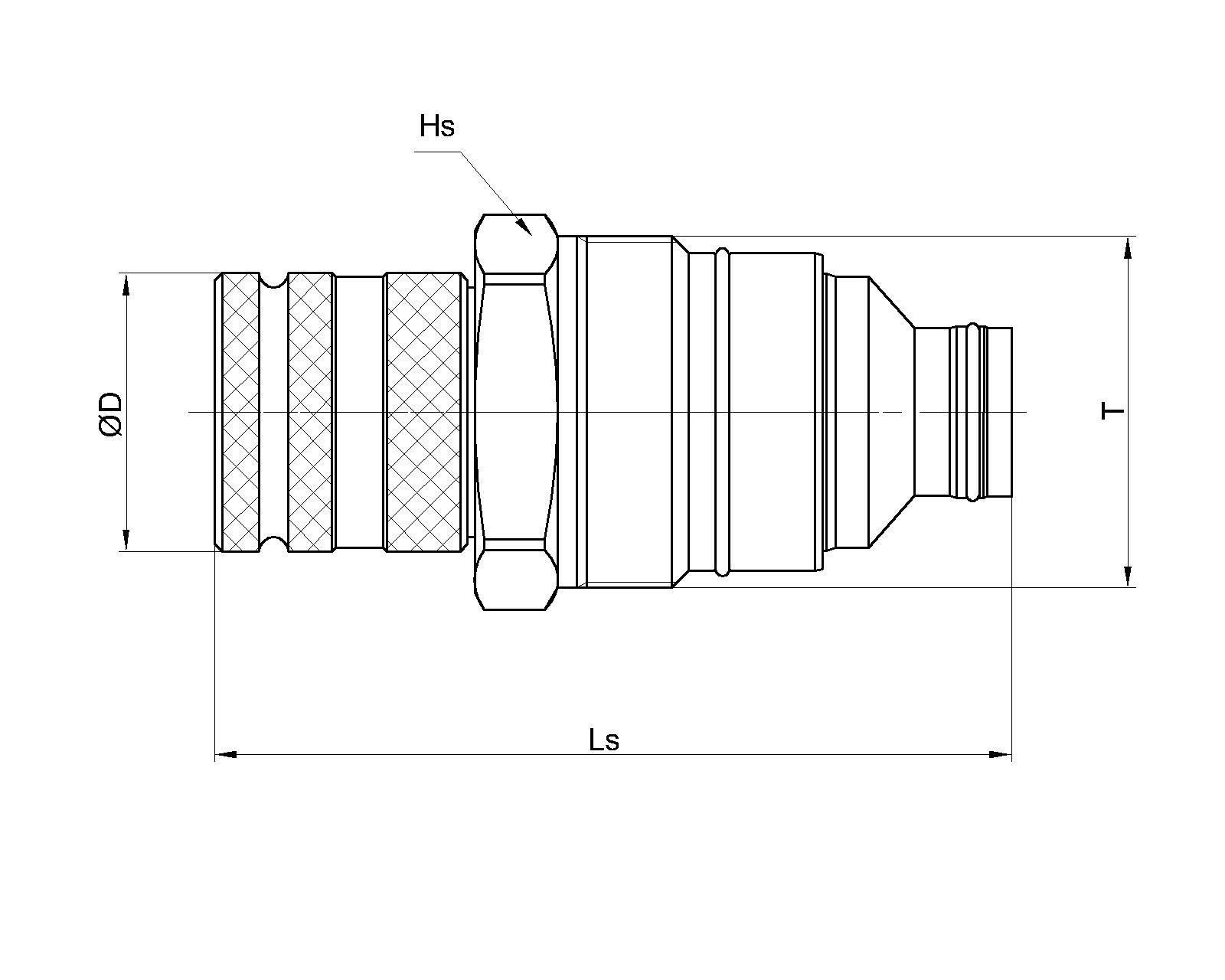

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC9012-M48X1.5 | 1/2” | 108.8 | 38 | S50 | M48X1.5 |
| HFSFC9034-M48X1.5 | 3/4” | 128.5 | 48 | S50 | M48X1.5 |

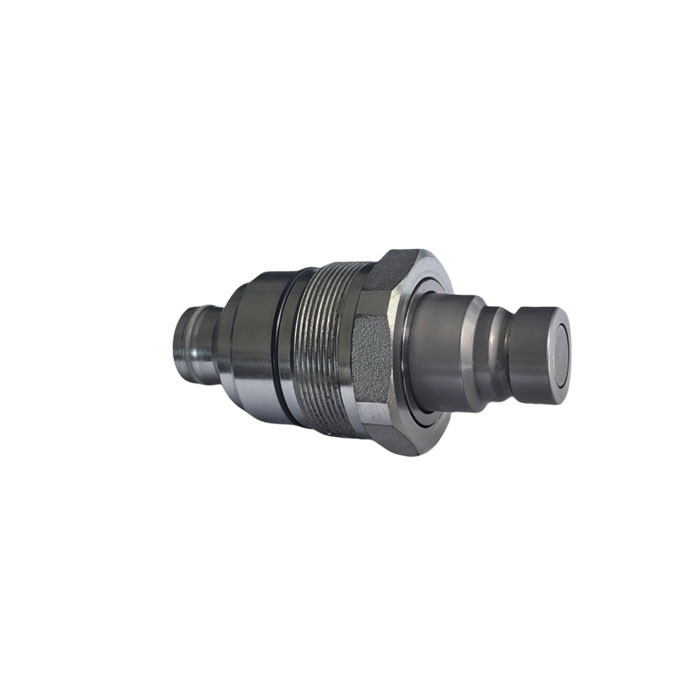

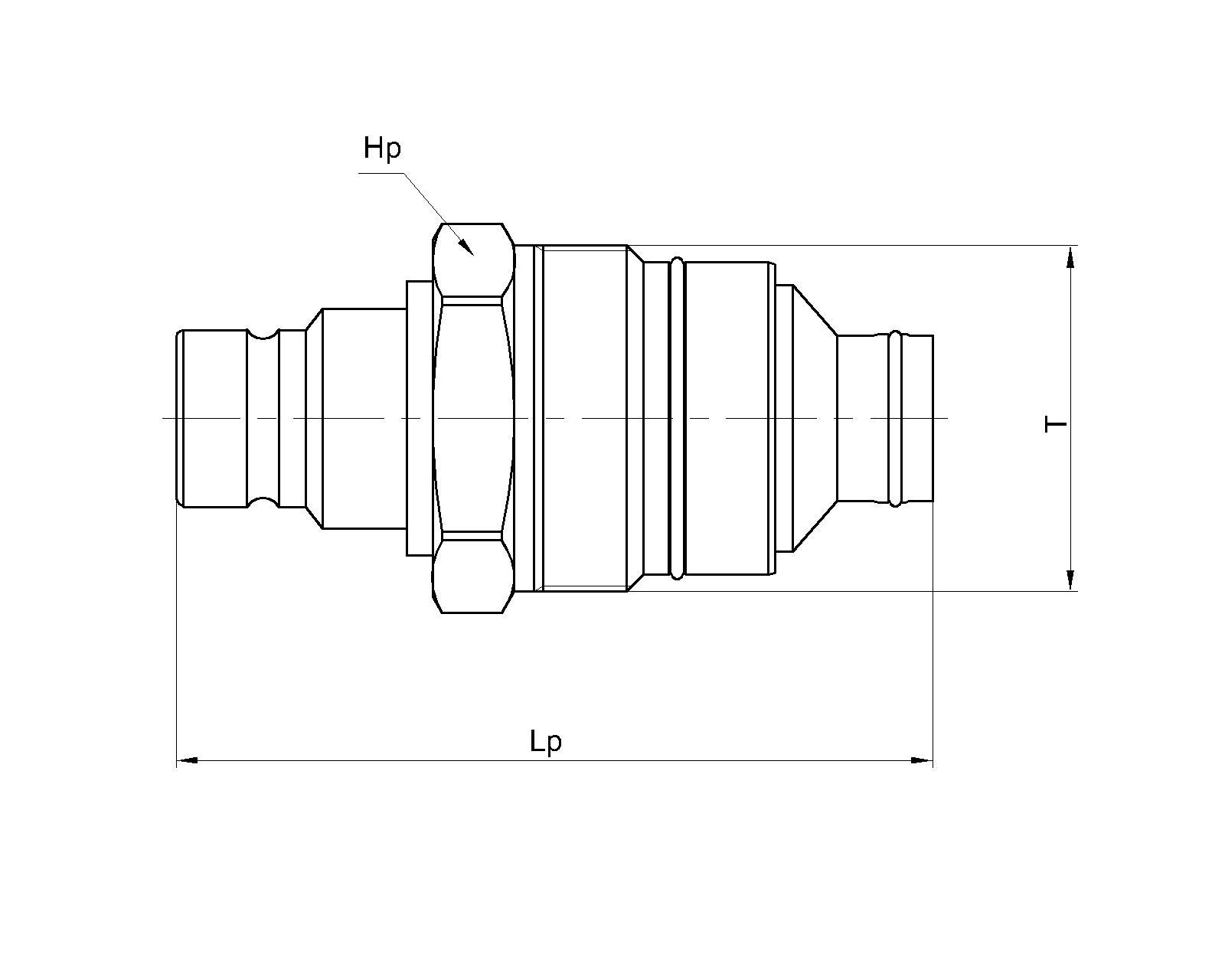

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP9012-M48X1.5 | 1/2” | 105 | S50 | M48X1.5 |
| HFSFP9034-M48X1.5 | 3/4” | 140 | S50 | M48X1.5 |

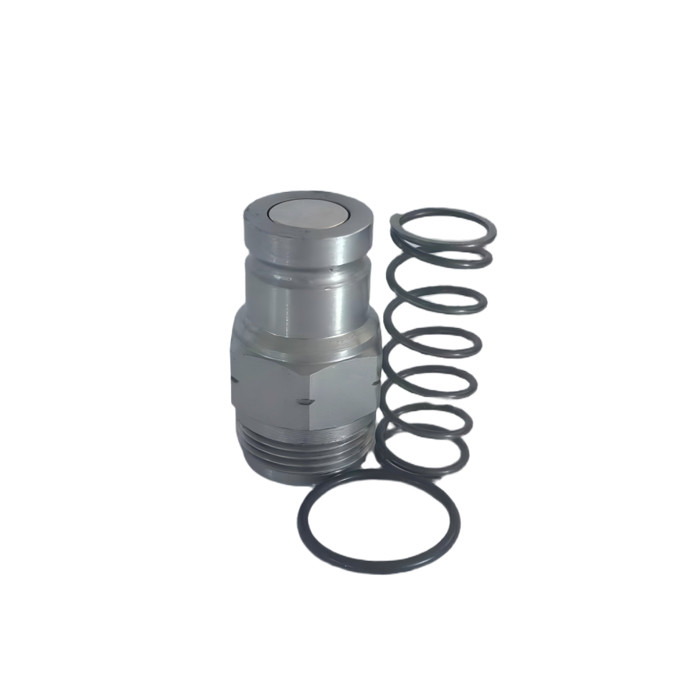

| HFSFP9038 | 3/8” | 43.5 | S24 | M24X1.5 |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 06 | 3/8” | 350 | / | / | 1250 | / | / | 0.01 |
| 08 | 1/2” | 350 | 350 | 350 | 1250 | 1250 | 1250 | 0.01 |
| 12 | 3/4” | 350 | 350 | 350 | 1250 | 1250 | 1250 | 0.02 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CrIII) & MATE 1000 (ZnNi) | |
| Specifications: | Market Interchange | Faster 4BD4FH Spare Part KitFaster 4BD4FH Accessories |
| Valve Type: | Flat | |
| Connection: | Push to Connect | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Allowed Both Halves up to W.P. | |
