EH 65 Series – ISO 5676 IFR Brake Quick Coupler (Steel)
This EH series is interchangeable with FASTER VF SERIES, FASTER VFB SERIES, STUCCHI IFR SERIES, DNP PFT SERIES, VOSWINKEL BP SERIES, GROMELLE 609-A SERIES, and HOLMBURY TB SERIES. Flat-face hydraulic couplings specifically designed for connecting trailer braking systems to agricultural machinery hydraulic circuits. ISO 5676 compliant.
Interchange
- FASTER VF SERIES
- VOSWINKEL BP SERIES
- FASTER VFB SERIES
- STUCCHI IFR SERIES
- GROMELLE 609-A SERIES
- DNP PFT SERIES
- HOLMBURY TB SERIES
Call Tawk.to
contact@ehhydraulics.com

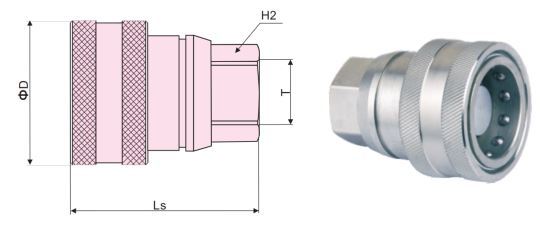

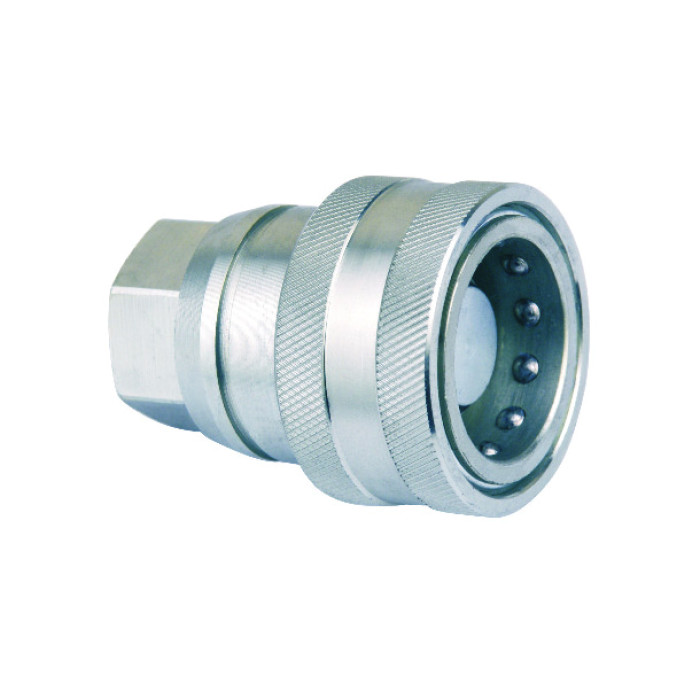

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | H2(mm) | T |
| HFSFC6538-M18x1.5 | 3/8” | 59 | 45 | S27 | M18x1.5 |
| HFSFC6538-M22x1.5 | 3/8” | 59 | 45 | S27 | M22x1.5 |
| HFSFC6538-3/8” | 3/8” | 57 | 45 | S27 | 3/8” BSPP |
| HFSFC6538-1/2” | 3/8” | 57 | 45 | S27 | 1/2” BSPP |
Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Lp(mm) | B(mm) | G(mm) | C(mm) | H1(mm) | H2(mm) | T |
| HFSMP6538-M18x1.5 | 3/8” | 51 | 23 | 30 | 6 | S27 | S32 | M18x1.5 |
| HFSMP6538-M22x1.5 | 3/8” | 51 | 23 | 30 | 7 | S30 | S32 | M22x1.5 |
| HFSMP6538-1/2” | 3/8” | 62 | 34 | 30 | 8 | S30 | S32 | 1/2″ BSPP |
| HFSMP6538-3/8” | 3/8” | 62 | 34 | 30 | 8 | S30 | S32 | 3/8” BSPP |
Accessories
Accessories
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 06 | 3/8” | 150 | 150 | 150 | 900 | 250 | 750 | 0.05 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | FASTER VF SERIESVOSWINKEL BP SERIESSTUCCHI IFR SERIESDNP PFT SERIESGROMELLE 609-A SERIESHOLMBURY TB SERIES |
| Valve Type: | Flat | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

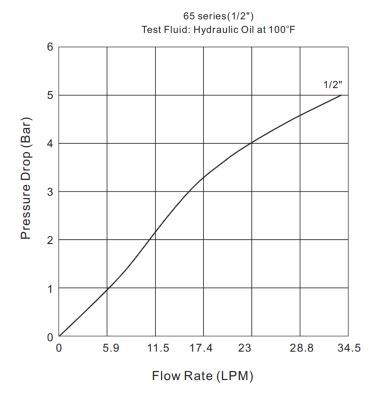

Pressure Drop
Pressure Drop
