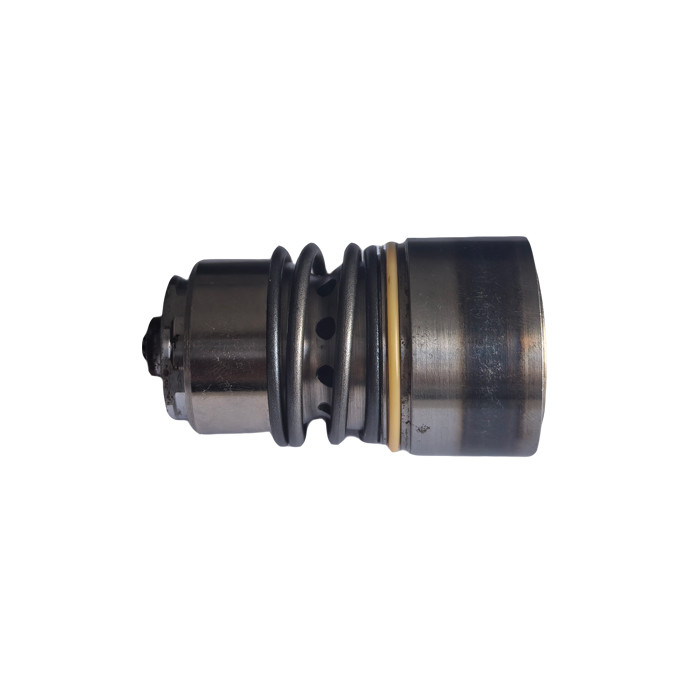

EH 70 Series – RE577560 John Deere SCV Breakaway Quick Couplings (Steel)
This EH series is interchangeable with the RE577560 John Deere SCV Breakaway Quick Coupler. Steel Product. This durable coupler is engineered for long-term performance. Its fully serviceable design can be easily rebuilt, extending its service life and reducing downtime. To ensure exceptional corrosion resistance, it undergoes and passes a rigorous 200-hour salt spray test—a standard that translates to a projected 10-20 years of reliable operation in typical farm environments. It is also known as an SCV Coupler or ½ inch Coupler.
Interchange
- RE577560 John Deere SCV Breakaway Quick Coupler
Call Tawk.to
contact@ehhydraulics.com
EH 70 Series – RE577560 John Deere SCV Breakaway Quick Couplings (Steel)
This EH series is interchangeable with the RE577560 John Deere SCV Breakaway Quick Coupler. Steel Product. This durable coupler is engineered for long-term performance. Its fully serviceable design can be easily rebuilt, extending its service life and reducing downtime. To ensure exceptional corrosion resistance, it undergoes and passes a rigorous 200-hour salt spray test—a standard that translates to a projected 10-20 years of reliable operation in typical farm environments. It is also known as an SCV Coupler or ½ inch Coupler.
Female/Male Quick Coupler
Female/Male Quick Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||

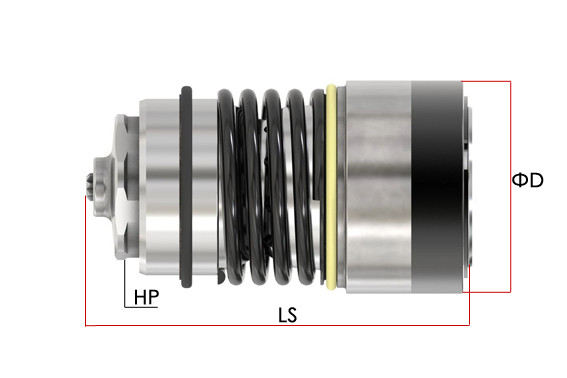

| Art. No. | Body Size (inch) | LS(mm) | D(mm) | HP(mm) |
| HFSFC7012 | 1/2” | 65.7 | 36.5 | S24 |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 08 | 1/2” | 200 | / | / | 800 | / | / | / |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | RE577560 John Deere SCV Breakaway Quick Coupler |
| Valve Type: | / | |
| Connection: | Fit Inside The Machine To Lock In Place | |
| Disconnection: | Remove From The Machine When Powered Off | |
| Connection Under Pressure: | Not Allowed | |
