EH 94 Series – PD ISO 15171-1 Diagnostic Quick Couplings (Steel)
This EH series is interchangeable with PARKER PD SERIES, DIXON PD SERIES, DNP PLD3 SERIES, FASTER DF SERIES, EATON AEROQUIP FD90 SERIES, BRAZIL DYNAMIC DIAGOSTICO SERIES, and HOLMBURY DTP SERIES. Hydraulic pressure measurement couplings featuring ISO 15171-1 compliant flat-face connections. The male component installs directly on hydraulic lines while the female interface connects to gauge instrumentation, enabling precise system pressure monitoring without fluid loss during connection/disconnection.
Interchange
- PARKER PD SERIES
- DIXON PD SERIES
- DNP PLD3 SERIES
- FASTER DF SERIES
- EATON AEROQUIP FD90 SERIES
- BRAZIL DYNAMIC DIAGOSTICO SERIES
- HOLMBURY DTP SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 94 Series – PD ISO 15171-1 Diagnostic Quick Couplings (Steel)
This EH series is interchangeable with PARKER PD SERIES, DIXON PD SERIES, DNP PLD3 SERIES, FASTER DF SERIES, EATON AEROQUIP FD90 SERIES, BRAZIL DYNAMIC DIAGOSTICO SERIES, and HOLMBURY DTP SERIES. Hydraulic pressure measurement couplings featuring ISO 15171-1 compliant flat-face connections. The male component installs directly on hydraulic lines while the female interface connects to gauge instrumentation, enabling precise system pressure monitoring without fluid loss during connection/disconnection.
Interchange
- PARKER PD SERIES
- DIXON PD SERIES
- DNP PLD3 SERIES
- HOLMBURY DTP SERIES
- FASTER DF SERIES
- EATON AEROQUIP FD90 SERIES
- BRAZIL DYNAMIC DIAGOSTICO SERIES
Call Tawk.to
contact@ehhydraulics.com
Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC9418-1/8″NPT | 1/8” | 44 | 24 | S21 | 1/8″ NPT FEMALE |
| HFSFC9418-1/4″NPT | 1/8” | 50 | 24 | S21 | 1/4″ NPT FEMALE |

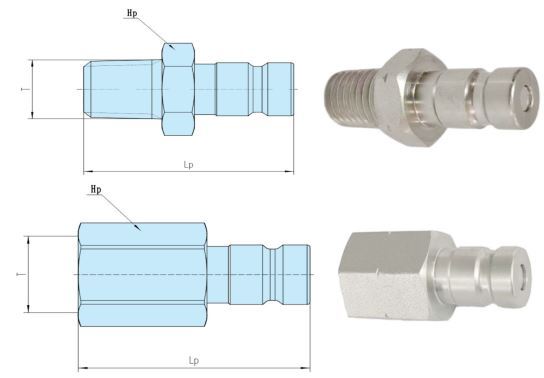

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP9418-1/8″NPT | 1/8” | 37.5 | S14 | 1/8″ NPT FEMALE |
| HFSFP9418-1/4″NPT | 1/8” | 40 | S19 | 1/4″ NPT FEMALE |
| HFSMP9418-1/4″NPT | 1/8” | 37.5 | S19 | 1/4″ NPT MALE |
| HFSMP9418-M14X1.5 | 1/8” | 37.5 | S19 | M14X1.5 MALE O-RING |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 02 | 1/8” | 470 | 470 | 470 | 1900 | 1500 | 1800 | 0.01 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | PARKER PD SERIESFASTER DF SERIESEATON AEROQUIP FD90 SERIESDIXON PD SERIESHOLMBURY DTP SERIESBRAZIL DYNAMICS DIAGNOSTICO SERIESDNP PLD3 SERIES |
| Valve Type: | Flat | |
| Connection: | Push To Connect | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |
Pressure Drop
Pressure Drop
