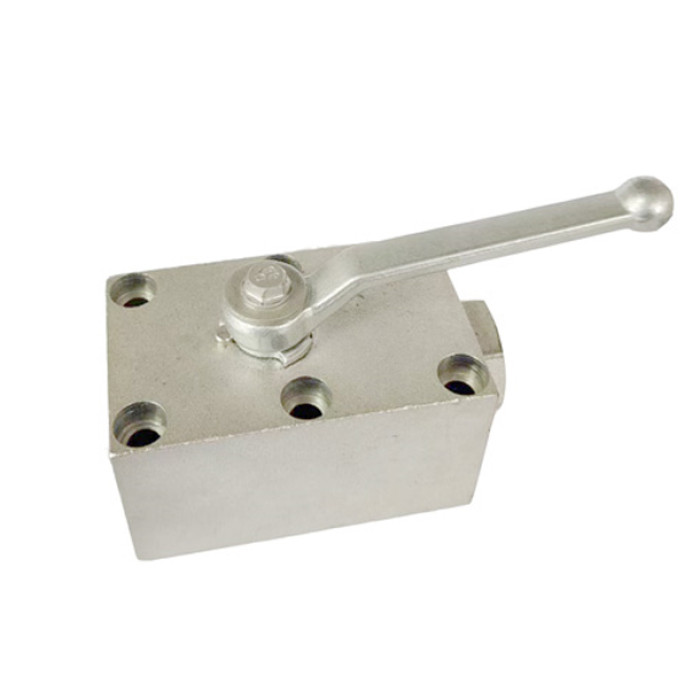

EH EHPK Series | BKHU Two-Way High-Pressure Ball Valve (Steel)
This EH series is interchangeable with MHA PKH SERIES, PISTER BKHU SERIES, HYDAC KHP SERIES, GEMELS GPK2 SERIES, and HYDAC KHP3K SERIES. Two-way high-pressure ball valve (steel). Mainly used in hydraulics, particularly in the construction industry and agricultural machinery, water engineering, mining engineering, and paint industries.
Interchange
- MHA PKH SERIES
- GEMELS GPK2 SERIES
- PISTER BKHU SERIES
- HYDAC KHP3K SERIES
- HYDAC KHP SERIES
Call Tawk.to
contact@ehhydraulics.com
EH EHVT Series | BK3 Three-Way High-Pressure Ball Valve – T Type (Steel)
This EH series is interchangeable with MHA PKH SERIES, PISTER BKHU SERIES, HYDAC KHP SERIES, GEMELS GPK2 SERIES, and HYDAC KHP3K SERIES. Two-way high-pressure ball valve (steel). Mainly used in hydraulics, particularly in the construction industry and agricultural machinery, water engineering, mining engineering, and paint industries.
Interchange
- MHA PKH SERIES
- GEMELS GPK2 SERIES
- PISTER BKHU SERIES
- HYDAC KHP3K SERIES
- HYDAC KHP SERIES
Call Tawk.to
contact@ehhydraulics.com

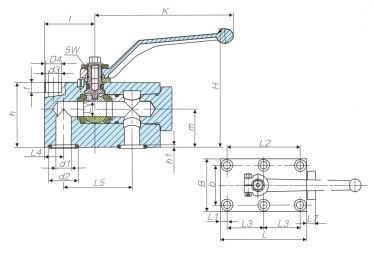

Body Size
Body Size
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||||
| Art. No. | DN | LW(mm) | I(mm) | L1(mm) | L2(mm) | L3(mm) | L4(mm) | L5(mm) | L7(mm) | L(mm) |
| EHPK06 | 06 | 6 | 26 | 8.5 | 70 | / | 8.5 | 35 | 6 | 57 |
| EHPK10 | 10 | 10 | 29 | 7.5 | 55 | / | 10 | 44 | 10 | 70 |
| EHPK16 | 16 | 13 | 42.5 | 7.5 | 83 | 41.5 | 16 | 58 | 10 | 98 |
| EHPK20 | 20 | 20 | 51 | 10 | 97 | 48.5 | 20 | 69 | 10 | 117 |
| EHPK25 | 25 | 25 | 62 | 10 | 115 | 57.5 | 24 | 81 | 10 | 135 |
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||||
| Art. No. | B(mm) | b(mm) | H(mm) | h(mm) | m(mm) | SW(mm) | K(mm) | d1xd2xh1(mm) | d3xd4xt(mm) | O-Ring |
| EHPK06 | 40 | 27 | 80 | 80 | 15.5 | 9 | 117 | 6×11.8×1.9 | 6.5×10.5×7 | 7×2.5 |
| EHPK10 | 55 | 40 | 93 | 93 | 24.5 | 9 | 117 | 9.5×14.9×1.9 | 8.4×13.5×8.5 | 10×2.5 |
| EHPK16 | 60 | 45 | 100.5 | 100.5 | 34 | 9 | 117 | 13×24.9×1.9 | 8.4×13.5×8.5 | 20×2.5 |
| EHPK20 | 70 | 51 | 110 | 110 | 37.5 | 14 | 171 | 20x29x2 | 10.5×16.5×10.5 | 23.47×2.62 |
| EHPK25 | 80 | 60 | 118 | 118 | 44.5 | 14 | 171 | 25×34.9×2.3 | 10.5×16.5 | 29×3 |
Technical Specifications
Technical Specifications
| DN | Max. Work Pressure (bar) |
| 06 | 500 |
| 10 | 350 |
| 16 | 350 |
| 20 | 350 |
| 25 | 350 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | MHA PKH SERIESPISTER BKHU SERIESHYDAC KHP SERIESHYDAC KHP3K SERIESGEMELS GPK2 SERIES |
| Ball Seals: | POM | |
| Connection: | Handle | |
| Disconnection: | Handle | |
| Connection Under Pressure: | No Allowed | |
