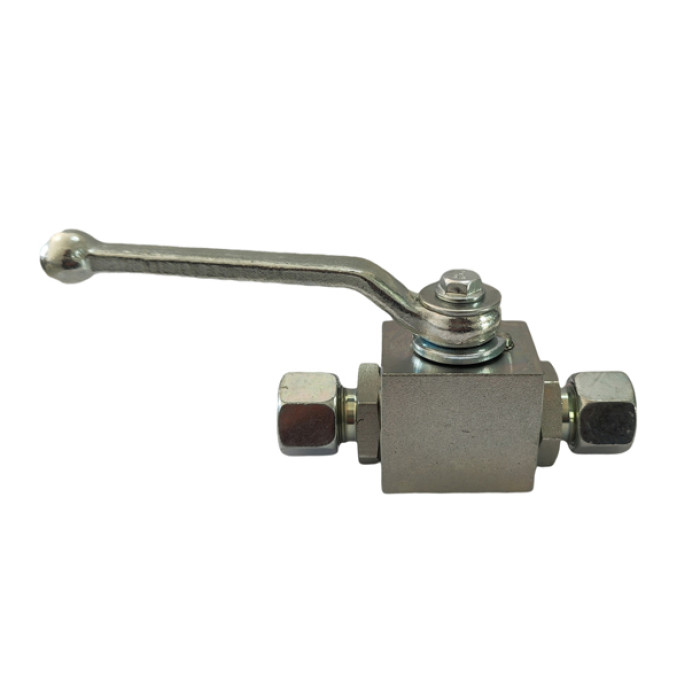

EH EHVC, EHVCSS Series | DK V86 Two-Way High-Pressure CNG/NGV Ball Valve (Steel, Stainless Steel)
This EH series is interchangeable with DK V86 SERIES and DK VC86 SERIES. Two-way high-pressure CNG ball valve (steel, stainless 316). Mainly used in hydraulics, particularly in the construction industry and agricultural machinery, water engineering, mining engineering, and paint industries.
EH EHVC, EHVCSS Series | DK V86 Two-Way High-Pressure CNG/NGV Ball Valve (Steel, Stainless Steel)
This EH series is interchangeable with DK V86 SERIES and DK VC86 SERIES. Two-way high-pressure CNG ball valve (steel, stainless 316). Mainly used in hydraulics, particularly in the construction industry and agricultural machinery, water engineering, mining engineering, and paint industries.

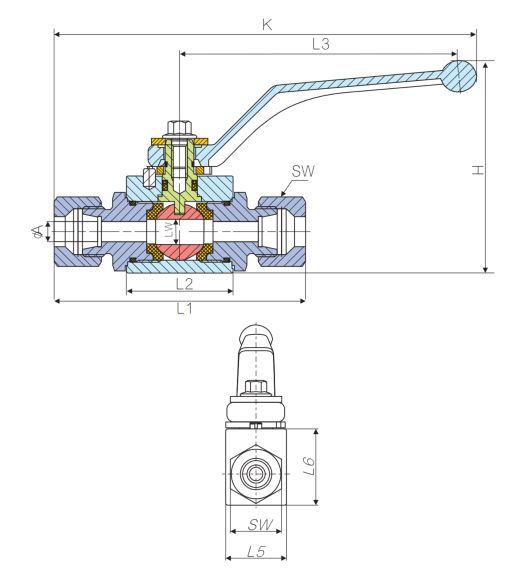

Body Size
Body Size
| Steel, Other Threads/Fitting Ends Are Available Upon Request | ||||||||||
| Art. No. | Size | A(mm) | K(mm) | H(mm) | L1(mm) | L2(mm) | L3(mm) | L4(mm) | L5(mm) | SW(mm) |
| EHVC38-10 | 10S | 10 | 167 | 84 | 98 | 43 | 117 | 33 | 38 | 24 |
| EHVC38-12 | 12S | 12 | 167 | 84 | 98 | 43 | 117 | 33 | 38 | 24 |
| EHVC12-12 | 12S | 12 | 177 | 89.5 | 119 | 48 | 117 | 36 | 40 | 36 |
| EHVC20-14 | 20S | 14 | 177 | 89.5 | 119 | 48 | 117 | 36 | 40 | 36 |
| EHVC25-16 | 25S | 16 | 256 | 115 | 141 | 62 | 185 | 49 | 57 | 46 |
| AISI-SS316, Other Threads/Fitting Ends Are Available Upon Request | ||||||||||
| Art. No. | Size | A(mm) | K(mm) | H(mm) | L1(mm) | L2(mm) | L3(mm) | L4(mm) | L5(mm) | SW(mm) |
| EHVCSS38-10 | 10S | 10 | 167 | 84 | 98 | 43 | 117 | 33 | 38 | 24 |
| EHVCSS38-12 | 12S | 12 | 167 | 84 | 98 | 43 | 117 | 33 | 38 | 24 |
| EHVCSS12-12 | 12S | 12 | 177 | 89.5 | 119 | 48 | 117 | 36 | 40 | 36 |
| EHVCSS20-14 | 20S | 14 | 177 | 89.5 | 119 | 48 | 117 | 36 | 40 | 36 |
| EHVCSS25-16 | 25S | 16 | 256 | 115 | 141 | 62 | 185 | 49 | 57 | 46 |
Technical Specifications
Technical Specifications
| Size | Max. Work Pressure (bar) |
| 10S | 413 |
| 12S | 413 |
| 12S | 413 |
| 20S | 413 |
| 25S | 413 |
| Material: | Steel, Stainless | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | DK V86 SERIESDK VC86 SERIES |
| Ball Seals: | POM | |
| Connection: | Handle | |
| Disconnection: | Handle | |
| Connection Under Pressure: | No Allowed | |
