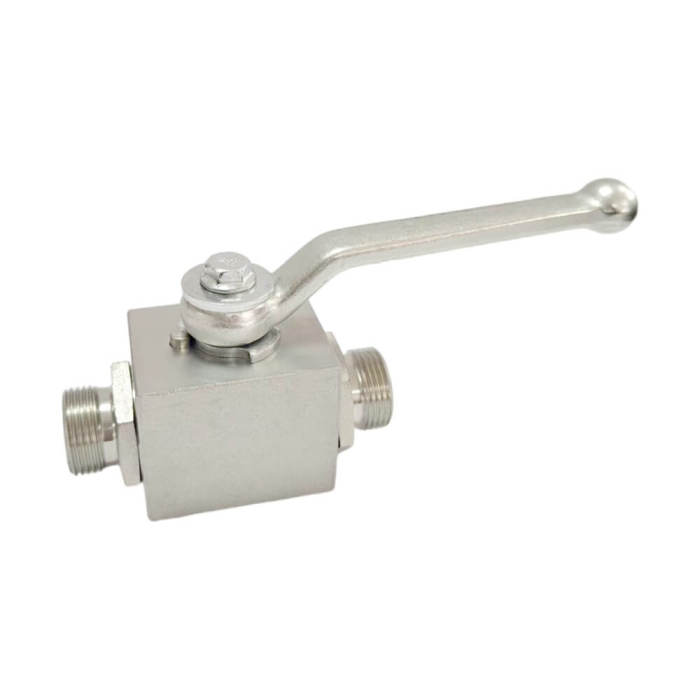

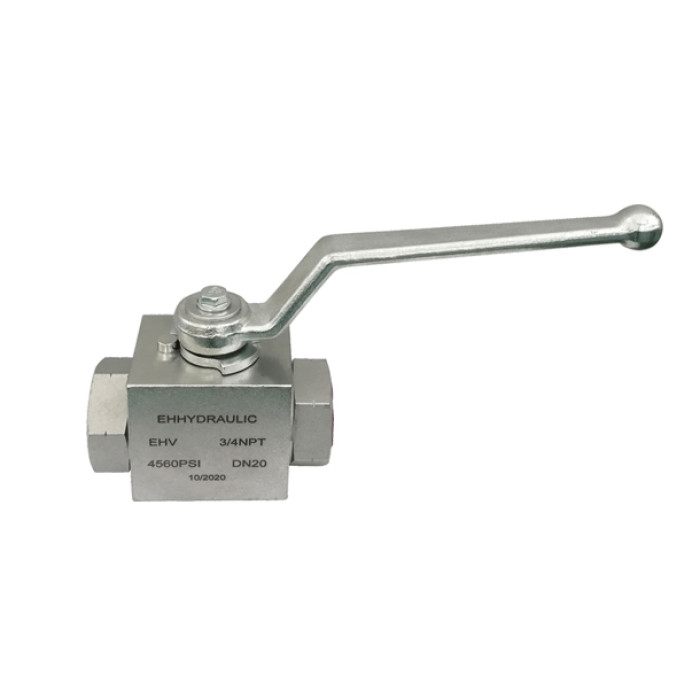

EH EHV Series | BKH Two-Way High Pressure Ball Valve (Steel)
This EH series is interchangeable with PISTER BKH SERIES, MHA BKH SERIES, HYDAC KHB SERIES, HYDAC KHM SERIES, CIOCCA CRHI2 SERIES, and GEMELS GE2 SERIES. Steel Product. Two-way high-pressure ball valve (STEEL), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Interchange
- PISTER BKH SERIES
- HYDAC KHM SERIES
- MHA BKH SERIES
- CIOCCA CRHI2 SERIES
- HYDAC KHB SERIES
- GEMELS GE2 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH EHV Series | BKH Two-Way High Pressure Ball Valve (Steel)
This EH series is interchangeable with PISTER BKH SERIES, MHA BKH SERIES, HYDAC KHB SERIES, HYDAC KHM SERIES, CIOCCA CRHI2 SERIES, and GEMELS GE2 SERIES. Steel Product. Two-way high-pressure ball valve (STEEL), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Interchange
- PISTER BKH SERIES
- HYDAC KHM SERIES
- MHA BKH SERIES
- CIOCCA CRHI2 SERIES
- HYDAC KHB SERIES
- GEMELS GE2 SERIES
Call Tawk.to
contact@ehhydraulics.com

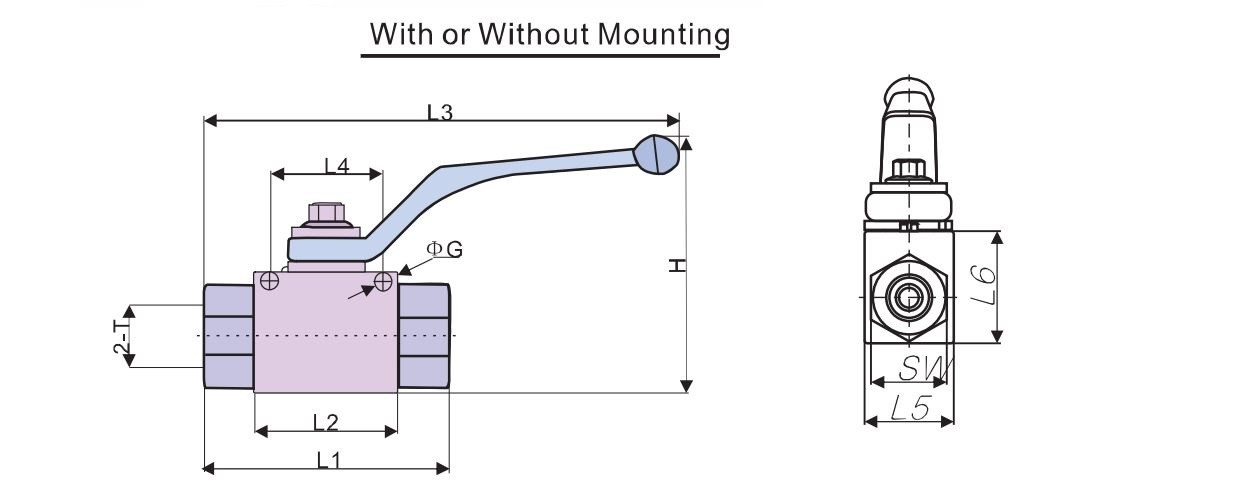

Body Size
Body Size
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||||
| Art. No. | Body Size (Inch) | DN | L1(mm) | L2(mm) | L3(mm) | H(mm) | G(mm) | L4(mm) | L5(mm) | L6(mm) | T |
| EHV18 | 1/8” | 4 | 69 | 40 | 154.1 | 73 | 4.5 | 26 | 26 | 33 | 1/8”BSPP(NPT) |
| EHV14 | 1/4” | 6 | 69 | 40 | 145 | 71 | 4.5 | 26 | 26 | 33 | 1/4”BSPP(NPT) |
| EHV38 | 3/8” | 10 | 71 | 42 | 145 | 76.5 | 6.5 | 32 | 33 | 38 | 3/8”BSPP(NPT) |
| EHV12 | 1/2” | 13 | 82 | 48 | 161 | 81 | 6.5 | 37.5 | 36 | 40 | 1/2”BSPP(NPT) |
| EHV34 | 3/4” | 20 | 96 | 62 | 218 | 112 | 6.5 | 45 | 49 | 57 | 3/4”BSPP(NPT) |
| EHV10 | 1” | 25 | 113 | 66 | 226.5 | 120 | 6.5 | 55 | 58 | 65 | 1”BSPP(NPT) |
| EHV10-114 | 1” | 25 | 120 | 66 | 229.8 | 120 | 6.5 | 55 | 58 | 65 | 1-1/4”BSPP(NPT) |
| EHV10-112 | 1” | 25 | 130 | 66 | 234.8 | 120 | 6.5 | 55 | 58 | 65 | 1-1/2”BSPP(NPT) |
| EHV114 | 1-1/4” | 32 | 120 | 80 | 295 | 170 | / | / | 82 | 87 | 1-1/4”BSPP(NPT) |
| EHV112 | 1-1/2” | 38 | 130 | 85 | 305 | 174.5 | / | / | 93 | 99 | 1-1/2”BSPP(NPT) |
| EHV20 | 2” | 48 | 140 | 100 | 305 | 197 | / | / | 110 | 115 | 2”BSPP(NPT) |
Thread Size
Thread Size
| Art. No. | DN(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV18-G1/8 | 4 | G1/8 | / | 69 | 10 | 22 |
| EHV14-G1/4 | 6 | G1/4 | / | 69 | 13.5 | 22 |
| EHV38-G3/8 | 10 | G3/8 | / | 71 | 14 | 27 |
| EHV12-G1/2 | 13 | G1/2 | / | 82 | 16.5 | 30 |
| EHV34-G3/4 | 20 | G3/4 | / | 95 | 18 | 41 |
| EHV10-G1 | 25 | G1 | / | 113 | 20 | 50 |
| EHV10-G11/4 | 25 | G1 | / | 120 | 22 | 50 |
| EHV10-G11/2 | 25 | G1 | / | 129 | 25 | 60 |
| EHV114-G11/4 | 32 | G114 | / | 120 | 29 | 60 |
| EHV112-G11/2 | 38 | G112 | / | 130 | 28 | 70 |
| EHV20-G2 | 48 | G2 | / | 140 | 29 | 85 |
| Art. No. | DN(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV18-1/8NPT | 4 | 1/8NPT | / | 69 | 10.5 | 22 |
| EHV14-1/4NPT | 6 | 1/4NPT | / | 69 | 15 | 22 |
| EHV38-3/8NPT | 10 | 3/8NPT | / | 71 | 15.5 | 27 |
| EHV12-1/2NPT | 13 | 1/2NPT | / | 82 | 17 | 30 |
| EHV34-3/4NPT | 20 | 3/4NPT | / | 95 | 20.5 | 41 |
| EHV10-1NPT | 25 | 1NPT | / | 113 | 25 | 50 |
| EHV10-11/4NPT | 25 | 1-1/4NPT | / | 120 | 22 | 50 |
| EHV10-11/2NPT | 25 | 1-1/2NPT | / | 129 | 22 | 60 |
| EHV114-11/4NPT | 32 | 1-1/4NPT | / | 120 | 29 | 60 |
| EHV112-11/2NPT | 38 | 1-1/2NPT | / | 130 | 30 | 70 |
| EHV20-2NPT | 48 | 2NPT | / | 140 | 30 | 85 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV-10S | M18X1.5 | 10 | 73 | 12 | 22 |
| EHV-12S | M20X1.5 | 12 | 77 | 12 | 27 |
| EHV-16S | M24X1.5 | 16 | 87 | 14 | 30 |
| EHV-20S | M30X2 | 20 | 91 | 16 | 32 |
| EHV-25S | M36X2 | 25 | 111 | 18 | 41 |
| EHV-30S | M42X2 | 30 | 120 | 20 | 50 |
| EHV-38S | M52X2 | 38 | 141 | 22 | 60 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV-8L | M14X1.5 | 8 | 69 | 10 | 22 |
| EHV-10L | M16X1.5 | 10 | 77 | 11 | 27 |
| EHV-12L | M18X1.5 | 12 | 77 | 11 | 27 |
| EHV-15L | M22X1.5 | 15 | 83 | 12 | 30 |
| EHV-22L | M30X2 | 22 | 103 | 14 | 41 |
| EHV-28L | M36X2 | 28 | 107.5 | 14 | 55 |
| EHV-35L | M45X2 | 35 | 135 | 16 | 60 |
| EHV-42L | M52X2 | 42 | 142 | 16 | 70 |
| Art. No. | DN(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV-SAE4 | 6 | 7/16-20UNF | / | 69 | 14 | 22 |
| EHV-SAE6 | 10 | 9/16-18UNF | / | 71 | 15.5 | 27 |
| EHV-SAE8 | 13 | 3/4-16UNF | / | 82 | 18 | 30 |
| EHV-SAE12 | 20 | 1-1/16-12UN | / | 101 | 23.5 | 41 |
| EHV-SAE16 | 25 | 1-5/16-12UN | / | 113 | 23 | 50 |
| EHV-SAE20 | 32 | 1-5/8-12UN | / | 120 | 25 | 60 |
| EHV-SAE24 | 40 | 1-7/8-12UN | / | 130 | 25 | 70 |
| EHV-SAE32 | 50 | 2-1/2-12UN | / | 140 | 25 | 80 |

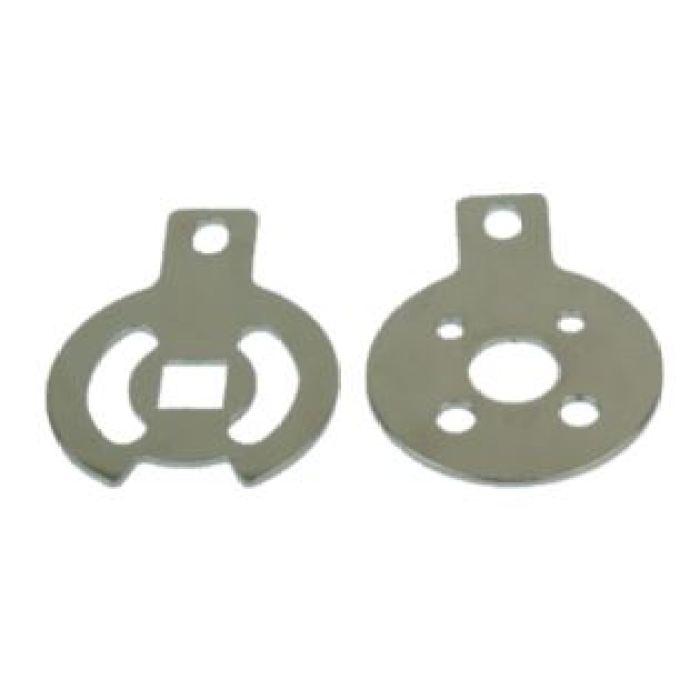

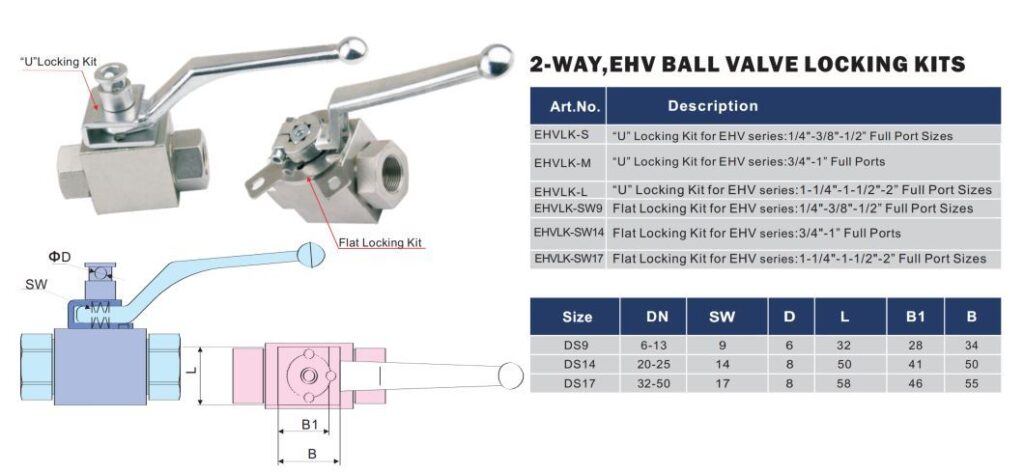

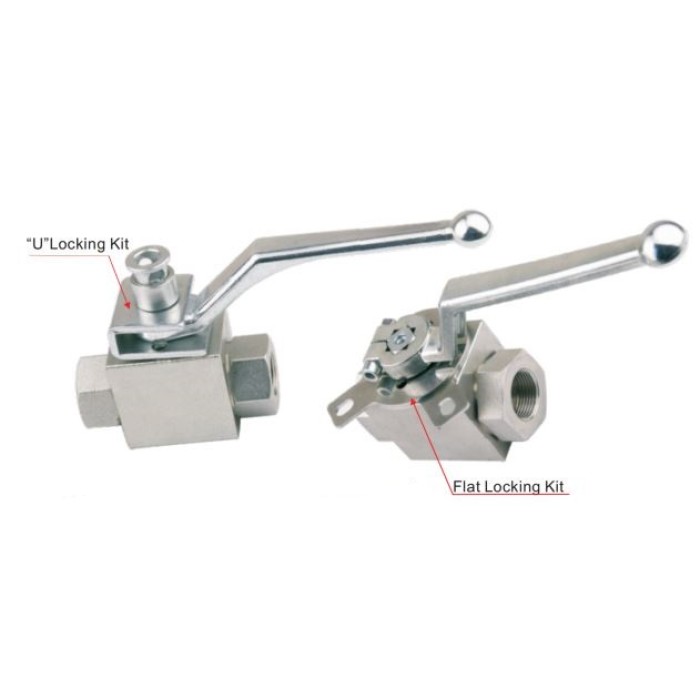

Accessories
Accessories
Technical Specifications
Technical Specifications
| Body Size (Inch) | Max. Work Pressure (bar) |
| 1/8” | 500 |
| 1/4” | 500 |
| 3/8” | 500 |
| 1/2” | 500 |
| 3/4” | 315 |
| 1” | 315 |
| 1-1/4” | 315 |
| 1-1/2” | 315 |
| 2” | 315 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | PISTER BKH SERIESMHA BKH SERIESHYDAC KHB SERIESHYDAC KHM SERIESCIOCCA CRHI2 SERIESGEMELS GE2 SERIES |
| Ball Seals: | POM/PEEK | |
| Connection: | Handle | |
| Disconnection: | Handle | |
| Connection Under Pressure: | No Allowed | |
