EH 84 Series – TURKEY FERRO Screw To Connect Quick Coupler (Steel)
This EH series is interchangeable with TURKEY FERRO STHD SERIES. The 84 series features poppet valve quick couplings that are specialized for Turkey, Iran, and the Middle East countries.
EH 84 Series – TURKEY FERRO Screw To Connect Quick Coupler (Steel)
This EH series is interchangeable with TURKEY FERRO STHD SERIES. The 84 series features poppet valve quick couplings that are specialized for Turkey, Iran, and the Middle East countries.

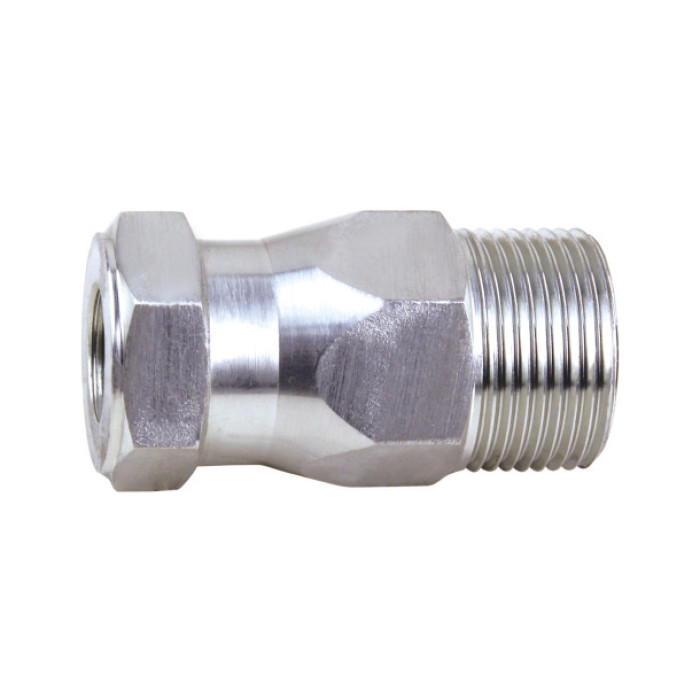

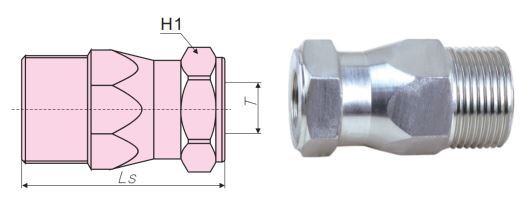

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Ls(mm) | H1(mm) | T |
| HFSFC8414-1/4″ | 1/4” | 55 | S27 | 1/4″BSPP |
| HFSFC8438-3/8″ | 3/8” | 61 | S30 | 3/8″BSPP |
| HFSFC8412-1/2″ | 1/2” | 68 | S36 | 1/2″BSPP |
| HFSFC8434-3/4″ | 3/4” | 82 | S41 | 3/4″BSPP |
| HFSFC8410-1″ | 1” | 100 | S50 | 1″BSPP |

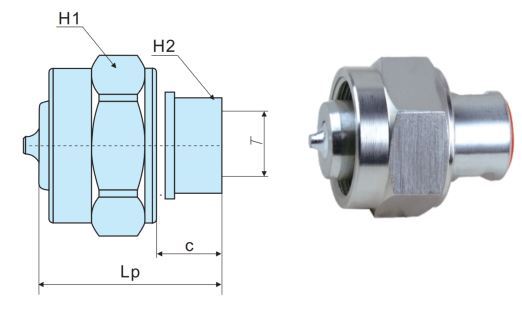

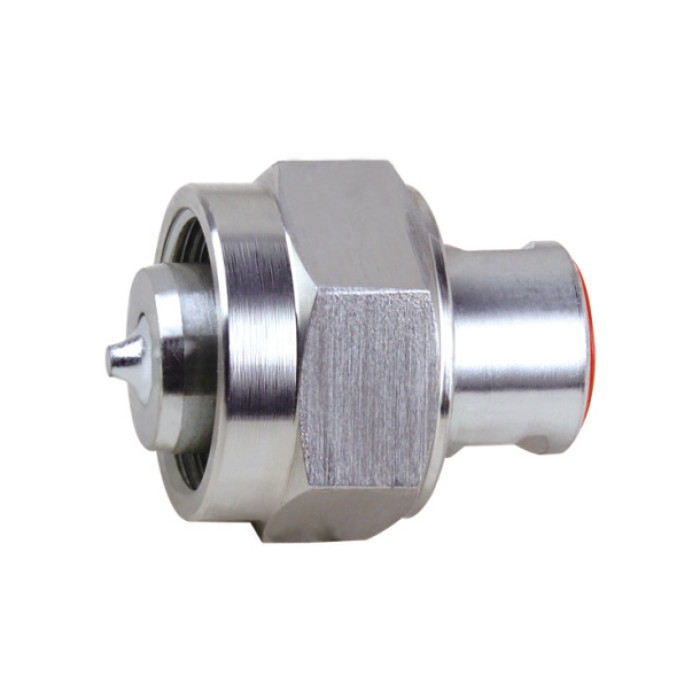

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | C(mm) | H1(mm) | H2(mm) | T |
| HFSFP8414-1/4″ | 1/4” | 41 | 16 | S32 | 16 | 1/4″BSPP |
| HFSFP8438-3/8″ | 3/8” | 45.5 | 17 | S36 | 20 | 3/8″BSPP |
| HFSFP8412-1/2″ | 1/2” | 48 | 17 | S41 | 25 | 1/2″BSPP |
| HFSFP8434-3/4″ | 3/4” | 55 | 18 | S50 | 32 | 3/4″BSPP |
| HFSFP8410-1″ | 1” | 66 | 22 | S60 | 40 | 1″BSPP |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 720 | 720 | 720 | / | / | / | / |
| 06 | 3/8” | 700 | 700 | 700 | / | / | / | / |
| 08 | 1/2” | 680 | 680 | 680 | / | / | / | / |
| 12 | 3/4” | 660 | 660 | 660 | / | / | / | / |
| 16 | 1” | 590 | 590 | 590 | / | / | / | / |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | TURKEY FERRO STHD SERIES |
| Valve Type: | Poppet | |
| Connection: | Screw To Connect | |
| Disconnection: | Unscrew to Disconnect | |
| Connection Under Pressure: | Not Allowed | |

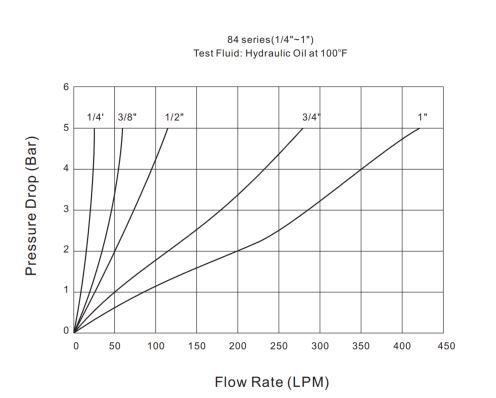

Pressure Drop
Pressure Drop
RELATED PRODUCTS

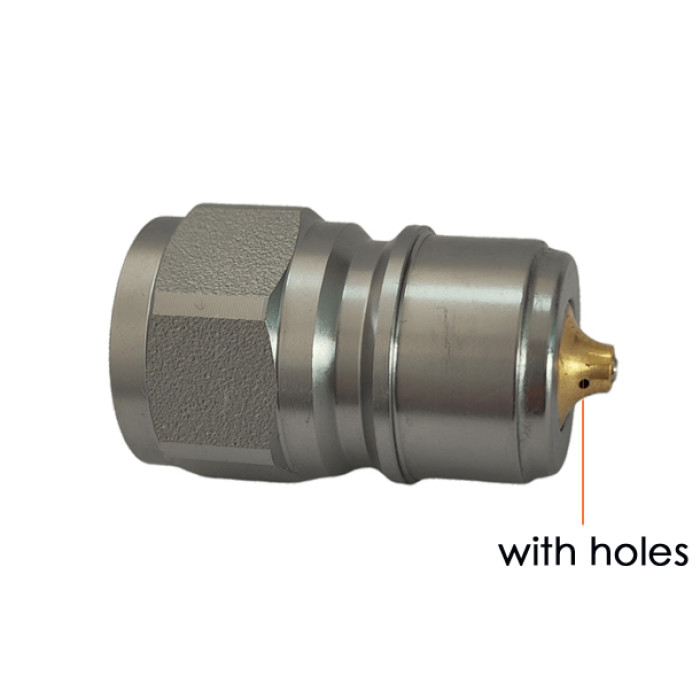

EH 200-202 Nordic TEMA Quick Coupler Steel Brass
