78 Series | CPV Push-Pull ISO 7241 A Quick Coupler For Agriculture (Steel)
This EH series is interchangeable with STUCCHI VEP-P SERIES, PARKER FET SERIES, FASTER FHV SERIES, DNP PST4 SERIES, VOSWINKEL FT SERIES, DIXON VEP SERIES, and HOLMBURY HFT SERIES. Engineered for demanding hydraulic systems, the 297 Series provides reliable performance in applications subject to extreme pressure impulses and residual line pressures. The innovative thread-to-connect design significantly reduces wear and prevents brinelling, while the internal valve technology enables safe connection and disconnection even under high residual pressure conditions.
Interchange
- STUCCHI I-IP SERIES
- FASTER CPV SERIES
- FASTER CNV SERIES
- SAFEWAY S40 SERIES
- PIONEER 2000 SERIES
- PARKER 4200 SERIES
- DNP PPV1 SERIES
- DIXON AG SERIES
- HANSEN HA15000 SERIES
- VOSWINKEL HP SERIES
Call Tawk.to
contact@ehhydraulics.com

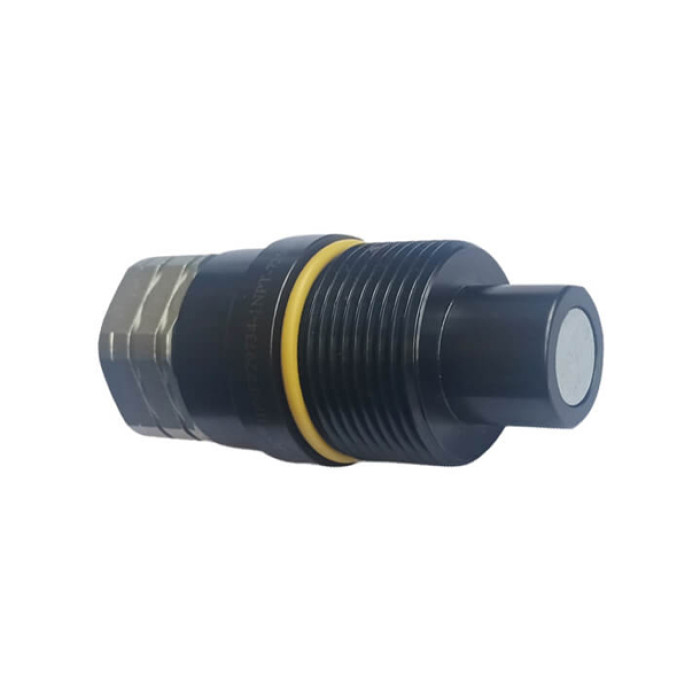

EH 297 Series – VEP ISO 16028 Threaded Flat Face Quick Coupling (Steel)
This EH series is interchangeable with STUCCHI VEP-P SERIES, PARKER FET SERIES, FASTER FHV SERIES, DNP PST4 SERIES, VOSWINKEL FT SERIES, DIXON VEP SERIES, and HOLMBURY HFT SERIES. Engineered for demanding hydraulic systems, the 297 Series provides reliable performance in applications subject to extreme pressure impulses and residual line pressures. The innovative thread-to-connect design significantly reduces wear and prevents brinelling, while the internal valve technology enables safe connection and disconnection even under high residual pressure conditions.
Interchange
- STUCCHI I-IP SERIES
- FASTER CPV SERIES
- FASTER CNV SERIES
- DIXON AG SERIES
- SAFEWAY S40 SERIES
- PIONEER 2000 SERIES
- PARKER 4200 SERIES
- HANSEN HA15000 SERIES
- VOSWINKEL HP SERIES
- DNP PPV1 SERIES
Call Tawk.to
contact@ehhydraulics.com

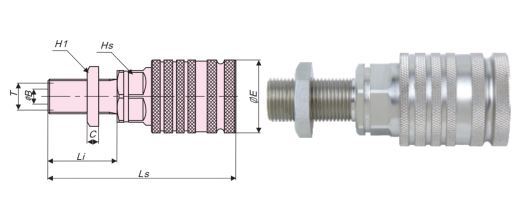

Female Coupler
Female Coupler
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | E(mm) | C(mm) | Hs(mm) | H1(mm) | T |
| HFSMC7812-M14X1.5-08L | 1/2” | 96 | 34 | 8 | 38 | 6 | S27 | S19 | M14X1.5 |
| HFSMC7812-M16X1.5-10L | 1/2” | 97 | 35 | 10 | 38 | 6 | S27 | S22 | M16X1.5 |
| HFSMC7812-M18X1.5-12L | 1/2” | 98 | 36 | 12 | 38 | 6 | S27 | S24 | M18X1.5 |
| HFSMC7812-M22X1.5-15L | 1/2” | 100 | 38 | 15 | 38 | 7 | S27 | S30 | M22X1.5 |
| HFSMC7812-M26X1.5-18L | 1/2” | 102 | 40 | 18 | 38 | 8 | S27 | S36 | M26X1.5 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||||||
| Art. No. | Body Size (inch) | Ls(mm) | Li(mm) | B(mm) | E(mm) | C(mm) | Hs(mm) | H1(mm) | T |
| HFSMC7812-M14X1.5-06S | 1/2” | 98 | 36 | 6 | 38 | 6 | S27 | S19 | M14X1.5 |
| HFSMC7812-M16X1.5-08S | 1/2” | 98 | 36 | 8 | 38 | 6 | S27 | S22 | M16X1.5 |
| HFSMC7812-M18X1.5-10S | 1/2” | 99 | 37 | 10 | 38 | 6 | S27 | S24 | M18X1.5 |
| HFSMC7812-M20X1.5-12S | 1/2” | 100 | 38 | 12 | 38 | 6 | S27 | S27 | M20X1.5 |
| HFSMC7812-M24X1.5-16S | 1/2” | 102 | 40 | 16 | 38 | 7 | S27 | S32 | M24X1.5 |
Male Plug
Male Plug
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | C(mm) | Hp(mm) | H1(mm) | T |
| HFSMP7812-M14X1.5-08L | 1/2” | 80 | 34 | 8 | 6 | S27 | S19 | M14X1.5 |
| HFSMP7812-M16X1.5-10L | 1/2” | 81 | 35 | 10 | 6 | S27 | S22 | M16X1.5 |
| HFSMP7812-M18X1.5-12L | 1/2” | 82 | 36 | 12 | 6 | S27 | S24 | M18X1.5 |
| HFSMP7812-M22X1.5-15L | 1/2” | 84 | 38 | 15 | 7 | S27 | S30 | M22X1.5 |
| HFSMP7812-M26X1.5-18L | 1/2” | 86 | 40 | 18 | 8 | S27 | S36 | M26X1.5 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request |
| Art. No. | Body Size (inch) | Lp(mm) | Li(mm) | B(mm) | C(mm) | Hp(mm) | H1(mm) | T |
| HFSMP7812-M14X1.5-06S | 1/2” | 82 | 36 | 6 | 6 | S27 | S19 | M14X1.5 |
| HFSMP7812-M16X1.5-08S | 1/2” | 82 | 36 | 8 | 6 | S27 | S22 | M16X1.5 |
| HFSMP7812-M18X1.5-10S | 1/2” | 83 | 37 | 10 | 6 | S27 | S24 | M18X1.5 |
| HFSMP7812-M20X1.5-12S | 1/2” | 84 | 38 | 12 | 6 | S27 | S27 | M20X1.5 |
| HFSMP7812-M24X1.5-16S | 1/2” | 86 | 40 | 16 | 7 | S27 | S32 | M24X1.5 |

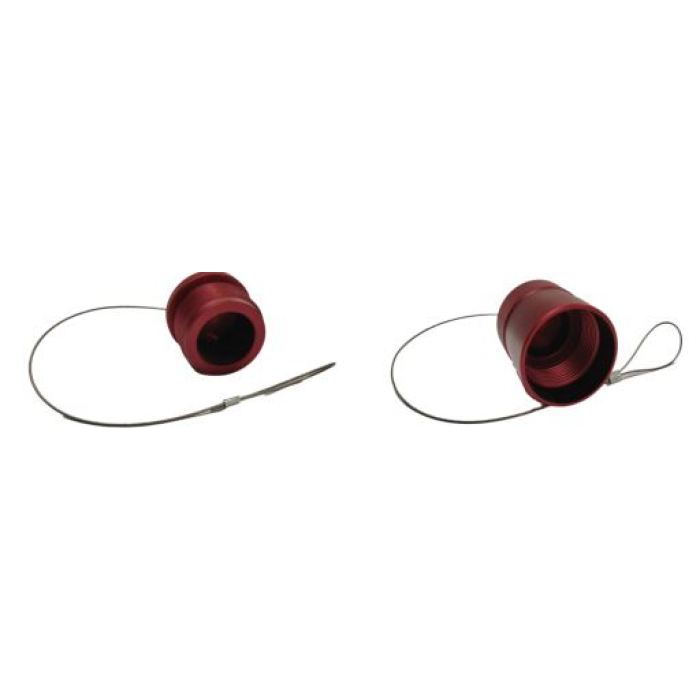

| Dash Size | ISO Size | Art. No. Dust Cap For Coupler | Art. No.Dust Cap For Plug | Material |
| 06 | 10 | 297-3/8-P-AL | 297-3/8-C-AL | Aluminum |
| 08 | 12.5 | 297-1/2-P-AL | 297-1/2-C-AL | Aluminum |
| 10 | 16 | 297-5/8-P-AL | 297-5/8-C-AL | Aluminum |
| 12 | 19 | 297-3/4-P-AL | 297-3/4-C-AL | Aluminum |
| 16 | 25 | 297-1-P-AL | 297-1-C-AL | Aluminum |
| 24 | 38 | 297-1-1/2-P-AL | 297-1-1/2-C-AL | Aluminum |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 1.8 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | PARKER 4200 SERIESPIONEER 2000 SERIESSAFEWAY S40 SERIESFASTER CPV SERIESFASTER CNV SERIESSTUCCHI I-IP SERIESDNP PPV1 SERIESVOSWINKEL HP SERIESDIXON AG SERIES |
| Valve Type: | Poppet | |
| Connection: | Push to Connect | |
| Disconnection: | Pull to Disconnect | |
| Connection Under Pressure: | Not Allowed | |
Pressure Drop
Pressure Drop
