EH 02,21 Series | RECTUS Style Pneumatic Quick Coupling (Brass, Steel)
This EH series is interchangeable with Parker 20 series, Parker 30 series, Hansen 1000 series, Hansen 3000 series, Rectus 23KA series, Rectus 24 series, Rectus 1400 series, Rectus 1423 series, CEJN 310 series, TEMA 1400 series, FOSTER 3/4/5/6 series, GROMELLE 600 series, JWL 521 series, JWL 531 series, and Eaton 43 series pneumatic quick couplers.
This sleeve-type coupler accepts industrial interchange. It is widely used to connect air lines and low-pressure fluids. Its compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple. The sliding spring-loaded sleeve on the coupler must be manually retracted to connect or disconnect the nipple. Common applications include compressed air, water, grease, paint, limited vacuum, and limited gases.
Interchange
- Parker 20 Series
- Parker 30 Series
- HANSEN 1000 Series
- HANSEN 3000 Series
- FOSTER 3/4/5/6 SERIES
- RECTUS 23KA Series
- RECTUS 24 Series
- RECTUS 1400 Series
- GROMELLE 600 Series
- JWL 531 Series
- RECTUS 1423 Series
- CEJN 310 Series
- TEMA 1400 Series
- JWL 521 Series
- EATON 43 Series
Call Tawk.to
contact@ehhydraulics.com
EH 02,21 Series | RECTUS Style Pneumatic Quick Coupling (Brass, Steel)
This EH series is interchangeable with Parker 20 series, Parker 30 series, Hansen 1000 series, Hansen 3000 series, Rectus 23KA series, Rectus 24 series, Rectus 1400 series, Rectus 1423 series, CEJN 310 series, TEMA 1400 series, FOSTER 3/4/5/6 series, GROMELLE 600 series, JWL 521 series, JWL 531 series, and Eaton 43 series pneumatic quick couplers.
This sleeve-type coupler accepts industrial interchange. It is widely used to connect air lines and low-pressure fluids. Its compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple. The sliding spring-loaded sleeve on the coupler must be manually retracted to connect or disconnect the nipple. Common applications include compressed air, water, grease, paint, limited vacuum, and limited gases.
Interchange
- Parker 20 Series
- Parker 30 Series
- HANSEN 1000 Series
- HANSEN 3000 Series
- RECTUS 1423 Series
- TEMA 1400 Series
- GROMELLE 600 Series
- JWL 531 Series
- RECTUS 23KA Series
- RECTUS 24 Series
- RECTUS 1400 Series
- CEJN 310 Series
- FOSTER 3/4/5/6 SERIES
- JWL 521 Series
- EATON 43 Series
- SNAP-TITE H SERIES
- FASTER TNV SERIES
- DNP PNO1 SERIES
Call Tawk.to
contact@ehhydraulics.com

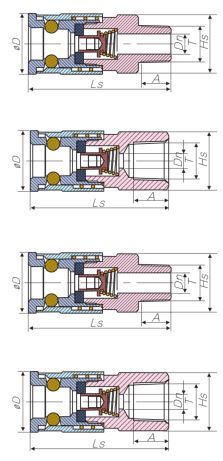

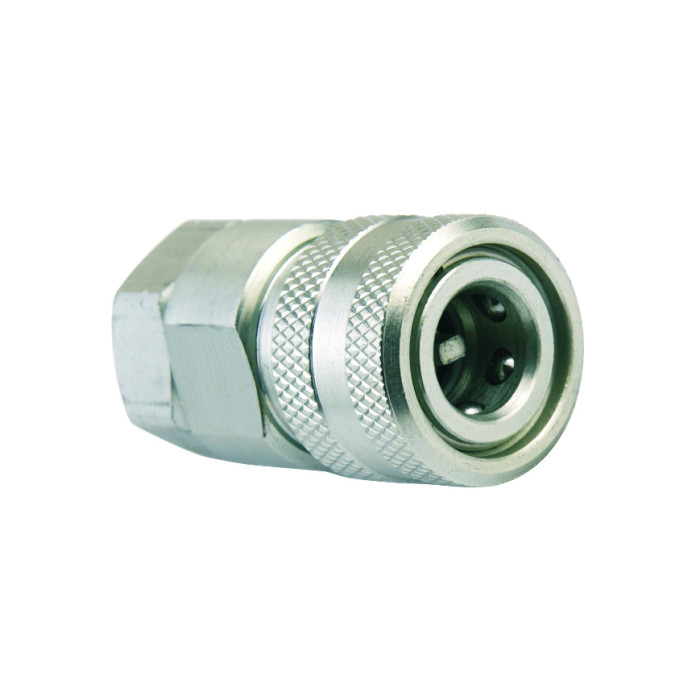

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Size | Ls(mm) | D(mm) | Hs(mm) | A(mm) | T | Dn(mm) |
| PFBMC0214-1/4” | 1/4” | 04SM | 51.5 | 22.7 | S19 | 11 | 1/4″NPTF | 7.5 |
| PFBMC0214-3/8” | 1/4” | 06SM | 52.5 | 22.7 | S19 | 12 | 3/8″NPTF | 8.5 |
| PFBMC0214-1/2” | 1/4” | 08SM | 55.5 | 22.7 | S22 | 15 | 1/2″NPTF | 8.5 |
| PFBMC0238-3/8” | 3/8” | 06SM | 66 | 27 | S22 | 14 | 3/8″NPTF | 11 |
| PFBMC0212-1/2” | 1/2” | 08SM | 78 | 32 | S25 | 16 | 1/2″NPTF | 13 |
| PFBFC0214-1/4″ | 1/4” | 04SM | 48.5 | 22.7 | S19 | 11 | 1/4″NPTF | 7.5 |
| PFBFC0214-3/8″ | 1/4” | 06SM | 49.5 | 22.7 | S20.5 | 12 | 3/8″NPTF | 8.5 |
| PFBFC0214-1/2″ | 1/4” | 08SM | 52.5 | 22.7 | S24 | 15 | 1/2″NPTF | 8.5 |
| PFBFC0238-3/8″ | 3/8” | 06SM | 60 | 27 | S22 | 14 | 3/8″NPTF | 11 |
| PFBFC0212-1/2″ | 1/2” | 08SM | 74 | 32 | S25 | 16 | 1/2″NPTF | 13 |

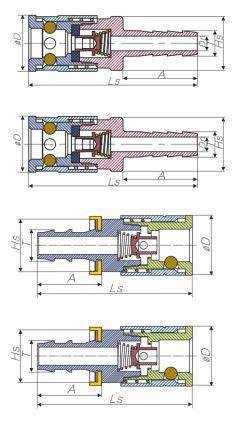

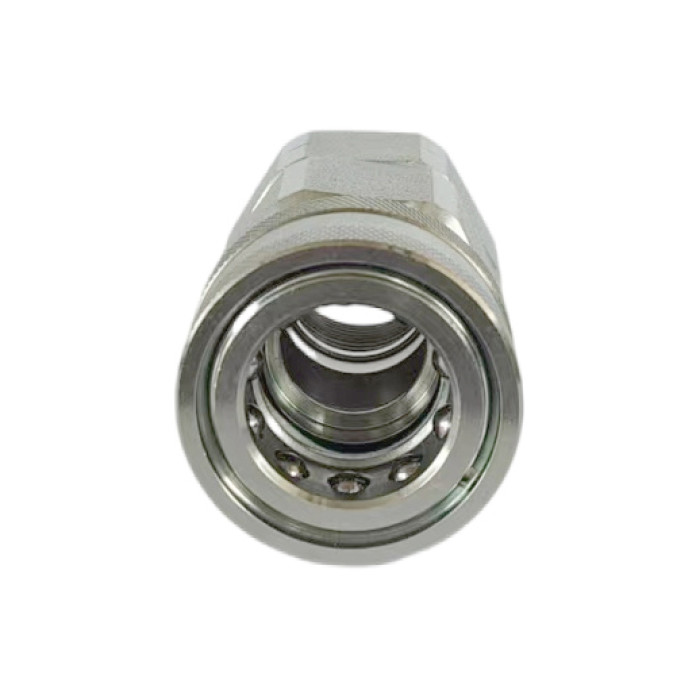

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Size | Ls(mm) | D(mm) | Hs(mm) | A(mm) | T | Dn(mm) |
| PFBHC0214-1/4” | 1/4” | 04SH | 60.7 | 22.7 | S19 | 24.7 | 1/4″ | 4 |
| PFBHC0214-3/8” | 1/4” | 06SH | 60.7 | 22.7 | S20.5 | 24.7 | 3/8″ | 6 |
| PFBHC0238-3/8” | 3/8” | 06SH | 76 | 27 | S22 | 30 | 3/8″ | 11 |
| PFSHC0214-1/4” | 1/4” | 04SH | 60.7 | 22.7 | S19 | 24.7 | 1/4″ | 4 |
| PFSHC0214-3/8” | 1/4” | 06SH | 60.7 | 22.7 | S19 | 24.7 | 3/8″ | 6 |
| PFSHC0238-3/8” | 3/8” | 06SH | 76 | 27 | S22 | 30 | 3/8″ | 11 |
| PFBHC2114-1/4″ | 1/4” | 04SH | 56.5 | 22.7 | S19 | 20.5 | 1/4″H | 4 |
| PFBHC2114-3/8″ | 1/4” | 06SH | 60 | 22.7 | S20.5 | 24 | 3/8″H | 6 |
| PFBHC2138-3/8″ | 3/8” | 06SH | 70 | 27 | S22 | 30 | 3/8″H | 11 |
| PFSHC2114-1/4″ | 1/4” | 04SH | 56.5 | 22.7 | S19 | 20.5 | 1/4″H | 4 |
| PFSHC2114-3/8″ | 1/4” | 06SH | 60 | 22.7 | S19 | 24 | 3/8″H | 6 |
| PFSHC2138-3/8″ | 3/8” | 06SH | 70 | 27 | S22 | 30 | 3/8″H | 11 |

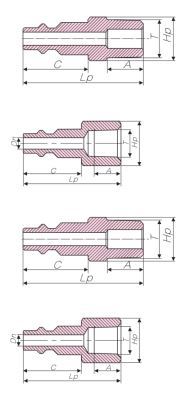

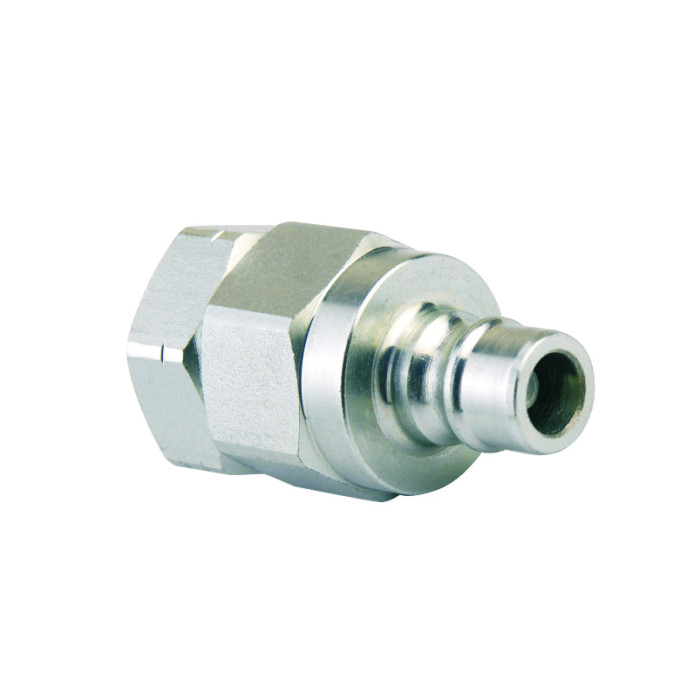

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Size | Lp(mm) | Hp(mm) | A(mm) | C(mm) | T | Dn(mm) |
| PFSMP0214-1/4” | 1/4” | 04PM | 43.5 | S14 | 11 | 23.8 | 1/4″NPTF | 4.7 |
| PFSMP0214-3/8” | 1/4” | 06PM | 44.5 | S19 | 12 | 23.8 | 3/8″NPTF | 4.7 |
| PFSMP0214-1/2” | 1/4” | 08PM | 47.5 | S22 | 15 | 23.8 | 1/2″NPTF | 4.7 |
| PFSMP0238-3/8” | 3/8” | 06PM | 45 | S17 | 12 | 26.5 | 3/8″NPTF | 7 |
| PFSMP0212-1/2” | 1/2” | 08PM | 58 | S21 | 16 | 33 | 1/2″NPTF | 10 |
| PFSFP0214-1/4″ | 1/4” | 04PF | 40.5 | S16 | 11 | 23.8 | 1/4″NPTF | 4.7 |
| PFSFP0214-3/8″ | 1/4” | 06PF | 41.5 | S20.5 | 12 | 23.8 | 3/8″NPTF | 4.7 |
| PFSFP0214-1/2″ | 1/4” | 08PF | 44.5 | S24 | 15 | 23.8 | 1/2″NPTF | 4.7 |
| PFSFP0238-3/8″ | 3/8” | 06PF | 46 | S22 | 14 | 26.5 | 3/8″NPTF | 7 |
| PFSFP0212-1/2″ | 1/2” | 08PF | 52.5 | S25 | 16 | 33 | 1/2″NPTF | 10 |

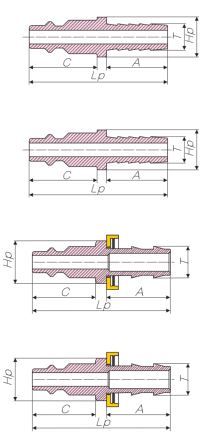

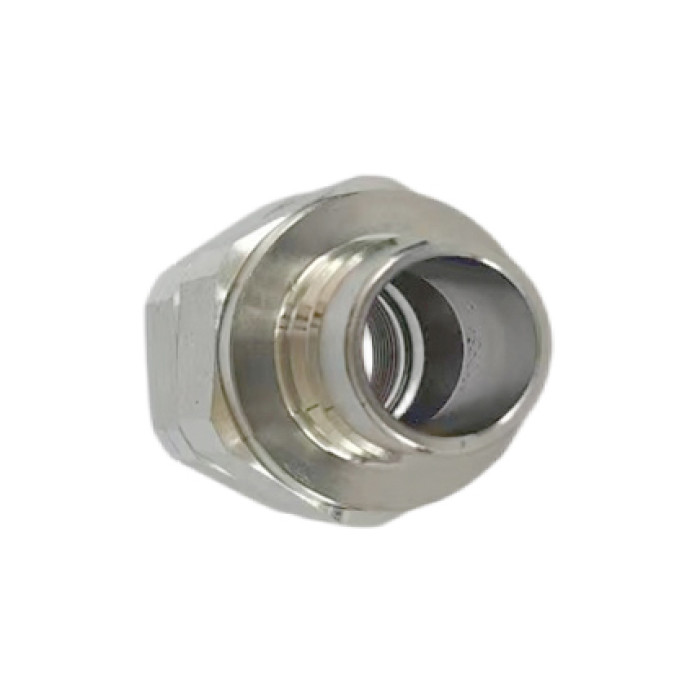

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Size | Lp(mm) | Hp(mm) | A(mm) | C(mm) | T | Dn(mm) |
| PFBHP0214-1/4” | 1/4” | 04PH | 52.7 | 14 | 24.7 | 23.8 | 1/4″ | 4.7 |
| PFBHP0214-3/8” | 1/4” | 06PH | 52.7 | 14 | 24.7 | 23.8 | 3/8″ | 4.7 |
| PFBHP0238-3/8” | 3/8” | 06PH | 60.5 | 14 | 30 | 26.5 | 3/8″ | 7 |
| PFSHP0214-1/4” | 1/4” | 04PH | 52.7 | 14 | 24.7 | 23.8 | 1/4″ | 4.7 |
| PFSHP0214-3/8” | 1/4” | 06PH | 52.7 | 14 | 24.7 | 23.8 | 3/8″ | 4.7 |
| PFSHP0238-3/8” | 3/8” | 06PH | 60.5 | 14 | 30 | 26.5 | 3/8″ | 7 |
| PFBHP2114-1/4″ | 1/4” | 04PH | 48.5 | 14 | 20.5 | 23.8 | 1/4″H | 4.7 |
| PFBHP2114-3/8″ | 1/4” | 06PH | 52 | 14 | 24 | 23.8 | 3/8″H | 4.7 |
| PFBHP2138-3/8″ | 3/8” | 06PH | 55 | 14 | 24.5 | 26.5 | 3/8″ | 7 |
| PFSHP2114-1/4″ | 1/4” | 04PH | 48.5 | 14 | 20.5 | 23.8 | 1/4″H | 4.7 |
| PFSHP2114-3/8″ | 1/4” | 06PH | 52 | 14 | 24 | 23.8 | 3/8″H | 4.7 |
| PFSHP2138-3/8″ | 3/8” | 06PH | 55 | 14 | 24.5 | 26.5 | 3/8″ | 7 |
Technical Specifications
Technical Specifications
| Max. Work Pressure (Psi) 300Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 06 | 3/8” | 550 | 330 | 550 | 1400 | 1000 | 1400 | 0.01 |
| 08 | 1/2” | 550 | 330 | 550 | 1400 | 1000 | 1400 | 0.01 |
| 10 | 5/8” | 550 | 330 | 550 | 1400 | 1000 | 1400 | 0.02 |
| 12 | 3/4” | 500 | 330 | 500 | 1250 | 1000 | 1250 | 0.03 |
| 16 | 1” | 470 | 300 | 470 | 1200 | 800 | 1200 | 0.03 |
| 24 | 1-1/2” | 400 | 300 | 400 | 1100 | 800 | 1100 | 0.03 |
| Material: | Steel, Brass | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | Parker 20 seriesParker 30 seriesHansen 1000 seriesHansen 3000 seriesRectus 23KA seriesRectus 24 seriesRectus 1400 seriesRectus 1423 seriesCEJN 310 seriesTEMA 1400 seriesFOSTER 3/4/5/6 seriesGROMELLE 600 seriesJWL 521 seriesJWL 531 seriesEaton 43 series |
| Valve Type: | Ball | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |
