EH 100 Series – Nordic TEMA Model Quick Couplings (Steel)
This EH series is interchangeable with CEJN 525 SERIES, STUCCHI IRC SERIES, TEMA T SERIES, PARKER H SERIES, DIXON TR SERIES and DNP PTV1 SERIES. The 100 Series Interchange Coupler (Nordic-type) combines advanced safety and reliable sealing for demanding hydraulic applications. Its protective safety sleeve prevents accidental disconnection, while the elastomer-sealed poppet valve ensures leak-free performance when disconnected. The series offers dual poppet options—standard and pressure-eliminator variants—to meet diverse system requirements. Designed for flexible operation, these couplers allow connection under residual pressure (male or female side), provided the counterpart is pressure-free, ensuring safe and efficient maintenance in industrial environments. 100 is the standard version, 200 is the connection under pressure version.
Interchange
- CEJN 525 SERIES
- PARKER H SERIES
- STUCCHI IRC SERIES
- DIXON TR SERIES
- TEMA T SERIES
- DNP PTV1 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 100 Series – Nordic TEMA Model Quick Couplings (Steel)
This EH series is interchangeable with CEJN 525 SERIES, STUCCHI IRC SERIES, TEMA T SERIES, PARKER H SERIES, DIXON TR SERIES and DNP PTV1 SERIES. The 100 Series Interchange Coupler (Nordic-type) combines advanced safety and reliable sealing for demanding hydraulic applications. Its protective safety sleeve prevents accidental disconnection, while the elastomer-sealed poppet valve ensures leak-free performance when disconnected. The series offers dual poppet options—standard and pressure-eliminator variants—to meet diverse system requirements. Designed for flexible operation, these couplers allow connection under residual pressure (male or female side), provided the counterpart is pressure-free, ensuring safe and efficient maintenance in industrial environments. 100 is the standard version, 200 is the connection under pressure version.
Interchange
- CEJN 525 SERIES
- PARKER H SERIES
- STUCCHI IRC SERIES
- DIXON TR SERIES
- TEMA T SERIES
- DNP PTV1 SERIES
Call Tawk.to
contact@ehhydraulics.com

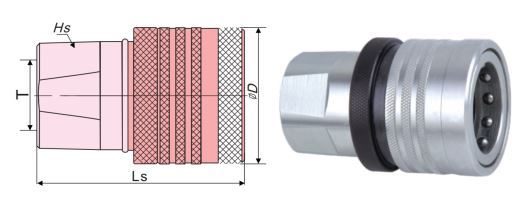

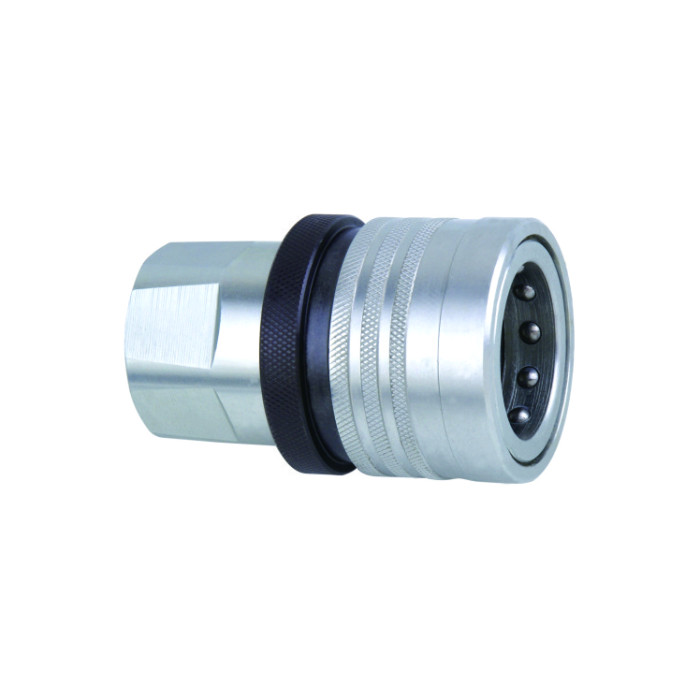

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC10038-3/8″ | 3/8” | 62 | 34 | S24 | 3/8″BSPP |
| HFSFC10012-1/2″ | 1/2” | 68 | 40 | S30 | 1/2″ BSPP |
| HFSFC10034-3/4″ | 3/4” | 79 | 52 | S38 | 3/4″ BSPP |
| HFSFC10010-1″ | 1” | 92 | 62 | S45 | 1″ BSPP |

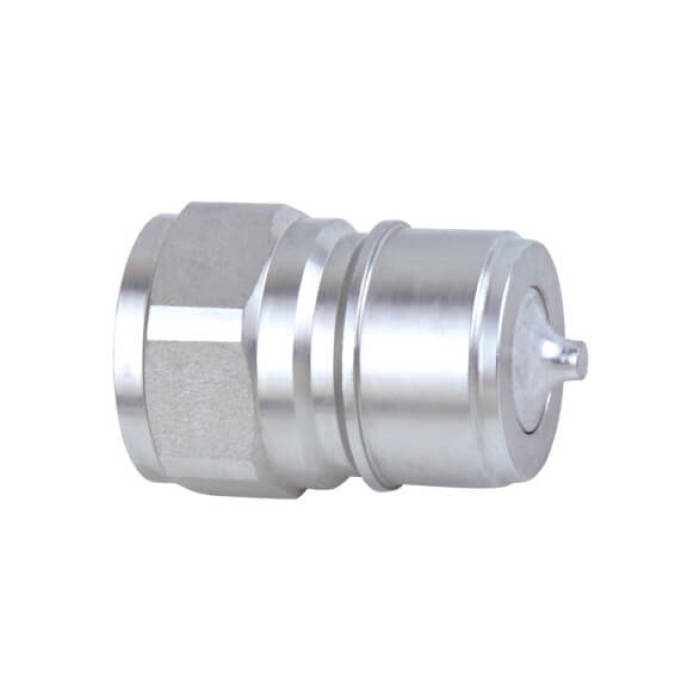

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP10038-3/8″ | 3/8” | 39 | S22 | 3/8″BSPP |
| HFSFP10012-1/2″ | 1/2” | 43 | S27 | 1/2″ BSPP |
| HFSFP10034-3/4″ | 3/4” | 50 | S36 | 3/4″ BSPP |
| HFSFP10010-1″ | 1” | 56.5 | S45 | 1″ BSPP |
Accessories
Full flow couplings without valves are all available on your request (valveless couplings).
Accessories
Full flow couplings without valves are all available on your request (valveless couplings).
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 06 | 3/8” | 350 | 350 | 350 | 1300 | 1300 | 1300 | 0.02 |
| 08 | 1/2” | 300 | 300 | 300 | 1100 | 1100 | 1100 | 0.03 |
| 12 | 3/4” | 280 | 280 | 280 | 1000 | 1000 | 1000 | 0.06 |
| 16 | 1” | 250 | 250 | 250 | 930 | 930 | 930 | 0.1 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | CEJN 525 SERIESSTUCCHI IRC SERIESTEMA T SERIESPARKER H SERIESDIXON TR SERIESDNP PTV1 SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

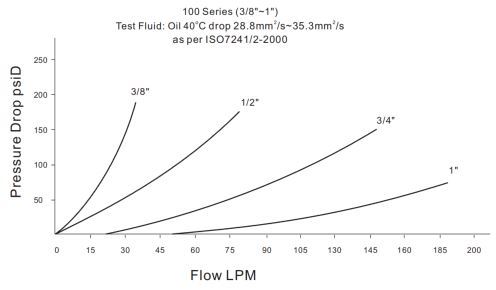

Pressure Drop
Pressure Drop
