EH 63 Series – HNVN Standard Quick Couplings For Japanese Market (Steel)
This EH series is interchangeable with the FASTER HNVN SERIES. Steel Product. Standard couplings for industrial applications, interchangeable for the Japanese market.
EH 63 Series – HNVN Standard Quick Couplings For Japanese Market (Steel)
This EH series is interchangeable with the FASTER HNVN SERIES. Steel Product. Standard couplings for industrial applications, interchangeable for the Japanese market.

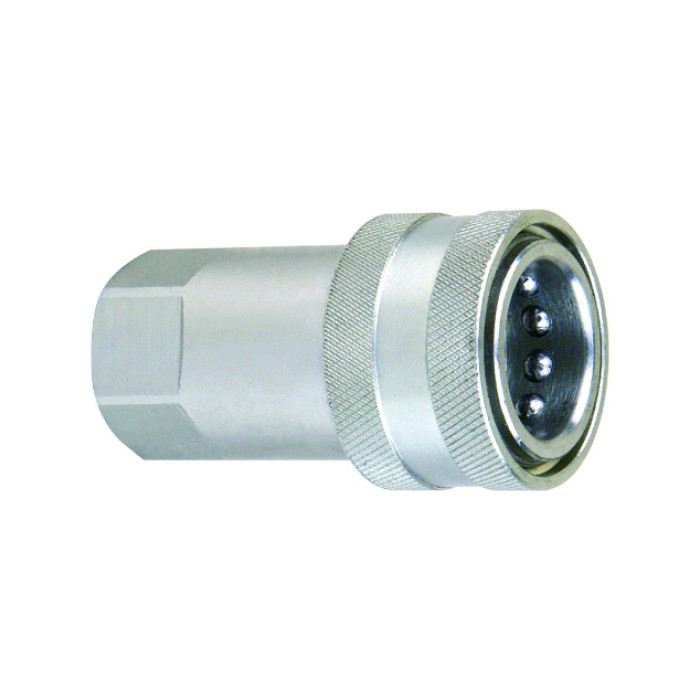

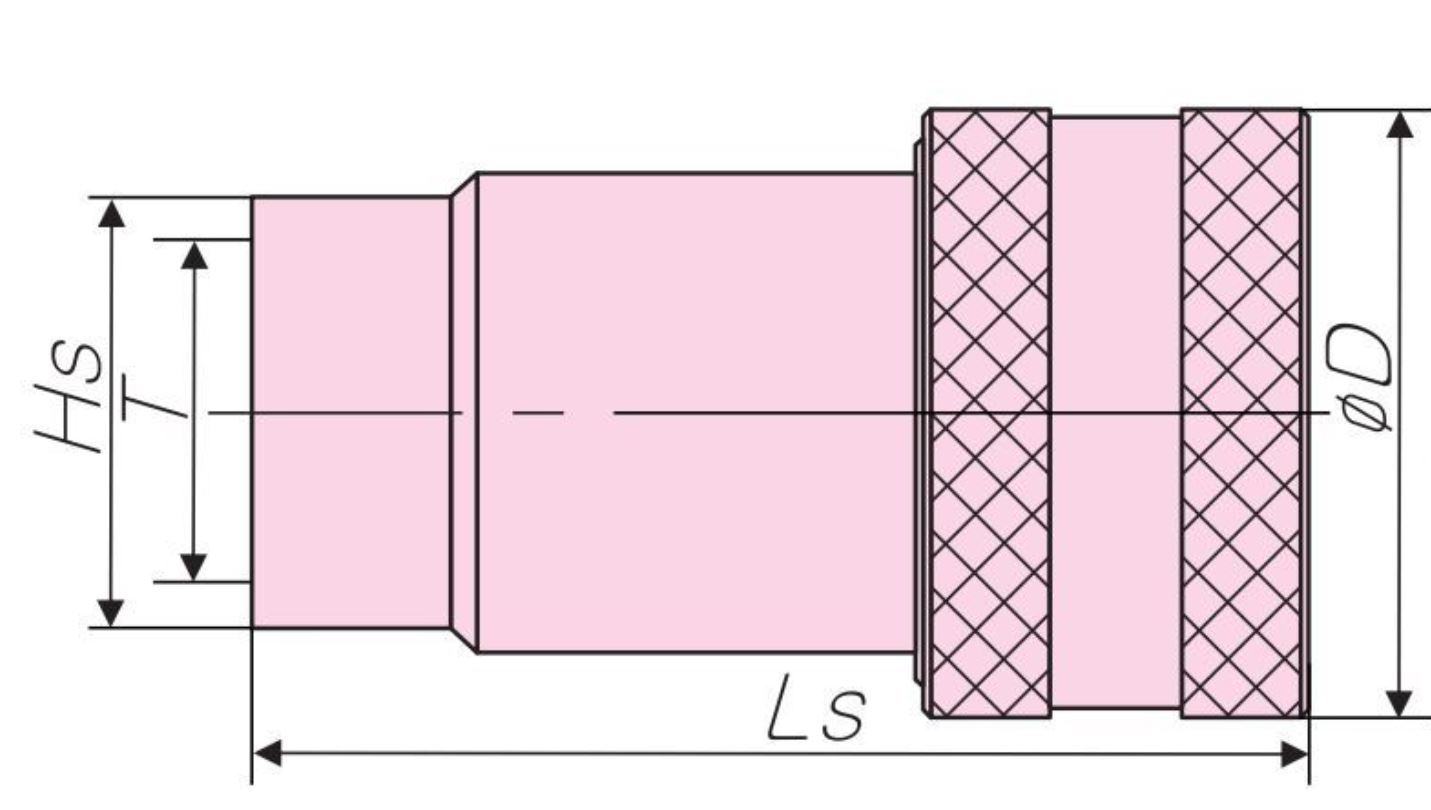

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC6314-G1/4 | 1/4” | 51 | 28.2 | S19 | BSPP 1/4″ FEMALE |
| HFSFC6314-Rc1/4 | 1/4” | 51 | 28.2 | S19 | Rc 1/4 FEMALE (JPT) |
| HFSFC6338-G3/8 | 3/8” | 64 | 35 | S24 | BSPP 3/8″ FEMALE |
| HFSFC6338-Rc3/8 | 3/8” | 64 | 35 | S24 | Rc 3/8 FEMALE (JPT) |
| HFSFC6312-G3/4 | 1/2” | 71 | 44 | S30 | BSPP 3/4″ FEMALE |
| HFSFC6312-Rc1/2 | 1/2” | 71 | 44 | S30 | Rc 1/2 FEMALE (JPT) |

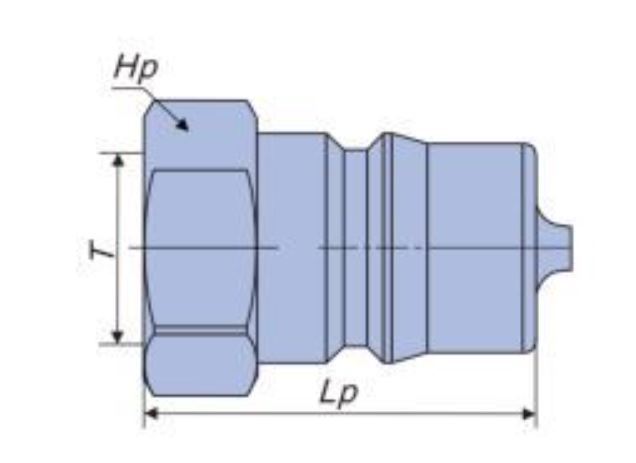

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP6314-G1/4 | 1/4” | 33 | S19 | BSPP 1/4″ FEMALE |
| HFSFP6314-Rc1/4 | 1/4” | 33 | S19 | Rc 1/4 FEMALE (JPT) |
| HFSFP6338-G3/8 | 3/8” | 39 | S22 | BSPP 3/8″ FEMALE |
| HFSFP6338-Rc3/8 | 3/8” | 39 | S22 | Rc 3/8 FEMALE (JPT) |
| HFSFP6312-G3/4 | 1/2” | 44 | S27 | BSPP 3/4″ FEMALE |
| HFSFP6312-Rc1/2 | 1/2” | 44 | S27 | Rc 1/2 FEMALE (JPT) |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 450 | 450 | 450 | 1800 | 2000 | 1800 | 1 |
| 06 | 3/8” | 300 | 300 | 300 | 1300 | 1200 | 1800 | 1.5 |
| 08 | 1/2” | 350 | 350 | 350 | 1400 | 1400 | 1500 | 2.8 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | FASTER HNVN SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

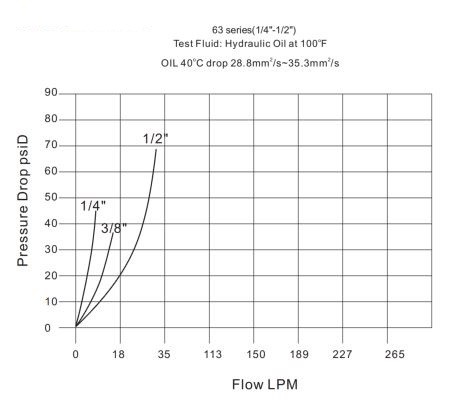

Pressure Drop
Pressure Drop
